TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function meter unit .................3-7
Anti-theft alarm (optional) .............3-13
Handlebar switches ......................3-14
Clutch lever ...................................3-15
Shift pedal .....................................3-15
Brake lever ...................................3-16
Brake pedal ..................................3-16
Fuel tank cap ................................3-17
Fuel ...............................................3-17
Fuel tank breather/
overflow hose ............................3-18
Catalytic converter ........................3-19
Seats ............................................3-19
Helmet holders .............................3-20
Adjusting the front fork ..................3-21
Adjusting the shock absorber
assembly ...................................3-22
Luggage strap holders ..................3-25
EXUP system ...............................3-25Sidestand ..................................... 3-25
Ignition circuit cut-off system ........ 3-26
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plugs ............... 6-9
Engine oil and oil filter cartridge ... 6-10
Coolant ......................................... 6-13
Replacing the air filter element ..... 6-16
Checking the engine idling
speed ........................................ 6-18
Checking the throttle cable free
play ........................................... 6-18
Valve clearance ............................ 6-18Tires ............................................. 6-19
Cast wheels ................................. 6-21
Adjusting the clutch lever free
play ........................................... 6-22
Adjusting the rear brake light
switch ....................................... 6-22
Checking the front and rear
brake pads ................................ 6-23
Checking the brake fluid level ...... 6-23
Changing the brake fluid .............. 6-24
Drive chain slack .......................... 6-25
Cleaning and lubricating the
drive chain ................................ 6-26
Checking and lubricating the
cables ....................................... 6-27
Checking and lubricating the
throttle grip and cable ............... 6-27
Checking and lubricating the
brake and clutch levers ............ 6-27
Checking and lubricating the
shift pedal ................................. 6-28
Checking and lubricating the
sidestand .................................. 6-28
Lubricating the swingarm
pivots ........................................ 6-29
Checking the front fork ................. 6-29
Checking the steering .................. 6-30
Checking the wheel bearings ....... 6-30
Battery ......................................... 6-31
Replacing the fuses ..................... 6-32
Replacing a headlight bulb .......... 6-34U4C8E1E0.book Page 1 Wednesday, June 13, 2007 9:24 AM

TABLE OF CONTENTS
Tail/brake light .............................. 6-37
Replacing a turn signal light
bulb ........................................... 6-37
Replacing the license plate light
bulb ........................................... 6-38
Replacing an auxiliary light bulb ... 6-38
Supporting the motorcycle ............ 6-39
Front wheel ................................... 6-40
Rear wheel ................................... 6-42
Troubleshooting ............................ 6-43
Troubleshooting charts ................. 6-44
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-4
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U4C8E1E0.book Page 2 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU42930
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a high beam headlight
bulb
1. Remove panel C (if replacing the
left headlight bulb) or panel D (if re-
placing the right headlight bulb).
(See page 6-6.)
2. Disconnect the headlight coupler,
and then remove the bulb cover.
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Turn signal light fuse:
7.5 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
1. High beam headlight bulb
2. Low beam headlight bulb
U4C8E1E0.book Page 34 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6 3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
To replace a low beam headlight
bulb
1. Remove the headlight bulb cover
by turning it counterclockwise.
1. Headlight bulb cover
2. Headlight coupler
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U4C8E1E0.book Page 35 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
62. Disconnect the headlight coupler.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:


Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Headlight bulb cover
1. Headlight coupler
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U4C8E1E0.book Page 36 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6 5. Connect the headlight coupler.
6. Install the headlight bulb cover by
turning it clockwise.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.1. Screw
U4C8E1E0.book Page 37 Wednesday, June 13, 2007 9:24 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6
EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU33910
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove panel C (if replacing the
left auxiliary light bulb) or panel D
(if replacing the right auxiliary light
bulb). (See page 6-6.)
2. Remove the auxiliary light bulb
cover by removing the quick fas-
tener.NOTE:
Remove the quick fastener by pushing
the center pin in with a screwdriver,then pulling the fastener out.
1. License plate light unit
2. Screw
1. License plate light bulb
1. Auxiliary light bulb cover
2. Quick fastener
U4C8E1E0.book Page 38 Wednesday, June 13, 2007 9:24 AM

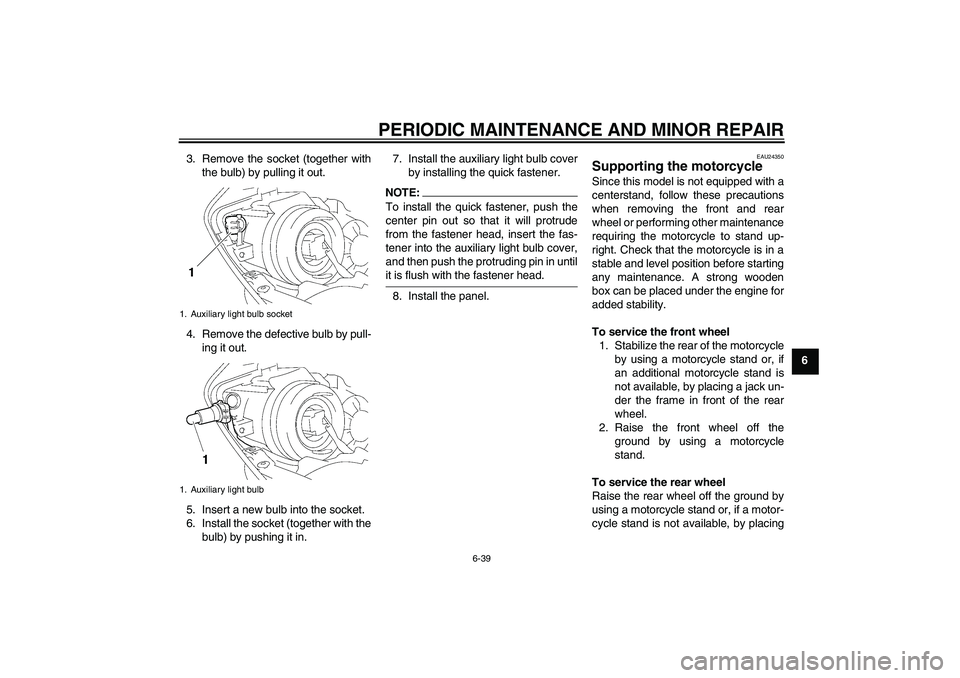

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6 3. Remove the socket (together with
the bulb) by pulling it out.
4. Remove the defective bulb by pull-
ing it out.
5. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by pushing it in.7. Install the auxiliary light bulb cover
by installing the quick fastener.
NOTE:To install the quick fastener, push the
center pin out so that it will protrude
from the fastener head, insert the fas-
tener into the auxiliary light bulb cover,
and then push the protruding pin in untilit is flush with the fastener head.
8. Install the panel.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulb socket
1. Auxiliary light bulb
U4C8E1E0.book Page 39 Wednesday, June 13, 2007 9:24 AM
