TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND
CONTROL FUNCTIONS ................................ 4-1
Main switch ................................................ 4-1
Indicator lights ............................................ 4-2
Handlebar switches .................................... 4-2
Throttle lever .............................................. 4-3
Speed limiter .............................................. 4-4
Clutch lever ................................................ 4-5
Brake lever ................................................. 4-5
Brake pedal ................................................ 4-5
Parking brake lever .................................... 4-6
Shift pedal .................................................. 4-7
Drive select lever ........................................ 4-7
Fuel tank cap .............................................. 4-8Fuel .............................................................4-8
Fuel cock ....................................................4-9
Starter (choke) ..........................................4-11
Seat ..........................................................4-11
Adjusting the front shock
absorber assemblies ...............................4-12
Adjusting the rear shock
absorber assembly .................................4-14
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ..............................5-1
Fuel .............................................................5-3
Engine oil ....................................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-4
Drive chain ..................................................5-4
Tires ............................................................5-4
Measuring the tire pressure ........................5-5
Tire wear limit .............................................5-6
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting a cold engine .................................6-1U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

Starting a warm engine .............................. 6-3
Operating the drive select lever and
driving in reverse ...................................... 6-3
Shifting ....................................................... 6-4
Engine break-in .......................................... 6-6
Parking ....................................................... 6-6
Parking on a slope ..................................... 6-7
Accessories and loading ............................ 6-8
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND
GOOD JUDGEMENT ................................ 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-17
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH
SHALLOW WATER................................. 7-19
RIDING OVER ROUGH TERRAIN ........... 7-21
SLIDING AND SKIDDING ......................... 7-22
WHAT TO DO IF... .................................... 7-23
WHAT TO DO... ........................................ 7-23PERIODIC MAINTENANCE AND
MINOR REPAIR .............................................8-1
Owner’s manual and tool kit .......................8-1
Periodic maintenance chart
for the emission control system ................8-3
General maintenance and
lubrication chart ........................................8-5
Checking the spark plug .............................8-9
Engine oil and oil filter element .................8-11
Cleaning the air filter element ...................8-14
Cleaning the spark arrester ......................8-18
Adjusting the carburetor ............................8-19
Adjusting the engine idling speed .............8-20
Adjusting the throttle cable free play .........8-21
Valve clearance ........................................8-21
Checking the front and rear brake pads ...8-22
Checking the brake fluid level ...................8-23
Changing the brake fluid ...........................8-24
Checking the front brake lever free play ...8-24
Checking the brake pedal position ............8-25
Adjusting the parking brake free play .......8-26
Brake light switches ..................................8-27
Adjusting the clutch lever free play ...........8-28
Drive chain slack .......................................8-29
Lubricating the drive chain ........................8-31
Checking and lubricating the cables .........8-32
U5YT64E0.book Page 2 Monday, April 9, 2007 1:03 PM

1-3
1 speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00061
Always turn off the engine when refueling.
Do not refuel right after the engine has been
running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never re-
fuel while smoking, or in the vicinity of
sparks, open flames, or other sources of ig-
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

4-3
4
EBU18100Start switch “”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU18151Light switch “//OFF”
Set this switch to “” to turn on the low beams
and the taillight. Set the switch to “” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.CAUTION:ECB00040Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery andrecharge it.
EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-1. Throttle lever
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

4-4
4eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-
fore riding the ATV or consult a Yamaha dealer.EBU18321Speed limiter Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).3. Tighten the locknut.
WARNING
EWB00240Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).(See page 8-21.)1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U5YT64E0.book Page 4 Monday, April 9, 2007 1:03 PM

5-1
5
EBU19200

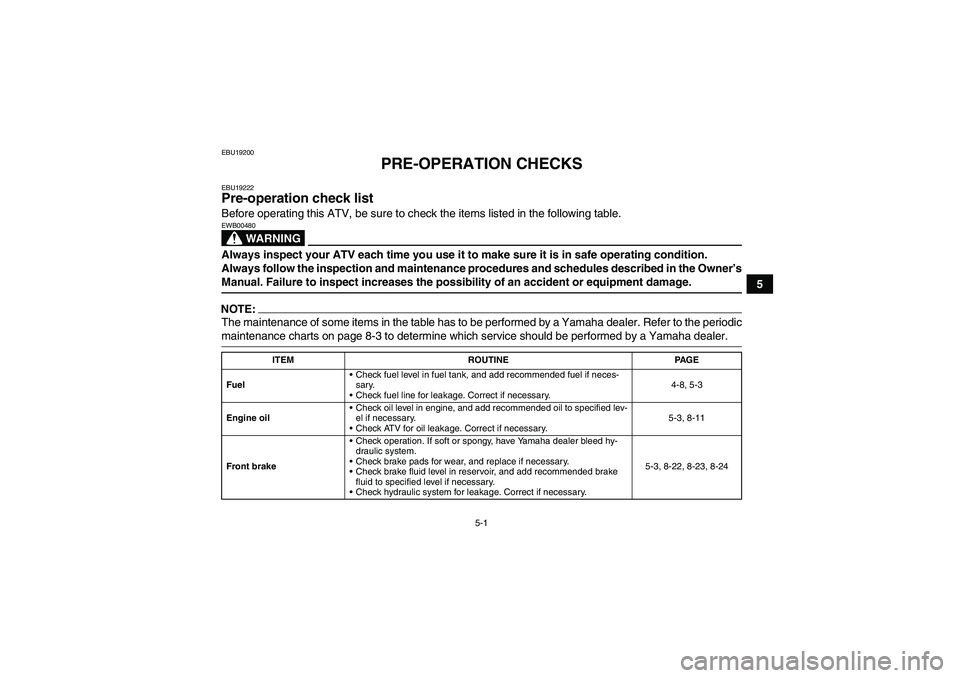

PRE-OPERATION CHECKS
EBU19222Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.
WARNING
EWB00480Always inspect your ATV each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Owner’sManual. Failure to inspect increases the possibility of an accident or equipment damage.NOTE:The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the periodicmaintenance charts on page 8-3 to determine which service should be performed by a Yamaha dealer.
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-8, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-11
Front brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-22, 8-23, 8-24
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-8.)
WARNING
EWB00520
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-11.)
EBU19710Front and rear brakes Brake lever and brake pedal
Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.
Check for correct brake pedal height. (See page
8-25.) If the pedal height is incorrect, have a
Yamaha dealer adjust it.
Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-23.)
Recommended brake fluid:
DOT 4
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU20161Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-6prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “”.
4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.NOTE:This model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.
The transmission is in neutral.
The clutch is disengaged with the shift pedal and
the drive select lever in any position. However, it
is recommended to shift into neutral before start-ing the engine.
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
