DESCRIPTION
2-1
2
EAU10410
Left view1. Windshield
2. Idle adjusting screw (page 6-17)
3. Main fuse (page 6-32)
4. Battery (page 6-30)
5. Fuse box 1 (page 6-32)
6. Fuse box 2 (page 6-32)
7. Storage compartment (page 3-13)
8. Grab bar9. Seat lock (page 3-12 )
10.Shift pedal (page 3-9)
11.Engine oil drain bolt (crankcase) (page 6-10)U5VKE1E0.book Page 1 Tuesday, July 18, 2006 1:00 PM
PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAUM1740

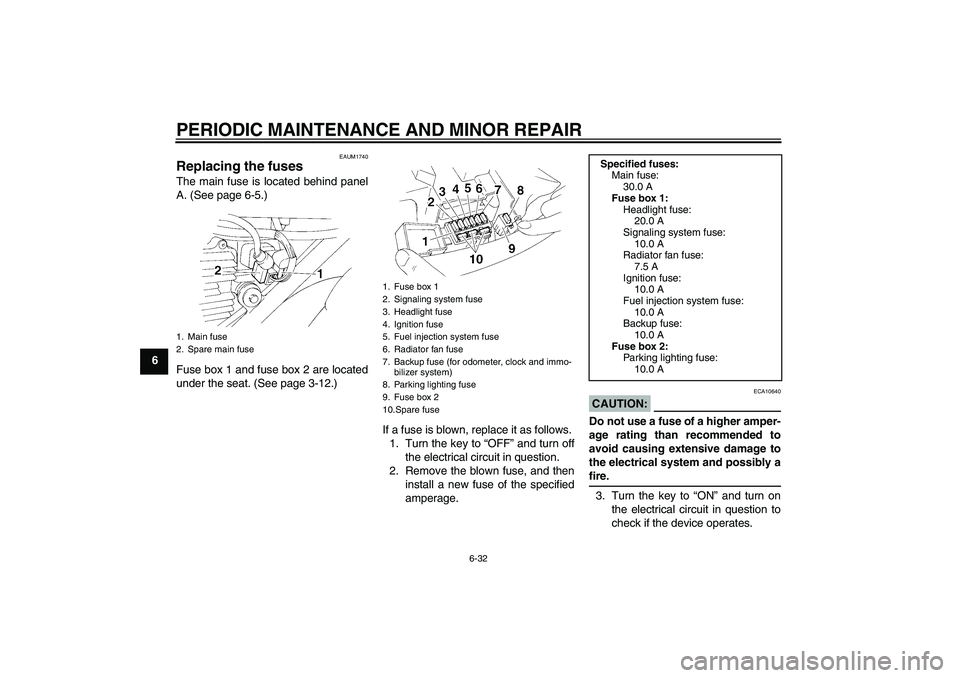

Replacing the fuses The main fuse is located behind panel
A. (See page 6-5.)
Fuse box 1 and fuse box 2 are located
under the seat. (See page 3-12.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Main fuse
2. Spare main fuse
1. Fuse box 1
2. Signaling system fuse
3. Headlight fuse
4. Ignition fuse
5. Fuel injection system fuse
6. Radiator fan fuse
7. Backup fuse (for odometer, clock and immo-
bilizer system)
8. Parking lighting fuse
9. Fuse box 2
10.Spare fuse
Specified fuses:
Main fuse:
30.0 A
Fuse box 1:
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Radiator fan fuse:
7.5 A
Ignition fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
Fuse box 2:
Parking lighting fuse:
10.0 A
