2008 YAMAHA XMAX 250 check engine

crank the engine more than 10
seconds on any one attempt. If the
engine does not start, try with the
throttle open 1/8 turn.
ECA11040
CAUTION:
For maximum engine life, never
accelerate hard when the engine is
cold!
EAU16761
Starting off
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
(b)
(a)
ZAUM0199
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
1C0-F8199-E4.qxd 22/11/07 05:41 Página 39

EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUM2010
0~1000 km (0~600 mi)
Avoid prolonged operation above 1/3
throttle.
1000~1600 km (600~1000 mi)
Avoid prolonged operation above 1/2
throttle.
ECA11660
CAUTION:
After 1000 km (600 mi) of operation,
be sure to replace the engine oil
and final transmission oil.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
ECA10270
CAUTION:
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17212
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
s s
WARNING
●Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
●Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.
ECA10380
CAUTION:
Never park in an area where there
are fire hazards such as grass or
other flammable materials.
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
1C0-F8199-E4.qxd 22/11/07 05:41 Página 41

ODOMETER READING
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
• Check operation, fluid level and vehicle for fluid
√√√√√ √7*Rear brakeleakage.
• Replace brake pads. Whenever worn to the limit
8*Brake hose• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√√√√• Lubricate with lithium-soap-based grease. Every 20000 km (12000 mi)
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are properly
tightened.√√√√ √
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√√√√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √• Change. Every 3 years
19 *Fuel injection• Check engine idle speed.√√√√√ √
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 45

ODOMETER READING
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1000 km 10000 km 20000 km 30000 km 40000 kmCHECK
(600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi)
• Change. (See page 6-9.)√When the oil change indicator light 20Engine oilcomes on (every 3000 km (1800 mi))
• Check oil level and vehicle for oil leakage. Every 3000 km (1800 mi)√
21 *Engine oil strainer• Clean.√
22Final transmission oil• Check vehicle for oil leakage.√√ √• Change.√√√
23 *V-belt• Replace. Every 20000 km (12000 mi)
24 *Front and rear brake
• Check operation.√√√√√ √
switches
25Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing• Check operation and free play.
26 * • Adjust the throttle cable free play if necessary.√√√√ √
and cable
• Lubricate the throttle grip housing and cable.
27 *Lights, signals • Check operation.
and switches• Adjust headlight beam.√√√√√ √
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU18670
NOTE:
●The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
1C0-F8199-E4.qxd 22/11/07 05:41 Página 46

EAUM1250
Panel A
T
o remove the panel
1. Open the storage compartment.
(See page 3-15.)
1. Screw
2. Panel A
2. Remove the screw, and then take
the panel off.
T
o install the panel
1. Place the panel in the original
position, and then install the
screw.
2. Close the storage compartment.
EAU19631
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Remove cowling D. (See page
6-6.)
2. Remove the spark plug cap.
1. Spark plug cap
3. Remove the spark plug asshown, with the spark plug
wrench included in the owner’s
tool kit.
1. Spark plug wrench
To check the spark plug
1. Spark plug gap
1. Check that the porcelain insula-
tor around the center electrode of
1
ZAUM0037
1
1
1
2
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 49

the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
NOTE:
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
2. Clean the surface of the sparkplug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4~1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
4. Install the spark plug cap.
5. Install the cowling.
EAUM1550
Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand.
NOTE:
Make sure that the scooter is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.5 ft·lbf)
Spark plug gap:
0.8 -0.9 mm (0.031 -0.035 in)
Specified spark plug:
NGK/DPR8EA-9
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 50

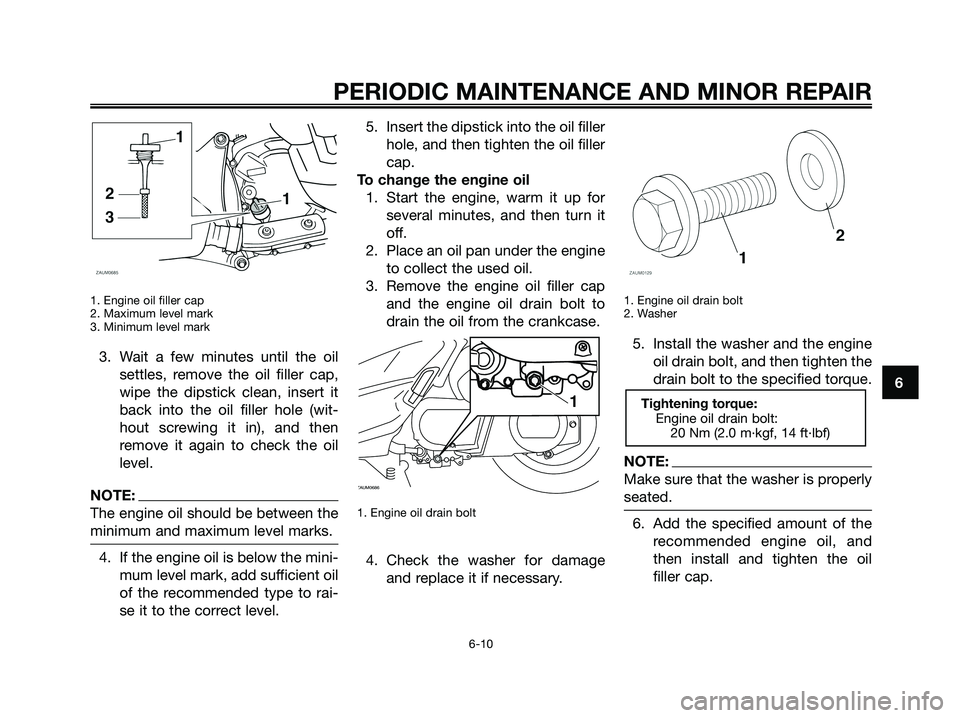

1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil filler hole (wit-
hout screwing it in), and then
remove it again to check the oil
level.
NOTE:
The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to rai-
se it to the correct level.5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.
1. Engine oil drain bolt
4. Check the washer for damage
and replace it if necessary.
1. Engine oil drain bolt
2. Washer
5. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.
NOTE:
Make sure that the washer is properly
seated.
6. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil
filler cap.
Tightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)11
ZAUM0686
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 51

ECA11670
CAUTION:
●Do not use oils with a diesel
specification of “CD” or oils of
a higher quality than specified.
In addition, do not use oils
labeled “ENERGY CONSER-
VING II” or higher.
●Be sure no foreign material
enters the crankcase.
7. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau-
se.
8. Reset the oil change indicator.
(See page 3-6.)
EAU20061
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm up the
final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the centers-
tand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the oil filler cap and
drain bolt to drain the oil from the
final transmission case.
1. Final transmission oil filler cap
2. O-ring
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
1. Final transmission oil drain bolt
Recommended engine oil:
See page 8-1.
Oil change quantity:
1.20 L (1.27 US qt) (1.06 Imp.qt)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
1C0-F8199-E4.qxd 22/11/07 05:41 Página 52
