2008 YAMAHA XMAX 125 check engine light

SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Self-diagnosis device .......................3-4
Speedometer ....................................3-4
Fuel gauge ........................................3-5
Coolant temperature gauge..............3-5
Multi-function display .......................3-6
Anti-theft alarm (optional) .................3-9
Handlebar switches ..........................3-9
Front brake lever.............................3-10
Rear brake lever..............................3-11
Fuel tank cap ..................................3-11
Fuel .................................................3-12
Catalytic converters ........................3-13
Seat.................................................3-14
Storage compartments ...................3-14
Front storage compartment............3-15
Rear storage compartment.............3-16
Adjusting the shock absorber
assemblies...................................3-17
Sidestand ........................................3-18Ignition circuit cut-off system .........3-18
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting the engine ...........................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE
AND MINOR REPAIR..........................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing the
cowlings and panel .......................6-7
Checking the spark plug ..................6-9
Engine oil ........................................6-10
Final transmission oil ......................6-13
Coolant ...........................................6-14
Air filter and V-belt case air filter
elements ......................................6-15
Adjusting the throttle cable free
play ..............................................6-17
Valve clearance ...............................6-17Tires ................................................6-18
Cast wheels ....................................6-20
Front and rear brake lever free
play ..............................................6-20
Checking the front and rear brake
pads.............................................6-21
Checking the brake fluid level ........6-21
Changing the brake fluid ................6-22
Checking and lubricating
the cables ....................................6-23
Checking and lubricating the
throttle grip and cable .................6-23
Lubricating the front and rear
brake levers .................................6-23
Checking and lubricating the
centerstand and sidestand .........6-24
Checking the front fork ...................6-24
Checking the steering.....................6-25
Checking the wheel bearings .........6-26
Battery ............................................6-26
Replacing the fuses ........................6-27
Replacing a headlight bulb .............6-29
Replacing a front turn signal light
bulb .............................................6-30
Replacing a tail/brake light bulb
or a rear turn signal light bulb .....6-30
Replacing the license plate light
bulb .............................................6-32
Replacing an auxiliary light bulb.....6-32
Troubleshooting ..............................6-32
Troubleshooting charts ...................6-33
TABLE OF CONTENTS
1B9-F8199-E2.qxd 13/11/07 12:18 Página 6

to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
●Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
●Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
●Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the
operator and may limit control
ability, therefore, such acces-
sories are not recommended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Gasoline and exhaust gas
●GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
1
t SAFETY INFORMATION
1-3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 10

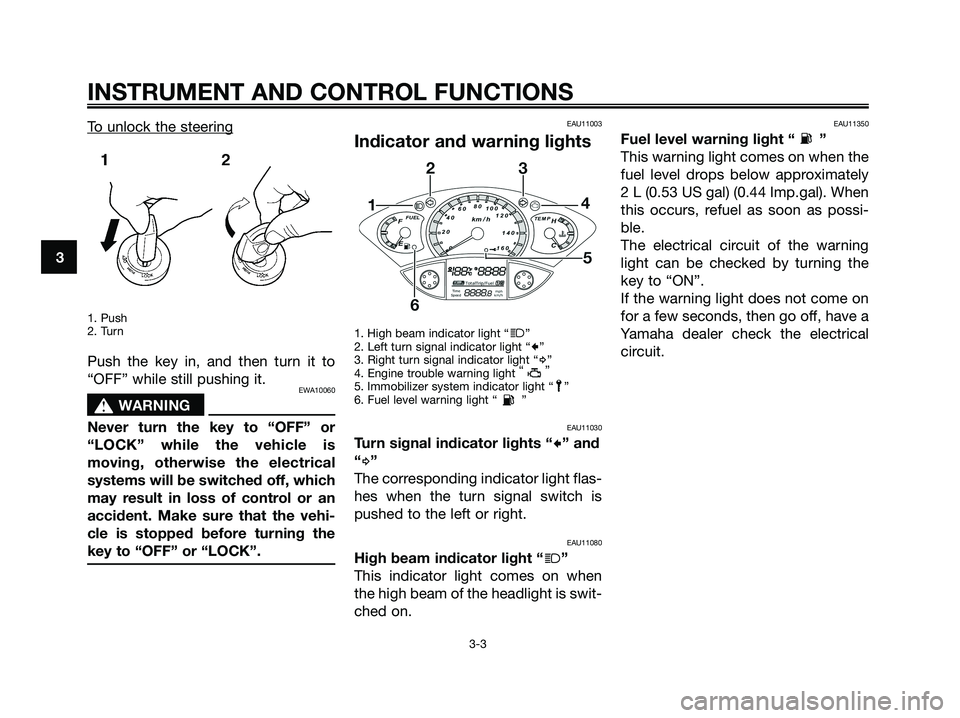

To unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU11003
Indicator and warning lights
1. High beam indicator light “j”
2. Left turn signal indicator light “c”
3. Right turn signal indicator light “d”
4. Engine trouble warning light “”
5. Immobilizer system indicator light “ ”
6. Fuel level warning light “ ”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11350
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2 L (0.53 US gal) (0.44 Imp.gal). When
this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 18

EAU12090
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If any of those circuits are defective,
the engine trouble warning light will
come on or flash. If this occurs, have
a Yamaha dealer check the vehicle.
ECA11170
CAUTION:
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAUT1931
Engine trouble warning light “ ”
This warning light flashes or stays on
when an electrical circuit monitoring
the engine is defective. When this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU38620
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-
cator light will stop flashing, however
the immobilizer system is still ena-
bled.
EAU11591
Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 19

EAU15301
Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
1. Sidestand switch
2. Sidestand
NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU15372
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
●It prevents starting when the
sidestand is up, but neither brake
is applied.
●It prevents starting when either
brake is applied, but the sides-
tand is still down.
●It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
EWA10250
s s
WARNING
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 33

EAU15980
EWA10870
s s
WARNING
●Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
●Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
●For safety, always start the
engine with the centerstand
down.
EAUM2230
Starting the engineECA10250
CAUTION:
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
EWA10290
s s
WARNING
●Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-18.
●Never ride with the sidestand
down.
1. Turn the key to “ON”.ECAM1080
CAUTION:
The following warning lights and
indicator light should come on for a
few seconds, then go off.
●Fuel level warning light
●Engine trouble warning light
●Immobilizer system indicator
lightIf a warning or indicator light does
not go off, see page 3-3 for the
corresponding warning and indica-
tor light circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
1. Rear brake lever
2. Start switch
3. Front brake lever
NOTE:
If the engine does not start, release
the start switch, wait a few seconds,
and then try again. Each starting
attempt should be as short as possi-
ble to preserve the battery. Do not
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
1B9-F8199-E2.qxd 13/11/07 12:18 Página 38

ODOMETER READING
ANNUAL
NO. ITEM CHECK OR MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
√When the oil change indicator light
20Engine oil• Change. (See pages 6-10)comes on (5000 km (2920 mi) after the initial
1000 km (600 mi) and every
6000 km (3500 mi) thereafter)
• Check oil level and vehicle for oil leakage. Every 3000 km (1800 mi)√
21Engine oil filter
element• Replace.√√√
22Final transmission oil• Check vehicle for oil leakage.√√ √• Change.√√√
23 *V-belt• Replace. Every 18000 km (10500 mi)
24 *Front and rear brake
switches• Check operation.√√√√√ √
25Moving parts and cables• Lubricate.√√√√ √
Throttle grip housing • Check operation and free play.
26 * • Adjust the throttle cable free play if necessary.√√√√ √
and cable
• Lubricate the throttle grip housing and cable.
27 *Lights, signals and • Check operation.
switches• Adjust headlight beam.√√√√√ √
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
1B9-F8199-E2.qxd 13/11/07 12:18 Página 46

1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
vehicle is ridden normally).
NOTE:
If the spark plug shows a distinctly
different color, the engine could be
operating improperly. Do not attempt
to diagnose such problems yourself.
Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.2. Clean the surface of the spark
plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4 ~
1/2 turn past finger tight. However,
the spark plug should be tightened to
the specified torque as soon as pos-
sible.
4. Install the spark plug cap.
5. Install the cowling.
EAUM2270
Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand.
NOTE:
Make sure that the scooter is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Specified spark plug:
NGK/ CPR 9EA-9
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
1B9-F8199-E2.qxd 13/11/07 12:18 Página 51
