2008 YAMAHA XMAX 125 ECO mode

EAU12090
Self-diagnosis device
This model is equipped with a self-
diagnosis device for various electrical
circuits.
If any of those circuits are defective,
the engine trouble warning light will
come on or flash. If this occurs, have
a Yamaha dealer check the vehicle.
ECA11170
CAUTION:
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAUT1931
Engine trouble warning light “ ”
This warning light flashes or stays on
when an electrical circuit monitoring
the engine is defective. When this
occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
EAU38620
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-
cator light will stop flashing, however
the immobilizer system is still ena-
bled.
EAU11591
Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 19

1. Distance
2. Time
3. Average speed
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuelTo reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 22

Ambient temperature display
1. Frost warning indicator“”
2. Negative symbol “ – ”
3. Ambient temperature
This display shows the ambient tem-
perature from –30 °C (–86 °F) to 50 °C
(122 °F).
The frost warning indicator “ ”
automatically comes on if the tempe-
rature is lower than 3 °C (37.4 °F).Oil change indicator “OIL”
1. Oil change indicator “OIL”
The engine oil should be changed
when this indicator comes on. The
indicator stays on until it is reset. After
changing the engine oil, reset the indi-
cator as follows.
1. While holding the “MODE” and
“SET” buttons pushed, turn the
key to “ON”.
2. Continue holding the “MODE”
and “SET” buttons pushed for
two to five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE:
●The oil change indicator will come
on at the initial 1000 km (600 mi),
5000 km (3000 mi) after the initial
1000 km (600 mi) and every 6000
km (3600 mi) thereafter.
●If the engine oil is changed befo-
re the oil change indicator comes
on (i.e. before the periodic oil
change interval has been rea-
ched), the indicator must be reset
after the oil change for the next
periodic oil change to be indica-
ted at the correct time. After
resetting, the indicator will come
on for two seconds. If the indica-
tor does not come on, repeat the
procedure.
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
1B9-F8199-E2.qxd 13/11/07 12:18 Página 23

4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 ºC (30 ºF) or more
than 30 ºC (90 ºF)]. For more
information on storing the bat-
tery, see page 6-26.
NOTE:
Make any necessary repairs before
storing the scooter.
EAU37833
Matte color cautionECA15192
CAUTION:
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use
before cleaning the vehicle.Using a
brush, harsh chemical products or
cleaning compounds when clea-
ning these parts will scratch or
damage their surface. Wax also
should not be applied to any matte
colored finished parts.
SCOOTER CARE AND STORAGE
7-4
7
1B9-F8199-E2.qxd 13/11/07 12:18 Página 79

Dimensions:Overall length:
2210 mm (87.0 in)
Overall width:
790 mm (31.1 in)
Overall height:
1380 mm (54.3 in)
Seat height:
785 mm (30.9 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
112 mm (4.44 in)
Minimum turning radius:
3650 mm (143.7 in)
Weight:With oil and fuel:
166 kg (366 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.6 cm
3
Bore x stroke:
52.0 x 58.6 mm (2.05 x 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
1.40 L (1.48 US qt) (1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt) (1.32 Imp.qt)
Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.26 L (0.27 US qt) (0.23 Imp.qt)Radiator capacity (including all routes):
1.40 L (1.48 US qt) (1.23 Imp.qt)
Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
12.5 L (3.30 US gal) (2.75 Imp.gal)
Fuel reserve amount:
2 L (0.53 US gal) (0.44 Imp.gal)
Throttle body:Type/quantity:
EFI (1B9) / 1
Manufacturer:
AISAN
Spark plug (s):Manufacturer/model:
NGK/ CPR 9EA-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/13 (3.384)
SPECIFICATIONS
8-1
8
1B9-F8199-E2.qxd 13/11/07 12:18 Página 80

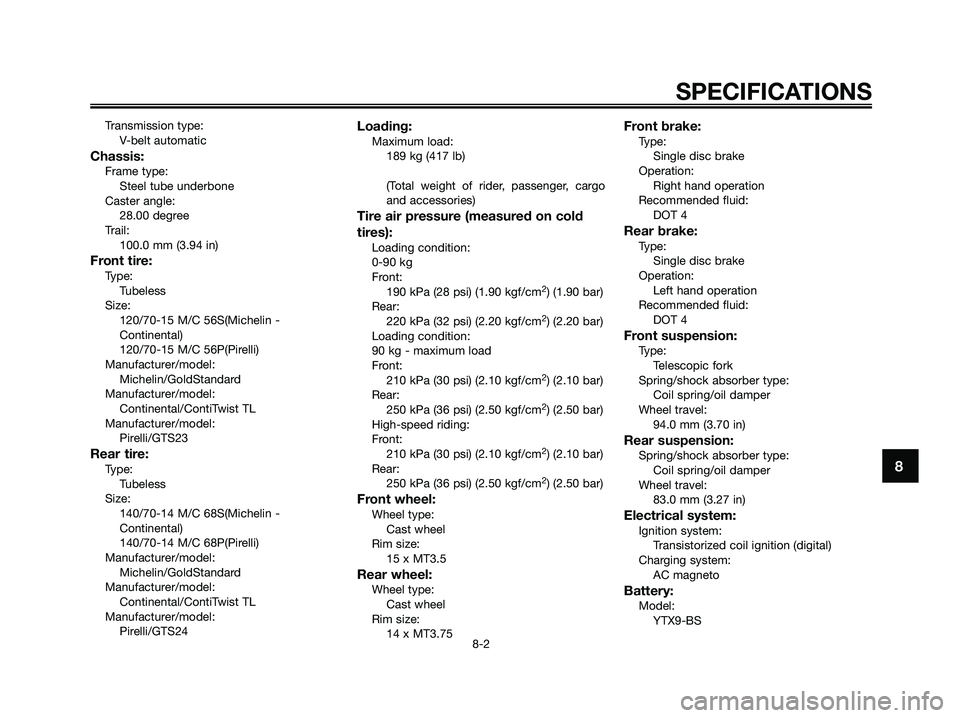

Transmission type:
V-belt automatic
Chassis:Frame type:
Steel tube underbone
Caster angle:
28.00 degree
Trail:
100.0 mm (3.94 in)
Front tire:Type:
Tubeless
Size:
120/70-15 M/C 56S(Michelin -
Continental)
120/70-15 M/C 56P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS23
Rear tire:Type:
Tubeless
Size:
140/70-14 M/C 68S(Michelin -
Continental)
140/70-14 M/C 68P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS24
Loading:Maximum load:
189 kg (417 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0-90 kg
Front:
190 kPa (28 psi) (1.90 kgf/cm
2) (1.90 bar)
Rear:
220 kPa (32 psi) (2.20 kgf/cm
2) (2.20 bar)
Loading condition:
90 kg - maximum load
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
High-speed riding:
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
15 x MT3.5
Rear wheel:Wheel type:
Cast wheel
Rim size:
14 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
94.0 mm (3.70 in)
Rear suspension:Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
83.0 mm (3.27 in)
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:Model:
YTX9-BS
SPECIFICATIONS
8-2
8
1B9-F8199-E2.qxd 13/11/07 12:18 Página 81

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
The key identification number is
stamped into the key tag.Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
CONSUMER INFORMATION
9-1
9
1B9-F8199-E2.qxd 13/11/07 12:18 Página 83

EAU26490
Model label
1. Model label
The model label is affixed to the bot-
tom of the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
CONSUMER INFORMATION
9-2
9
