TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-10
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather hose ................3-14
Catalytic converters ......................3-14
Seat ..............................................3-15
Helmet holder ...............................3-15
Storage compartment ...................3-16
Adjusting the front fork ..................3-16
Adjusting the shock absorber
assemblies ................................3-18Luggage strap holders ................. 3-20
EXUP system ............................... 3-21
Sidestand ..................................... 3-21
Ignition circuit cut-off system ........ 3-22
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-6
Checking the spark plugs ............... 6-7
Engine oil and oil filter element ...... 6-8
Replacing the air filter element
and cleaning the check hose .... 6-11
Checking the throttle cable
free play .................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13Cast wheels ................................. 6-16
Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ....................................... 6-16
Checking the front and rear
brake pads ................................ 6-17
Checking the brake and clutch
fluid levels ................................. 6-18
Changing the brake and clutch
fluids ......................................... 6-19
Drive chain slack .......................... 6-19
Cleaning and lubricating the
drive chain ................................ 6-21
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-23
Lubricating the swingarm
pivots ........................................ 6-24
Checking the front fork ................. 6-24
Checking the steering .................. 6-25
Checking the wheel bearings ....... 6-26
Battery ......................................... 6-26
Replacing the fuses ..................... 6-27
Replacing the headlight bulb ....... 6-28U5WME5E0.book Page 1 Wednesday, December 5, 2007 10:30 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Luggage strap holder (page 3-20)
2. Storage compartment (page 3-16)
3. Battery (page 6-26)
4. Air filter element (page 6-11)
5. Engine oil filler cap (page 6-8)
6. Engine oil level check window (page 6-8)
7. Engine oil drain bolt (page 6-8)
8. Brake pedal (page 3-12)9. Rear brake light switch (page 6-16)
10.Rear brake fluid reservoir (page 6-18)
U5WME5E0.book Page 2 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11120
Oil level warning light“”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-function.
EAU11530
Engine trouble warning light“”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,have a Yamaha dealer check the self-
diagnosis system. (See page 3-6 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
1. Left turn signal indicator light“”
2. Engine trouble warning light“”
3. Neutral indicator light“”
4. Oil level warning light“”
5. High beam indicator light“”
6. Right turn signal indicator light“”
7. Immobilizer system indicator lightU5WME5E0.book Page 4 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the fuel level warning
indicator“” starts flashing, refuel as
soon as possible.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the following cycle will be
repeated until the malfunction is cor-
rected: All the display segments and
symbol“” will flash eight times, thengo off for approximately 3 seconds. If
this occurs, have a Yamaha dealer
check the electrical circuit.
Clock mode
To set the clock:1. Turn the key to “ON”.
2. Push the select button and reset
button together for at least two
seconds.
3. When the hour digits start flashing,
push the reset button to set the
hours.
4. Push the select button, and the
minute digits will start flashing.
5. Push the reset button to set the
minutes.6. Push the select button and then re-
lease it to start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripmeter
display will indicate a two-digit error
code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
1. Fuel level warning indicator“”
2. Fuel meter
1. Clock
1. Error code display
U5WME5E0.book Page 7 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.
NOTE:If the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
Display, speedometer and tachome-
ter brightness control modeThis function allows you to adjust the
brightness to suit the outside lighting
conditions.
To adjust the brightness
1. Turn the key to “OFF”.
2. Push and hold the select button.
3. Turn the key to “ON”, and then re-
lease the select button after five
seconds.
4. Push the reset button to select the
desired brightness level.
5. Push the select button to confirm
the selected brightness level.
1. Select button
2. Reset button
3. Brightness level
U5WME5E0.book Page 8 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU13412
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU13442
Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.


Do not allow the engine to idletoo long.
1. Fuel tank breather hose
U5WME5E0.book Page 14 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
EAU15281

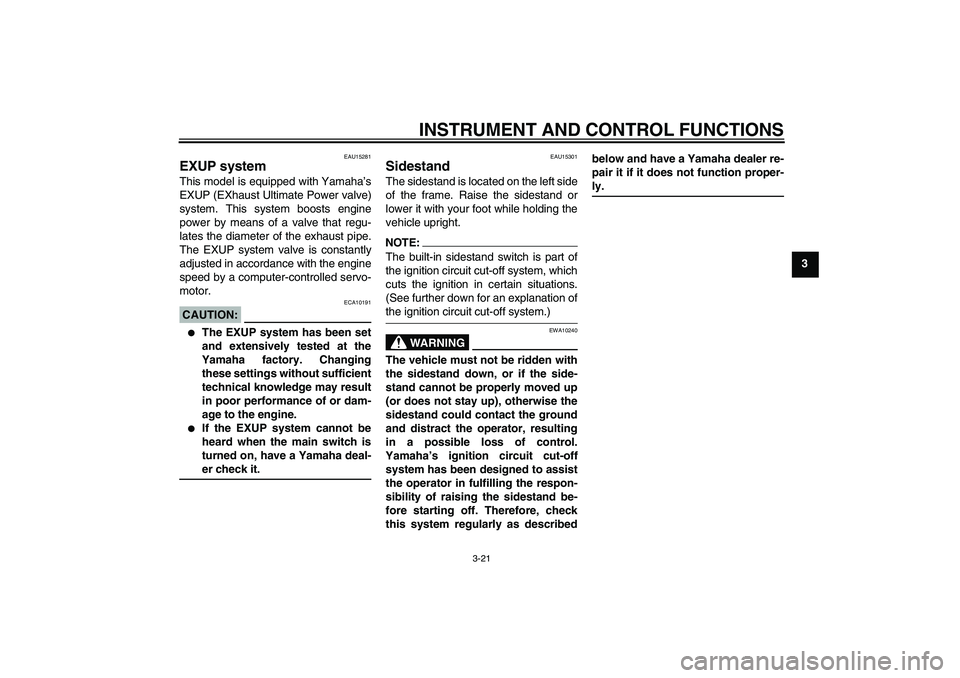

EXUP system This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that regu-
lates the diameter of the exhaust pipe.
The EXUP system valve is constantly
adjusted in accordance with the engine
speed by a computer-controlled servo-
motor.CAUTION:
ECA10191


The EXUP system has been set
and extensively tested at the
Yamaha factory. Changing
these settings without sufficient
technical knowledge may result
in poor performance of or dam-
age to the engine.


If the EXUP system cannot be
heard when the main switch is
turned on, have a Yamaha deal-er check it.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
U5WME5E0.book Page 21 Wednesday, December 5, 2007 10:30 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
EAU44900
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10260


The vehicle must be placed on
the centerstand during this in-
spection.


If a malfunction is noted, have a
Yamaha dealer check the sys-tem before riding.
U5WME5E0.book Page 22 Wednesday, December 5, 2007 10:30 AM
