2008 YAMAHA XCITY 250 fuses

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer ..................................3-2
Fuel gauge ......................................3-3
Coolant temperature gauge ............3-3
Multi-function display ......................3-3
Handlebar switches ........................3-6
Front brake lever ............................3-7
Rear brake lever .............................3-8
Fuel tank cap ..................................3-8
Fuel .................................................3-8
Catalytic converter ..........................3-9
Seat ..............................................3-10
Storage compartment ...................3-10
Storage compartment ...................3-11
Adjusting the shock absorber
assemblies ................................3-12
Luggage hook ...............................3-12
Sidestand ......................................3-13
Ignition circuit cut-off system ........3-13PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-5
Checking the spark plug ................. 6-6
Engine oil ....................................... 6-7
Final transmission oil ...................... 6-9
Coolant ......................................... 6-10
Air filter and V-belt case air filter
elements ................................... 6-11
Checking the throttle cable free
play ........................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13Cast wheels ................................. 6-15
Front and rear brake lever free
play ........................................... 6-15
Checking the front and rear brake
pads .......................................... 6-16
Checking the brake fluid level ...... 6-16
Changing the brake fluid .............. 6-17
Checking and lubricating the
cables ....................................... 6-18
Checking and lubricating the
throttle grip and cable ............... 6-18
Lubricating the front and rear
brake levers .............................. 6-18
Checking and lubricating the
centerstand and sidestand ....... 6-19
Checking the front fork ................. 6-19
Checking the steering .................. 6-20
Checking the wheel bearings ....... 6-21
Battery ......................................... 6-21
Replacing the fuses ..................... 6-22
Replacing a headlight bulb .......... 6-23
Replacing a front turn signal light
bulb ........................................... 6-25
Replacing a tail/brake light bulb or
a rear turn signal light bulb ....... 6-26
Replacing the license plate light
bulb ........................................... 6-27
Replacing an auxiliary light
bulb ........................................... 6-27
Troubleshooting ........................... 6-27
Troubleshooting charts ................ 6-28

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the model will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional batterycharger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23525
Replacing the fuses The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind panel A. (See
page 6-5.)
If a fuse is blown, replace it as follows.
1. Turn the key to “” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Main fuse
2. Spare fuse
12
ZAUM0672

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUM2180
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a high beam headlight
bulb
1. Remove cowling A. (See page
6-5.)
2. Remove the headlight bulb cover.
3. Unhook the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
1. Fuse box
2. Radiator fan fuse
3. ECU fuse
4. Backup fuse
5. Signaling system fuse
6. Headlight fuse
7. Ignition fuse
8. Spare fuse
9. Spare fuse
10.Spare fuse
1
ZAUM0673
23
8910456 7
Specified fuses:
Main fuse:
30.0 A
ECU fuse:
5.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Headlight fuse:
15.0 A
Backup fuse:
5.0 A
Radiator fan fuse:
5.0 A
1. Headlight bulb cover
1
ZAUM0674

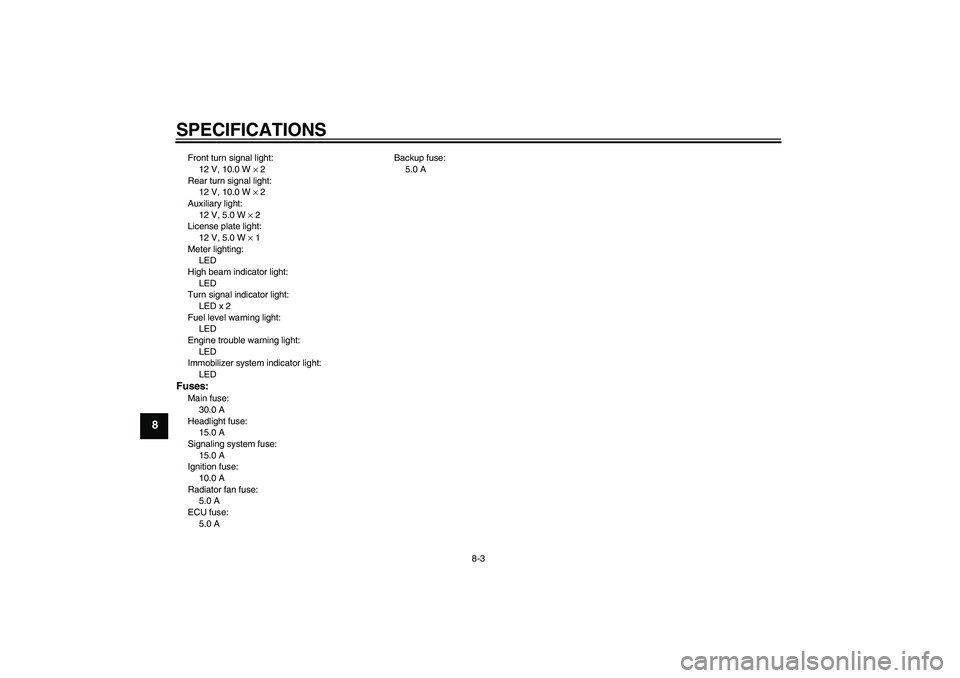

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
5.0 A
ECU fuse:
5.0 ABackup fuse:
5.0 A
