Page 92 of 144
8-17
82. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU26425Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Remove panel D. (See page 8-9.)
3. Check the engine oil level on a cold engine.NOTE:If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-tles for an accurate reading.
1. Spark plug gapTightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U3C262E0.book Page 17 Tuesday, June 26, 2007 3:36 PM
Page 93 of 144
8-18
8 4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
NOTE:The engine oil should be between the minimumand maximum level marks.
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
8. Install the panel.
1. Engine oil filler cap
1. Dipstick
2. Maximum level mark
3. Minimum level mark
U3C262E0.book Page 18 Tuesday, June 26, 2007 3:36 PM
Page 97 of 144
8-22
8
Make sure that no foreign material enters thecrankcase.
13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
15. Install panel D.EBU23381Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.NOTE:The final gear oil level must be checked on a coldengine.2. Remove the final gear oil filler bolt, and then
check the oil level in the final gear case.
NOTE:The oil level should be at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.1. Final gear oil
2. Final gear oil filler bolt
3. Correct oil level
U3C262E0.book Page 22 Tuesday, June 26, 2007 3:36 PM
Page 101 of 144
8-26
8
The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked fromthe oil filler hole.CAUTION:ECB00410Be sure no foreign material enters the differen-tial gear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.
7. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27940To check the coolant level
1. Place the ATV on a level surface.NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.NOTE:The coolant should be between the minimum andmaximum level marks. Recommended differential gear oil:
See page 10-1.
Oil quantity:
0.35 L (0.37 US qt) (0.31 Imp.qt)
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3C262E0.book Page 26 Tuesday, June 26, 2007 3:36 PM
Page 103 of 144
8-28
8
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.If the engine overheats, see page 8-56 for fur-ther instructions.EBU26441To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels C and D. (See page 8-9.)3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the footrest.)
1. Coolant drain bolt
U3C262E0.book Page 28 Tuesday, June 26, 2007 3:36 PM
Page 105 of 144
8-30
8 10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
12. Pour the recommended coolant into the radia-
tor until it is full.
CAUTION:ECB00401If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
13. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
14. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
15. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
16. Install the cowling.
17. Install the panels. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.32 L (1.40 US qt) (1.16 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U3C262E0.book Page 30 Tuesday, June 26, 2007 3:36 PM
Page 108 of 144
8-33
8
CAUTION:ECB00440Do not twist the sponge material when squeez-ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply a quality foam air filter oil to the sponge
material.NOTE:The sponge material should be wet but not drip-ping.
9. Pull the sponge material over the air filter ele-
ment frame, and then install the lock plate.10. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
11. Install the seat.
NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfilteredair entering the engine.CAUTION:ECB00460Make sure that the air filter element is prop-
erly seated in the air filter case.Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
ally, operation without the air filter element
U3C262E0.book Page 33 Tuesday, June 26, 2007 3:36 PM

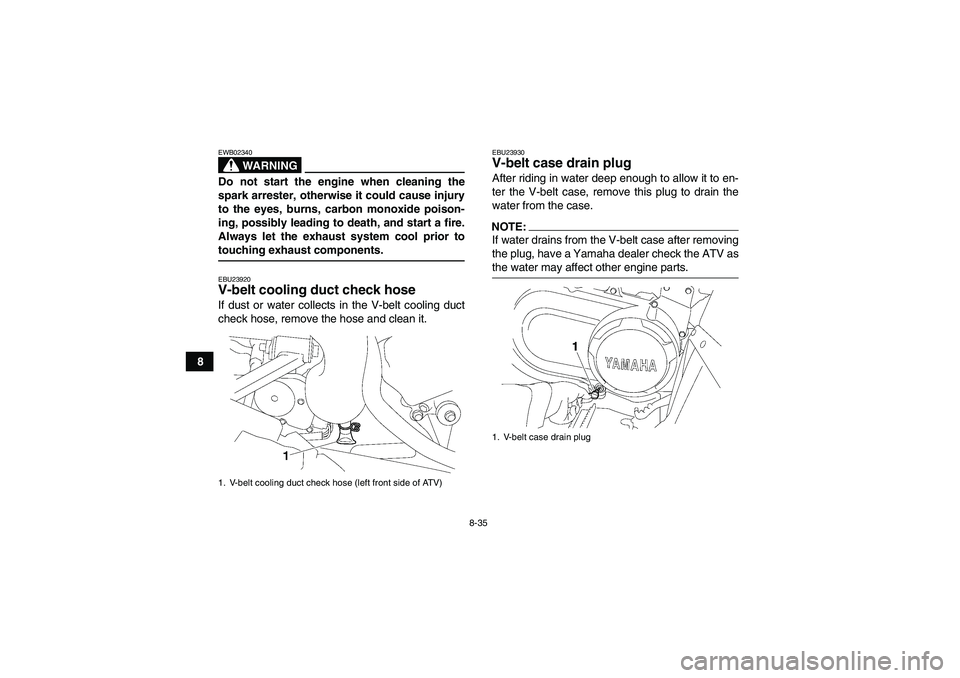

Page 110 of 144
8-35
8
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior totouching exhaust components.EBU23920V-belt cooling duct check hose If dust or water collects in the V-belt cooling duct
check hose, remove the hose and clean it.
EBU23930V-belt case drain plug After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:If water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV asthe water may affect other engine parts.
1. V-belt cooling duct check hose (left front side of ATV)
1. V-belt case drain plug
U3C262E0.book Page 35 Tuesday, June 26, 2007 3:36 PM
