8-32
8 2. Turn the adjusting nut while holding the brake
light switch in place. To make the brake light
come on earlier, turn the adjusting nut in direc-
tion (a). To make the brake light come on lat-
er, turn the adjusting nut in direction (b).
3. Install the panel.
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU28710Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. Brake light switch
2. Brake light switch adjusting nut
Recommended lubricant:
Engine oil
U3D562E0.book Page 32 Wednesday, June 6, 2007 12:58 PM

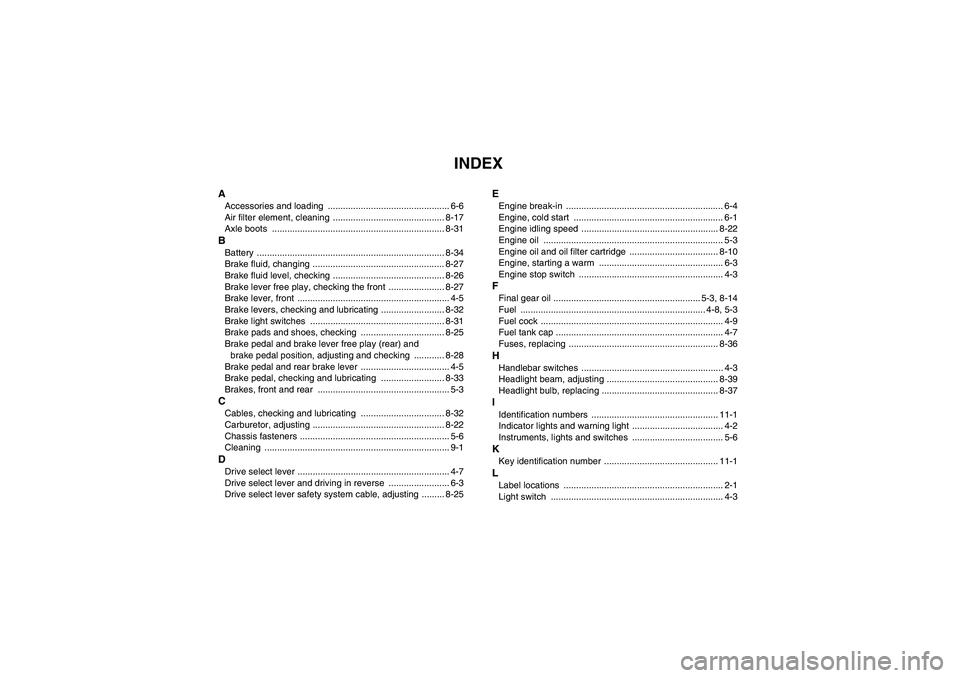

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-17
Axle boots .................................................................... 8-31BBattery .......................................................................... 8-34
Brake fluid, changing .................................................... 8-27
Brake fluid level, checking ............................................ 8-26
Brake lever free play, checking the front ...................... 8-27
Brake lever, front ............................................................ 4-5
Brake levers, checking and lubricating ......................... 8-32
Brake light switches ..................................................... 8-31
Brake pads and shoes, checking ................................. 8-25
Brake pedal and brake lever free play (rear) and
brake pedal position, adjusting and checking ............ 8-28
Brake pedal and rear brake lever ................................... 4-5
Brake pedal, checking and lubricating ......................... 8-33
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting .................................................... 8-22
Chassis fasteners ........................................................... 5-6
Cleaning ......................................................................... 9-1DDrive select lever ............................................................ 4-7
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-25
EEngine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-22
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-10
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-14
Fuel ......................................................................... 4-8, 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap .................................................................. 4-7
Fuses, replacing ........................................................... 8-36HHandlebar switches ........................................................ 4-3
Headlight beam, adjusting ............................................ 8-39
Headlight bulb, replacing .............................................. 8-37IIdentification numbers .................................................. 11-1
Indicator lights and warning light .................................... 4-2
Instruments, lights and switches .................................... 5-6KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-3
