2008 YAMAHA VX ESP

Important manual information
This declaration of conformity is issued under the sole responsibility of the PWC
manufacturer. I declare on behalf of the PWC manufacturer that the craft model and
engine(s) mentioned above comply with all applicable essential requirements in the way
specified and are in conformity with the type for which above mentioned EC type-
examination certificate(s) has(have) been issued.
Name / title:T. Tsuchiya / President of YAMAHA MOTOR EUROPE N.V.
(identification of the person empowered to sign on behalf
of the PWC manufacturer or his authorized representative)
Signature: (or an equivalent marking)
Date and place of issue: 1st / August / 2007, Schiphol-Rijk, The Netherlands
IDENTIFICATION OF ENGINE(S) COVERED
BY THIS DECLARATION OF CONFORMITY
Combustion cycle: 2 stroke 4 stroke
Unique engine identification number(s)
or engine family code(s) EC Type–examination certificate
(for exhaust)
6D3 LC*2003/44*10016
ESSENTIAL
REQUIREMENTSstandards other
normative
document/
methodtechnical
filePlease specify in more detail
(* = mandatory standard)
I.A design and constructionEN ISO 13590
I.B exhaust emissions **EN ISO 8178-1:1996
I.C noise emissions **EN ISO 14509
Conformity assessment modules used:
for construction: A
Aa B+C B+D B+E B+F G H
for noise emissions: Aa G H
for exhaust emissions: B+E B+D B+C B+F G H
Other Community Directives applied:
Directive 89/336/EEC relating to electromagnetic compatibility (EMC),
using the following standards, for emission CISPR12:1997, for generic
immunity EN61000-6-2:2001
DESCRIPTION OF CRAFT Craft model Identification Number, starting from
VX1100A-G / VX Cruiser, VX1100B-G / VX Deluxe, VX1100-G / VX
Model name / Commercial name : Design Category: C D
US Y A M 81H7A24 8–0-
UF1K73E0.book Page 2 Wednesday, July 11, 2007 9:15 AM

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Craft Identification Number (CIN) ...... 1
Engine serial number ........................ 1
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 3
Warning labels ................................... 4
Other labels ....................................... 7
Safety information ............................. 9
Limitations on who may operate
the watercraft .............................. 9
Cruising limitations ....................... 10
Operation requirements ............... 11
Recommended equipment ........... 13
Hazard information ....................... 14
Watercraft characteristics ............. 14
Water-skiing ................................. 16
Safe boating rules ........................ 17
Enjoy your watercraft
responsibly ................................ 18
Features and functions ................... 19
Location of main components ...... 19
Operation of controls and other
functions .................................... 23
Seat ................................................. 23
Hood ................................................ 23
Fuel tank filler cap ........................... 24
Remote control transmitter
(for VX Deluxe/VX Cruiser) .......... 24
Engine stop switch .......................... 25
Engine shut-off switch ..................... 25
Start switch ...................................... 26
Throttle lever ................................... 26
Cooling water pilot outlet ................. 26
Steering system ............................... 27
Shift lever (for VX Deluxe/
VX Cruiser) .................................. 27
Handgrip .......................................... 28Bow eye ........................................... 28
Stern eyes ....................................... 28
Yamaha Engine Management
System (YEMS) ........................... 28
Yamaha Security System and
low-RPM mode (for VX Deluxe/
VX Cruiser) .................................. 29
Multifunction information center ...... 30
Storage compartments .................... 35
Operation ......................................... 38
Fuel and oil .................................. 38
Gasoline .......................................... 38
Engine oil ......................................... 39
Filling the fuel tank .......................... 39
Pre-operation checks ................... 40
Pre-operation check list ................... 40
Pre-operation check points .............. 42
Operation ..................................... 49
Engine break-in ............................... 49
Launching the watercraft ................. 49
Starting the engine .......................... 49
Stopping the engine ........................ 51
Leaving the watercraft ..................... 51
Operating your watercraft ............ 52
Getting to know your watercraft ....... 52
Learning to operate your
watercraft ..................................... 52
Riding with passengers ................... 53
Starting the watercraft ..................... 53
Boarding and starting in deep
water ............................................ 54
Capsized watercraft ......................... 57
Turning the watercraft ..................... 58
Stopping the watercraft ................... 60
Beaching the watercraft ................... 60
Docking the watercraft ..................... 60
Reverse on waterways
(for VX Deluxe/VX Cruiser) .......... 60
Rough water operation .................... 61
UF1K73E0.book Page 1 Wednesday, July 11, 2007 9:15 AM

General and important labels
2
EJU30320
Model information EJU30330Builder’s plate
Part of the information is given on the builder’s
plate affixed on the craft. A full explanation of
this information is given in the relevant sec-
tions of this manual.
Design category of this personal water-
craft: C
Category C:
This watercraft is designed to operate in
winds up to Beaufort force 6 and the associat-
ed wave heights (significant wave heights up
to 2 m (6.56 ft); see the following NOTE).
Such conditions may be encountered in ex-
posed inland waters, in estuaries, and in
coastal waters in moderate weather condi-
tions.
NOTE:
The significant wave height is the mean
height of the highest one-third of the waves,which approximately corresponds to the wave
height estimated by an experienced observer.
However, some waves will be double this
height.
1Builder’s plate location
UF1K73E0.book Page 2 Wednesday, July 11, 2007 9:15 AM

Safety information
13

Always consult your doctor on whether it is
safe for you to ride this watercraft if you are
pregnant or in poor health.

Do not attempt to modify this watercraft!
Modifications to your watercraft may reduce
safety and reliability, and render the water-
craft unsafe or illegal for use.

Attach the engine shut-off cord to your left
wrist and keep it free from the handlebars
so that the engine stops if you, the operator,
fall off. After riding, remove the engine shut-
off cord from the watercraft to avoid acci-
dental starting or unauthorized use by chil-
dren or others.

Scan carefully for swimmers and stay away
from swimming areas. Swimmers are hard
to see and you could accidentally hit some-
one in the water.

Avoid being hit by another boat! You should
always take the responsibility to watch for
traffic; other boaters may not be watching
for you. If they do not see you, or if you ma-
neuver more quickly than other boaters ex-
pect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski ropes
or fishing lines. Obey the “Safe boating
rules” and be sure to check behind you be-
fore making a turn. (See “Safe boating
rules” on page 17.)
EJU30840
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.

Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.

Watch
A watch is helpful so you will know how long
you have been operating the watercraft.

Towline
A towline can be used to tow a disabled wa-
tercraft in an emergency.
UF1K73E0.book Page 13 Wednesday, July 11, 2007 9:15 AM

Safety information
14
EJU30870
Hazard information

Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.

Do not touch the hot oil tank, muffler, or en-
gine during or immediately after engine op-
eration; they can cause serious burns.
EJU30930
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds should
you attempt to steer the watercraft after re-
leasing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without ob-
stacles until you have a good feel for this
maneuver.

This watercraft is water-jet propelled. The
jet pump is directly connected to the engine.
This means that jet thrust will produce some
movement whenever the engine is running.
There is no “neutral” position. You are in ei-
ther “forward” or “reverse”, depending upon
the shift lever position (for VX Deluxe/VX
Cruiser).

For VX Deluxe/VX Cruiser:
Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or im-
pact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
UF1K73E0.book Page 14 Wednesday, July 11, 2007 9:15 AM

Safety information
16
EJU30950

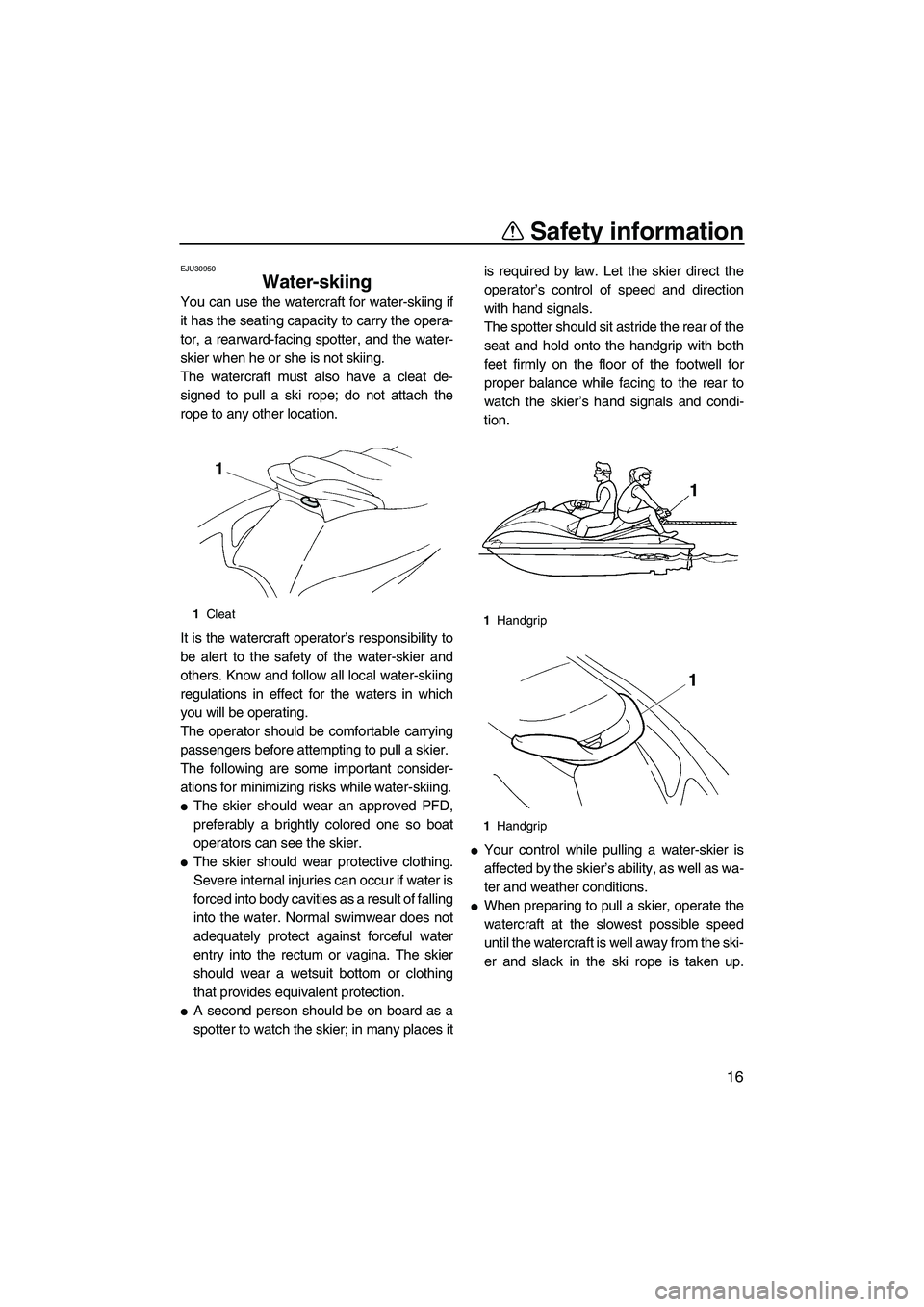

Water-skiing
You can use the watercraft for water-skiing if
it has the seating capacity to carry the opera-
tor, a rearward-facing spotter, and the water-
skier when he or she is not skiing.
The watercraft must also have a cleat de-
signed to pull a ski rope; do not attach the
rope to any other location.
It is the watercraft operator’s responsibility to
be alert to the safety of the water-skier and
others. Know and follow all local water-skiing
regulations in effect for the waters in which
you will be operating.
The operator should be comfortable carrying
passengers before attempting to pull a skier.
The following are some important consider-
ations for minimizing risks while water-skiing.

The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.

The skier should wear protective clothing.
Severe internal injuries can occur if water is
forced into body cavities as a result of falling
into the water. Normal swimwear does not
adequately protect against forceful water
entry into the rectum or vagina. The skier
should wear a wetsuit bottom or clothing
that provides equivalent protection.

A second person should be on board as a
spotter to watch the skier; in many places itis required by law. Let the skier direct the
operator’s control of speed and direction
with hand signals.
The spotter should sit astride the rear of the
seat and hold onto the handgrip with both
feet firmly on the floor of the footwell for
proper balance while facing to the rear to
watch the skier’s hand signals and condi-
tion.

Your control while pulling a water-skier is
affected by the skier’s ability, as well as wa-
ter and weather conditions.

When preparing to pull a skier, operate the
watercraft at the slowest possible speed
until the watercraft is well away from the ski-
er and slack in the ski rope is taken up.
1Cleat1Handgrip
1Handgrip
UF1K73E0.book Page 16 Wednesday, July 11, 2007 9:15 AM

Safety information
18
EJU30990
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. And
keep your surroundings pleasant for the peo-
ple and wildlife that share the waterways:
don’t litter!
When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF1K73E0.book Page 18 Wednesday, July 11, 2007 9:15 AM

Features and functions
27
EJU31260Steering system
Your watercraft can be steered by turning the
handlebars in the direction you wish to travel.
When the handlebars are turned, the angle of
the jet thrust nozzle is changed, and the direc-
tion of the watercraft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever. The OTS system assists in
turning by continuing to supply some thrust
while the watercraft is decelerating, but youcan turn more sharply if you apply throttle
while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar in-
put until you apply throttle again or you reach
trolling speed.
EJU31300Shift lever (for VX Deluxe/VX Cruiser)
The shift lever is located on the starboard
(right) side of the watercraft and is used to
control the reverse gate, which allows the wa-
tercraft to move in reverse or forward.
When the shift lever is in the reverse position,
the watercraft can be launched from a trailer,
or backed up out of tight spots where you can-
not turn around easily.
To shift into reverse:
(1) Release the throttle lever and let the en-
gine speed return to idle.
(2) Pull the shift lever toward you.
WARNING
EWJ00030

Make sure that the throttle lever is com-
pletely released and that the engine is at
idle before shifting into reverse.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.
1Handlebar
2Jet thrust nozzle
UF1K73E0.book Page 27 Wednesday, July 11, 2007 9:15 AM
