INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9

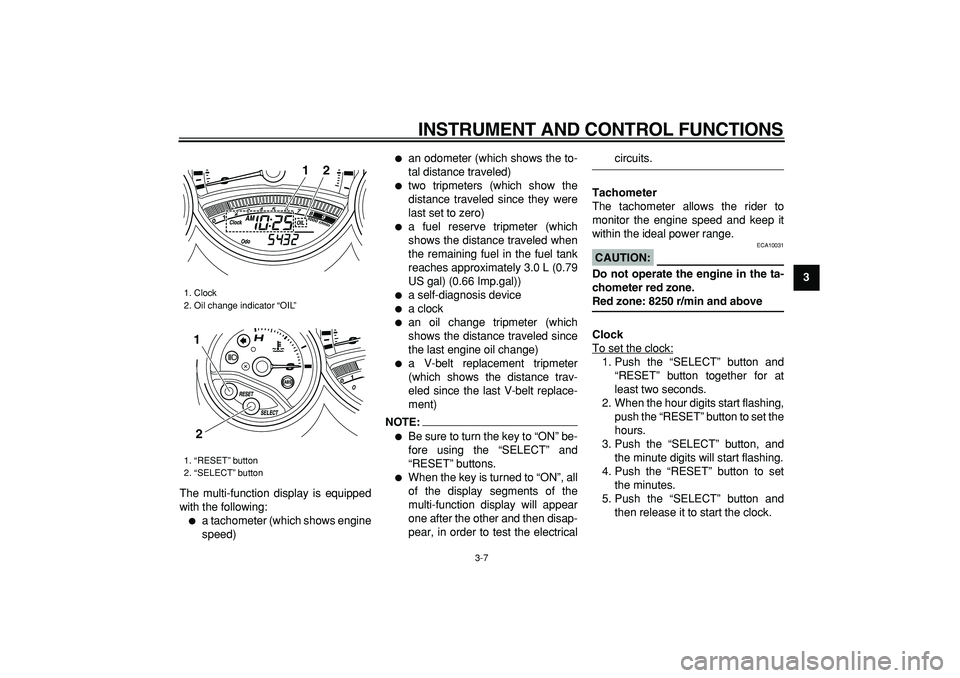

The multi-function display is equipped
with the following:
a tachometer (which shows engine
speed)
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled when
the remaining fuel in the fuel tank
reaches approximately 3.0 L (0.79
US gal) (0.66 Imp.gal))
a self-diagnosis device
a clock
an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)
a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
NOTE:
Be sure to turn the key to “ON” be-
fore using the “SELECT” and
“RESET” buttons.
When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuits.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8250 r/min and above
Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
1. Clock
2. Oil change indicator “OIL”
1. “RESET” button
2. “SELECT” button
1
2
1
2
