2008 YAMAHA TMAX rear view mirror

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-5
Fuel gauge .......................................3-5
Coolant temperature gauge .............3-6
Multi-function display .......................3-6
Anti-theft alarm (optional) ..............3-11
Handlebar switches .......................3-11
Front brake lever ...........................3-12
Rear brake lever ............................3-13
Rear brake lock lever .....................3-14
ABS (for ABS models) ...................3-14
Fuel tank cap .................................3-15
Fuel ................................................3-16
Catalytic converter .........................3-17
Seat ...............................................3-17
Helmet holder ................................3-18
Storage compartments ..................3-19
Rear view mirrors ..........................3-21
Shock absorber .............................3-21Sidestand ...................................... 3-21
Ignition circuit cut-off system ......... 3-22
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-3
Braking ............................................ 5-3
Tips for reducing fuel
consumption ................................ 5-4
Engine break-in ............................... 5-4
Parking ............................................ 5-5
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing panels ...... 6-7
Checking the spark plugs .............. 6-10
Engine oil and oil filter cartridge .... 6-11
Chain drive oil ............................... 6-14
Coolant .......................................... 6-15
Replacing the air filter element ...... 6-17
Adjusting the engine idling
speed ......................................... 6-18Checking the throttle cable free
play ............................................ 6-18
Valve clearance ............................ 6-19
Tires .............................................. 6-19
Cast wheels .................................. 6-21
Front and rear brake lever free
play ............................................ 6-21
Adjusting the rear brake lock lever
cable .......................................... 6-22
Checking the front and rear brake
pads ........................................... 6-22
Checking the brake fluid level ....... 6-23
Changing the brake fluid ............... 6-24
Checking and lubricating the throttle
grip and cable ............................ 6-25
Lubricating the front and rear brake
levers ......................................... 6-25
Checking and lubricating the
centerstand and sidestand ........ 6-26
Checking the front fork .................. 6-26
Checking the steering ................... 6-27
Checking the wheel bearings ........ 6-27
Battery ........................................... 6-28
Replacing the fuses ...................... 6-29
Replacing the headlight bulb ........ 6-31
Tail/brake light ............................... 6-32
Replacing a front turn signal light
bulb ............................................ 6-32
Rear turn signal light bulb .............. 6-32
Replacing the license plate light
bulb ............................................ 6-33

INSTRUMENT AND CONTROL FUNCTIONS
3-21
2
34
5
6
7
8
9

EAU44970
Rear view mirrors
The rear view mirrors of this vehicle can
be folded backward for parking in nar-
row spaces. Fold the mirrors back to
their original position before riding.
WARNING

EWA14371
Be sure to fold the rear view mirrors
back to their original position before
riding.
EAU15090
Shock absorber
WARNING

EWA10220
This shock absorber contains highly
pressurized nitrogen gas. For prop-
er handling, read and understand
the following information before
handling the shock absorber. The
manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.

Do not tamper with or attempt to
open the gas cylinder.

Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.

Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.

Always have a Yamaha dealer
service the shock absorber.
EAU15301
Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
NOTE:

The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.)
WARNING

EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-
1. Parking position
2. Riding position
1
1 2
2

OPERATION AND IMPORTANT RIDING POINTS
5-2
1
2
3
4
5
6
7
8
9


Engine trouble warning light

ABS warning light (for ABS
models)

Immobilizer system indicator
light

V-belt replacement indicator

Oil change indicator
If a warning light, indicator light or
indicator does not go off, see page
3-3 or 3-6 for the corresponding
warning light, indicator light or indi-
cator circuit check.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the front
or rear brake.
NOTE:

If the engine does not start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.
CAUTION:

ECA11040
For maximum engine life, never ac-celerate hard when the engine is
cold!
EAU45091
Starting off
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.
2. Sit astride the seat, and then ad-
just the rear view mirrors.
3. Switch the turn signals on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip (on
the right) in order to take off.
5. Switch the turn signals off.
1. Grab bar
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
2
3
4
5
67
8

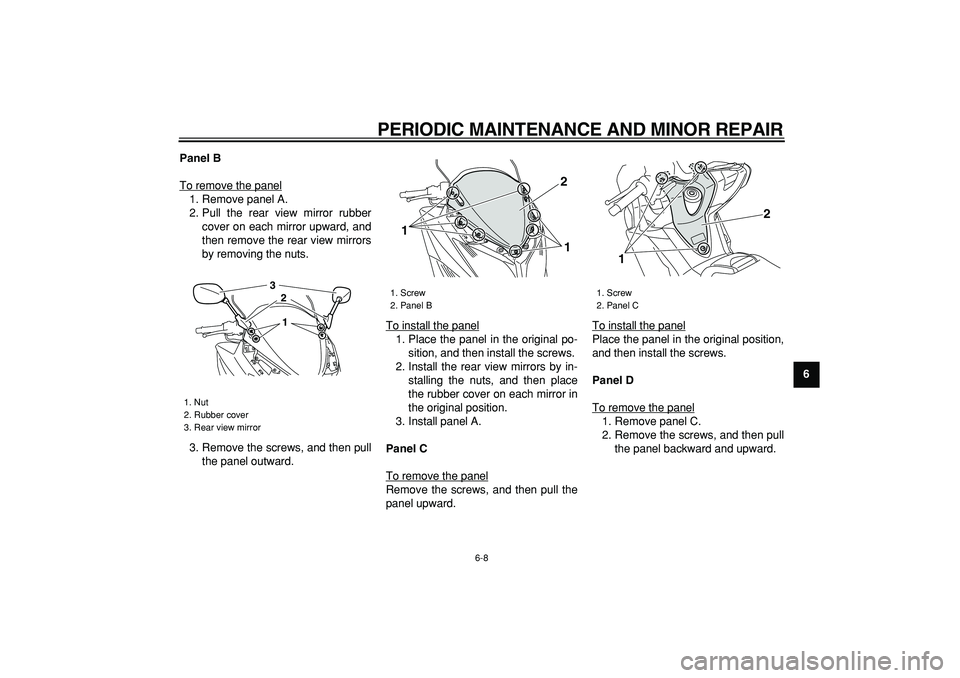

9 Panel B
To remove the panel
1. Remove panel A.
2. Pull the rear view mirror rubber
cover on each mirror upward, and
then remove the rear view mirrors
by removing the nuts.
3. Remove the screws, and then pull
the panel outward.To install the panel
1. Place the panel in the original po-
sition, and then install the screws.
2. Install the rear view mirrors by in-
stalling the nuts, and then place
the rubber cover on each mirror in
the original position.
3. Install panel A.
Panel C
To remove the panelRemove the screws, and then pull the
panel upward.To install the panel
Place the panel in the original position,
and then install the screws.
Panel D
To remove the panel1. Remove panel C.
2. Remove the screws, and then pull
the panel backward and upward.

1. Nut
2. Rubber cover
3. Rear view mirror
1
32

1. Screw
2. Panel B
21
1

1. Screw
2. Panel C
2
1

INDEX
A
ABS (for ABS models) .............................3-14
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-3
Air filter element, replacing ......................6-17
Anti-theft alarm (optional) ........................3-11
Auxiliary light bulb, replacing ...................6-33
B
Battery .....................................................6-28
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front .....................................3-12
Brake lever, rear ......................................3-13
Brake levers, lubricating ..........................6-25
Braking ......................................................5-3
C
Care ...........................................................7-1
Catalytic converter ...................................3-17
Centerstand and sidestand, checking and
lubricating ..............................................6-26
Chain drive oil ..........................................6-14
Coolant ....................................................6-15
Coolant temperature gauge .......................3-6
D
Dimmer switch .........................................3-11
E
Engine break-in .........................................5-4
Engine idling speed .................................6-18
Engine oil and oil filter cartridge ..............6-11
Engine stop switch...................................3-12
Engine trouble warning light ......................3-4
F
Front and rear brake lever free play ........6-21
Front and rear brake pads, checking .......6-22Front fork, checking ................................. 6-26
Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-4
Fuel gauge ................................................ 3-5
Fuel tank cap ........................................... 3-15
Fuses, replacing ...................................... 6-29
H
Handlebar switches ................................. 3-11
Hazard switch .......................................... 3-12
Headlight bulb, replacing ......................... 6-31
Helmet holder .......................................... 3-18
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-12
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-22
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-33
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
P
Panels, removing and installing................. 6-7
Parking ...................................................... 5-5
Part locations............................................. 2-1
Pass switch ............................................. 3-11Periodic maintenance and lubrication
chart ........................................................ 6-3
Pre-operation check list............................. 4-2
R
Rear brake lock lever .............................. 3-14
Rear brake lock lever cable, adjusting .... 6-22
Rear view mirrors .................................... 3-21
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seat ......................................................... 3-17
Shock absorber ....................................... 3-21
Sidestand ................................................ 3-21
Spark plugs, checking ............................. 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-12
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-19
T
Tail/brake light ......................................... 6-32
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-25
Tires ........................................................ 6-19
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-34
Troubleshooting charts............................ 6-35
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-32
Turn signal switch ................................... 3-11
