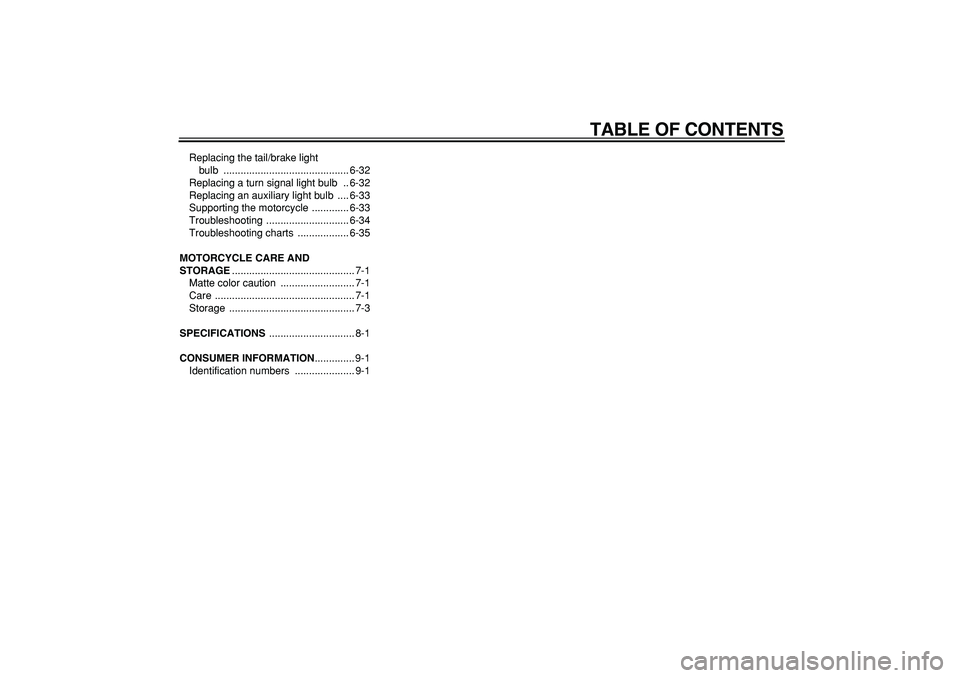

TABLE OF CONTENTS
Replacing the tail/brake light
bulb ............................................ 6-32
Replacing a turn signal light bulb .. 6-32
Replacing an auxiliary light bulb .... 6-33
Supporting the motorcycle ............. 6-33
Troubleshooting ............................. 6-34
Troubleshooting charts .................. 6-35
MOTORCYCLE CARE AND
STORAGE
........................................... 7-1
Matte color caution .......................... 7-1
Care ................................................. 7-1
Storage ............................................ 7-3
SPECIFICATIONS
.............................. 8-1
CONSUMER INFORMATION
.............. 9-1
Identification numbers ..................... 9-1

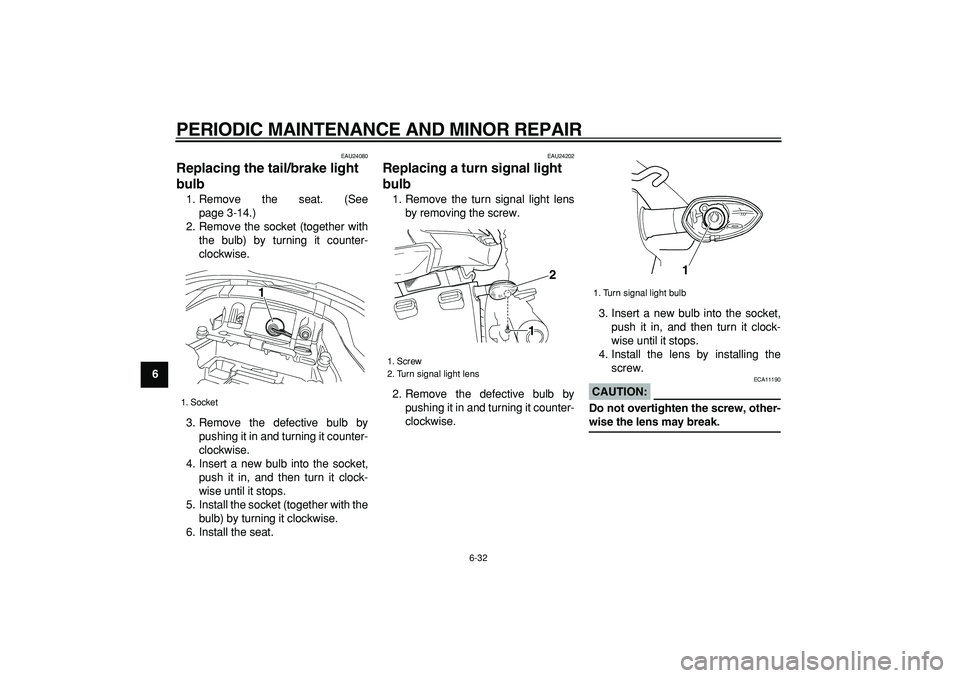

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
1
2
3
4
5
6
7
8
9

EAU24080
Replacing the tail/brake light
bulb
1. Remove the seat. (See
page 3-14.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the seat.
EAU24202
Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:

ECA11190
Do not overtighten the screw, other-
wise the lens may break.
1. Socket
1

1. Screw
2. Turn signal light lens
12

1. Turn signal light bulb
1

SPECIFICATIONS
8-3
2
3
4
5
6
7
89 Rear suspension:

Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
133.0 mm (5.24 in)
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LED
Turn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 ABackup fuse:
10.0 A

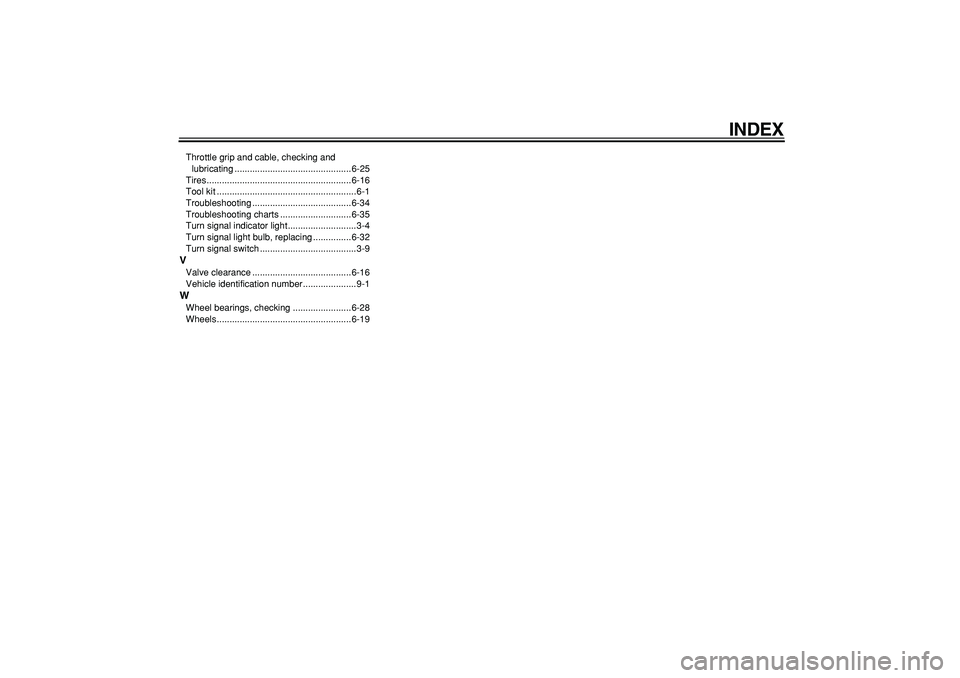

INDEX
Throttle grip and cable, checking and
lubricating ..............................................6-25
Tires .........................................................6-16
Tool kit .......................................................6-1
Troubleshooting .......................................6-34
Troubleshooting charts ............................6-35
Turn signal indicator light ...........................3-4
Turn signal light bulb, replacing ...............6-32
Turn signal switch ......................................3-9
V
Valve clearance .......................................6-16
Vehicle identification number .....................9-1
W
Wheel bearings, checking .......................6-28
Wheels .....................................................6-19
