Features and functions
15
EJU31010

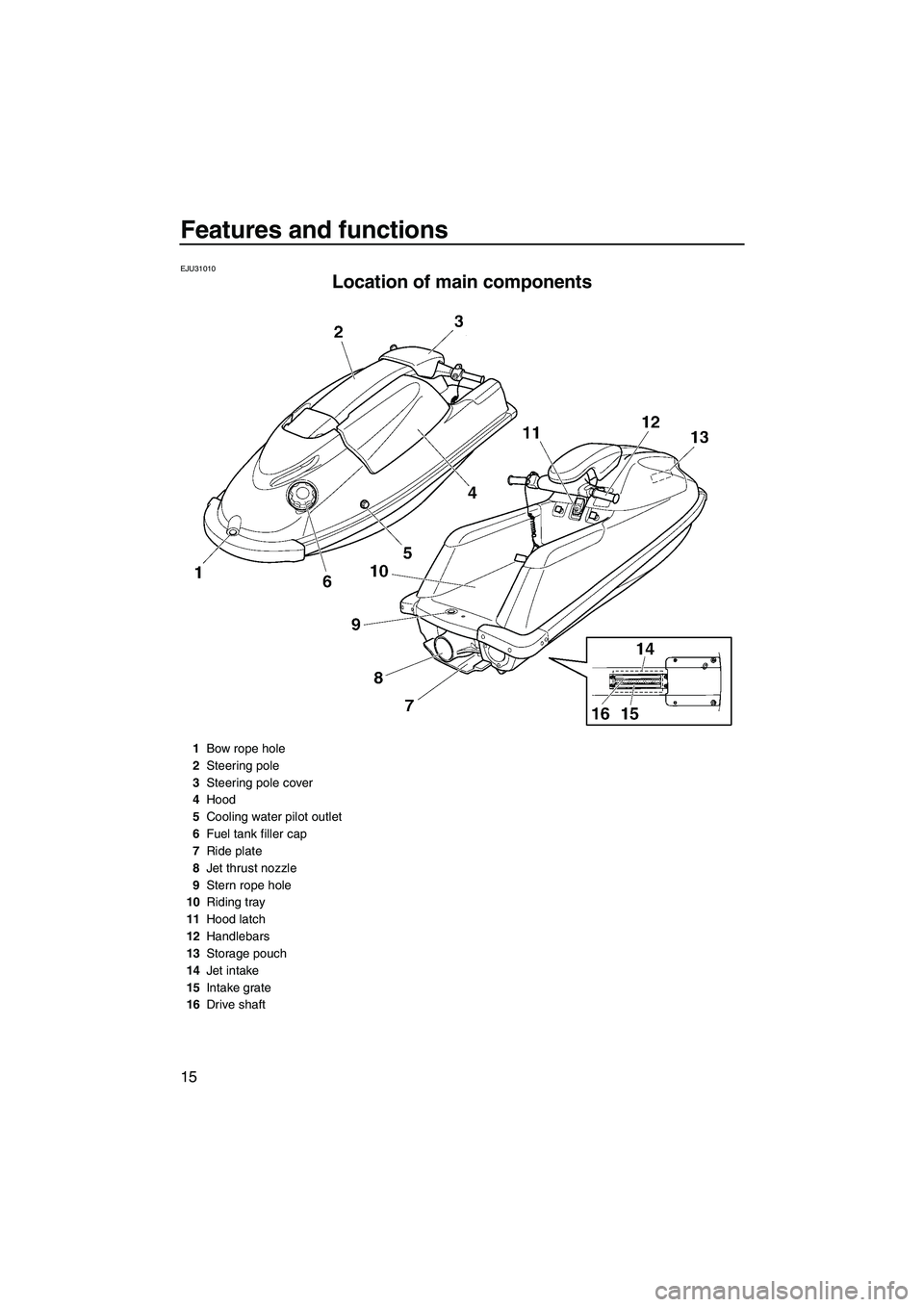

Location of main components
1Bow rope hole
2Steering pole
3Steering pole cover
4Hood
5Cooling water pilot outlet
6Fuel tank filler cap
7Ride plate
8Jet thrust nozzle
9Stern rope hole
10Riding tray
11Hood latch
12Handlebars
13Storage pouch
14Jet intake
15Intake grate
16Drive shaft
UF2F70E0.book Page 15 Tuesday, April 17, 2007 9:56 AM

Features and functions
20

To prevent accidental starting of the en-
gine or unauthorized use by children or
others, always remove the clip from the
engine shut-off switch when the engine
is not running.

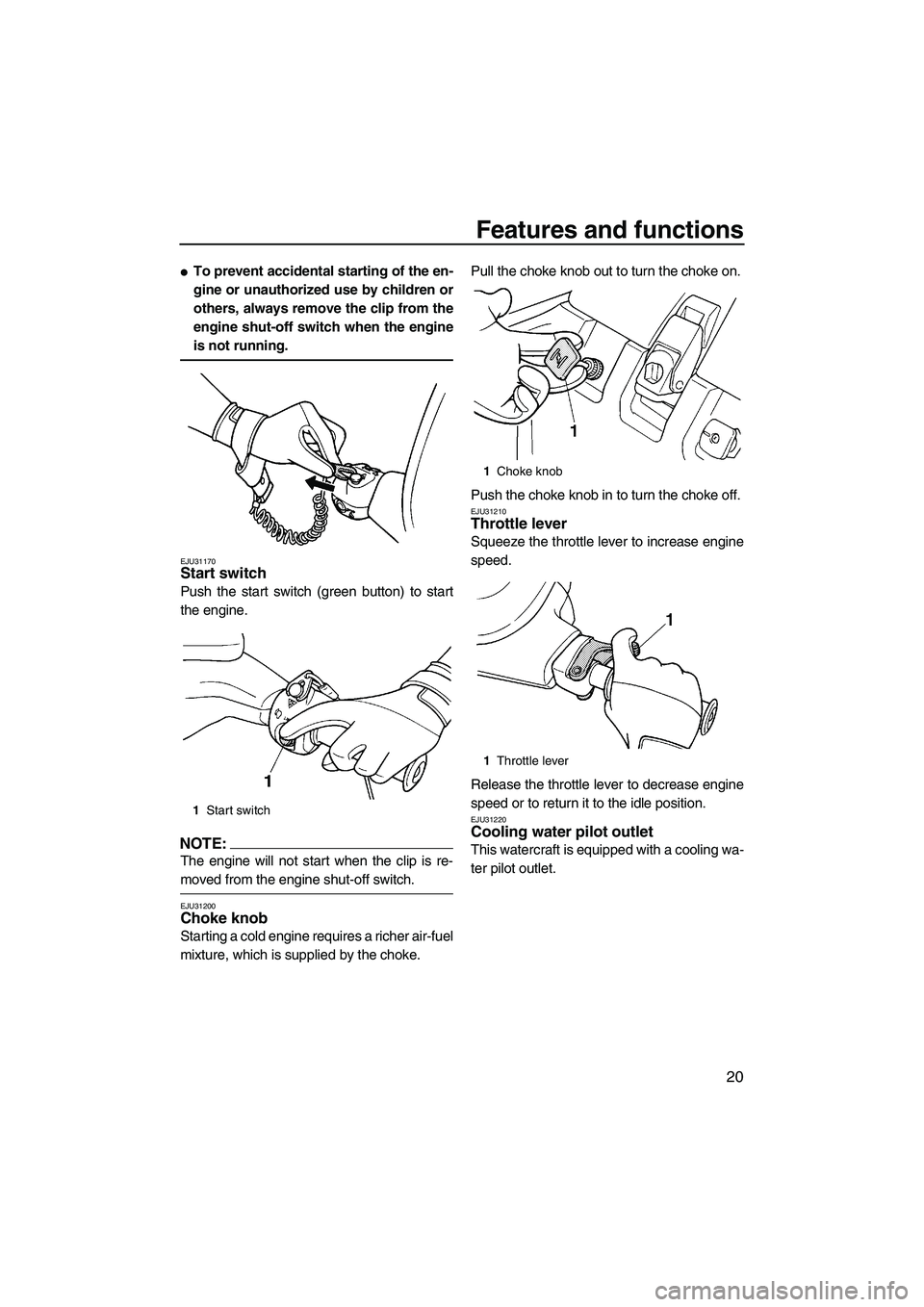

EJU31170Start switch
Push the start switch (green button) to start
the engine.
NOTE:
The engine will not start when the clip is re-
moved from the engine shut-off switch.
EJU31200Choke knob
Starting a cold engine requires a richer air-fuel
mixture, which is supplied by the choke.Pull the choke knob out to turn the choke on.
Push the choke knob in to turn the choke off.
EJU31210Throttle lever
Squeeze the throttle lever to increase engine
speed.
Release the throttle lever to decrease engine
speed or to return it to the idle position.
EJU31220Cooling water pilot outlet
This watercraft is equipped with a cooling wa-
ter pilot outlet.
1Start switch
1Choke knob
1Throttle lever
UF2F70E0.book Page 20 Tuesday, April 17, 2007 9:56 AM

Features and functions
21
When the engine is running, cooling water is
circulated in the engine, and then it is dis-
charged from the pilot outlet.
To check for proper operation of the cooling
system, check that water is being discharged
from the pilot outlet. If water is not being dis-
charged from the outlet, cooling water may
not be circulating in the engine. When this oc-
curs, stop the engine and check for the cause.
(See pages 22 and 65 for more information.)
NOTE:

If the cooling water passages are dry, it will
take about 20 seconds for the water to
reach the outlet after the engine is started.

Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.
EJU35930Steering system
Your watercraft can be steered by turning the
handlebars in the direction you wish to travel.
When the handlebars are turned, the angle of
the jet thrust nozzle is changed, and the direc-
tion of the watercraft is changed accordingly.
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must
always be applied when attempting a turn, ex-
cept at trolling speed.
The angle of the jet thrust nozzle can be ad-
justed to suit operator preference. (See page
55 for adjustment procedures.)
1Handlebar
2Jet thrust nozzle
UF2F70E0.book Page 21 Tuesday, April 17, 2007 9:56 AM

Features and functions
22
EJU31270Steering pole
The steering pole varies in height with the op-
erator’s posture, enabling the operator to as-
sume various riding positions.
When removing the hood for pre-operation
checks, maintenance, etc., lift the steering
pole and use the lock pin to support it. Move
the lock pin into the detent. Make sure that the
lock pin is returned to the stowed position af-
ter installing the hood.
EJU36000Bow rope hole
The bow rope hole is located at the bow of the
watercraft.The bow rope hole is used to attach a rope to
the watercraft when transporting, mooring, or
towing it in an emergency.
EJU36010Stern rope hole
The stern rope hole is located at the stern of
the watercraft.
The stern rope hole is used to attach a rope to
the watercraft when mooring it.
EJU31660Engine overheat warning system
This model is equipped with an engine over-
heat warning system.
If the engine starts to overheat, the engine
speed will be limited to about 3400 r/min.
If this occurs, immediately reduce the engine
speed, return to shore, and then check for wa-
ter discharge at the cooling water pilot outlet
while the engine is running. If there is no dis-
charge of water, shut the engine off, and then
1Steering pole
2Lock pin
1Bow rope hole
1Stern rope hole
UF2F70E0.book Page 22 Tuesday, April 17, 2007 9:56 AM

Operation
27
EJU31980
Pre-operation checks EJU31990Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the accom-
panying text in this chapter for details on how to perform the checks.
WARNING
EWJ00410
If any item in the pre-operation check list is not working properly, have it inspected and
repaired before operating the watercraft, otherwise an accident could occur.
NOTE:
Pre-operation checks should be made each time the watercraft is used. These checks can be
completed in a short time. It is worth the time spent to ensure safety and reliability.
ITEM ROUTINE PAGE
BEFORE LAUNCH OR OPERATION
Engine compartmentRemove the hood to ventilate the engine compart-
ment. Check for fuel vapors and loose electrical con-
nections.28
BilgeCheck for water and fuel and drain if necessary. 29
Throttle leverCheck that the throttle lever springs back smoothly. 30
Steering systemCheck for proper operation. 30
FuelCheck the fuel level and replenish if necessary.
Check the hoses and tank for leakage.28
Water separatorCheck for water and drain if necessary. 28
BatteryCheck the electrolyte level and battery condition. 29
HoodCheck that the hood is securely closed. 17
Hull and deckCheck the hull and deck for cracks and other dam-
age.28
Jet intakeCheck for debris and remove if necessary. 31
Fire extinguisherCheck the condition and replace if necessary. 29
Engine shut-off cordCheck the condition and replace if frayed or broken. 32
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.32
AFTER LAUNCH
Cooling water pilot outletCheck that water is discharged while the engine is
running and the watercraft is in the water.32
UF2F70E0.book Page 27 Tuesday, April 17, 2007 9:56 AM

Operation
31
smooth and unrestricted throughout the
whole range. Also, make sure that the jet
thrust nozzle moves as the handlebars are
turned, and that there is no free play between
the handlebars and the jet thrust nozzle.
EJU32620Steering pole
Check the steering pole for looseness.
Move the steering pole up and down to make
sure that operation is smooth and unrestricted
throughout the whole range. Also, make sure
that the steering pole does not have any side
play.
EJU32650Jet intake
Carefully check the jet intake for weeds, de-
bris, or anything else that might restrict the in-
take of water. If the jet intake is clogged,
cavitation could occur, reducing jet thrust, and
possibly damaging the jet pump.
In some cases, the engine may overheat be-
cause of lack of cooling water, and damage tothe engine could result. Cooling water is fed to
the engine by the jet pump. (See page 65 for
jet intake cleaning procedures.)
WARNING
EWJ00470

Keep away from the intake grate while
the engine is on. Items such as long hair,
loose clothing, or PFD straps can be-
come entangled in moving parts, result-
ing in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet in-
take.
UF2F70E0.book Page 31 Tuesday, April 17, 2007 9:56 AM

Operation
32
EJU32660Engine shut-off cord
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged, re-
place it; never try to repair it or tie it together.
EJU32670Switches
CAUTION:
ECJ00410
Do not run the engine for more than 15
seconds when checking the switches on
land without supplying water, otherwise
the engine could overheat.
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch to start the engine. As
soon as the engine starts running, push the
engine stop switch to verify that the engine
stops immediately. Restart the engine, and
then pull the engine shut-off cord to remove
the clip from the engine shut-off switch to ver-
ify that the engine stops immediately. (See
pages 19 to 20 for information on proper op-eration of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU32680Cooling water pilot outlet
Check that water comes out from the cooling
water pilot outlet while the engine is running
and the watercraft is in the water. (See page
20 for more information.)
1Engine shut-off switch
2Start switch
3Engine shut-off cord
4Engine stop switch
5Clip
UF2F70E0.book Page 32 Tuesday, April 17, 2007 9:56 AM
