YAMAHA RHINO 700 2008  Owners Manual 8-115
EVU00940

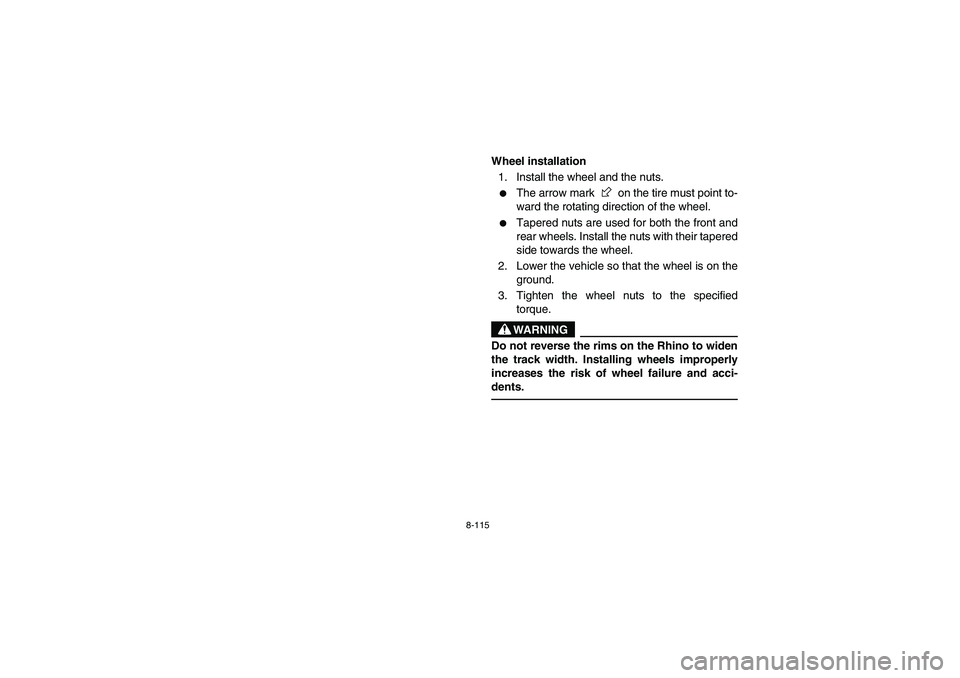

Wheel installation
1. Install the wheel and the nuts.
The arrow mark   on the tire must point to-
ward the rotating direction of the wheel.

Tapered nuts are used for both the front a

Page 434 of 468

YAMAHA RHINO 700 2008  Owners Manual 10-1
EVU01050

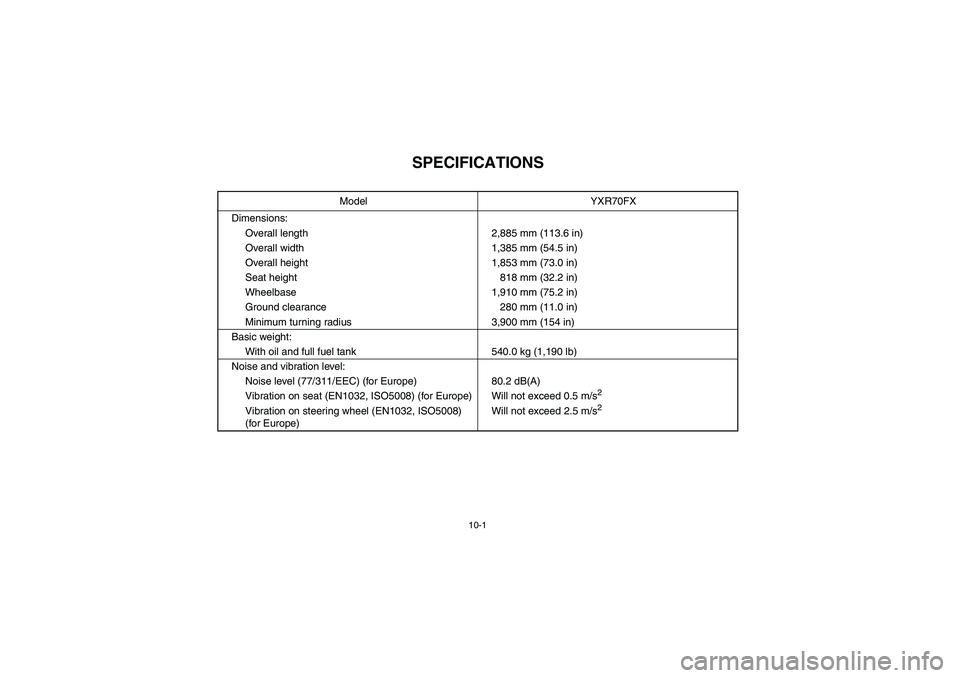

1 -SPECIFICATIONS
Model YXR70FX
Dimensions:
Overall length 2,885 mm (113.6 in)
Overall width 1,385 mm (54.5 in)
Overall height 1,853 mm (73.0 in)
Seat height 818 mm (32.2 in)
Wheelbase 1
