TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function display ......................3-5
Anti-theft alarm (optional) ...............3-9
Handlebar switches ........................3-9
Clutch lever ...................................3-10
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather/overflow
hose ..........................................3-14
Catalytic converters ......................3-14
Seat ..............................................3-15
Adjusting the front fork ..................3-15
Adjusting the shock absorber
assembly ...................................3-17
Luggage strap holders ..................3-19
EXUP system ...............................3-20
Sidestand ......................................3-20Ignition circuit cut-off system ........ 3-21
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
cowling ........................................ 6-6
Checking the spark plugs ............... 6-7
Engine oil and oil filter cartridge ..... 6-8
Air filter element ........................... 6-12
Checking the throttle cable free
play ........................................... 6-12
Valve clearance ............................ 6-12
Tires ............................................. 6-13
Cast wheels .................................. 6-15
Clutch lever .................................. 6-16Adjusting the rear brake light
switch ....................................... 6-16
Checking the front and rear
brake pads ................................ 6-16
Checking the brake fluid level ...... 6-17
Changing the brake and clutch
fluids ......................................... 6-18
Drive chain slack .......................... 6-18
Cleaning and lubricating the
drive chain ................................ 6-20
Checking and lubricating the
cables ....................................... 6-20
Checking and lubricating the
throttle grip and cable ............... 6-21
Checking and lubricating the
brake and shift pedals .............. 6-21
Checking and lubricating the
brake and clutch levers ............ 6-22
Checking and lubricating the
sidestand .................................. 6-22
Checking the front fork ................. 6-23
Checking the steering .................. 6-23
Checking the wheel bearings ....... 6-24
Battery ......................................... 6-24
Replacing the fuses ..................... 6-26
Replacing a headlight bulb .......... 6-27
Tail/brake light ............................. 6-30
Replacing a turn signal light
bulb ........................................... 6-30
Replacing the license plate light
bulb ........................................... 6-30U5YUE3E0.book Page 1 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√
4*Air filter elementReplace.√
5*ClutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U5YUE3E0.book Page 2 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
18Clutch lever pivot
shaftLubricate with silicone grease.√√√√√
19Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
20 SidestandCheck operation.
Lubricate.√√√√√
21*Sidestand switchCheck operation.√√√√√√
22*Front forkCheck operation and for oil leak-
age.√√√√
23*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
24*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
25*Fuel injection sys-
temAdjust synchronization.√√√√√
26 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
27Engine oil filter car-
tridgeReplace.√√√
28*Front and rear brake
switchesCheck operation.√√√√√√
29Moving parts and
cablesLubricate.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U5YUE3E0.book Page 4 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU36771
NOTE:

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
30*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
31*Muffler and exhaust
pipeCheck the screw clamp for loose-
ness.√√√√√
32*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U5YUE3E0.book Page 5 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
EAU36806
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.
NOTE:To achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down, and then
warmed up again for several minutes tonormal operating temperature.
3. Wait a few minutes until the oil set-
tles, remove the engine oil filler
cap, wipe the dipstick clean, insert
it back into the oil filler hole (with-
out screwing it in), and then re-
move it again to check the oil level.NOTE:The engine oil should be between theminimum and maximum level marks.4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
NOTE:When adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portionon the dipstick.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Dipstick
U5YUE3E0.book Page 8 Thursday, September 20, 2007 3:03 PM

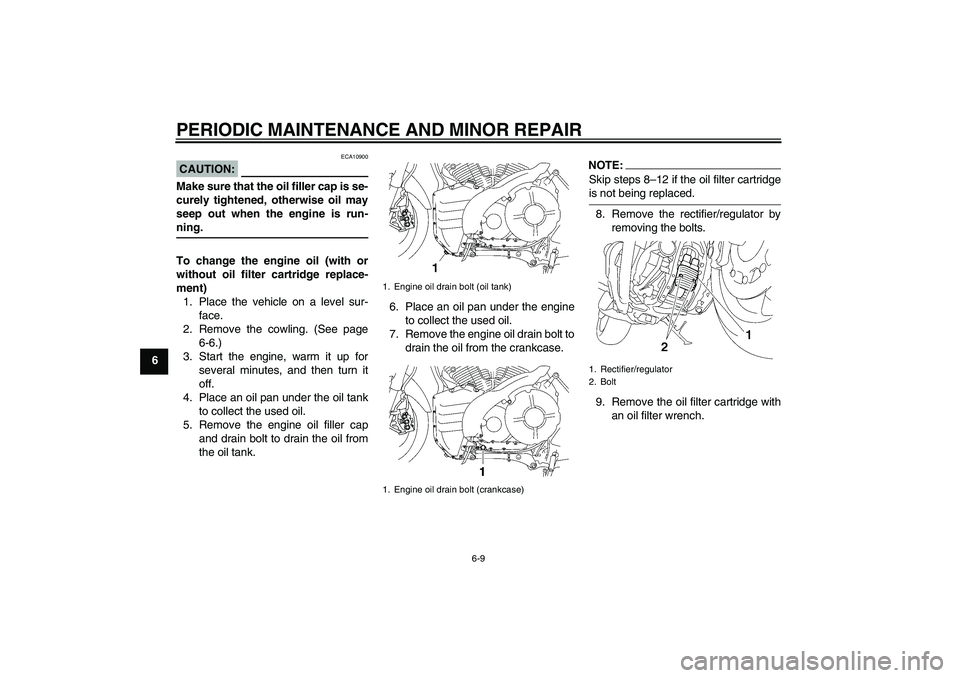

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
CAUTION:
ECA10900
Make sure that the oil filler cap is se-
curely tightened, otherwise oil may
seep out when the engine is run-ning.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Remove the cowling. (See page
6-6.)
3. Start the engine, warm it up for
several minutes, and then turn it
off.
4. Place an oil pan under the oil tank
to collect the used oil.
5. Remove the engine oil filler cap
and drain bolt to drain the oil from
the oil tank.6. Place an oil pan under the engine
to collect the used oil.
7. Remove the engine oil drain bolt to
drain the oil from the crankcase.
NOTE:Skip steps 8–12 if the oil filter cartridgeis not being replaced.
8. Remove the rectifier/regulator by
removing the bolts.
9. Remove the oil filter cartridge with
an oil filter wrench.
1. Engine oil drain bolt (oil tank)
1. Engine oil drain bolt (crankcase)
1. Rectifier/regulator
2. Bolt
U5YUE3E0.book Page 9 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:An oil filter wrench is available at aYamaha dealer.
10. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
NOTE:
Make sure that the O-ring is properlyseated.
11. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.12. Install the rectifier/regulator by in-
stalling the bolts, and then tighten
them to the specified torque.
13. Install the engine oil drain bolts,
and then tighten them to the spec-
ified torques.
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Rectifier/regulator bolt:
6.5 Nm (0.65 m·kgf, 4.7 ft·lbf)
U5YUE3E0.book Page 10 Thursday, September 20, 2007 3:03 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
614. Pour only 2.5 L (2.6 US qt) (2.2
Imp.qt) of the specified amount of
recommended engine oil through
the filler hole, insert the dipstick,
and then tighten the oil filler cap.
15. Start the engine, rev it several
times, and then turn it off.
16. Remove the engine oil filler cap,
and then gradually fill the oil tank
with the remaining oil quantity
while regularly checking the oil lev-
el on the dipstick.
NOTE:Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.CAUTION:
ECA15080


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-rial enters the oil tank.17. Install the engine oil filler cap.
18. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
19. Turn the engine off, and then
check the oil level and correct it if
necessary.
20. Install the cowling.
Tightening torques:
Engine oil drain bolt (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt (oil tank):
35 Nm (3.5 m·kgf, 25 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
3.70 L (3.91 US qt) (3.26 Imp.qt)
With oil filter cartridge replacement:
4.10 L (4.33 US qt) (3.61 Imp.qt)
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U5YUE3E0.book Page 11 Thursday, September 20, 2007 3:03 PM
