2008 YAMAHA MAJESTY 400 brake fluid

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-5
Tachometer .....................................3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-9
Handlebar switches .........................3-9
Front brake lever ...........................3-11
Rear brake lever ............................3-11
Rear brake lock lever .....................3-11
ABS (for ABS models) ...................3-12
Fuel tank cap .................................3-13
Fuel ................................................3-14
Catalytic converters .......................3-14
Seats .............................................3-15
Adjusting the rider seat ..................3-16
Storage compartments ..................3-17
Adjusting the shock absorber
assemblies .................................3-18
Sidestand .......................................3-19Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-4
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing cowlings and
panels .......................................... 6-7
Checking the spark plug ................ 6-11
Engine oil and oil filter element ..... 6-13
Final transmission oil ..................... 6-16
Coolant .......................................... 6-17
Air filter elements and check hoses and
V-belt case air filter element ...... 6-19
Checking the throttle cable free
play ............................................ 6-22Valve clearance ............................ 6-22
Tires .............................................. 6-22
Cast wheels .................................. 6-24
Front and rear brake lever free
play ............................................ 6-25
Adjusting the rear brake lock lever
cable .......................................... 6-26
Checking the front and rear brake
pads ........................................... 6-26
Checking the brake fluid level ....... 6-27
Changing the brake fluid ............... 6-28
Checking and lubricating the
cables ........................................ 6-28
Checking and lubricating the throttle
grip and cable ............................ 6-29
Lubricating the front and rear brake
levers ......................................... 6-29
Checking and lubricating the
centerstand and sidestand ........ 6-29
Checking the front fork .................. 6-30
Checking the steering ................... 6-31
Checking the wheel bearings ........ 6-31
Battery ........................................... 6-32
Replacing the fuses ...................... 6-33
Replacing a headlight bulb ........... 6-35
Tail/brake light ............................... 6-36
Replacing a front turn signal light
bulb ............................................ 6-36
Replacing a rear turn signal light
bulb ............................................ 6-37

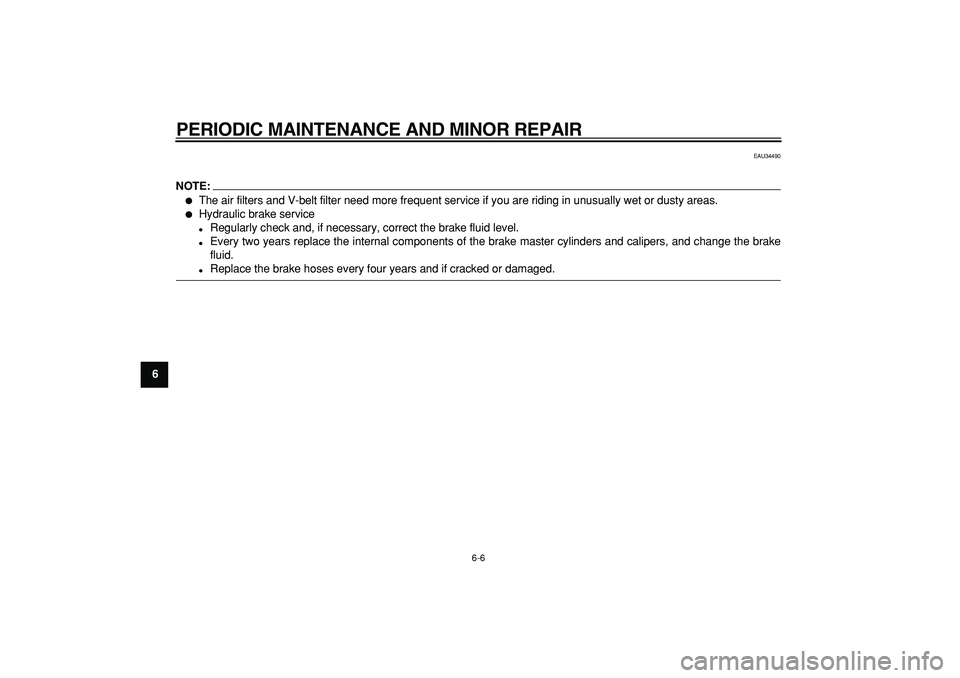

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
1
2
3
4
5
6
7
8
9

EAU34490
NOTE:


The air filters and V-belt filter need more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.

Replace the brake hoses every four years and if cracked or damaged.

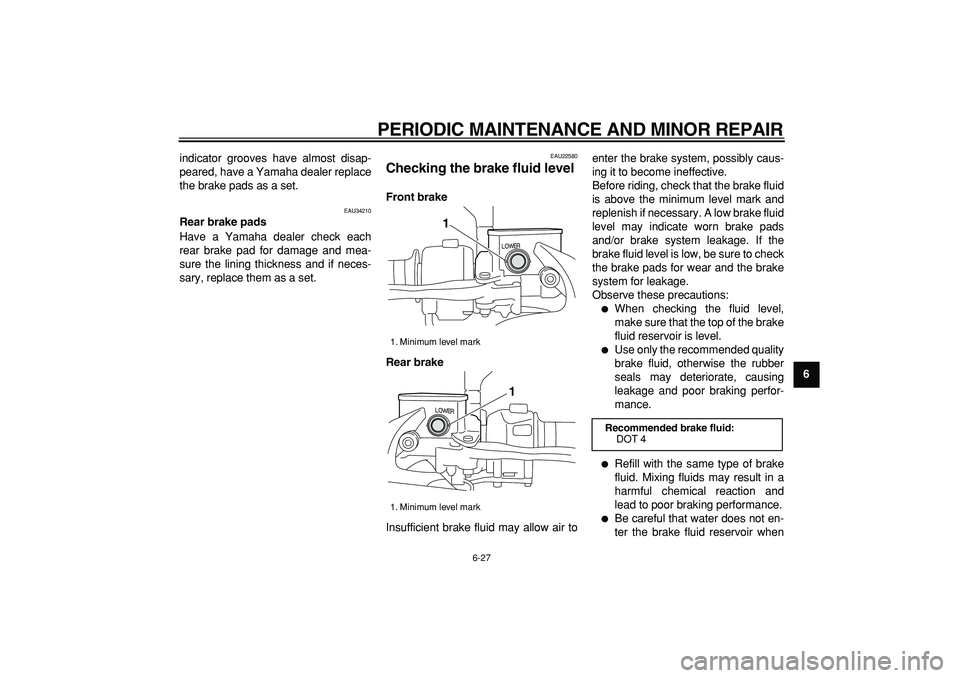

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
2
3
4
5
67
8
9
indicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.

EAU34210
Rear brake pads
Have a Yamaha dealer check each
rear brake pad for damage and mea-
sure the lining thickness and if neces-
sary, replace them as a set.
EAU22580
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air toenter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:

When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

Be careful that water does not en-
ter the brake fluid reservoir when
1. Minimum level mark
1. Minimum level mark
1
1

Recommended brake fluid:
DOT 4

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
1
2
3
4
5
6
7
8
9
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.

As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22730
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
EAU23100
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING

EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
Recommended lubricant:
Engine oil

SPECIFICATIONS
8-2
2
3
4
5
6
7
89

Secondary reduction ratio:
42/16 (2.625)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Chassis:
Frame type:
Aluminum die-cast and steel tube back-
bone
Caster angle:
27.00 °
Trail:
100.0 mm (3.94 in)
Front tire:
Type:
Tubeless
Size:
120/80-14M/C 58S
Manufacturer/model:
IRC/MB67
Manufacturer/model:
DUNLOP/D305FL
Rear tire:
Type:
Tubeless
Size:
150/70-13M/C 64S
Manufacturer/model:
IRC/MB67
Manufacturer/model:
DUNLOP/D305L
Loading:
Maximum load:
YP400 189 kg (417 lb)
YP400A 185 kg (408 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
200 kPa (29 psi) (2.00 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Loading condition:
YP400 90–189 kg (198–417 lb)
YP400A 90–185 kg (198–408 lb)
Front:
200 kPa (29 psi) (2.00 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Front wheel:
Wheel type:
Cast wheel
Rim size:
14M/C x MT3.00
Rear wheel:
Wheel type:
Cast wheel
Rim size:
13M/C x MT4.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:
Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
104.0 mm (4.09 in)
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto

INDEX
A
ABS (for ABS models) .............................3-12
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-2
Air filter elements and check hoses and
V-belt case air filter element ..................6-19
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-38
B
Battery .....................................................6-32
Brake fluid, changing ...............................6-28
Brake fluid level, checking .......................6-27
Brake lever, front .....................................3-11
Brake lever, rear ......................................3-11
Brake levers, lubricating ..........................6-29
Braking ......................................................5-2
C
Cables, checking and lubricating .............6-28
Care ...........................................................7-1
Catalytic converters .................................3-14
Centerstand and sidestand, checking and
lubricating ..............................................6-29
Coolant ....................................................6-17
Cowlings and panels, removing and
installing ..................................................6-7
D
Dimmer switch .........................................3-10
E
Engine break-in .........................................5-4
Engine oil and oil filter element ................6-13
Engine stop switch...................................3-10
Engine trouble warning light ......................3-4
F
Final transmission oil ...............................6-16Front and rear brake lever free play ........ 6-25
Front and rear brake pads, checking....... 6-26
Front fork, checking ................................. 6-30
Fuel ......................................................... 3-14
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-13
Fuses, replacing ...................................... 6-33
H
Handlebar switches ................................... 3-9
Hazard switch .......................................... 3-10
Headlight bulb, replacing ......................... 6-35
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-10
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-38
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-10
Periodic maintenance and lubrication
chart ........................................................ 6-3Pre-operation check list............................. 4-2
R
Rear brake lock lever .............................. 3-11
Rear brake lock lever cable, adjusting .... 6-26
Rider seat, adjusting ............................... 3-16
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seats ....................................................... 3-15
Shock absorber assemblies, adjusting.... 3-18
Sidestand ................................................ 3-19
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-10
Steering, checking................................... 6-31
Storage...................................................... 7-3
Storage compartments ............................ 3-17
T
Tachometer ............................................... 3-5
Tail/brake light ......................................... 6-36
Throttle cable free play, checking ........... 6-22
Throttle grip and cable, checking and
lubricating ............................................. 6-29
Tires ........................................................ 6-22
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-40
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-36
Turn signal light bulb (rear), replacing..... 6-37
Turn signal switch ................................... 3-10
