2008 YAMAHA MAJESTY 400 lights

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
2
3
4
5
67
8
9
CAUTION:

ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question tocheck if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU34240
Replacing a headlight bulb
This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, have a Yamaha dealer replace it
and, if necessary, adjust the headlight
beam.
Specified fuses:
Main fuse:
40.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Headlight fuse:
25.0 A
Hazard fuse:
10.0 A
Radiator fan fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
YP400A 10.0 A
ABS motor fuse:
YP400A 30.0 A
Backup fuse:
10.0 A

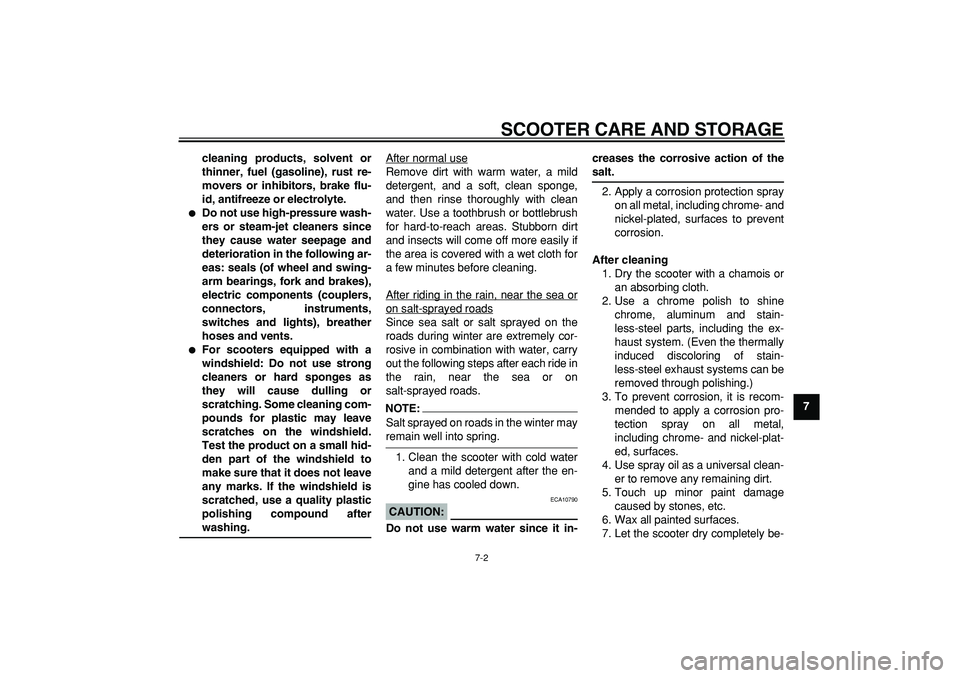

SCOOTER CARE AND STORAGE
7-2
2
3
4
5
6
78
9 cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on the
roads during winter are extremely cor-
rosive in combination with water, carry
out the following steps after each ride in
the rain, near the sea or on
salt-sprayed roads.NOTE:

Salt sprayed on roads in the winter may
remain well into spring.
1. Clean the scooter with cold water
and a mild detergent after the en-
gine has cooled down.
CAUTION:

ECA10790
Do not use warm water since it in-creases the corrosive action of the
salt.
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the scooter with a chamois or
an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
er to remove any remaining dirt.
5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be-

INDEX
A
ABS (for ABS models) .............................3-12
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-2
Air filter elements and check hoses and
V-belt case air filter element ..................6-19
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-38
B
Battery .....................................................6-32
Brake fluid, changing ...............................6-28
Brake fluid level, checking .......................6-27
Brake lever, front .....................................3-11
Brake lever, rear ......................................3-11
Brake levers, lubricating ..........................6-29
Braking ......................................................5-2
C
Cables, checking and lubricating .............6-28
Care ...........................................................7-1
Catalytic converters .................................3-14
Centerstand and sidestand, checking and
lubricating ..............................................6-29
Coolant ....................................................6-17
Cowlings and panels, removing and
installing ..................................................6-7
D
Dimmer switch .........................................3-10
E
Engine break-in .........................................5-4
Engine oil and oil filter element ................6-13
Engine stop switch...................................3-10
Engine trouble warning light ......................3-4
F
Final transmission oil ...............................6-16Front and rear brake lever free play ........ 6-25
Front and rear brake pads, checking....... 6-26
Front fork, checking ................................. 6-30
Fuel ......................................................... 3-14
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap ........................................... 3-13
Fuses, replacing ...................................... 6-33
H
Handlebar switches ................................... 3-9
Hazard switch .......................................... 3-10
Headlight bulb, replacing ......................... 6-35
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-10
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-20
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-38
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-5
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-10
Periodic maintenance and lubrication
chart ........................................................ 6-3Pre-operation check list............................. 4-2
R
Rear brake lock lever .............................. 3-11
Rear brake lock lever cable, adjusting .... 6-26
Rider seat, adjusting ............................... 3-16
S
Safe-riding points ...................................... 1-4
Safety information ..................................... 1-1
Seats ....................................................... 3-15
Shock absorber assemblies, adjusting.... 3-18
Sidestand ................................................ 3-19
Spark plug, checking ............................... 6-11
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-10
Steering, checking................................... 6-31
Storage...................................................... 7-3
Storage compartments ............................ 3-17
T
Tachometer ............................................... 3-5
Tail/brake light ......................................... 6-36
Throttle cable free play, checking ........... 6-22
Throttle grip and cable, checking and
lubricating ............................................. 6-29
Tires ........................................................ 6-22
Tool kit....................................................... 6-1
Troubleshooting ...................................... 6-39
Troubleshooting charts............................ 6-40
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-36
Turn signal light bulb (rear), replacing..... 6-37
Turn signal switch ................................... 3-10
