8-56
8
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-lot lights from water heaters or furnaces.U23D60E0.book Page 56 Thursday, March 15, 2007 7:59 PM
10-1
10
EBU25960

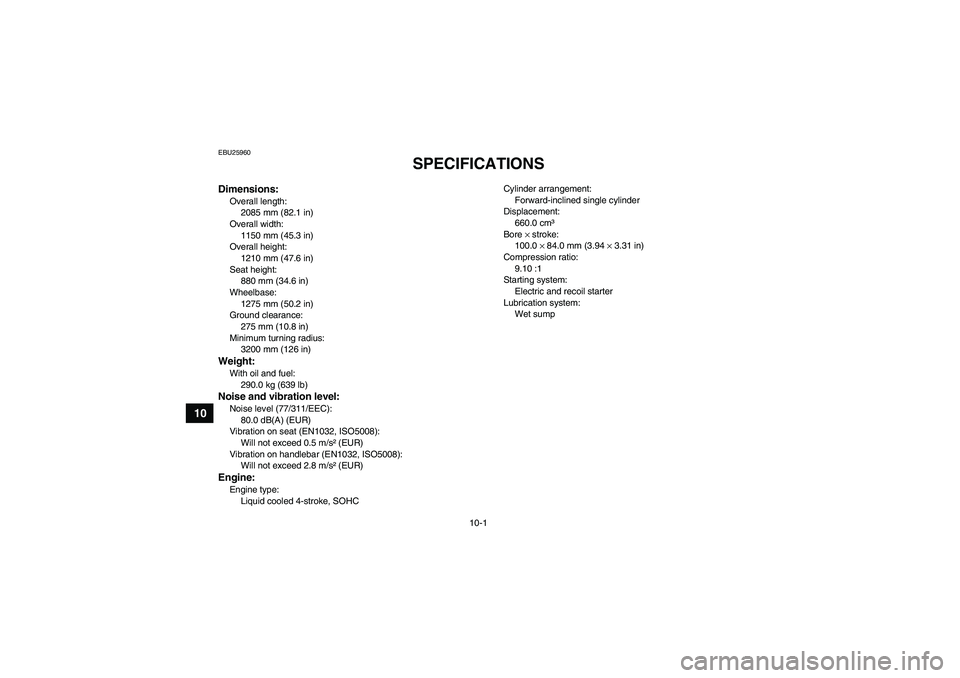

SPECIFICATIONS
Dimensions:Overall length:
2085 mm (82.1 in)
Overall width:
1150 mm (45.3 in)
Overall height:
1210 mm (47.6 in)
Seat height:
880 mm (34.6 in)
Wheelbase:
1275 mm (50.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius:
3200 mm (126 in)Weight:With oil and fuel:
290.0 kg (639 lb)Noise and vibration level:Noise level (77/311/EEC):
80.0 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.8 m/s² (EUR)Engine:Engine type:
Liquid cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
660.0 cm³
Bore × stroke:
100.0 × 84.0 mm (3.94 × 3.31 in)
Compression ratio:
9.10 :1
Starting system:
Electric and recoil starter
Lubrication system:
Wet sump
U23D60E0.book Page 1 Thursday, March 15, 2007 7:59 PM
