2008 YAMAHA GRIZZLY 350 stop start

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Fuel cock
2. Throttle stop screw
3. Air filter case
4. Fuses
5. Battery
6. Tail/brake light
7. Recoil starter
8. Engine oil filler cap
9. Oil filter cartridge
10.V-belt cooling duct check hose
1. Rear shock absorber assembly spring preload adjusting
ring
2. Storage compartment and tool kit
3. Spark plug
4. Front shock absorber assembly spring preload adjusting
ring
5. Rear brake light switch
6. Brake pedal
7. V-belt case drain plug

4-2
4
EBU17813Indicator lights and warning light EBU27970Turn signal indicator light“”
This indicator light flashes when the turn signal
switch is pushed to the left or right.
EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU27980High beam indicator light“”
This indicator light comes on when the high beam
of the headlight is switched on.EBU26931Oil temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs, stop the engine as soon
as it is safe to do so, and allow it to cool.
The electrical circuit of the warning light can be
checked by turning the key to “ON”, with the engine
stop switch set to“”, and then pushing the start
switch.
If the warning light does not come on while the start
switch is being pushed, then go off after the start
switch is released, have a Yamaha dealer check
the electrical circuit.
1. Reverse indicator light “R”
2. Neutral indicator light “N”
3. High beam indicator light“”
4. Oil temperature warning light“”
5. Turn signal indicator light“”
6. On-Command four-wheel-drive indicator light“” (4WD
model)

4-3
4If the warning light stays on, allow the engine to
cool. If the warning light stays on when the engine
is cool, have a Yamaha dealer check the electrical
circuit.
CAUTION:ECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU17952On-Command four-wheel-drive indicator
light“” (4WD model)
This indicator light comes on when the On-Com-
mand four-wheel-drive switch is set to the “4WD”
position.NOTE:Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on untilthe ATV starts moving.
EBU18020Speedometer The speedometer shows the riding speed. This
speedometer is equipped with an odometer and a
tripmeter. The tripmeter can be reset to “0” with the
reset knob. Use the tripmeter to estimate how far
you can ride on a tank of fuel before going to re-
serve. This information will enable you to plan fuel
stops in the future.1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
123
4

4-4
4

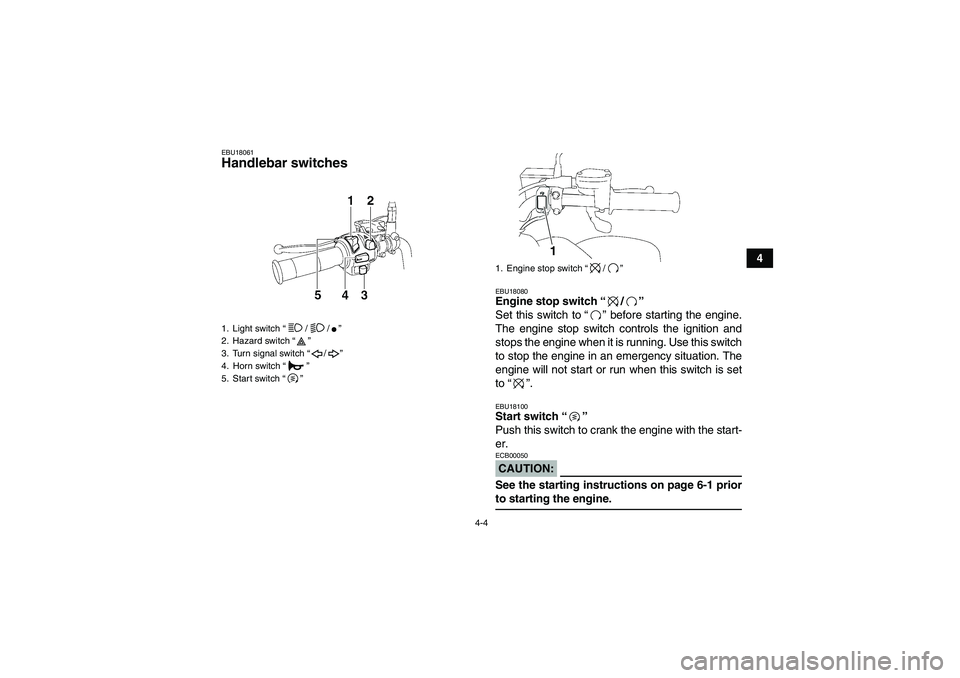

EBU18061Handlebar switches
EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.EBU18100Start switch“”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.
1. Light switch“//”
2. Hazard switch“”
3. Turn signal switch“/”
4. Horn switch“”
5. Start switch“”
1. Engine stop switch“/”
1

4-5
4
EBU28061Light switch“//”
Set the switch to“” to turn on the high beam.
Set this switch to“” to turn on the low beam.
Set the switch to“” to turn off the headlight.CAUTION:ECB00030Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-charge it.EBU27990Turn signal switch“/”
To signal a right-hand turn, push this switch
to“”. To signal a left-hand turn, push this switch
to“”. When released, the switch returns to the
center position. To cancel the turn signal lights,
push the switch in after it has returned to the center
position.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU28000Hazard switch“”
With the key in the “ON” position, turn this switch
to“” to turn on the hazard lights (simultaneous
flashing of all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.CAUTION:ECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-erwise the battery may discharge.EBU28431On-Command four-wheel-drive switch
“2WD”/“4WD” (4WD model)
This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD” (two-wheel drive): Power is supplied to
the rear wheels.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.

6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU20031Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-4prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to“”.
4. Shift the drive select lever into the neutral po-
sition. The neutral indicator light should come
on. If the indicator light does not come on,
have a Yamaha dealer check the electrical cir-
cuit.NOTE:The engine can be started under the following con-
ditions:
The drive select lever is in the neutral position.
The rear brake lever is applied with the drive se-
lect lever in any position. However, it is recom-
mended to shift into the neutral position beforestarting the engine.

6-3
6
NOTE:The engine is warm when it responds normally tothe throttle with the starter (choke) turned off.EBU20291Starting a warm engine Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.EBU20380Operating the drive select lever and
driving in reverse CAUTION:ECB00170Before shifting, stop the ATV, otherwise thetransmission may be damaged.
Shifting: Forward
1. Bring the ATV to a complete stop.
2. Shift from neutral to forward and vice versa by
moving the drive select lever along the shift
guide.
NOTE:Make sure that the drive select lever is completelyshifted into position.
3. Open the throttle lever gradually.
Shifting: Reverse
1. Bring the ATV to a complete stop.
2. Apply the brake pedal.1. Drive select lever
2. F (Forward)
3. N (Neutral)
4. R (Reverse)

7-13
7 With the engine idling, return the starter (choke) to
the closed position, shift the drive select lever into
the forward position, and then release the parking
brake. Apply the throttle slowly and smoothly. The
centrifugal clutch will engage and you will start to
accelerate. If the throttle is applied too abruptly, the
front wheels may lift off the ground, resulting in a
loss of directional control. Avoid higher speeds un-
til you are thoroughly familiar with the operation of
your ATV.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. Im-
proper use of the brakes can cause the tires to lose
traction, reducing control and increasing the possi-
bility of an accident.
TURNING YOUR ATV
To achieve maximum traction on unpaved surfac-
es, the two rear wheels are mounted solidly on one
axle and turn together at the same speed. There-
fore, unless the wheel on the inside of the turn is al-
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
WARNING
EWB01570Always follow proper procedures for turning
as described in this Owner’s Manual. Practice
turning at low speeds before attempting to turn
at faster speeds. Do not turn at speeds too fastfor your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the out-
side of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the turn.
This maneuver will let the wheel on the inside of
the turn slip slightly, allowing the ATV to make the
turn properly.
