TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Multi-function meter unit .................3-8
Anti-theft alarm (optional) .............3-12
Handlebar switches ......................3-13
Clutch lever ...................................3-14
Shift pedal .....................................3-14
Brake lever ...................................3-15
Brake pedal ..................................3-15
ABS (for ABS models) ..................3-15
Fuel tank cap ................................3-16
Fuel ...............................................3-17
Fuel tank breather/overflow
hose ..........................................3-18
Catalytic converters ......................3-18
Seats ............................................3-18
Storage compartment (FZ1-N) ......3-20
Adjusting the front fork ..................3-20
Adjusting the shock absorber
assembly ...................................3-22
Luggage strap holders ..................3-24EXUP system ............................... 3-25
Sidestand ..................................... 3-25
Ignition circuit cut-off system ........ 3-26
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
panel ........................................... 6-7
Checking the spark plugs ............... 6-8
Engine oil and oil filter cartridge ..... 6-9
Coolant ......................................... 6-11
Replacing the air filter element ..... 6-13
Adjusting the engine idling
speed ........................................ 6-15
Checking the throttle cable free
play ........................................... 6-16Valve clearance ........................... 6-16
Tires ............................................. 6-16
Cast wheels ................................. 6-19
Adjusting the clutch lever free
play ........................................... 6-19
Adjusting the rear brake light
switch (FZ1-N) ........................... 6-20
Rear brake light switch
(FZ1-NA) ................................... 6-20
Checking the front and rear
brake pads ................................ 6-21
Checking the brake fluid level ...... 6-21
Changing the brake fluid .............. 6-23
Drive chain slack .......................... 6-23
Cleaning and lubricating the
drive chain ................................ 6-24
Checking and lubricating the
cables ....................................... 6-25
Checking and lubricating the
throttle grip and cable ............... 6-25
Checking and lubricating the
brake and shift pedals .............. 6-26
Checking and lubricating the
brake and clutch levers ............ 6-26
Checking and lubricating the
sidestand .................................. 6-27
Checking the front fork ................. 6-27
Checking the steering .................. 6-28
Checking the wheel bearings ....... 6-29
Battery ......................................... 6-29
Replacing the fuses ..................... 6-30U2D1E2E0.book Page 1 Wednesday, August 22, 2007 3:36 PM

TABLE OF CONTENTS
Replacing the headlight bulb ........ 6-33
Replacing the tail/brake light
bulb ........................................... 6-34
Replacing a turn signal light
bulb ........................................... 6-34
Replacing the license plate light
bulb ........................................... 6-35
Replacing an auxiliary light bulb ... 6-35
Supporting the motorcycle ............ 6-36
Front wheel (FZ1-N) ...................... 6-37
Rear wheel (FZ1-N) ....................... 6-38
Troubleshooting ............................ 6-40
Troubleshooting charts ................. 6-41
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U2D1E2E0.book Page 2 Wednesday, August 22, 2007 3:36 PM

DESCRIPTION
2-2
2
EAU10420
Right view1. Owner’s tool kit (page 6-1)
2. Luggage strap holder (page 3-24)
3. Rider seat lock lever (page 3-18)
4. Fuse box (page 6-30)
5. Battery (page 6-29)
6. Rear brake fluid reservoir (page 6-21)
7. Engine oil filler cap (page 6-9)
8. Front brake fluid reservoir (page 6-21)9. Front fork rebound damping force adjusting screw (page 3-20)
10.Engine oil level check window (page 6-9)
11.Brake pedal (page 3-15)
12.Coolant reservoir (page 6-11)
13.Rear brake light switch (page 6-20)
U2D1E2E0.book Page 2 Wednesday, August 22, 2007 3:36 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11250
Oil level warning light“”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated un-
til the malfunction is corrected: The
oil level warning light will flash ten
times, then go off for 2.5 seconds.
If this occurs, have a Yamahadealer check the vehicle.
EAU11423
Coolant temperature warning
light“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
1. Left turn signal indicator light“”
2. Right turn signal indicator light“”
3. Neutral indicator light“”
4. High beam indicator light“”
5. Engine trouble warning light“”
6. Oil level warning light“”
7. Coolant temperature warning light“”
8. Anti-lock Brake System (ABS) warning
light“” (for ABS models)
9. Immobilizer system indicator light
ABS
U2D1E2E0.book Page 4 Wednesday, August 22, 2007 3:36 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11530
Engine trouble warning light“”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-11 for
an explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11543
ABS warning light“” (for ABS
models)
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-15.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to causethe wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-11 for an explana-
tion of the self-diagnosis device.)
ABS
U2D1E2E0.book Page 7 Wednesday, August 22, 2007 3:36 PM

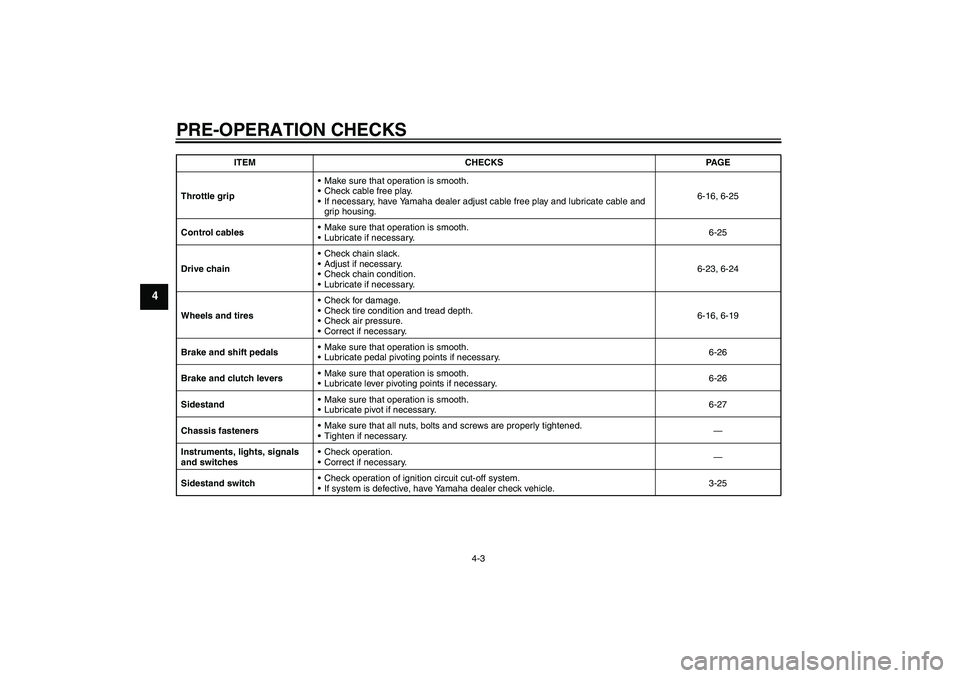

PRE-OPERATION CHECKS
4-3
4
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-16, 6-25
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-25
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-23, 6-24
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-16, 6-19
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-26
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-26
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-27
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-25 ITEM CHECKS PAGE
U2D1E2E0.book Page 3 Wednesday, August 22, 2007 3:36 PM

OPERATION AND IMPORTANT RIDING POINTS
5-2
5serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt.CAUTION:
ECA16041


If the oil level warning light flick-
ers or remains on after starting,
immediately stop the engine,
and then check the engine oil
level and the vehicle for oil leak-
age. If necessary, add engine
oil, and then check the warning
light again.


If the coolant temperature warn-
ing light flickers or remains on
after starting, immediately stop
the engine, and then check the
coolant level and the vehicle for
coolant leakage. If necessary,
add coolant, and then check the
warning light again.


If the engine trouble warning
light flashes or remains on after
starting, immediately stop the
engine, and have a Yamaha
dealer check the cause.


For ABS models
If the ABS warning light flashes
or remains on after starting, the
ABS may be defective, and the
brake system reverts to conven-
tional braking.
If this occurs, have a Yamaha
dealer check the system as
soon as possible.


The immobilizer system indica-
tor light should come on when
the key is turned to “ON”, and
then go off after a few seconds.
If the indicator light does not
come on, or does not go off, or
if it flashes and the display indi-
cates a two-digit error code,
have a Yamaha dealer check theelectrical circuit.
CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.NOTE:To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel, and then slightly raise it.1. Shift pedal
2. Neutral position
U2D1E2E0.book Page 2 Wednesday, August 22, 2007 3:36 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU18680
NOTE:

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
30Moving parts and
cablesLubricate.√√√√√
31*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
32*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace the entire air induction
system if necessary.√√√√√
33*Muffler and exhaust
pipeCheck the screw clamp for loose-
ness.√√√√√
34*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D1E2E0.book Page 5 Wednesday, August 22, 2007 3:36 PM
