Booklet 3.2 Tips and Advice
Do no t let your Diese l e n gin e idl e u1111 ecessa rily
afte r a co ld start. Drivin g off s low ly wi ll sho rten
th e wa rm -up peri od.
WARNING
• Neve r use "s tarting a ssist fluid s". The y
may be pot entiall y explosive or cause a "run ­
away" engine condition. This could result in
ser ious engine damage and personal injury.
• Do not use fuel line antifreeze offered for
gasoline engines.
Note
• Your Diese l engi ne ha s bee n sp eci fica lly de­
s ig ned
10 ope rate o n Die sel fu el o nl y. T here fore.
n eve r use home hea tin g oil o r reg ular gaso line.
Th e pro p erti es of th ese fuels
ca use se rious
damage fuel injection sys tem and th e
e n gin e. This could l ead to additional expense
and will al so affe ct your warrant y.
• If Die sel fuel should get o n any rubb er h ose,
it
b e w ip ed off imm ediat ely . T he n wash th e
con ta minat ed hose port io n w ith so ap and warm
wa te r. Do not allow D iesel f uel
remain on co n­
n ec ting hoses . Th ey may de velop leaks and
ca use se rious damage.
be taken when worki ng on engine or on components the
engine compartment.
an y work on the engine or
in th e engi ne compartment:
I. Move the se lecto r l eve r P (Park ).
2 . App ly the parking brake firm ly .
3. Sw itch off the engi ne a nd re mo ve the
key from th e igni tion.
4. Wai t for the engine lo coo l d ow n.
5. Keep children and oth ers awa y fro m the
vehicle.
6 . Open the eng ine hood
36 .
All se rv ice fluid s, spark plugs. bau er ies etc. a rc
co nstantl y being deve lo ped and improved. Au­
th ori zed Volkswage n dea le rs a re kept up- to-da te
by the m anufa ctur er. For this reaso n
recom ­
m end that you h ave these re placed b y an autho ­
ri zed Volkswagen dea le r. P lease re ad th e notes
bel ow. The engin e co mpartment of an y m otor
vehicle is a hazardous
WARNING
Propo sition 65 Warning:
34 Checking and Filling
Lt::, WARNING
• Eng ine ex hau st, some of its cons tituent s,
and certain vehicle components contain or
em it chemica ls known to the Stale of Ca li­
forn ia
cause ca ncer and birth defe cts and
r e produ cti ve harm. In addition , cer tain fluid s
co ntained in vehicle s and certain product s of
c omponent wear contain or emit chemical s
known lo the Stale of California to cau se
cancer and birth defects or other reproductive
h ar m.
• Batter y posts, terminals and related acces ­
so rie s co ntain le ad and lead compon ent s,
c h emi cal s known to th e S tate of Ca lifornia
cau se cancer and reprodu cti ve harm . Was h
hand s hand ling.
WARNING
The en g ine compa rtment of an y motor vehicle
i s a pot entiall y dangerou s area and ca n ca use
s er io us per sonal injury.
• Always use extrem e ca ution when doin g
an y wo rk in th e engine compart ment. Alwa ys
follow common ly acce pted safety practi ces

Booklet 3.2 Tips and Advice
WARNING (continued)
- Neve r wo rk near heate rs, wate r heaters
o f o th er open flames.
Always have an approved fire extin­
g ui sh er nearb y.
• To avoid e lect rica l sho ck and per sonal in ­
ju ry
the engi ne is running or being
s tarted:
n ever touch ignition cab les,
- neve r touch oth er com ponen ts of the
hi gh vo ltage e lectronic ig nition sys tem ,
never 1oucl1 the gas discharged (Xenon)
headli ght s w ir in g.
Opening the engine hood
in se riou s malfunctions and engine
damage!
<£> For th e sake of environment
Service fluid leaks are harmful to th e environ­
me nt. Regularly ch ec k th e ground underneath
yo ur vehicl e. If yo u find spot s of oil or othe r
fluids. have your veh icle c hec ke d b y you r autho­
ri zed Vo lkswage n dealer or a qualified
wo rksh op.
The engine hood is released from inside the
Fig . 3 Deta il of the footwe ll: the re lease lever far
t h e engine hood is loca ted in the loa twell an ihe
dr iver side
Before you open the engine hood, make
s u re that the windshield wiper arm s are
folded-up against the w indshie ld so that
the hood will not be damag ed when the
hood is opened .
Pull the release lev er underneath the in­
s trum ent panel in the directio n of the
arrow
3 . The engine hood is rele ased
from its latch by a spring
36 Checking and Filling
Fig. 4 Detail of the radia to r grill : release leve r fa r
opening the engine hood
Lift the engin e hood up at the release
l ever
4 (arrow ) and open the hood
until it is he ld up by the gas-filled strut.
WARN ING
Stop! Before working in the engine compart ­
ment, a lways read and heed a ll WARN INGS
34. The engine compartm ent of any
motor vehicle is a potentially dangerous area
ca n cause serious p erso nal injury.

Closing the engine hood
-Pull th e en gin e hood dow n un til th e
p re ss ure from t he str ut is re d uced.
- Then le t t he eng ine hoo d fall an d la tc h
in p lac e
do 1101 µress
If th e en gin e hood does no t clo se prop erly , o pen
i t a gain an d clo se i t pro perl y. W hen th e e ngin e
h oo d is properl y cl ose d, yo u ca n se e tha t it fits
flu sh w ith th e o ther body part s.
Engin e oil
Engine oil specifications
Booklet 3.2 Tips and Advice
WARNING
If the e ngin e hoo d is not cl ose d pro perl y, it
co uld fl y up and blo ck yo ur view w hile dri ving
ca usin g a cr ash and seriou s pers on al in ju rie s.
• After clo sin g t he en gin e hood , a lway s
c he ck th at the safet y lat ch has pro perly en ­
g ag ed. The en gine hood must b e flu sh with the
s urroundin g body parts .
• If you eve r noti ce that the en gin e hood
l a tc h i s no t p roperl y sec ured when th e vehicle
i s m ov ing, stop a t on ce a nd cl ose it.
• Neve r let anyo ne g et in th e way of the en­
g in e hood when clo sing it.
Th e engine oil must conform to exact specifi cat ions .
Yo ur engi ne w as fa ctory filled w ith an all-se aso n
hi gh qu ali ty engin e o il with viscos ity g ra d e o f
SAE Yo u can u se this o il ov er all t emp er­
a tur e ra nges for n orm al dri vin g.
I f y ou nee d to add oil b etwee n oil ch an ges , u se
h ig h quality synth etic- ba sed oil w ith cor rec t
s p eci ficat ion s. If eng in e o il visc osit y g ra d e
5W-4 0 is not a va ilabl e, yo u ca n als o u se SA E 5W-
30 .
T o ass ure th at th e o il yo u u se is of th e hig h es t
qu ali ty re q uir ed by yo ur vehicl e, the fo llow ing
t e rm s m ust app ear on th e o il co nt ain er sing ly o r
i n co mbination wit h oth er de sig n atio ns:
Ga soline engin e
• VW 500 00 . VW 505 OJ o r VW 502 00
•
Di esel engin e
• VW 505 0 1 41, " Im portan t in forma tion
fo r vehicl es with Diesel e n gin e wh en ad din g or
c h angin g engine oil"
G ene ral recomm endations
If SAE 5W-40 o r visc osit y g rad e oil is not
a va ilab le in yo ur be sur e to alw ays use a vis ­
c osity g rad e s uita b le for th e clim ate and sea­
so nal co ndi tions th at exis t wh ere
v e hi cle is
ope rat ed . A lwa ys mak e sure th at o il m eets
t h e qua lity s tandard s liste d abo ve.
Checking and Filling 37

Booklet 3.2 Tips and Advice
Engine oil consumption
I n ord er to provide effective lubri cation and
cooling of int ern al eng ine compo nents, all in­
t e rnal combu stion engines use a ce rtain amount
of oil. Oil co nsumpti on varies from en gi ne
to en ­
gine and may change significantly over the life of
th e e ngine. T ypicall y engin es whi ch have a
break -in period, us e mor e oi l during the break ­
in pe riod than they do after the break-in period,
wh en oil consumption has stabilized.
Vo lksw age n recommend s that you use the ty p e
of oil that m eets th e s pec ifica tion s described
=:p age 37 ,
oil sp eci fica tion s".
Und er norm al cond ition s, the rate of oil con ­
s umpti on d ep ends on the qua lity of the o il as
w ell as it s viscos ity, the
(revolu tions per
minut e) at w hich the en gin e is operated, the
outside te mperature. the ro ad conditions as we ll
as the amount of oil di lution by co nden sa tio n
wa ter or fuel residu e and
th e ox idati on level
of the o il. As engines o il co nsumption incr ease ove r time until r epla cement of wo rn
eng ine parts may become ne cessary.
of a ll of th ese vn riabl es, it is not p ossible to sp ecify standnrd or rate o f oil con­
s umpti on. For that re ason, urge you to ch eck
the oil level in yo ur en g in e a t regu la r int erval s,
pr efe rabl y every time yo u re fu el, a nd alwa ys be­
fore going on
long trip.
The oi l pre ssure light i s not an indicator of low
e n g ine oil level. If the warnin g light doe s not go
out or flashes while drivin g (above 1500 e ngin e
a buzzer will so und. It indicates that the
o il pr essure is too low . Stop the engine imm edi-
38 Checking and Filling
ate ly, check th e engine oil leve l and add oil if
n ecessa ry. If th e eng ine oil l eve l is no rmal, but
th e light continu es to flash, do not continu e to
operate the ve hicl e. Engine dama ge ma y occ ur.
If yo u believe your engine u ses excess ive
amount s of oil, we reco mme nd that you co nsult
yo ur
Volkswagen d ea le r so that th e
ca use of conce rn can b e prop erl y diag ­
n ose d. Keep in mind t hat th e acc urate m easure­
m ent of nil consumpti on require s great car e and
ma y ta ke so me tim e. Yo ur Vo lkswagen deale r h as
in stru cti ons ho w
meas ure o il co nsumpti on
nccurately.
WARNING
S top ! Before working in the engi ne co mpart­
ment, a lways read and heed all WARN INGS
34. T he engine compar tment of a ny
m oto r ve hicl e is a potentially dangerous area
an d ca n ca use s eriou s personal injury.
Note
• The engin e in your vehicl e dep en ds on o il to
lub ricate and cool all of its mo vin g parts . Th ere­
fo re th e e ngin e oi l mu st be ch ec ked reg ularly
and k ept at th e req uir ed l evel.
• Make it a habit to have the e ngin e n il leve l
c h ec ke d eve ry tim e you refuel.
• Lack of eng in e o il ma y caus e seve re engine
d amag e.
• The
pressure warni ng ligh t is not oil
l eve l indi cato r. ._

Booklet 3.2 Tips and Advice
Checking the engine oil level
engine dipst ick indi cates the level o f th e oil.
Fig . 5 Engin e oil dip st ic k with engine oil level ma rks
To get a true reading, th e vehicle must be
o n le vel ground. Before opening the en ­
g in e hood, a lway s read a nd heed all
WA RN INGS ,iage 34, "Safety is job No. I
wh en worki ng in the eng ine
men t" .
-
the engine and wait a few minute s
for the oil to return to t he oil pan.
- Raise the en gi ne hood ,iage 36.
- Pull ou t th e dip sti ck an d w ip e it clea n
w it h a rag.
- Rein sert dip sti ck; push it all the way in. -
Pull th e dip stick out again and check
th e oil le vel.
- After check ing t he o il lev el, plea se mak e
sure that th e dip sti ck is p ush ed back i n all
t h e way.
T he pos ition of th e dip sti ck is s how n in th e cor­
responding en gin e co mpartm ent diagram
3.3 " Technical Data."
You must no t add oil.
You ca n oil. The oil leve l ma y go into th e
A ran ge, but not abov e th e A ran ge.
You must add oil. Afte r addi ng o il, m ake th at th e oi l leve l is somewhe re wit hin th e range.
WARNING
Sto p! workin g in the e ngin e c ompar t­
m ent, a lways re ad and h eed all
34. The eng ine co mpartm ent of a ny
mot or ve hicle is a poten tiall y dan gero us a re a
and ca n cau se ser io us pe rso nal injur y.
Not e
If the engin e oil leve l is above l evel 5 do
no t start th e engine -th is could damage the cat­
a ly tic co nverter and the eng ine! Contac t an au ­
th orized Volksw agen dea le r o r
qu alifi ed
workshop.
Checking and Filling 39

Booklet 3.2 Tips and Advice

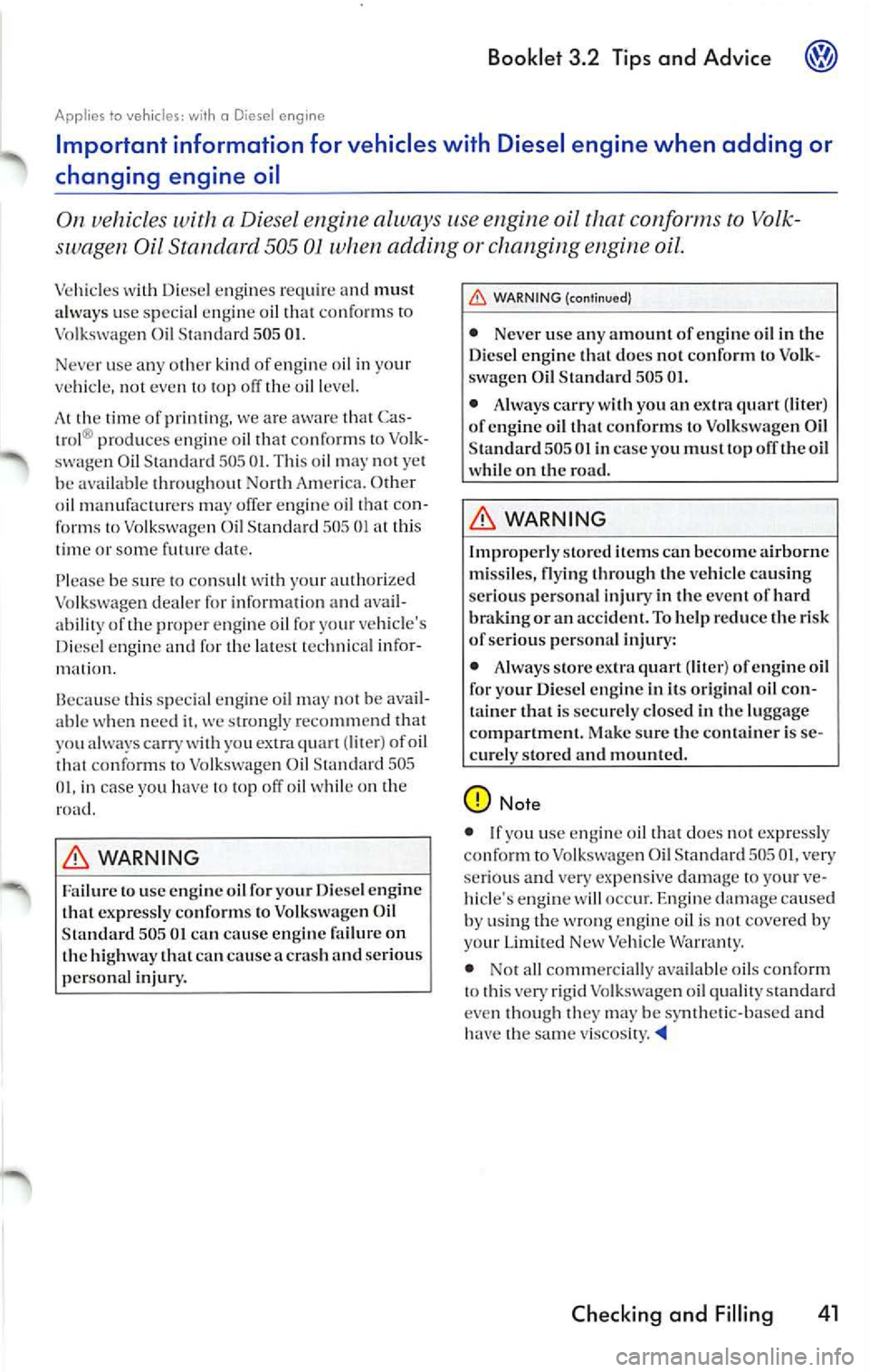

Applies to vehicles: with a Diesel e ngine
Important information for vehicles with Diesel engine when adding or
changing engine oil
On vehicles with a Diesel engine always use engine oil conforms to Volk­
s wagen Oil Standard 505
OJ when adding or changing engine oil.
Vehicl es with Diese l en gine s require and must
a lways use special engine o il that conforms to
Vo lkswage n Oil Stand ard 505 01.
Never use any ot her kind of engin e oil in your
ve hicl e, not even
ofT the oil leve l.
the time of printing. we are awar e Cas­produ ces engin e o il that conform s not yet
be ava ilable throu ghout North Am erica. Other
o il manufacturer s ma y offer engin e oil that co n­
fo rm s
Volkswa gen Oil Standard 505 01 this
tim e or some futur e elat e.
Please be sur e to consult
authorized
Vo lkswage n dealer for information and avail­
abilit y of the prop er e ngin e oil f or yo ur vehicle' s
D iese l e ngine and fur
la tes t technical infor­
13ec ause this specia l engin e oil may 1101 be avail­
able when need strongl y recom mend that
yo u always carry you extra quart (liter ) o f oil co nforms to Vo lkswage n Oil 50 5
01, in case you have off oil while on the
road .
WARNING
Failure to use en gin e o il for your Diese l e n gi ne
that expre ssly co nforms to Vo lkswage n Oil
S tandard 505 01 can cause engine failure on
the highwa y that can ca use
cras h and seriou s
personal injury.
WARNING (continued)
• Never use any amo unt of eng ine o il in lhe
Diese l en gine th at does not conform to Vo lk­
sw agen Oil Standar d 505 0 1.
•
carry w ith you an extra quart (liter )
of engine oi l that confor ms to Vo lkswa gen Oil
Sta ndard 505 01 in case yo u mu st top ofTthe oil
wh ile on the road.
WARNING
Improp erly s tored items can become airborne
mi ssiles, flyin g through the ve hicle ca using
ser ious personal injury in the event of hard
brak ing or an accident. To help r educe the risk
of ser io us perso nal injury:
• /\(ways store extra quart (lit er) of e ngine oil
for your Diesel en gine in its original oil con­
tainer that is secure ly closed in the luggage
compar tment. Make s ure
container is se­
cure ly stored and mounted.
Note
• lf yo u u se e ngin e oil that doe s not expressl y
co nform to Volkswage n Oil Standard 505 01, very
se riou s and very expe nsive damage t o your ve­
hicle 's engin e wi ll occ ur. Engin e dam age caused
by using the wrong engin e oil is not cove red by
yo ur Limit ed New Vehicle Warranty.
• Not all comm ercia lly availabl e oil s conform
10 thi s very rigid Volkswagen oil qualit y s tanda rd
eve n though th ey may be symhetic-hased and
hav e th e same
Checking and Filling 41
