2008 TOYOTA YARIS high beam

6
Headlights (low and high beam)
P. 139
Pictorial indexExterior
Front fog lights  P. 141
Hood P. 236
Windshield wipers P. 142
Outside rear view mirrors P. 60
Parking lights P. 139
Front turn signal lights P. 126
3-door models
Front side marker lights P. 139
Side turn signal lights P. 126

8
Pictorial indexExterior
5-door models
Headlights (low and high beam)
P. 139
Front fog lights  P. 141
Hood P. 236
Windshield wipers P. 142
Outside rear view mirrors P. 60
Parking lights P. 139
Front turn signal lights P. 126
Front side marker lights P. 139
Side turn signal lights P. 126

137
2-2. Instrument cluster
2
When driving
■

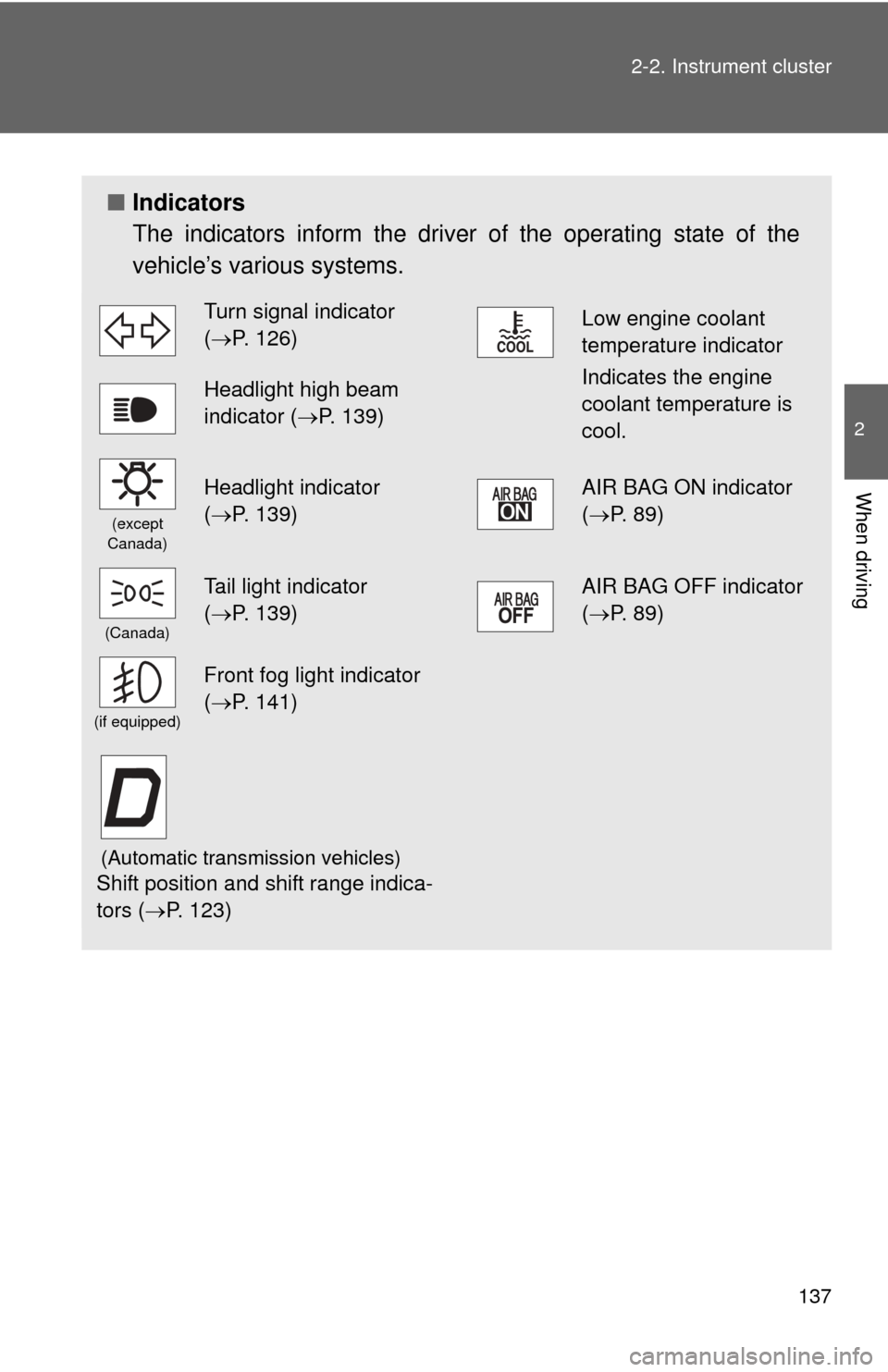

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 126)Low engine coolant
temperature indicator
Headlight high beam
indicator ( P. 139)Indicates the engine
coolant temperature is
cool.
(except
Canada)
Headlight indicator
( P. 139)AIR BAG ON indicator
( P. 89)
(Canada)
Tail light indicator
(P. 139)AIR BAG OFF indicator
( P. 89)
(if equipped)
Front fog light indicator
(P. 141)
(Automatic transmission vehicles)
Shift position and shift range indica-
tors ( P. 123)

139
2
When driving
2-3. Operating the lights and wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
The headlights can be operated manually or automatically.
The side marker, parking, tail, license plate and instrument
panel lights turn on.
The headlights and all lights listed above turn on.
(except
Canada) (Canada)
