4
OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2008 Owner’s Manual.
2If this light flashes, refer to “Four-wheel drive system,” Section
1-7, 2008 Owner’s Manual.
3If this light flashes, refer to “Rear differential lock system,”
Tachometer
Speedometer
Odometer and two trip meters
Service indicator and reminder
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Gear shift position indicator*
* If equipped

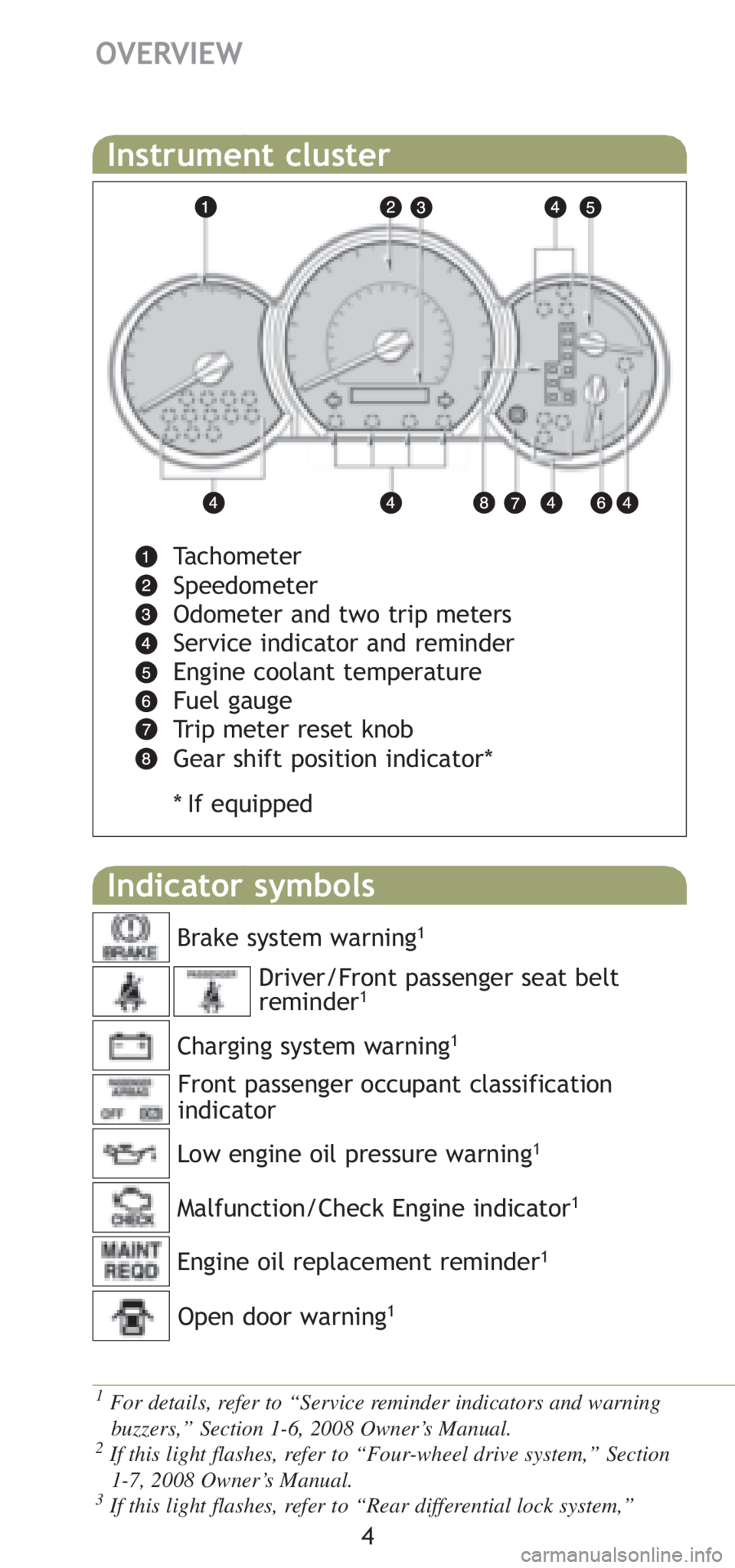

Instrument cluster
Driver/Front passenger seat belt
reminder1
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification
indicator
Indicator symbols
Open door warning1
6
OVERVIEW

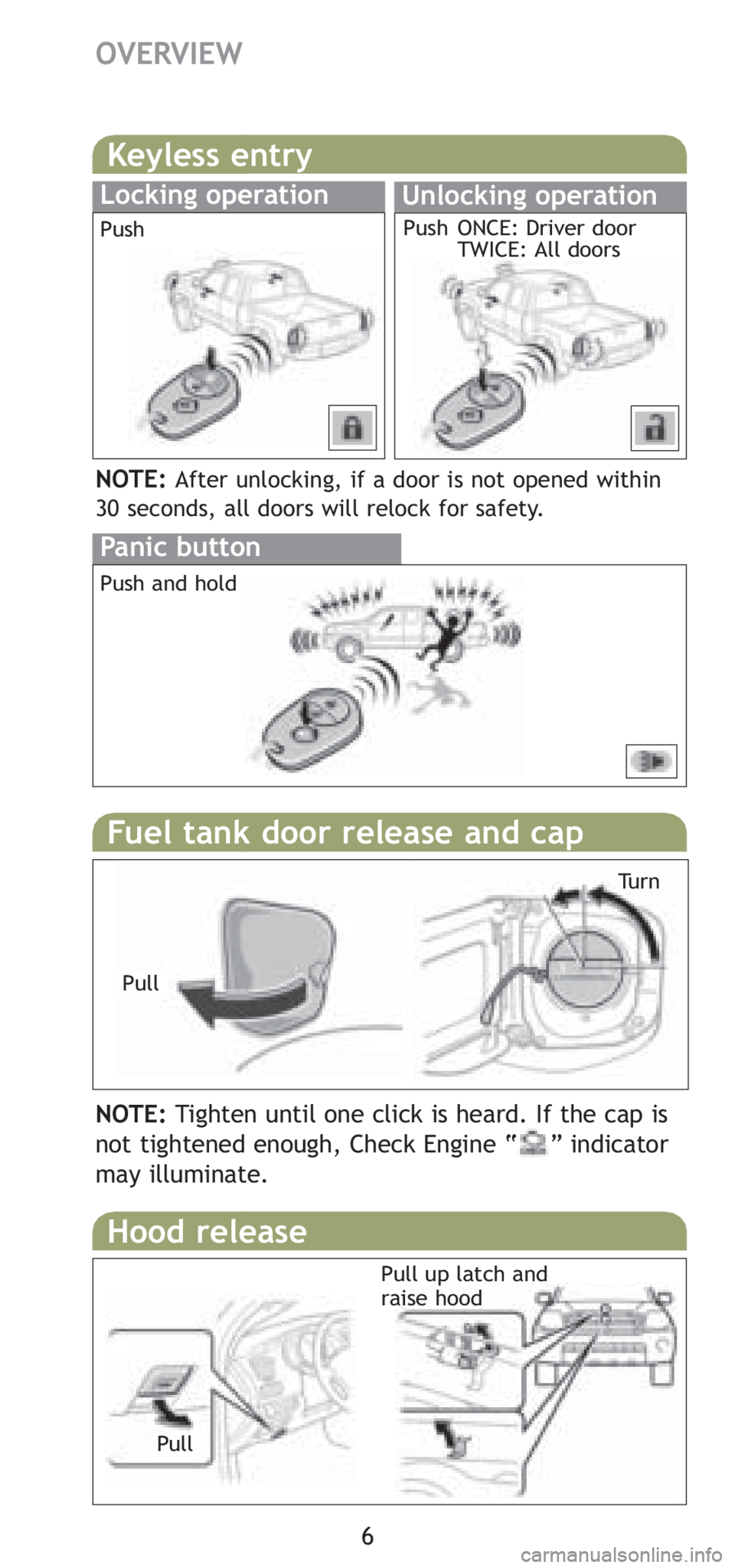

Fuel tank door release and cap
Hood release
NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
Pull
Pull up latch and
raise hoodTu r n
Panic button
Keyless entry
Locking operationUnlocking operation
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.
Push
Push and holdPush ONCE: Driver door
TWICE: All doors
Pull
