2008 TOYOTA SIENNA engine

08 SIENNA_U (L/O 0801)
8
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Cruise control indicator light∗2 or dynamic laser
cruise control indicator light∗ 3
Automatic transmission indicator lights Headlight high beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 191 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 222 in
Section 1 −7.
∗
3: If this light flashes, see “Dynamic laser cruise control” on
page 225 in Section 1 −7.
Slip indicator light
Traction control system off indicator light
(two
−wheel drive models)
Turn signal indicator lights
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Engine immobilizer/theft deterrent system
indicator light
“AIR BAG ON” indicator light
“AIR BAG OFF” indicator light
Third seat warning light∗
1
Headlight indicator light
Tail light indicator light

08 SIENNA_U (L/O 0801)
9
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Front doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Sliding doors 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Power sliding doors 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power back door 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power windows 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Manual quarter windows 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Power quarter windows 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Hood 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

08 SIENNA_U (L/O 0801)
10
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

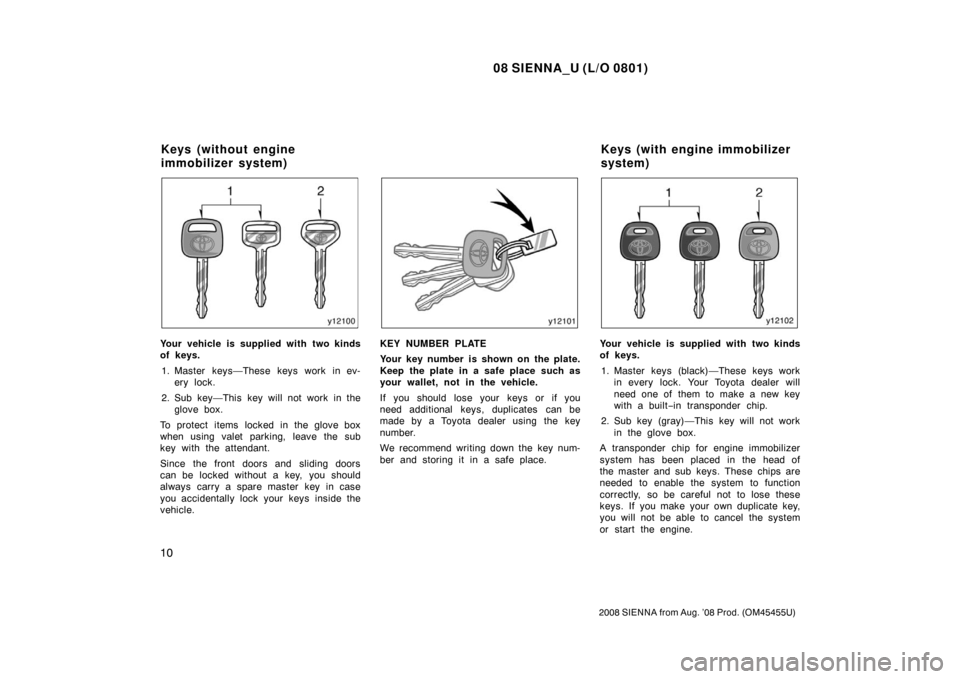

Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

08 SIENNA_U (L/O 0801)
11
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.

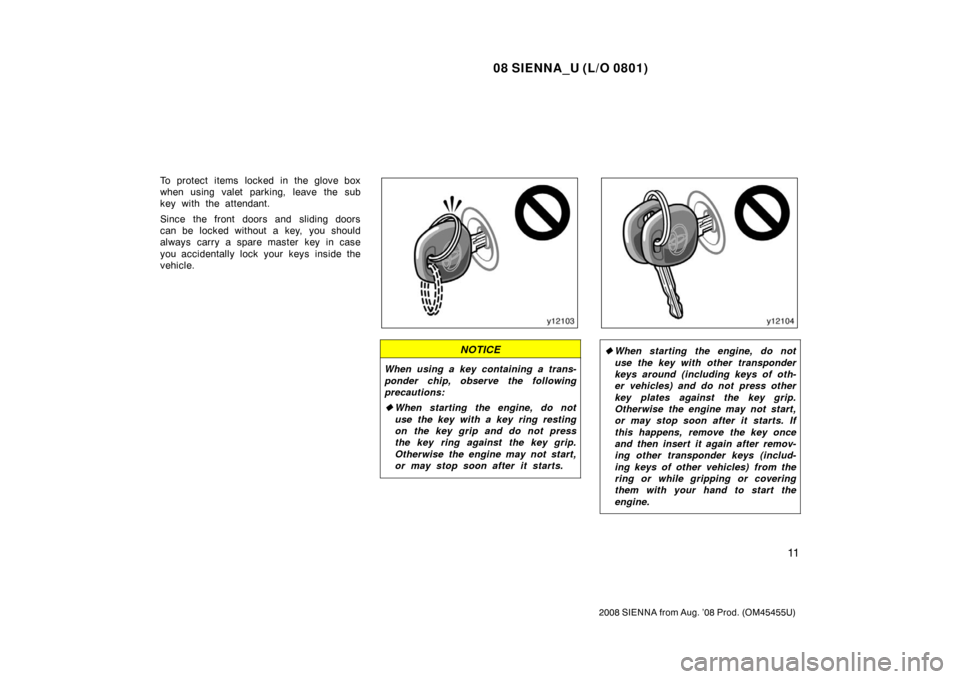

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

08 SIENNA_U (L/O 0801)
13
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

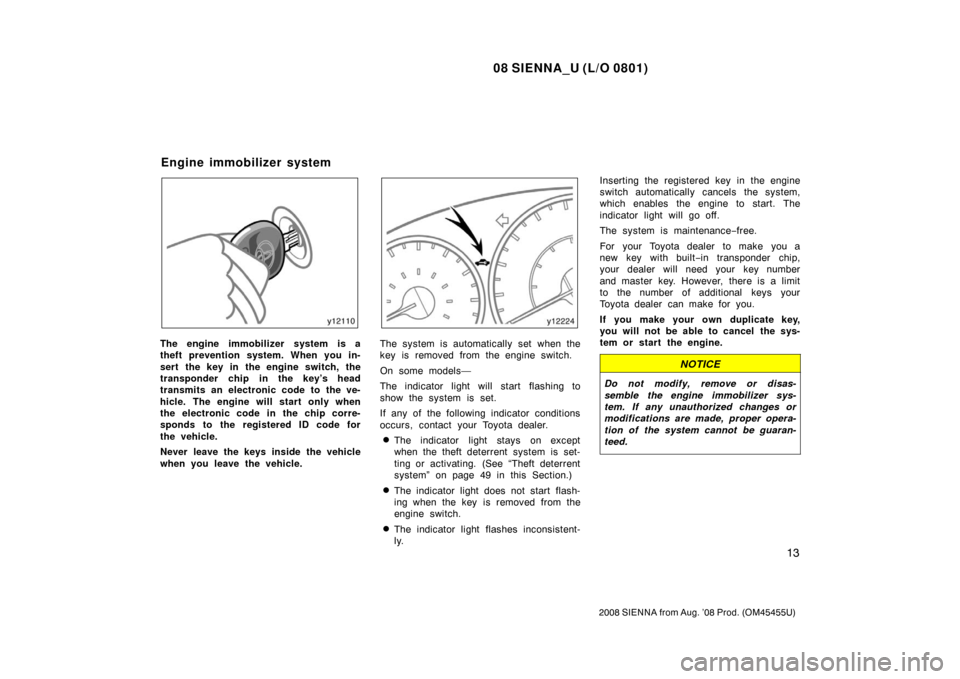

The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.The system is automatically set when the
key is removed from the engine switch.
On some models—
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 49 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
The system is maintenance−
free.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system

08 SIENNA_U (L/O 0801)
16
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Locking operation (type A)
Unlocking operation (type A)
Locking operation (type B)
Unlocking operation (type B)
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time one beep will be
heard, turn signal lights will flash once.
Check to see that the doors are securely
locked.
If any of the side doors or back door is
not securely closed, or if the key is in the
engine switch, locking cannot be per-
formed by the lock switch and a beep will
sound continuously for 10 seconds. How-
ever, if the key is in the engine switch,
a beep will not sound.
To stop the beep, close all the side doors
and back door securely or push the un-
lock switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the unlock switch once to
unlock only the driver’s door. Pushing the
switch twice within 3 seconds unlocks all
the side doors and back door simulta-
neously. Each time the unlock switch is
pushed, two beeps will be heard, turn sig-
nal lights will flash twice.
—Locking and unlocking
doors

08 SIENNA_U (L/O 0801)
17
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the unlock switch is pressed, the
front personal lights and engine switch
light come on. The lights remains on for
about 15 seconds unless any of the side
doors or back door are opened then and
closed. (For further information, see “Front
personal lights” on page 179 and/or “En-
gine (ignition) switch light” on page 181 in
Section 1−5.)
You have 60 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will automatical-
ly lock again.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again. The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the wireless door locking or
unlocking function
Cancelling the flash of the turn signal
lights
Cancelling the beep sound

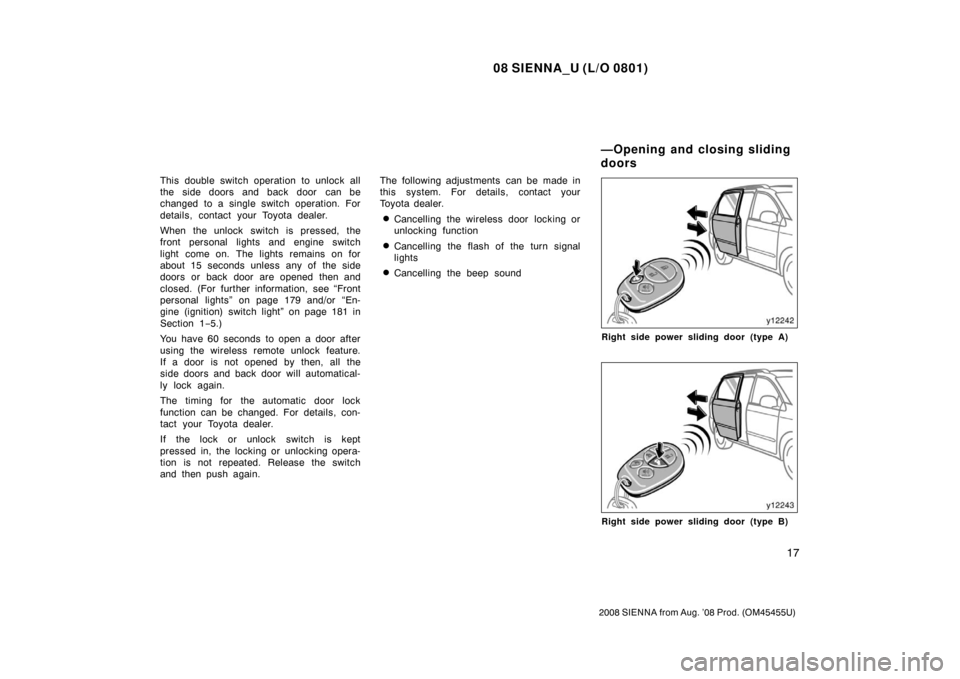

Right side power sliding door (type A)
Right side power sliding door (type B)
—Opening and closing sliding
doors

08 SIENNA_U (L/O 0801)
18
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

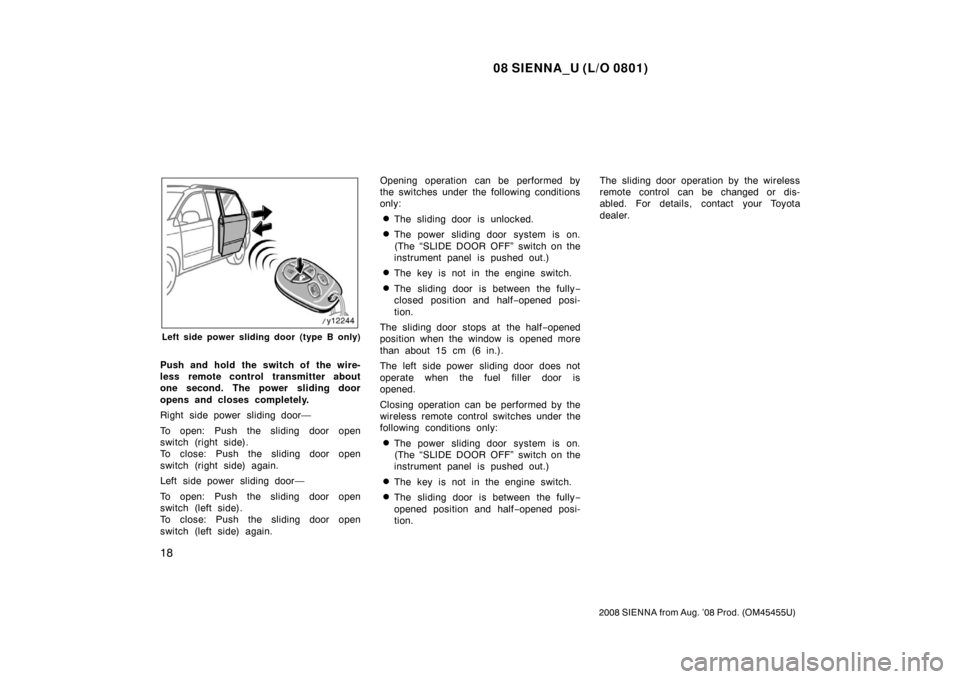

Left side power sliding door (type B only)
Push and hold the switch of the wire-
less remote control transmitter about
one second. The power sliding door
opens and closes completely.
Right side power sliding door—
To open: Push the sliding door open
switch (right side).
To close: Push the sliding door open
switch (right side) again.
Left side power sliding door—
To open: Push the sliding door open
switch (left side).
To close: Push the sliding door open
switch (left side) again.Opening operation can be performed by
the switches under the following conditions
only:
The sliding door is unlocked.
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the engine switch.
The sliding door is between the fully
−
closed position and half −opened posi-
tion.
The sliding door stops at the half −opened
position when the window is opened more
than about 15 cm (6 in.).
The left side power sliding door does not
operate when the fuel filler door is
opened.
Closing operation can be performed by the
wireless remote control switches under the
following conditions only:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the engine switch.
The sliding door is between the fully −
opened position and half −opened posi-
tion. The sliding door operation by the wireless
remote control can be changed or dis-
abled. For details, contact your Toyota
dealer.
