2008 TOYOTA SEQUOIA engine

5
When trouble arises
533
5-2. Steps to take in an emergency
5.7 L V8 (3UR-FE) engine
If required, remove all vent
plugs from the booster and dis-
charged batteries. Lay a cloth ov er the open vents on the batter-
ies. (This helps reduce the explosion hazard, personal injuries
and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.

534 5-2. Steps to take in an emergency
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is turned
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi-
nal.
● Do not allow the jumper cables to come into contact with the “+” and “-” ter-
minals.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
If removed, replace all the battery vent plugs.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.

536
5-2. Steps to take in an emergency

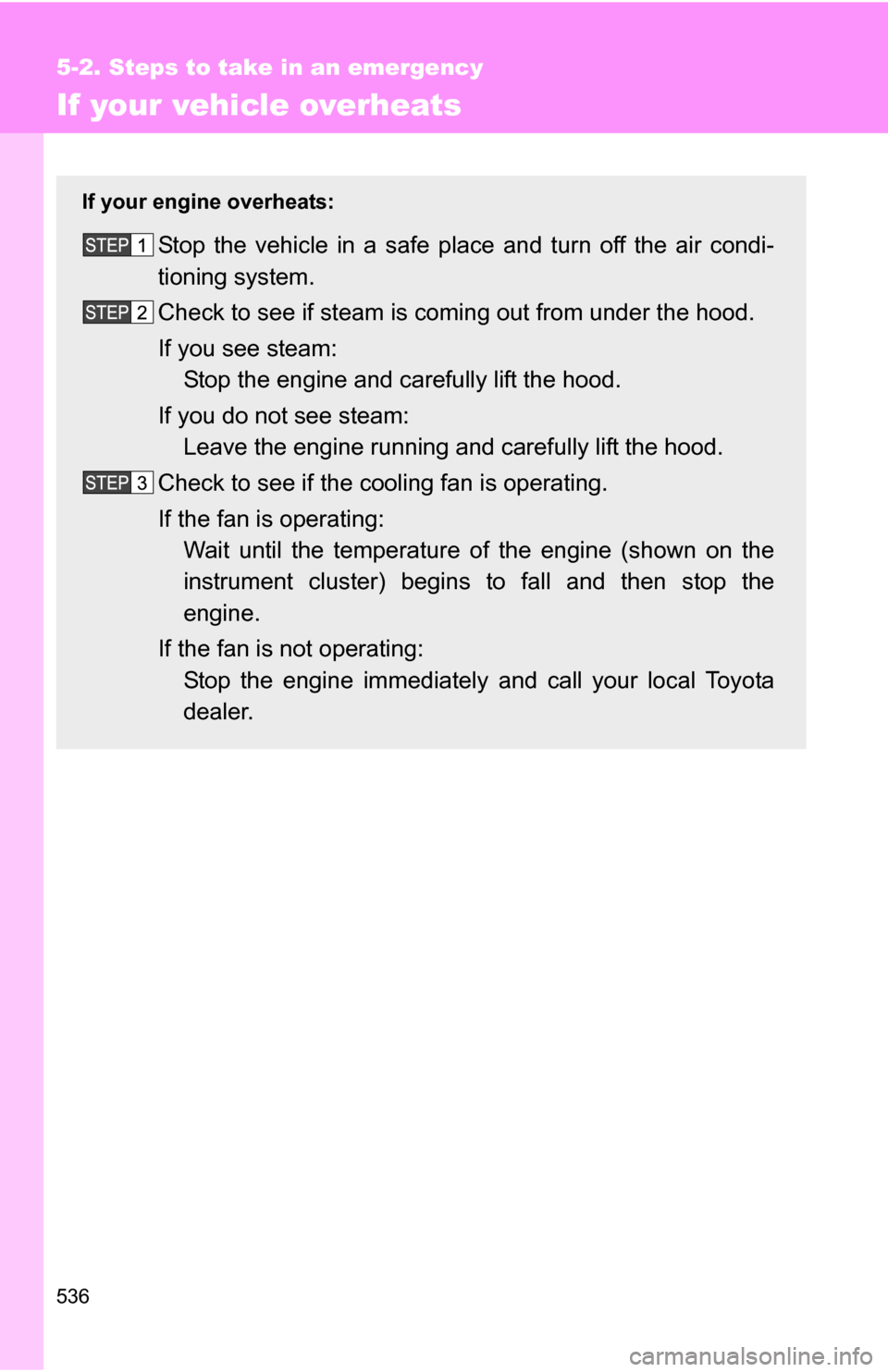

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine and carefully lift the hood.
If you do not see steam: Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fan is not operating: Stop the engine immediately and call your local Toyota
dealer.

5
When trouble arises
537
5-2. Steps to take in an emergency
The engine has cooled down sufficiently.
The engine coolant temperature gauge indicates C.
Check the engine coolant level.
Look for obvious coolant leaks
from the radiator, hoses and
under the vehicle.
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if required.
Water can be used in an emer-
gency if engine coolant is
unavailable. ( P. 549)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.

538 5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
● “ENGINE COOLANT HOT” is shown on the multi-information display
(vehicles with multi-information display).
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

5
When trouble arises
539
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
2WD models: Activate the AUTO LSD. ( P. 212)
4WD models: Shift the front wh eel drive control switch to
4L.
Then push the center differential lock switch. ( P. 209)
Carefully apply the accelerator to free the vehicle.

543
6-1. Specifications
6
Vehicle specifications
Weight
*1: The model code is indicated on the Certification Label. (P. 544)
*2: Without towing package
*3: With towing package
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
Towing capacity
(Trailer weight + cargo)
UCK60L-GKASKA
4.7L V8
(2UZ-FE) engine 2WD
1215 lb. (550 kg)6300 lb. (2855 kg)*2
7800 lb. (3535 kg)*3
UCK60L-GKALKA1240 lb. (560 kg)6200 lb. (2810 kg)*2
7700 lb. (3490 kg)*3
UCK65L-GKASKA
4WD
1275 lb. (575 kg)6000 lb. (2720 kg)*2
7500 lb. (3400 kg)*3
UCK65L-GKALKA1300 lb. (585 kg)5600 lb. (2540 kg)*2
7100 lb. (3220 kg)*3
USK60L-GKTSKA
5.7L V8
(3UR-FE) engine 2WD
1310 lb. (590 kg)8300 lb. (3760 kg)*2
10000 lb. (4535 kg)*3
USK60L-GKTLKA1330 lb. (600 kg)8200 lb. (3715 kg)*2
9500 lb. (4305 kg)*3
USK60L-GKTZKA1315 lb. (595 kg)8100 lb. (3670 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTSKA
4WD
1210 lb. (545 kg)8000 lb. (3625 kg)*2
9600 lb. (4350 kg)*3
USK65L-GKTLKA1230 lb. (555 kg)7900 lb. (3580 kg)*2
9100 lb. (4125 kg)*3
USK65L-GKTZKA1220 lb. (550 kg)7800 lb. (3535 kg)*2
8800 lb. (3990 kg)*3

545
6-1. Specifications
6
Vehicle specifications
■
Engine number
The engine number is stamped on the engine bl ock as shown.
4.7 L V8 (2UZ-FE) engine
5.7 L V8 (3UR-FE) engine
