2008 TOYOTA MATRIX flat tire

’08 MATRIX_U (L/O 0706)
viii
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Tires and loading on yourTo y o t a
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see pages 210 and 280.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.

’08 MATRIX_U (L/O 0706)
106
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all side doors, back door and glass hatch.
(j)Take vehicle to Toyota dealer immediately.
(k)Take vehicle to Toyota dealer.
(l)Adjust tire inflation pressure. If the light comes on after blinking for 1 minute, contact
Toyota dealer.
(m)Add washer fluid.
(n)Replace engine oil.

’08 MATRIX_U (L/O 0706)
11 2
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
(i) Open Door Warning Light
This light remains on until all the side
doors, back door and glass hatch are
completely closed.
(j) SRS Warning Light
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after 6 seconds. This means
the SRS airbags and seat belt preten-
sioners are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, interconnecting wiring and power
sources.If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
(k) “VSC” Warning Light
The light warns that there is a problem
somewhere in the vehicle stability control
system or traction control system.
The light will come on when the ignition
key is turned to “ON”, and will go off after
about a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The slip indicator light/traction control sys-
tem off indicator light will come on when
the “VSC” warning light comes on even if
the “TR
AC OFF” switch is not pushed.
(l) Low Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (except the
compact spare tire) is low. The light
comes on when the ignition key is turned
to the “ON” position. It goes off after a
few seconds. This indicates that the tire
pressure warning system is functioning
properly.

’08 MATRIX_U (L/O 0706)
11 3
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
If the warning light comes on, stop your
vehicle in a safe place as soon as pos-
sible and check that the inflation pressure
of all four tires is as specified on the tire
and loading information label. (See
“Checking tire inflation pressure” on page
280 in Section 7−2.) The light should go
off a few minutes after the tire pressure
is adjusted.
If the warning light comes on after blink-
ing for 1 minute, the tire pressure warning
system may be malfunctioning. Contact
your Toyota dealer.
For details, see “Tire pressure warning
system” on page 126 in Section 1 −7.
(m) Low Windshield Washer Fluid Level Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 293 in
Section 7 −3.) (n) Engine Oil Replacement Reminder
Light (for vehicles sold in U.S.A.)
This light reminds you when to replace
the engine oil.
This light will come on when the ignition
key is turned to “ON” and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the “ON”
position. If you continue driving without
replacing the engine oil, and if the dis-
tance driven exceeds 8000 km (5000
miles), the light will come on after the
ignition key is turned to “ON” position.
The light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible. The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the “ACC” or “LOCK” position with the odometer
reading shown. (For details, see
“Odometer and two trip meters” on
page 103 in this Section.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(o) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(p) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.

’08 MATRIX_U (L/O 0706)
126
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The slip indicator light/traction control sys-
tem off indicator light will come on when
the “VSC” warning light comes on even if
the “TRAC OFF” switch is not pushed. The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.
The tire pressure warning light comes on
when the ignition key is turned to the
“ON” position and goes off after a few
seconds. This means the tire pressure
warning system is operating properly. If
the tire inflation pressure becomes low,
the light comes on again. In this case,
adjusting the tire inflation pressure will
turn off the light after a few minutes. If
the light comes on after blinking for 1
minute, the tire pressure warning system
is not working properly.
Tire pressure warning system

’08 MATRIX_U (L/O 0706)
127
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
IndicatorstatusMeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer

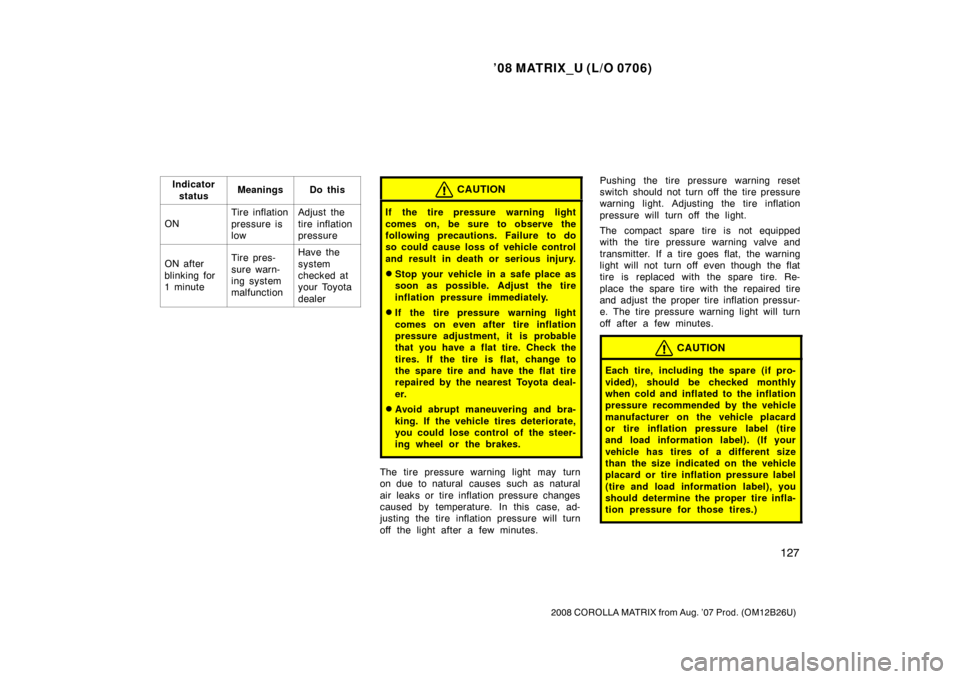

CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes. Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the spare tire. Re-
place the spare tire with the repaired tire
and adjust the proper tire inflation pressur-
e. The tire pressure warning light will turn
off after a few minutes.
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)

’08 MATRIX_U (L/O 0706)
128
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(low tire pressure warning light) when
one or more of your tires is signifi-
cantly underinflated. Accordingly,
when the low tire pressure telltale
(low tire pressure warning light) illu-
minates, you should stop and check
your tires as soon as possible, and
inflate them to the proper pressure.
Driving on a significantly underin-
flated tire causes the tire to overheat
and can lead to tire failure. Under
inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle’s handling and stopping abili-
ty.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (low
tire pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle startups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.

’08 MATRIX_U (L/O 0706)
129
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or authorized tire dealer. The tire
pressure warning valves and trans-
mitters will be affected by the
installation or removal of tires.
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
ignition key is turned to the “ON” posi-
tion, the tire pressure warning system
is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
ECU.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
