2008 TOYOTA HIGHLANDER HYBRID display

TABLE OF CONTENTSIndex
2
1-1. Hybrid system .................... 30Hybrid system ...................... 30
1-2. Key information .................. 42 Keys ..................................... 42
1-3. Opening, closing and locking the doors ............. 44
Smart key system................. 44
Wireless remote control ....... 65
Side doors ............................ 74
Back door ............................. 77
Glass hatch .......................... 82
1-4. Adjustable components (seats, mirrors,
steering wheel) ................. 84
Front seats ........................... 84
Rear seats ............................ 87
Head restraints ..................... 96
Seat belts ............................. 99
Steering wheel ................... 105
Anti-glare inside rear view mirror ................................ 106
Outside rear view mirrors .............................. 108
1-5. Opening and closing the windows and
moon roof ....................... 110
Power windows .................. 110
Moon roof ........................... 112 1-6. Refueling ........................... 115
Opening the fuel tank cap .................................... 115
1-7. Theft deterrent system ..... 120 Immobilizer system ............. 120
Alarm (if equipped) ............. 124
Theft prevention labels (U.S.A.)............................. 127
1-8. Safety information ............ 128 Correct driving posture ....... 128
SRS airbags ....................... 130
Front passenger occupant classification system ......... 142
Child restraint systems ....... 148
Installing child restraints ..... 152
2-1. Driving procedures........... 164 Driving the vehicle .............. 164
Power (ignition) switch........ 174
EV-Drive Mode ................... 178
Transmission....................... 180
Turn signal lever ................. 182
Parking brake ..................... 183
2-2. Instrument cluster ............ 184 Gauges and meters ............ 184
Indicators and warning lights ................................. 186
Multi-information display .............................. 190
1Before driving
2When driving

1
2
3
4
5
6
7
5

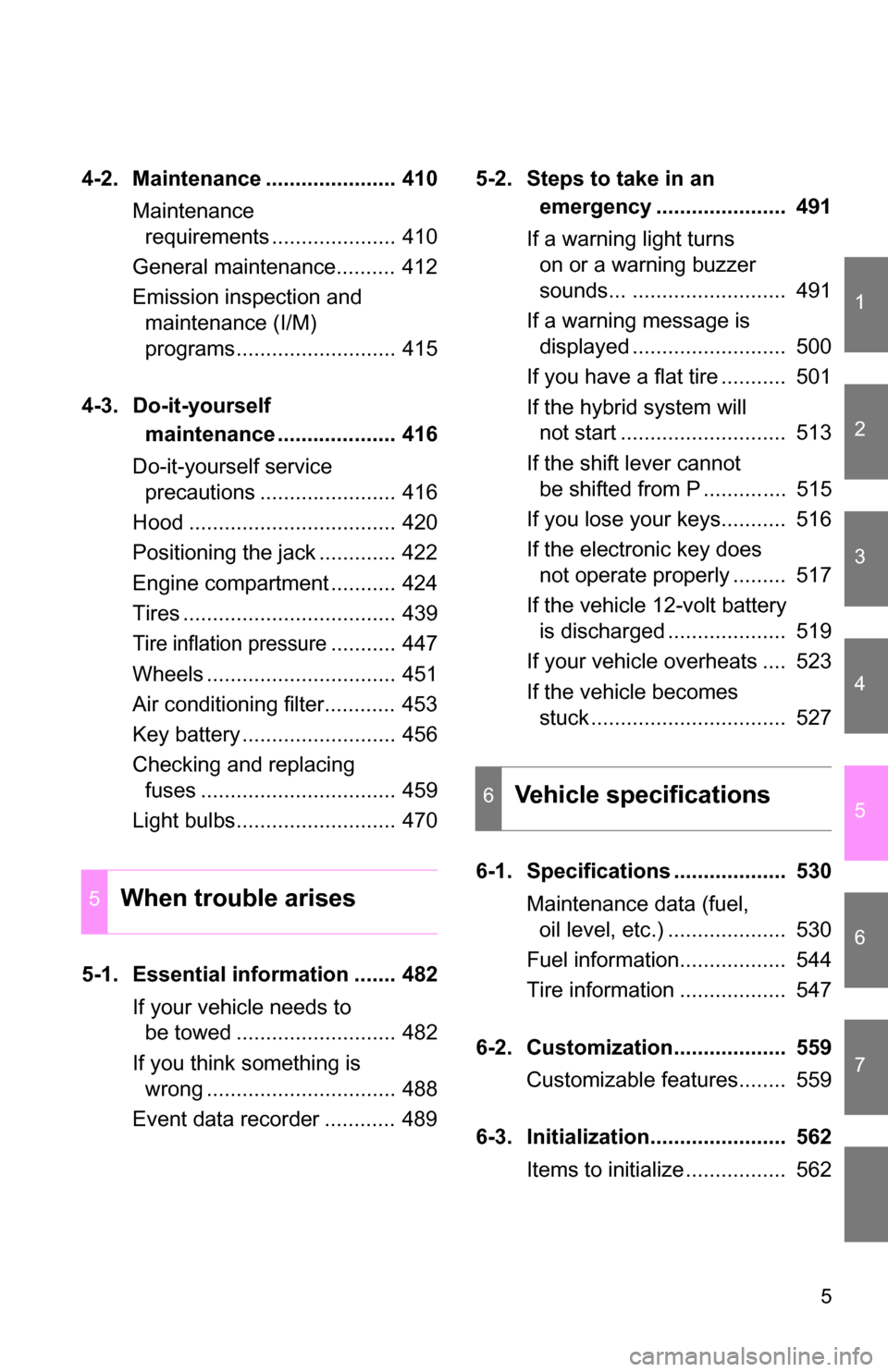

4-2. Maintenance ...................... 410Maintenance requirements ..................... 410
General maintenance.......... 412
Emission inspection and maintenance (I/M)
programs........................... 415
4-3. Do-it-yourself maintenance .................... 416
Do-it-yourself service precautions ....................... 416
Hood ................................... 420
Positioning the jack ............. 422
Engine compartment ........... 424
Tires .................................... 439
Tire inflation pressure........... 447
Wheels ................................ 451
Air conditioning filter............ 453
Key battery .......................... 456
Checking and replacing fuses ................................. 459
Light bulbs........................... 470
5-1. Essential information ....... 482 If your vehicle needs to be towed ........................... 482
If you think something is wrong ................................ 488
Event data recorder ............ 489 5-2. Steps to take in an
emergency ...................... 491
If a warning light turns on or a warning buzzer
sounds... .......................... 491
If a warning message is displayed .......................... 500
If you have a flat tire ........... 501
If the hybrid system will not start ............................ 513
If the shift lever cannot be shifted from P .............. 515
If you lose your keys........... 516
If the electronic key does not operate properly ......... 517
If the vehicle 12-volt battery is discharged .................... 519
If your vehicle overheats .... 523
If the vehicle becomes stuck ................................. 527
6-1. Specifications ................... 530 Maintenance data (fuel, oil level, etc.) .................... 530
Fuel information.................. 544
Tire information .................. 547
6-2. Customization................... 559 Customizable features........ 559
6-3. Initialization....................... 562 Items to initialize ................. 562
5When trouble arises
6Vehicle specifications

16
Rear view monitor system
(vehicles without navigation
system)
P. 211
Tilt and telescopic steering lock release
lever
P. 105
Glove box P. 365
Pictorial indexInstrument panel
Power back door
main switch
 P. 78
Parking brake pedal P. 183
Hood lock release lever P. 420
Auxiliary box P. 373
“POWER” switch P. 174
Multi-information
display
P. 190
Fuel filler door opener P. 115
Fog light switch
Headlight switch
Turn signal lever P. 204
P. 200
P. 182
Windshield wipers and
washer switch
Rear window wiper and
washer switch
P. 205
P. 207
Gauges and
meters
P. 184

34 1-1. Hybrid system
■Hybrid battery air vent
There is an air intake vent under
the second seats to cooling the
hybrid battery (traction battery). If
the vent becomes blocked, the
hybrid battery may overheat,
leading to a reduction in hybrid
battery output.
Emergency shut off system
The emergency shut off system blocks off the high voltage current
and stops the fuel pump to minimize the risk of electrocution and fuel
leakage when a certain level of impact is detected by the impact sen-
sor. If the emergency shut off syste m activates, your vehicle will not
restart. To restart the hybrid system, contact your Toyota dealer.
Energy monitor/consumption screen
You can view the status of your
hybrid system on the multi-infor-
mation display (P. 35) and the
navigation system screen ( P.
35, 37). The following images
are examples only, and may vary
slightly from actual conditions.

35
1-1. Hybrid system
1
Before driving
■
Energy monitor
●How to display on the navigation system screen (if equipped):
Press “INFO”.
Touch “Trip information” on the
Information screen.
If the “Consumption” screen is
displayed, touch .
●How to display on the mu lti-information display:
Press the
“DISP” switch on the steering wheel several times to
select the energy monitor display.
STEP1
STEP2
Navigation system screenMulti-information display
When the vehi-
cle is powered
by the electric
motor (traction
motor)

36 1-1. Hybrid system
When the vehi-
cle is powered
by both the gas-
oline engine and
the electric
motor (traction
motor)
When the vehi-
cle is powered
by the gasoline
engine
When the vehi-
cle is charging
the hybrid bat-
tery (traction
battery)
When there is
no energy flow
Hybrid battery
(traction bat-
tery) statusLow
Full Low Full
Navigation system screenMulti-information
display

37
1-1. Hybrid system
1
Before driving
■
Consumption (navigation system only)
Press “INFO”.
Touch “Trip information” on the
Information screen.
If the “Energy Monitor” screen is
displayed, touch .
Regenerated energy in the
past 30 minutes
One symbol indicates 50 Wh.
Up to 4 symbols are shown.
Cruising range
Fuel consumption in the past
30 minutes
STEP1
STEP2
■Resetting the consumption data
Touching will reset the average fuel consumption.

38 1-1. Hybrid system
Hybrid warning messageA message is automatically displayed when a malfunction occurs in
the hybrid system or an impr oper operation is attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the
instructions. ( P. 500)
■If a warning light comes on or a wa rning message is displayed, or the
12-volt battery is disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ When refueling, the fuel filler door may take a few moments to open
As part of emission system operation, it may take up to 10 seconds for the
fuel filler door to automatically rel ease after the opener switch is pressed.
Before refueling is possible, a message will be shown on the multi-informa-
tion display. ( P. 1 1 5 )
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be
started, refuel the vehicle with at least enough gasoline to make the low fuel
level warning light ( P. 494) go off. If there is only a small amount of fuel,
the hybrid system may not be able to start. (The minimum amount of fuel to
add to make the low fuel level warning light go out is about 2.5 gal. [9.8 L,
2.1 Imp.gal.], when the vehicle is on a level surface. This value may vary
when the vehicle is on a slope.)
■ If the master warning light comes on when the shift lever is in R
Immediately stop the vehicle in a safe place and shift the shift lever out of R
to display the message.
