2008 TOYOTA HIGHLANDER HYBRID bluetooth

330

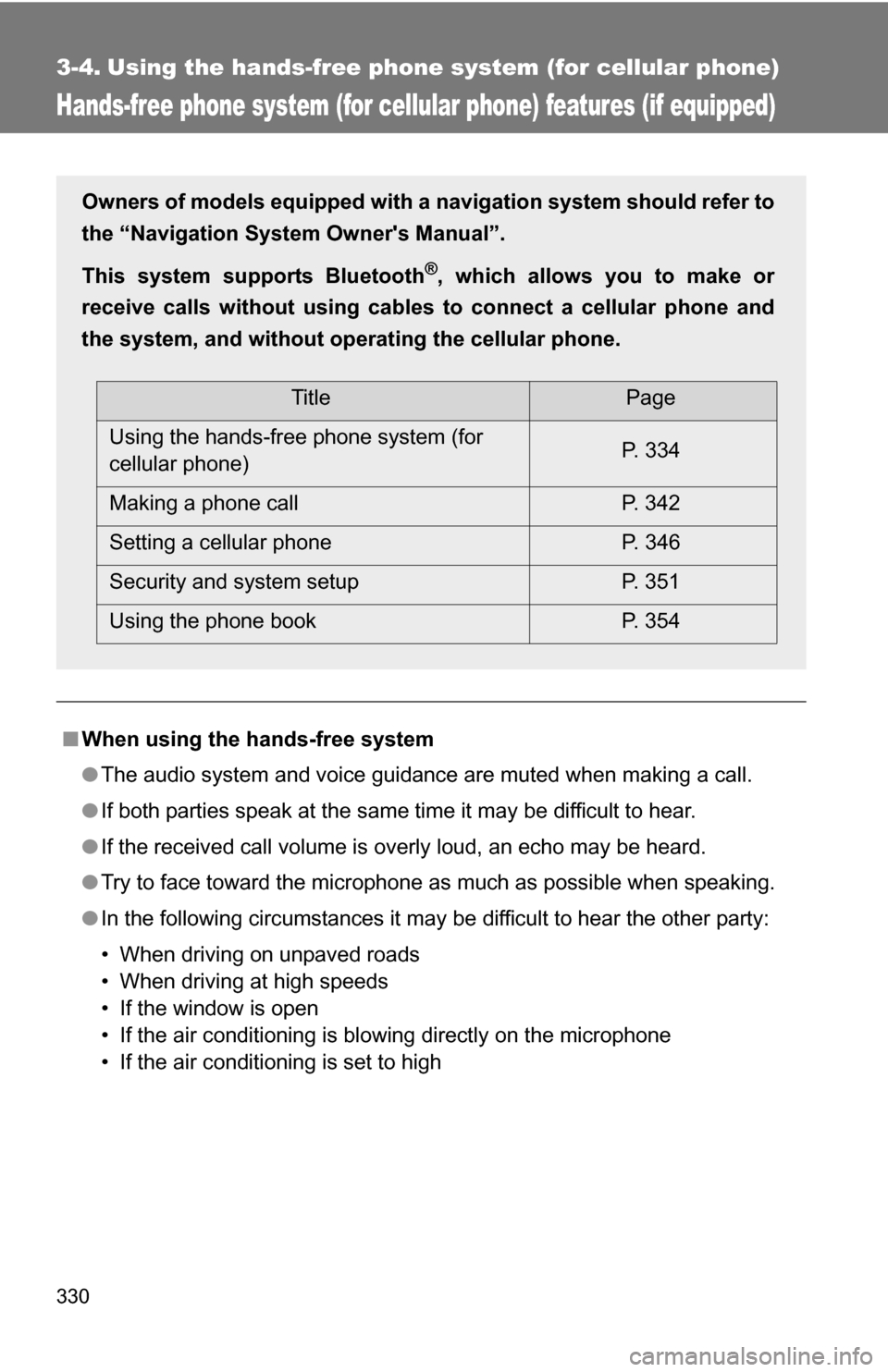

3-4. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone) features (if equipped)
■When using the hands-free system
●The audio system and voice guidance are muted when making a call.
● If both parties speak at the same time it may be difficult to hear.
● If the received call volume is overly loud, an echo may be heard.
● Try to face toward the microphone as much as possible when speaking.
● In the following circumstances it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• If the window is open
• If the air conditioning is blowing directly on the microphone
• If the air conditioning is set to high
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
This system supports Bluetooth
®, which allows you to make or
receive calls without using cables to connect a cellular phone and
the system, and without oper ating the cellular phone.
TitlePage
Using the hands-free phone system (for
cellular phone) P. 334
Making a phone call P. 342
Setting a cellular phone P. 346
Security and system setup P. 351
Using the phone book P. 354

331
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
■Conditions under which th e system will not operate
● If using a mobile phone that does not support Bluetooth
®
●If the mobile phone is switched off
● If you are outside service range
● If the mobile phone is not connected
● If the mobile phone's battery is low
■ Bluetooth
® antenna
The antenna is built into the display. If the mobile phone is behind the seat or
in the console box, or touching or covered by metal objects, connection sta-
tus may deteriorate.
■ Signal status
This display may not correspond exactly with the mobile phone itself.
■ About Bluetooth
®
■Compatible models
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Blue-
tooth
® phone. If your cellular phone supports OPP alone, you cannot use
the Bluetooth® phone.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

333
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features

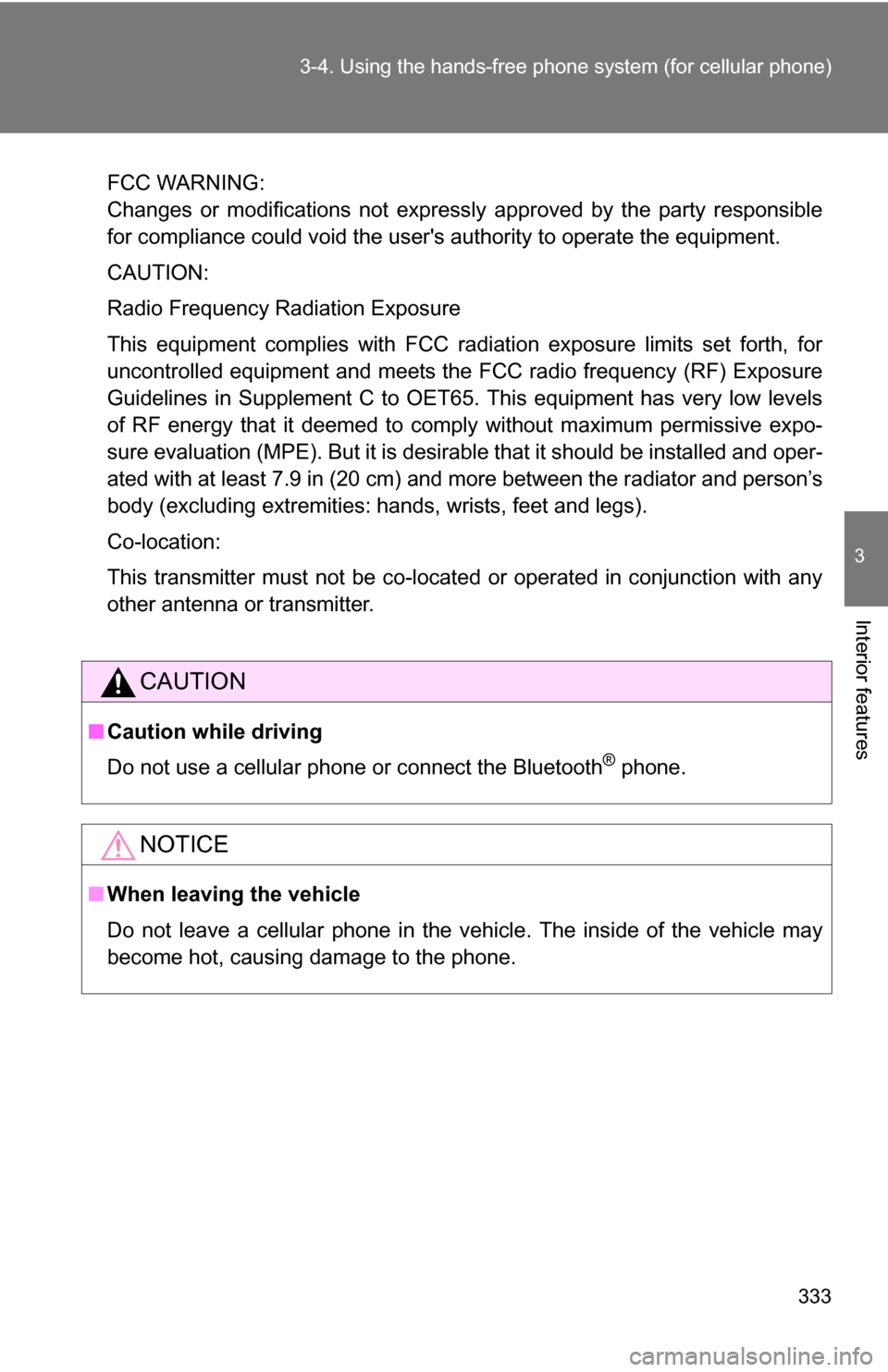

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
CAUTION:
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth, for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive expo-
sure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 7.9 in (20 cm) and more between the radiator and person’s
body (excluding extremities: hands, wrists, feet and legs).
Co-location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
CAUTION
■Caution while driving
Do not use a cellular phone or connect the Bluetooth
® phone.
NOTICE
■When leaving the vehicle
Do not leave a cellular phone in the vehicle. The inside of the vehicle may
become hot, causing damage to the phone.

334
3-4. Using the hands-free phone system (for cellular phone)
Using the hands-free phone system (for cellular phone) (if equipped)
■Audio unit
Displays such items as
messages, names, and
phone numbers
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Push and hold: Displays
information that is too long
to be displayed at one time
on the screen
Selects speed dials
Selects items such as menu
or numbers
Turn: Selects an item
Press: Inputs the selected
item
Displays the reception level
Displays Bluetooth
® con-
nection condition
If “BT” is not displayed, the
hands-free phone system
cannot be used.

568
Alphabetical index
Alphabetical index
A/C ..................... 248, 253, 261, 264
ABS ........................................... 215
Air conditioning filter............... 453
Air conditioning systemAir conditioning filter .............. 453
Front automatic air conditioning system ............ 253
Front manual air conditioning system ................................ 248
Rear automatic air
conditioning system ............ 264
Rear manual air conditioning system ................................ 261
Airbags Airbag operating conditions............................ 133
Airbag precautions for your child .................................... 137
Airbag warning light............... 492
Curtain shield airbag operating
conditions............................ 133
Curtain shield airbag
precautions ......................... 137
Front passenger occupant classification system ........... 142
General airbag precautions ......................... 137
Locations of airbags .............. 130
Modification and disposal of
airbags ................................ 141
Proper driving
posture ........................ 128, 137
Side airbag operating conditions............................ 133
Side airbag precautions ........ 137
SRS airbags .......................... 130
Alarm ......................................... 124
Antenna..................................... 277
Anti-lock brake system............ 215
Armrest ..................................... 386
Audio input ............................... 297 Audio system
Antenna................................. 277
Audio input ............................ 297
Audio visual input .................. 321
AUX adapter ......................... 297
A/V input adapter .................. 321
CD player/changer ................ 280
DVD player............................ 308
MP3/WMA disc ..................... 287
Optimal use ........................... 294
Portable music player ........... 297
Radio..................................... 274
Rear seat entertainment system ................................ 301
Steering wheel audio switch.................................. 299
Type ...................................... 271
Audio visual input.................... 321
Automatic light control system .................................... 200
AUX adapter ............................. 297
Auxiliary box ........................... 373
A/V input adapter ..................... 321
Back-up lights Replacing light bulbs ............. 470
Wattage................................. 543
Back door Back door ................................ 77
Wireless remote control .......... 65
Smart key system .. ................. 44
Battery Checking ............................... 435
Hybrid battery (traction battery) ................... 33
If the vehicle has discharged 12-volt battery ..................... 519
Preparing and checking before winter .................................. 230
Bluetooth
................................ 334
Bottle holder............................. 372
A
B
