2008 TOYOTA CAMRY immobilizer

TABLE OF CONTENTSIndex
2
1-1. Key information .................. 24Keys ..................................... 24
1-2. Opening, closing and locking the doors and
trunk .................................. 26
Smart key system................. 26
Wireless remote control ....... 37
Doors.................................... 41
Trunk .................................... 46
1-3. Adjustable components (seats, mirrors,
steering wheel) ................. 49
Front seats ........................... 49
Rear seats ............................ 51
Head restraints ..................... 53
Seat belts ............................. 55
Steering wheel ..................... 63
Anti-glare inside rear view mirror .................................. 64
Outside rear view mirrors ..... 66
1-4. Opening and closing the windows ............................ 68
Power windows .................... 68
Moon roof ............................. 70
1-5. Refueling ............................. 73 Opening the fuel tank cap .... 73 1-6. Theft deterrent system ....... 77
Engine immobilizer system ................................ 77
Alarm .................................... 79
Theft prevention labels (for U.S.A.) ......................... 81
1-7. Safety information .............. 82 Correct driving posture ......... 82
SRS airbags ......................... 84
Front passenger occupant classification system ........... 96
Child restraint systems ....... 101
Installing child restraints ..... 105
2-1. Driving procedures........... 116 Driving the vehicle .............. 116
Engine (ignition) switch (vehicles with smart key
system) ............................. 126
Engine (ignition) switch (vehicles without smart
key system) ...................... 130
Automatic transmission ...... 133
Manual transmission........... 137
Turn signal lever ................. 138
Parking brake ..................... 139
2-2. Instrument cluster ............ 141 Gauges and meters ............ 141
Indicators and warning lights ................................. 145
Multi-information display ..... 149
1Before driving
2When driving

Before driving1
23
1-1. Key information................ 24Keys ................................... 24
1-2. Opening, closing and locking the doors and
trunk ................................ 26
Smart key system .............. 26
Wireless remote control ..... 37
Doors ................................. 41
Trunk .................................. 46
1-3. Adjustable components (seats, mirrors,
steering wheel)............... 49
Front seats ......................... 49
Rear seats.......................... 51
Head restraints................... 53
Seat belts ........................... 55
Steering wheel ................... 63
Anti-glare inside rear view mirror ............................... 64
Outside rear view mirrors ... 66 1-4. Opening and closing the
windows.......................... 68
Power windows .................. 68
Moon roof ........................... 70
1-5. Refueling........................... 73 Opening the fuel tank cap ................................... 73
1-6. Theft deterrent system .... 77 Engine immobilizer system ............................. 77
Alarm.................................. 79
Theft prevention labels (for U.S.A.) ....................... 81
1-7. Safety information ........... 82 Correct driving posture....... 82
SRS airbags ....................... 84
Front passenger occupant classification system ........ 96
Child restraint systems..... 101
Installing child restraints... 105

77
1
Before driving
1-6. Theft deterrent system
Engine immobilizer system
■System maintenance
The vehicle has a maintenance-free type of engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle's keys have built-in tr ansponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles with smart key sys-
tem: The indicator light flashes
after the “ENGINE START
STOP” switch has been turned
OFF to indicate that the sys-
tem is operating.
Vehicles without smart key
system: The indicator light
flashes after the key has been
removed from the engine
switch to indicate that the sys-
tem is operating.

78 1-6. Theft deterrent system
■Certifications for the engine imm obilizer system (for vehicles sold in
U.S.A.)
Vehicles with smart key system
FCC ID: NI4TMIMB-1
Vehicles without smart key system
FCC ID: MOZRI-20BTY (Made in Japan)
FCC ID: MOZRI-21BTY (Made in Canada)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
■ Certifications for the engine imm obilizer system (for vehicles sold in
Canada)
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) This device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
CAUTION
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■ To prevent damage to the key
Do not modify, remove or disable the engine immobilizer system. If any
unauthorized changes or modifications are made, the proper operation of
the system cannot be guaranteed.

128 2-1. Driving procedures
■Steering lock release
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 77)
■ When the “ENGINE START STOP” s witch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.
■ Auto power OFF function
If the vehicles is left in ACCESSORY mode for more than an hour with the
shift lever in P, the “ENGINE START STOP” switch will automatically turn
OFF.
■ Key battery depletion
P. 3 2
■ When the electronic key battery is discharged
P. 353
■ Conditions affecting operation
P. 3 0
■ Note for the entry function
P. 3 3
Make sure that the steering wheel lock is
released.
To release the steering wheel lock, gently
turn the wheel left or right while pressing
the “ENGINE START STOP” switch.
If the steering wheel lock does not
release, the “ENGINE START STOP”
switch indicator will flash green.

131
2-1. Driving procedures
2
When driving
■
Turning the key from “ACC” to “LOCK”
■ Steering lock release
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 77)
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the key is in the “LOCK”
position to remind you to remove the key.
CAUTION
■When starting the engine
Always start the engine while sitting in the driver's seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn the
key only to the “ACC” position.
Shift the shift lever to N (manual
transmission) or P (automatic
transmission). ( P. 133, 137)
Push in the key and turn to the
“LOCK” position.STEP1
STEP2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly in either
direction.

147
2-2. Instrument cluster
2
When driving
■
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 138)
(U.S.A.)
Headlight indicator
( P. 152)
Headlight high beam
indicator ( P. 153)
(CANADA)
Tail light indicator
(P. 152)
Slip indicator
(P. 162)
(if equipped)
Front fog light indicator
( P. 156)
(if equipped)
Engine immobilizer/theft
deterrent system indica-
tor ( P. 77, 79)SRS airbag on-off indi-
cator (P. 96)
Cruise control indicator
(P. 159)
*
*

5
When trouble arises
411

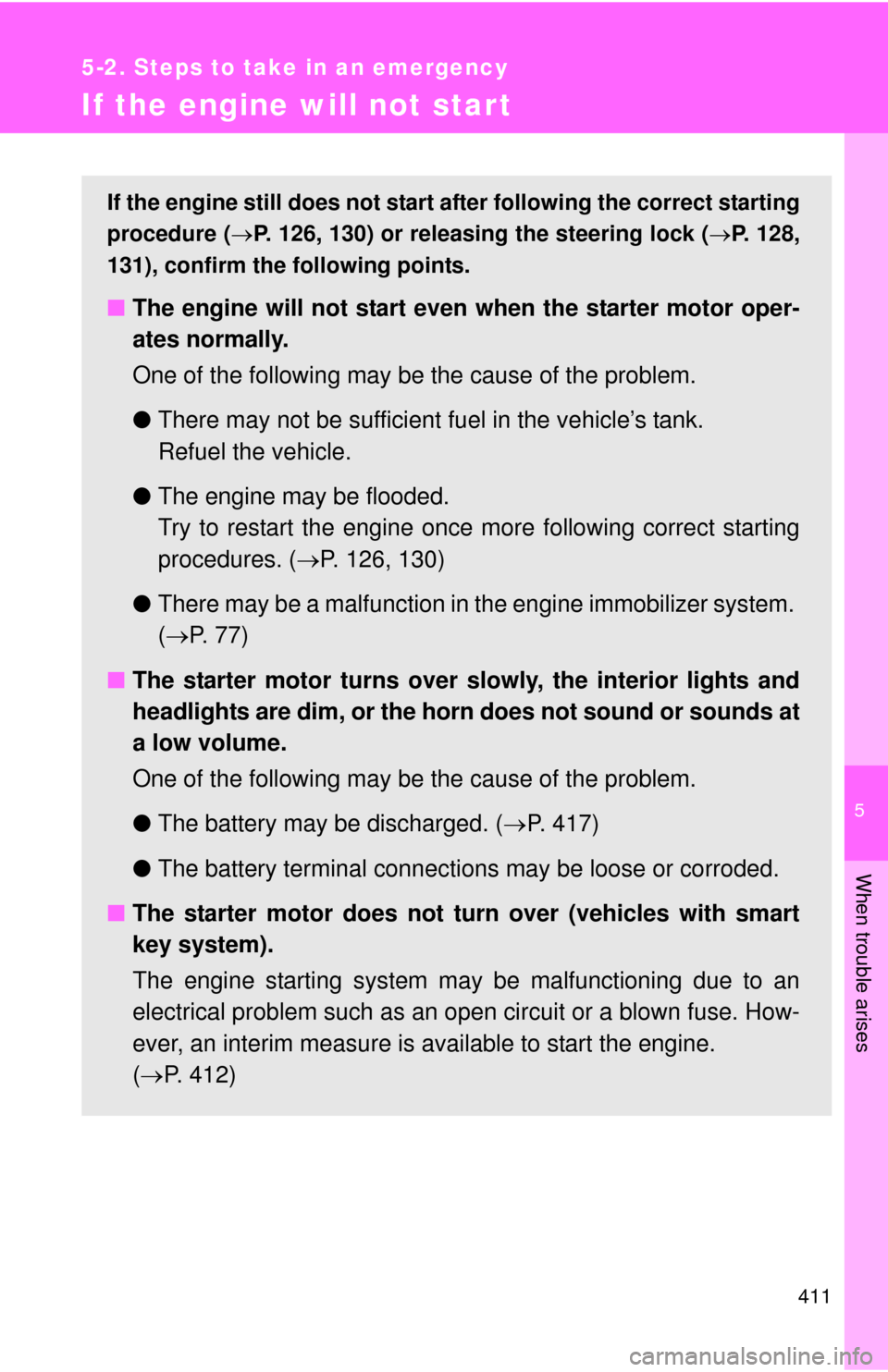

5-2. Steps to take in an emergency
If the engine will not star t
If the engine still does not start after following the correct starting
procedure (P. 126, 130) or releasing the steering lock ( P. 128,
131), confirm the following points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( P. 126, 130)
● There may be a malfunction in the engine immobilizer system.
(  P. 7 7 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 417)
● The battery terminal connec tions may be loose or corroded.
■ The starter motor does not turn over (vehicles with smart
key system).
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(  P. 412)
