2008 TESLA ROADSTER sensor

Tire repair
10-5
Roadside emergencies
Note: In cold conditions, use the vehicle’s
heater to warm the aerosol.
3. Position the wheel (if possible) so that the puncture is at the bottom.
4. Remove the valve cap and clean the valve thread.
5. Vigorously shake the tire sealant for approximately 30 seconds.
6. Screw the filler tube onto the tire valve and break the safety seal.
7. Hold the tire sealant upright and turn the knob one-quarter turn clockwise. If you
need to stop the process, simply turn the
knob back to the ‘OFF’ position.
8. Empty the entire contents of the tire sealant into the tire. When the sealant
stops flowing through the filler tube, turn
the knob to the ‘OFF’ position and
unscrew the filler tube from the tire valve.
Note: If tire sealant comes into contact
with the vehicle’s paint, immediately
wash the area with water to avoid
permanent damage.
9. If the wheel rim has lifted from the ground, drive immediately for 6 to 12
miles (10 to 20 km) to distribute the
sealant evenly inside the tire. Then drive
gently and do not exceed 30 mph
(45 km/h).
WARNING: If the wheel rim has not
lifted from the ground, call
Roadside Assistance to have the vehicle
transported to a repair facility.
S
10. Drive to the nearest service station and inflate the tire to the correct pressure (see
Specifications and tire pressures,
page 11-4 .) If the required pressure
cannot be reached, then the tire is too
severely damaged and you should have
the vehicle transported to a tire repair
facility. Do not drive!
Note: When adjusting tire pressures, you
can display tire pressure values on the
Touch Screen’s tire pressure screen.
However, the values displayed by the
Touch Screen will not be updated until
you place the car in drive long enough for
the tire pressure monitoring sensors to
take new readings. For details, refer to the
Touch Screen Users Manual provided in
your owners package.
11. If the correct tire pressure was achieved, continue driving. Drive carefully and do
not exceed 30 mph (45 km/h). At the
earliest opportunity, have the tire
repaired or replaced and replace the used
tire sealant.
WARNING: Always inform the tire
repairer that tire sealant has been
used. If the tire is to be subsequently
deflated, only do so in a well ventilated
area. The aerosol sealant can damage the
wheel sensor that measures tire pressure.
Therefore, the wheel sensor must be
replaced.
S
Replacing the tire sealantAlways replace the used tire sealant with one
of the same type and capacity (400 ml). Tire
sealants are available through most reputable
automotive retailers.
Roadster OHB.book Page 5 Th ursday, October 2, 2008 8:59 AM

Wheels and tires
11-9
Technical specifications
pressure telltale illuminates, you should stop
and check your tires as soon as possible, and
inflate them to the proper pressure.
Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces
Battery range and tire tread life, and may
affect the vehicle’s handling and stopping
ability.
The TPMS is not a substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inflation has not
reached a level to trigger illumination of the
TPMS tire pressure telltale.Checking tire pressures
WARNING: Tire pressures should be
checked using an accurate pressure
gauge when cold. Under-inflation is the most
common cause of tire failures and may result
in severe tire cracking, tread separation or
“blowout”, with unexpected loss of vehicle
control and increased risk of injury.
S
Check the pressures when the tires are cold.
Be aware that it only takes 1 mile (1.5 km) of
driving to warm up the tires sufficiently to
affect the tire pressures. If it is necessary to
check the tires when they are warm, you
should expect the pressures to have
increased. Do not let air out of warm tires in
an attempt to match the recommended cold
tire pressures.
Note: When adjusting tire pressures, you can
display tire pressure values on the Touch
Screen’s tire pressure screen. However, the values displayed by the Touch Screen will not
be updated until you place the car in drive
long enough for the tire pressure monitoring
sensors to take new readings. For details,
refer to the Touch Screen Users Manual
provided in your owners package.
Always inflate your tires to the Tesla Motors
recommended inflation pressure even if it is
different from the maximum inflation
pressure information found on the tire itself.
For the correct tire pressures, refer to
Specifications and tire pressures, page 11-4
.
The following procedure should be used to
check and adjust tire pressures: 1. Remove the cap from the valve, then firmly press the tire gauge onto the valve
and measure the pressure.
2. If required add air to reach the required pressure.
3. Check the pressure by removing the tire gauge and then re-attaching it.
Note: Failure to remove and re-attach the
gauge to the valve could cause the gauge
to show an incorrect reading.
4. If too much air is added, air can be released by pushing on the metal stem in
the center of the valve.
5. Recheck the pressure with the tire gauge and adjust if necessary.
6. Refit the valve cap.
Va l ve sFit the valve caps securely to prevent dirt
from entering the valve. Periodically check
the valve for damage and leaks.
Tire wear
WARNING: The tires should be
regularly checked for wear and to make
sure that there are no cuts, bulges or
exposure of the ply/cord structure. Do not
drive with tires which are worn or damaged.
The safety of the vehicle and occupants will
be adversely affected.p
Tires fitted as original equipment have wear
indicators moulded into the tread pattern.
When the tread has been worn down to 1/16”
(inch). the indicators start appearing at the
surface of the tread pattern, producing the
effect of a continuous band of rubber across
the width of the tire.
A tire must be replaced as soon as an
indicator band becomes visible or the tread
depth reaches the minimum permitted by
legislation.
TR0080
Roadster OHB.book Page 9 Th ursday, October 2, 2008 8:59 AM

Wheels and tires
11-11
Technical specifications
Tire Pressure Monitoring
System
WARNING: The TPMS is not a substitute
for manually checking tire pressures.
The TPMS only provides a tire pressure
warning and does not re-inflate the tires.
S
WARNING: The TPMS cannot register
damage to a tire. Regularly check the
condition of your tires.
S
The Tire Pressure Monitoring System (TPMS)
monitors the pressure of the tires using
sensors located in each wheel and receivers
located within the vehicle. The sensors
communicate with the receiver using Radio
Frequency (RF) signals.
Note: Installing accessories that are not
approved by Tesla Motors may interfere with
the TPMS system. Tire pressure warnings are displayed
on the instrument panel using an
amber warning indicator (telltale). A warning
is also displayed on the Touch Screen.
If the tire pressure warning light illuminates,
stop and check your tires as soon as possible
and inflate them to the correct pressure. If the
low pressure warning occurs frequently, the
cause must be determined and rectified.
The tire pressure warning indicator will
extinguish when all tires have been inflated to
the correct pressure.
TPMS malfunctionYour vehicle has been equipped with a TPMS
malfunction indicator to indicate when the
system is not operating properly.
The TPMS malfunction indicator is combined
with the tire pressure indicator. When the
system detects a malfunction, the indicator
will flash. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
When a malfunction occurs, the system may
not be able to detect or signal low tire
pressure as intended. TPMS malfunctions can
occur for a variety of reasons, including the
installation of replacement or alternate tires
or wheels on the vehicle that prevent the
TPMS from functioning properly. Always
check the TPMS malfunction indicator after
replacing one or more tires or wheels to
ensure that the replacement or alternate tires
and wheels allow the TPMS to function
properly. Note:
If a tire has been replaced or repaired
after using the tire sealant, and a low tire
pressure is detected, it is possible that the
wheel sensor has been damaged. The aerosol
sealant can damage the wheel sensor that
measures tire pressure. Therefore, whenever
tire sealant has been used, the wheel sensor
must be replaced.
Setting the tire pressuresYour vehicle allows you to use two sets of tire
pressures, refer to Specifications and tire
pressures, page 11-4 .Replacing a tire sensorIf you are experiencing frequent low tire
pressure warnings or the Touch Screen
reports a “Tire Pressure Hardware Fault”, the
system should be checked by Tesla Motors to
determine if a tire sensor requires
replacement.Type approvalThe TPMS devices comply with Part 15 of the
FCC rules and RSS-210. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept interference received, including interference that may
cause undesired operation.
TR0305
44.00 psi 18 Co33.00 psi18 Co
28.31 psi
18 Co44.00 psi
18 Co
Tires
EXIT
Roadster OHB.book Page 11 Thursday, October 2, 2008 8:59 AM

Wheels and tires11-12
Technical specifications
Dynamic tire pressure
monitoringThe Touch Screen can display the pressure
and temperature for each tire.Touch the information icon on the main
parked screen to display the ‘Info’
screen.
Touch the Tires option to display the data
being received by the sensors adjacent to the
respective wheel. A blue wheel indicates an acceptable
operating pressure for the tire.
A red wheel indicates that the pressure is
below the recommended operating pressure,
and that action must be taken to rectify the
issue.
Note:
If the vehicle has been driven, the
temperature of the tires will have increased
and hence the pressure of the air in the tire
will also have increased. Tire pressures should
only be checked when the tires are cold. See
Checking tire pressures, page 11-9 .
Touch EXIT icon to return to the previous
screen. iRoadster OHB.book Page 12 Thursday, October 2, 2008 8:59 AM

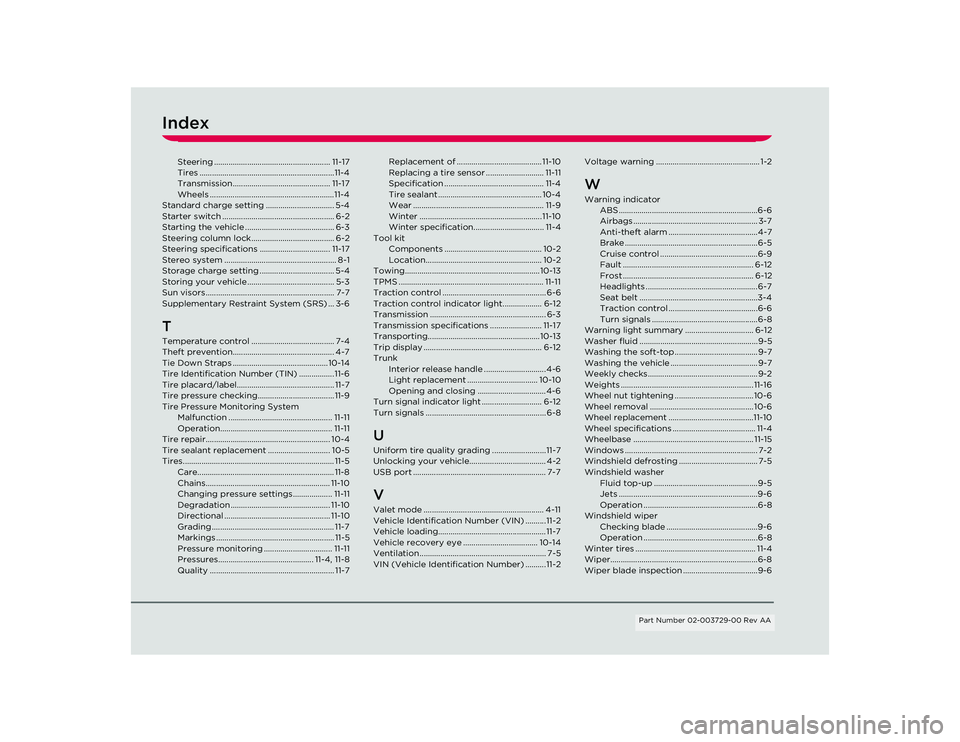

Index
Steering ........................................................ 11-17
Tires .................................................................11-4
Transmission............................................... 11-17
Wheels ............................................................11-4
Standard charge setting ................................. 5-4
Starter switch ...................................................... 6-2
Starting the vehicle ........................................... 6-3
Steering column lock........................................ 6-2
Steering specifications .................................. 11-17
Stereo system ...................................................... 8-1
Storage charge setting .................................... 5-4
Storing your vehicle .......................................... 5-3
Sun visors .............................................................. 7-7
Supplementary Restraint System (SRS) ... 3-6
TTemperature control ........................................ 7-4
Theft prevention................................................. 4-7
Tie Down Straps .............................................. 10-14
Tire Identification Number (TIN) ................. 11-6
Tire placard/label............................................... 11-7
Tire pressure checking..................................... 11-9
Tire Pressure Monitoring System Malfunction .................................................. 11-11
Operation...................................................... 11-11
Tire repair............................................................ 10-4
Tire sealant replacement .............................. 10-5
Tires......................................................................... 11-5 Care.................................................................. 11-8
Chains............................................................ 11-10
Changing pressure settings................... 11-11
Degradation ................................................ 11-10
Directional ................................................... 11-10
Grading ........................................................... 11-7
Markings ......................................................... 11-5
Pressure monitoring ................................. 11-11
Pressures.............................................. 11-4, 11-8
Quality ............................................................ 11-7 Replacement of ......................................... 11-10
Replacing a tire sensor ............................ 11-11
Specification ................................................ 11-4
Tire sealant .................................................. 10-4
Wear ............................................................... 11-9
Winter ...........................................................11-10
Winter specification.................................. 11-4
Tool kit Components ............................................... 10-2
Location........................................................ 10-2
Towing.................................................................10-13
TPMS ...................................................................... 11-11
Traction control .................................................. 6-6
Traction control indicator light................... 6-12
Transmission ........................................................ 6-3
Transmission specifications ......................... 11-17
Transporting......................................................10-13
Trip display ......................................................... 6-12
Trunk Interior release handle ..............................4-6
Light replacement .................................. 10-10
Opening and closing .................................4-6
Turn signal indicator light ............................. 6-12
Turn signals .......................................................... 6-8
UUniform tire quality grading ..........................11-7
Unlocking your vehicle..................................... 4-2
USB port ................................................................ 7-7VValet mode .......................................................... 4-11
Vehicle Identification Number (VIN) ..........11-2
Vehicle loading....................................................11-7
Vehicle recovery eye .................................... 10-14
Ventilation............................................................. 7-5
VIN (Vehicle Identification Number) ..........11-2 Voltage warning .................................................. 1-2
WWarning indicator
ABS ...................................................................6-6
Airbags ............................................................ 3-7
Anti-theft alarm ...........................................4-7
Brake ................................................................6-5
Cruise control ...............................................6-9
Fault ............................................................... 6-12
Frost ............................................................... 6-12
Headlights ...................................................... 6-7
Seat belt .........................................................3-4
Traction control ...........................................6-6
Turn signals ...................................................6-8
Warning light summary ................................. 6-12
Washer fluid .........................................................9-5
Washing the soft-top ........................................ 9-7
Washing the vehicle .......................................... 9-7
Weekly checks.....................................................9-2
Weights ................................................................ 11-16
Wheel nut tightening ...................................... 10-6
Wheel removal .................................................. 10-6
Wheel replacement .........................................11-10
Wheel specifications ........................................ 11-4
Wheelbase .......................................................... 11-15
Windows ................................................................ 7-2
Windshield defrosting ...................................... 7-5
Windshield washer
Fluid top-up ..................................................9-5
Jets ...................................................................9-6
Operation .......................................................6-8
Windshield wiper Checking blade ............................................9-6
Operation .......................................................6-8
Winter tires .......................................................... 11-4
Wiper.......................................................................6-8
Wiper blade inspection ....................................9-6
Part Number 02-003729-00 Rev AA
Roadster OHB.book Page 4 Th ursday, October 2, 2008 8:59 AM
