Page 207 of 650
undefined
2321-01
ENGINE INTAKE SYSTEM
2) Layout
Page 209 of 650
undefined
2321-01
ENGINE INTAKE SYSTEM
1. EGR pipe (RH) 5. Exhaust gas
2. EGR pipe (center) 6. EGR pipe (LH)
3. Coolant emission port 7. Vacuum modulator to the EGR valve
4. Intake air (intercooler)
Intake Manifold
Incoming of intake air and
exhaust gas (Operation o
f
EGR valve) Incoming of intake air (No
operation of EGR valve)
Coolant
emission port
Coolant
emission port The SUS + Rubber coating is applied to the intake manifold gasket to prevent the air leakage
and optimize the sealing effect.
Intake airIntake air
Exhaust gas
Page 210 of 650
ENGINE INTAKE SYSTEM
undefined
2321-01

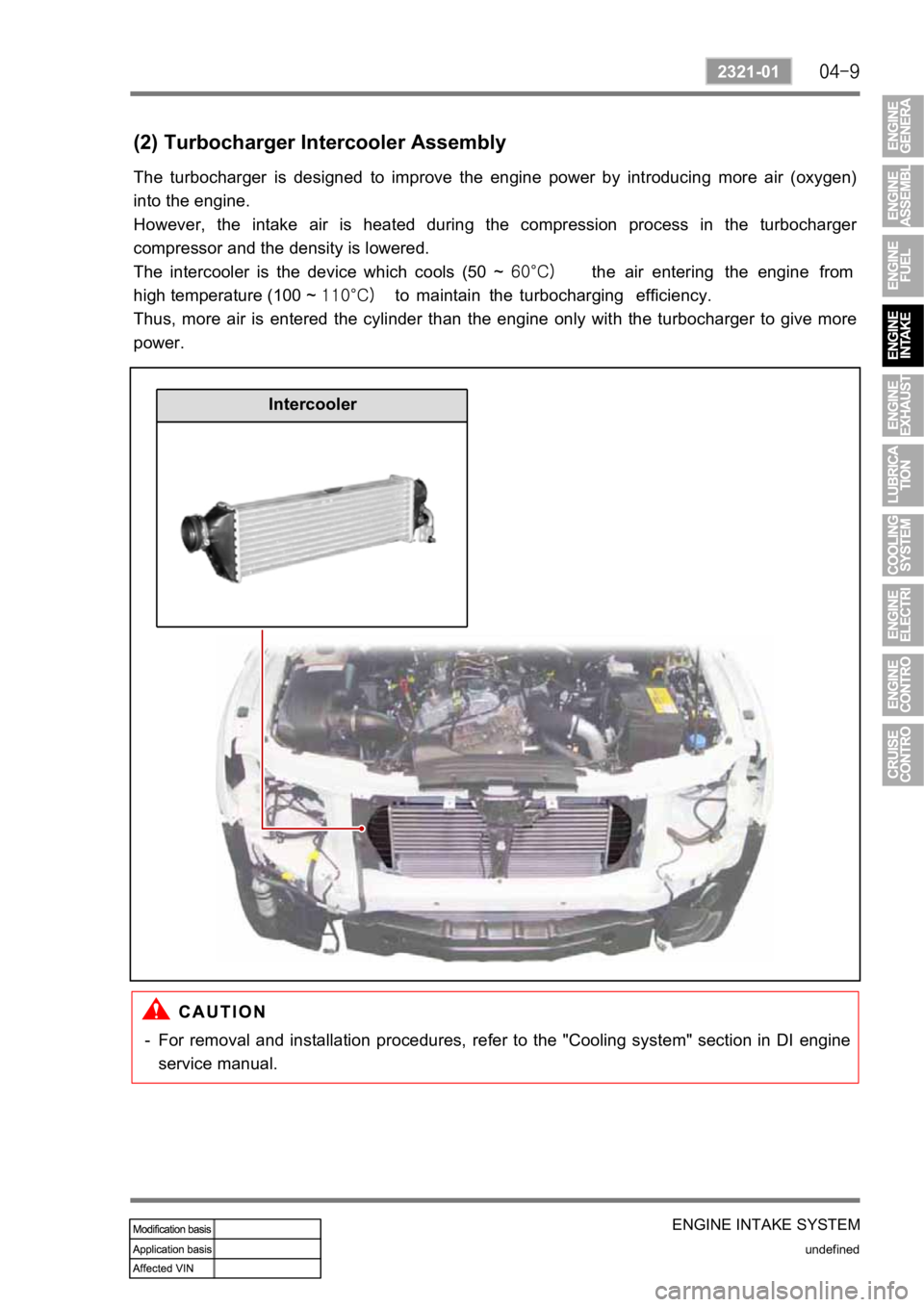

(2) Turbocharger Intercooler Assembly
The turbocharger is designed to improve the engine power by introducing more air (oxygen)
into the engine.
However, the intake air is heated during the compression process in the turbocharge
r
compressor and the density is lowered.
The intercooler is the device which cools (50 ~
the air entering the engine from
high temperature (100 ~
to maintain the turbocharging efficiency.
Thus, more air is entered the cylinder than the engine only with the turbocharger to give more
power.
Intercooler
For removal and installation procedures, refer to the "Cooling system" section in DI engine
service manual. -
Page 211 of 650
undefined
2321-01
ENGINE INTAKE SYSTEM
2. AIR FLOWS
1) Work Flow of Intake System
