Occupant safety
56
>> Safety.
i
Air bags are designed to deploy only in
certain frontal impacts (front air bags), and in
side impacts (head
thorax air bags) which
exceed preset thresholds. Only during these
events will they provide their supplemental
protection.
The driver and passenger should always wear
their seat belts. Otherwise it is not possible
for air bags to provide their supplemental
protection.
In case of other types of impacts and impacts
below air bag deployment thresholds, air bags
will not deploy. The driver and passenger will
then be protected to the extent possible by a
properly fastened seat belt. A properly fas

tened seat belt is also needed to provide the
best possible protection in a rollover.
We caution you not to rely on the presence of
the air bags in order to avoid wearing your
seat belt.
It is important to your safety and that of your
passenger that you replace deployed air bags
and repair any malfunctioning air bags to
make sure the vehicle will continue to provide
supplemental crash protection for occupants.Safety guidelines for the seat belt,
Emergency Tensioning Devices (ETDs) and
air bag
• Keep hands on the outside of the steer

ing wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when the driver’s front air bag
inflates.
• Adjust the passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.
• Occupants, especially children, should
always sit as upright as possible,
properly use the seat belts and use an
appropriately sized infant restraint,
toddler restraint, or booster seat
recommended for the size and weight
of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important
that you make the buyer aware of this
safety information. Be sure to give the
buyer this Operator’s Manual.
G
Warning!
• Damaged seat belts or seat belts that
were highly stressed in an accident
must be replaced and their anchoring
points must also be checked. Only use
seat belts installed or supplied by an
authorized smart center.
• Air bags and Emergency Tensioning
Devices (ETDs) contain Perchlorate
material, which may require special
handling and regard for the environ

ment. Check with your local govern

ment’s disposal guidelines. California
residents, see http://www.dtsc.ca.gov/
Hazardous Waste/Perchlorate/
index.cfm.

Occupant safety
60
>> Safety.
i
The front air bags in this vehicle have
been designed to inflate in two stages. This
allows the air bag to have different rates of
inflation that are based on the rate of relevant
vehicle deceleration and a fastened or unfas

tened seat belt as assessed by the air bag
control unit.
On the passenger side, the front air bag
deployment is additionally influenced by the
passenger’s weight category as identified by
the Occupant Classification System (OCS)
(
page 60).
The lighter the passenger side occupant, the
higher the vehicle deceleration rate required
for the second stage inflation of the air bag.
The air bags will not deploy in impacts which
do not exceed the system’s deployment
thresholds. In such instances, the seat belts
are designed to protect you.The passenger air bag will only be deployed if
• the system, based on OCS weight sensor
readings, senses that the passenger seat is
occupied and the 57 indicator
lamp is not lit (

page 64).
• the impact exceeds a preset deployment
threshold.
The driver front air bag is located in the
steering wheel housing, the passenger front
air bag above the glove box.
1
Driver front air bag
2
Passenger front air bag
Occupant Classification SystemThe O
ccupant C
lassification S
ystem (OCS)
automatically turns the passenger front air
bag on or off based on the classified occupant
weight category determined by weight sensor
readings from the passenger seat.
i
The system does not deactivate the head

thorax air bag, the seat Emergency Tension

ing Devices, and the seat belt force limiters.
Occupants must sit properly belted in a posi

tion that is as upright as possible with their
back against the seat backrest and feet on the
floor to be correctly classified. If the occu

pant's weight is transferred to another object
in the vehicle (e.g. by leaning on armrests),
the OCS may not be able to properly approxi

mate the occupant’s weight category. P91.60
3287
31

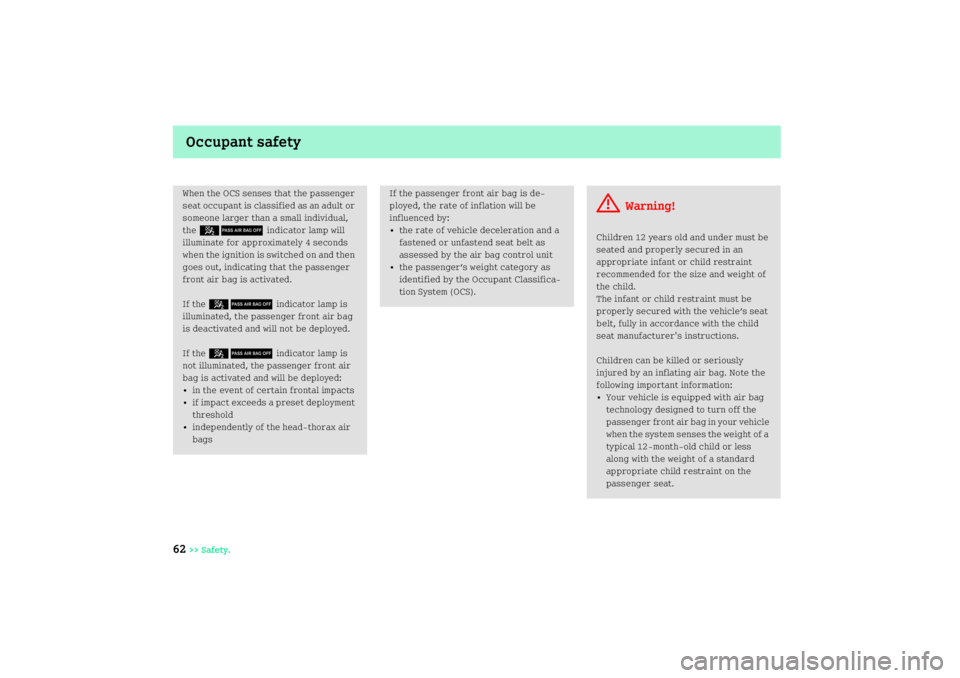

Occupant safety
62
>> Safety.When the OCS senses that the passenger
seat occupant is classified as an adult or
someone larger than a small individual,
the57 indicator lamp will
illuminate for approximately 4 seconds
when the ignition is switched on and then
goes out, indicating that the passenger
front air bag is activated.
If the57 indicator lamp is
illuminated, the passenger front air bag
is deactivated and will not be deployed.
If the57 indicator lamp is
not illuminated, the passenger front air
bag is activated and will be deployed:
• in the event of certain frontal impacts
• if impact exceeds a preset deployment
threshold
• independently of the head
thorax air
bags
If the passenger front air bag is de

ployed, the rate of inflation will be
influenced by:
• the rate of vehicle deceleration and a
fastened or unfastend seat belt as
assessed by the air bag control unit
• the passenger’s weight category as
identified by the Occupant Classifica

tion System (OCS).
G
Warning!
Children 12 years old and under must be
seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of
the child.
The infant or child restraint must be
properly secured with the vehicle’s seat
belt, fully in accordance with the child
seat manufacturer's instructions.
Children can be killed or seriously
injured by an inflating air bag. Note the
following important information:
• Your vehicle is equipped with air bag
technology designed to turn off the
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12
month
old child or less
along with the weight of a standard
appropriate child restraint on the
passenger seat.

Lighting>> Controls.
105
>Switching on: Push the combination switch
in the direction of arrow
1 or
2.
The corresponding turn signals flash.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes.
The combination switch resets automati

cally after major steering wheel movement.
i
To signal minor directional changes such
as changing lanes, push the combination
switch only to the point of resistance and
release. The corresponding turn signals will
flash three times.
Coming home functionVehicles without rain
light sensor:
The interior lamps come on and then go out
again after 12 seconds every time when you
lock or unlock the vehicle.
Vehicles with rain
light sensor*:
In addition to the interior lamps, the exterior
lamps come on and then go out again after
12 seconds depending on the brightness of
the ambient light when you lock or unlock the
vehicle.
When leaving the vehicle
>Remove the key from the starter switch.
>Exit the vehicle.
>Press button
ª
on the key.
The vehicle is locked.
The interior and exterior
1 lamps come on
and then go out again after 12 seconds.
When returning to the vehicle
>Press button
©
on the key either once or
twice.The vehicle is either selectively or globally
unlocked.
The interior and exterior
1 lamps come on
and then go out again after 12 seconds.
Front fog lamps
1 Vehicles with rain
light sensor
G
Warning!
Vehicles with rain
light sensor*:
In low ambient lighting or foggy condi

tions, only switch from positionU
toB with the vehicle at a standstill in
a safe location. Switching fromU
toB will briefly switch off the head

lamps. Doing so while driving in low ambi

ent lighting conditions may result in an
accident.

Instrument cluster
>> Controls.
139
Trip odometer display
> Selecting trip odometer display: Press left
button
1 (
page 138) repeatedly until the
trip odometer display appears in the status
indicator.
> Resetting trip odometer display: Press and
hold left button
1 (
page 138) until the
value is set to
.Maintenance service interval display
The maintenance service interval display will
notify you approximately one month before
the next maintenance service is due.
The maintenance service interval display also
shows the type of maintenance service that is
due.
After starting the engine, the maintenance
service interval display shows this informa

tion in miles (km) or in days for approximately
ten seconds.>Start the engine.
> Selecting maintenance service interval
display: Press left button
1 (
page 138)
repeatedly until the maintenance service
interval display appears in the status
indicator.
Depending on the type of maintenance
service that is due, symbol¬ or}
is dis

played.
> Clearing maintenance service interval
display: Press the left button on the
instrument cluster (

page 138).
The maintenance service interval display is
cleared.
> Activating maintenance service interval
display: Press the left button on the instru

ment cluster (

page 138) twice in quick
succession. P54.32
5177
31
P54.32
5179
31
