2008 SKODA OCTAVIA Owner's Manual

Seats and Stowage
96
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to ⇒page 95, fig. 110 .
Removing ashtray insert
– Press on the ashtray insert in the area ⇒fig. 111 (the insert comes
out) and take it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - low centre console
Opening ashtray
– Grasp the ashtray cover at the lower edge and fold it open in the direction of arrow ⇒fig. 112 .
Removing ashtray
– Grasp the ashtray at the handle and pull it out in an upward direc- tion.
Replacing ashtray
– Insert the ashtray into the console and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 111 Remove front
ashtray insert
AA
AB
Fig. 112 Low centre console:
Rear ashtray
AA
AB
20A5Facelift.book Page 96 Saturday, September 6, 2008 2:13 PM

Seats and Stowage97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Rear ashtray - high centre console*
Opening ashtray
– Press on the top part of the cover of the ashtray in area ⇒fig. 113 .
Removing ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert at the cover and pull it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
There is a drinks can holder attached to the inner side of the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter*, power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for other elec-
trical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 114 .
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the socket
– Remove the cigarette lighter or the cover of the power socket.
– Connect the plug of the electrical appliance to the socket.
The 12 volt power socket can also be used to supply power to electrical accessories
with a power uptake up to 180 watts.
Fig. 113 High centre console:
Rear ashtray
AA
AB
Fig. 114 Centre console:
Cigarette lighter
20A5Facelift.book Page 97 Saturday, September 6, 2008 2:13 PM

Seats and Stowage
98
WARNING
•Take care when using the cigarette lighter! Not paying proper attention
or incorrect use the cigarette lighter in an uncontrolled manner may result in
burns.
•The cigarette lighter and the power so cket also operates when the igni-
tion is switched off or the ignition key withdrawn. You should therefore
never leave children unattended in the vehicle.
Caution
Always use matching plugs to av oid damaging the power socket.
Note
•Connecting electrical components when the engine is not running will
drain the battery of the vehicle - risk of battery draining!
•Further information ⇒page 243, “Accessories, changes and replacement of
parts”.
Power socket in the luggage compartment (estate car)
– Open the cover of the power socket ⇒fig. 115 . – Connect the plug of the electr
ical appliance to the socket.
You can only use the power socket for the connection of approved electrical acces-
sories with a power uptake up to 180 watts. The vehicle battery will be discharged
in the process if the engine is stationary.
The same remarks apply here as for ⇒page 97.
Further information ⇒page 243, “Accessories, changes and replacement of
parts”.
Storage compartments
Overview
You will find the following stor age facilities in your vehicle:
Fig. 115 Luggage compart-
ment: Power socket
Storage compartment on the front passenger side⇒page 99
Storage compartment on the driver's side⇒page 100
Storage compartment on the dash panel⇒page 100
Stowage compartment in front centre console*⇒page 101
Stowage compartment for spectacles*⇒page 101
Storage compartment in the front doors⇒page 102
Stowage compartment below front passenger seat*⇒page 102
Front seat armrest with stowage compartment*⇒page 102
Stowage compartment in rear centre console*⇒page 104
Seat backrest with opening for skis*⇒page 104
Through-loading bag*⇒page 105
20A5Facelift.book Page 98 Saturday, September 6, 2008 2:13 PM

Seats and Stowage99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Please do not place anything on top of the dash panel. Such objects
might slide or fall down when driving (when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of acci-
dent!
•Ensure that when driving no objects from the centre console of from
other storage possibilities may get into the footwell of the driver. You would
then no longer be able to apply the br akes, operate the clutch or accelerator
- risk of accident!
Storage compartment on the front passenger side
Opening and closing the storage compartment on the front
passenger side
– Press the handle of the lid ⇒fig. 116 - the lid folds down. – Raise the lid and press it until the catch is heard to engage.
There is a holder for a pen and note book on the inside of the lid.
WARNING
•The storage compartment must always
be closed when driving for safety
reasons.
•Do not place any beverages into the cup holder while driving. Spilled
beverages can damage the electrical sy stem and the upholstery. Hot bever-
ages may result in burns.
Cooling of storage compartment on front passenger
side*
The storage compartment is for vehi cles fitted with an air-condi-
tioning system with a closable air supply.
– You can switch the air supply on or off using the control dial
⇒fig. 117 .
Opening the air supply when the air condit ioning system is switched on allows
cooled air to flow into the storage compartment.
Side compartment*⇒ page 106
Stowage compartment behind the rear seats (estate
car)⇒page 106
Clothes hooks*⇒page 107
Fig. 116 Dash panel: Storage
compartment on the front
passenger side
Fig. 117 Storage compart-
ment: Using cooling system
20A5Facelift.book Page 99 Saturday, September 6, 2008 2:13 PM

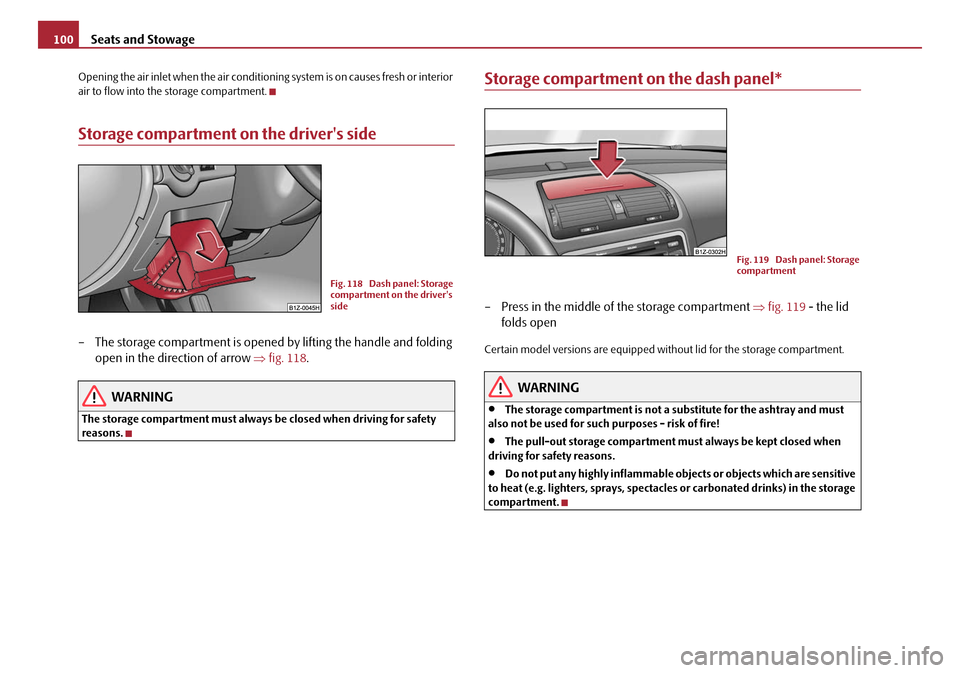

Seats and Stowage
100
Opening the air inlet when the air conditioning system is on causes fresh or interior
air to flow into the storage compartment.
Storage compartment on the driver's side
– The storage compartment is opened by lifting the handle and folding
open in the direction of arrow ⇒fig. 118 .
WARNING
The storage compartment must always be closed when driving for safety
reasons.
Storage compartment on the dash panel*
– Press in the middle of the storage compartment ⇒fig. 119 - the lid
folds open
Certain model versions are equipped without lid for the storage compartment.
WARNING
•The storage compartment is not a substitute for the ashtray and must
also not be used for such purposes - risk of fire!
•The pull-out storage compartment mu st always be kept closed when
driving for safety reasons.
•Do not put any highly inflammable objects or objects which are sensitive
to heat (e.g. lighters, sprays, spectacles or carbonated drinks) in the storage
compartment.
Fig. 118 Dash panel: Storage
compartment on the driver's
side
Fig. 119 Dash panel: Storage
compartment
20A5Facelift.book Page 100 Saturday, September 6, 2008 2:13 PM

Seats and Stowage101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Stowage compartment in front centre console*
– Press on the bottom part of the storage compartment in the area
⇒fig. 120 - the lid opens.
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
Storage net on the front centre console*
The storage net in the front center console ⇒fig. 121 is designed for the transport
of smaller objects.
WARNING
•In the luggage net you must only store objects (up to a total weight of 0,5
kg). Heavy objects are not secured sufficiently - risk of injury!
•No objects with sharp edges should be stored in the luggage net, because
they can damage the luggage net.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒fig. 122 .
WARNING
The compartment must only be opened when removing or inserting objects
and otherwise must be kept closed.
Fig. 120 Front centre
console: Storage compart-
ment
AA
Fig. 121 Front centre
console: Storage net
Fig. 122 Detail of the head-
liner: Stowage compartment
for spectacles
20A5Facelift.book Page 101 Saturday, September 6, 2008 2:13 PM

Seats and Stowage
102
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for the front
doors.
WARNING
Use the area ⇒fig. 123 of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not
impaired.
Stowage compartment below front passenger seat*
The storage compartment is foreseen for storing small objects of up to 1,5
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 124 .
– Tilt the lock to close the flap and press flap close.
Front seat armrest with storage compartment*
Fig. 123 Storage compart-
ment in the front doors
AB
AA
Fig. 124 Front passenger
seat: Storage compartment
Fig. 125 Armrest: Storage
compartment
20A5Facelift.book Page 102 Saturday, September 6, 2008 2:13 PM

Seats and Stowage103
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The armrest is adjustable for height and length.
Opening stowage compartment
– Open the lid of the armrest in the direction of arrow ⇒page 102,
fig. 125 .
Closing stowage compartment
– Open the lid up to the stop, then you can fold it downwards.
Setting height
– First of all fold the lid to the bottom and lift it in the direction of arrow into one of the 4 fixed positions.
Adjusting in forward/back direction
– Push the lid into the desired position.
Opening air inlet
– Pull the lock in upward direction ⇒fig. 126 .
Closing air inlet
– Push the lock as far as the stop downwards.
On vehicles fitted with air conditioning, the storage compartment is equipped with
a lockable inlet for thermally treated (warmed-up) air.
At open air supply, air flows into the storage with a temperature which is as high as
the one out of the air outlet nozzles, depending on temperature setting.
The air inlet in the storage compar tment is connected to position
 through
adjustment of the control dial for air distribution. This position causes the
maximum amount of air to flow into th e storage compartment (depending on the
rotary regulator position for the fan).
You can use the storage compartment, for example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover
should always be kept closed.
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.
Rear seat armrest with storage compartment*
A storage compartment* is located in the armrest. You open the compartment by
pressing the button on the front side and raising the cover ⇒fig. 127 .
Fig. 126 Armrest: Cooling of
storage compartment
AA
AA
Fig. 127 Armrest of rear
seats:
