56Fuel gauge
 and reserve indicator
Instrument panel: fuel gauge
The fuel tank has a capacity of approx. 55 litres.
When the needle reaches the reserve zone ⇒fig. 33 (arrow), the warning
lamp will light and an acoustic signal will sound reminding the driver to
refuel. At this point there are still ab out 7 litres of fuel in the tank.
The following text appears on the instrument panel display
3) PLEASE REFUEL
[XXX] *.
Engine coolant temperature display


This gauge shows the engine coolant temperature.
Needle in cold zone
Avoid high engine speeds and heavy engine loads ⇒fig. 34 .
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures . This is no cause for concern as long
as the warning lamp does not light up and no warning* text appears in the
combi-instrument display.
Needle in warning zone
The warning lamp* ⇒page 73, fig. 47 will light up if the needle is in the
warning zone. The following warning appears on the instrument panel
3)Depending on the version of the model.
Fig. 33 Instrument panel:
fuel gauge
Fig. 34 Instrument panel:
engine coolant tempera-
ture gauge
AAABAC
A2
leon_ingles Seite 56 Montag, 26. Januar 2009 4:29 16

Intelligent technology
180speed suitable for the road conditions. Failure to do so could result in an
accident.Brakes
What factors can have a negative effect on the brakes?New brake pads
New brake pads do not provide optimal performance during the first 400 km
they must be “run in”. However, the reduced braking capacity may be
compensated by pressing on the brake pedal a little harder. Avoid over-
loading the brakes during run-in.
Wear
The rate of wear on the brake pads depends a great deal on how you drive and
the conditions in which the vehicle is operated. Negative factors are, for
instance, city traffic, frequent short tr ips or hard driving with abrupt starts
and stops.
Wet roads; road salt
When the velocity is over 80 km/h windscreen wipers are on, the brake
system moves the pads towards the brake discs for a few seconds. This
occurs - without warning to the driver - at regular intervals and requires a
more rapid response from the brakes when driving on wet roads.
In certain conditions, such as in heavy rain, or after washing the car or driving
through water, the full braking effect ca n be delayed by moisture (or in winter
by ice) on the discs and brake pads. The brakes should be “dried” by pressing
the pedal to restore full braking effect.
The effectiveness of the brakes can also be temporarily reduced if the car is
driven for some distance without using the brakes when there is a lot of salt on the road in winter. In this case, the layer of salt on the brake discs and pads
has to wear off before braking.
Corrosion
There may be a tendency for dirt to build up on the brake pads and corrosion
to form on the discs if the car is used infrequently, or if you only drive low
mileages without using the brakes very much.
If the brakes are not used frequently, or
if rust has formed on the disks, it is
advisable to clean off the pads and disks by braking firmly a few times from a
moderately high speed ⇒ .
Faults in the brake system
If the brake pedal travel should ever increase suddenly, this may mean that
one of the two brake circuits has failed. Drive immediately to the nearest qual-
ified workshop and have the fault rectified. On the way to the dealer, be
prepared to use more pressure on the brake pedal, and allow for longer stop-
ping distances.
Low brake fluid level
Malfunctions can occur in the brake system if the brake fluid level is too low.
The brake fluid level is monitored electronically.
Brake servo
The brake servo amplifies the pressure you apply to the brake pedal. The
brake servo works only when the engine is running.
WARNING
•
When applying the brakes to clean off deposits on the pads and discs,
select a clear, dry road. Be sure not to inconvenience or endanger other
road users. Risk of accident.
•
Ensure the vehicle does not move wh ile in neutral, when the motor is
stopped. Failure to do so could result in an accident.
WARNING (continued)
leon_ingles Seite 180 Montag, 26. Januar 2009 4:29 16

General notes on the technical data 261
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Data on fuel consumptionFuel consumption
The consumption and emission details shown on the vehicle
data sticker differ from one vehicle to another.The fuel consumption and CO
2 emissions of the vehicle can be found on the
vehicle data sticker.
The fuel consumption and emissions figures given are based on the vehicle
weight category, which is determine d according to the engine/gearbox
combination and the equipment fitted.
The consumption and emission figures ar e calculated in accordance with the
EC test requirements 1999/100/EC. These test requirements specify a real-
istic test method based on normal everyday driving.
The following test conditions are applied:
Note
•
Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the
vehicle condition.
WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•
Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Always adjust your speed and driving style to suit road conditions
and requirements.
•
Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
Urban cycle
The urban cycle starts with an engine cold start. City driving
is then simulated.
Extra urban
cycle
In the extra urban cycle simulation the vehicle frequently
accelerates and brakes in all gears, as in normal everyday
driving. The road speed ranges from 0 to 120 km/h.
Total con-
sumption
The average total consumption is calculated with a weighting
of around 37% for the urba n cycle and 63% for the extra
urban cycle.
CO2 emis-
sions
The exhaust gases are collected during both driving cycles to
calculate carbon dioxide emissions. The gas composition is
then analysed to evaluate the CO
2 content and other emis-
sions.
leon_ingles Seite 261 Montag, 26. Januar 2009 4:29 16

Technical Data
264Petrol engine 1.4 63 kW (85 bhp)General engine data
Performance figures
Weights Power output in kW (bhp)
rpm 63 (85)/ 5000
Maximum torque in Nm at 1/min 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 ± 0,3
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power loss.Maximum speedin km/h 172
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,7
Gross vehicle weight in kg 1746
Weight in working order (with driver) in kg 1251
Front gross axle weight in kg 890
Rear gross axle weight in kg 895
Permitted roof load in kg 75
leon_ingles Seite 264 Montag, 26. Januar 2009 4:29 16

Technical Data
266Weights
Trailer weights
Engine oil filling capacityPetrol engine 1.6 75 kW (102 bhp)General engine data Gross vehicle weight
in kg 1819
Weight in working order (with driver) in kg 1324
Front gross axle weight in kg 969
Rear gross axle weight in kg 899
Permitted roof load in kg 75
Trailer without brakes 710
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1300
Approximate engine oil capacity with oil filter change 3.3 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at 1/min 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression 10,3 ± 0,5
Fuel Super Plus 98 RON or Premium 95 RON
a)
a)With a slight power loss
leon_ingles Seite 266 Montag, 26. Januar 2009 4:29 16

Technical Data267
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil filling capacity
Maximum speed
in km/h 184
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,7
Gross vehicle weight in kg 1783
Weight in working order (with driver) in kg 1280
Front gross axle weight in kg 936
Rear gross axle weight in kg 890
Permitted roof load in kg 75
Trailer without brakes 640
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
leon_ingles Seite 267 Montag, 26. Januar 2009 4:29 16

Technical Data

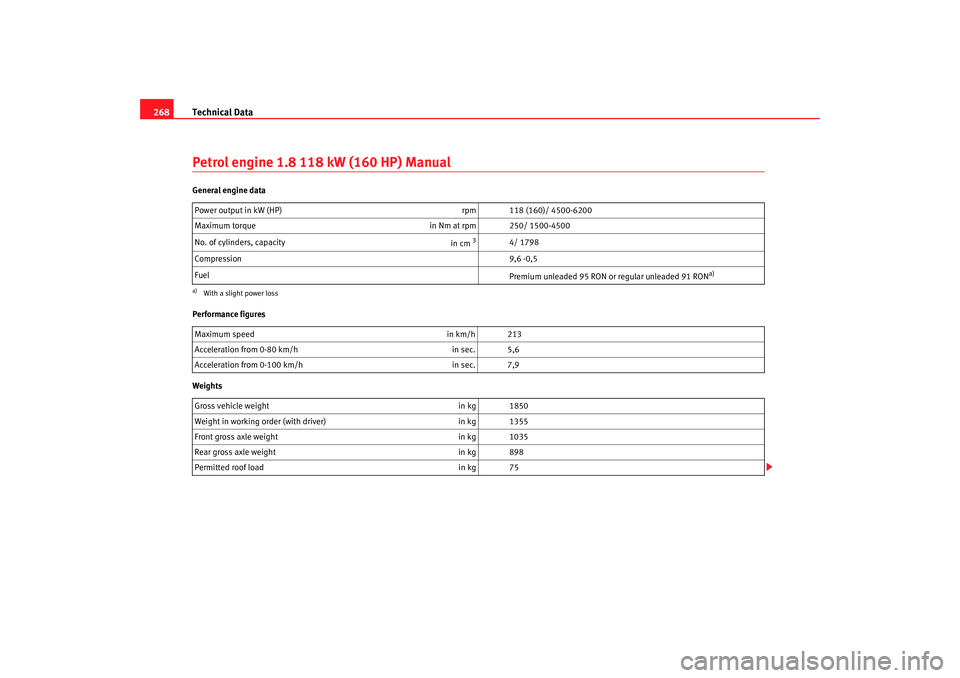

268Petrol engine 1.8 118 kW (160 HP) ManualGeneral engine data
Performance figures
Weights Power output in kW (HP)
rpm 118 (160)/ 4500-6200
Maximum torque in Nm at rpm 250/ 1500-4500
No. of cylinders, capacity in cm
3
4/ 1798
Compression 9,6 -0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 213
Acceleration from 0-80 km/h in sec. 5,6
Acceleration from 0-100 km/h in sec. 7,9
Gross vehicle weight in kg 1850
Weight in working order (with driver) in kg 1355
Front gross axle weight in kg 1035
Rear gross axle weight in kg 898
Permitted roof load in kg 75
leon_ingles Seite 268 Montag, 26. Januar 2009 4:29 16

Technical Data
270Weights
Trailer weights
Engine oil filling capacityPetrol engine 2.0 litre 177 kW (240 hp). CupraGeneral engine data Gross vehicle weight
in kg 1865
Weight in working order (with driver) in kg 1370
Front gross axle weight in kg 1035
Rear gross axle weight in kg 898
Permitted roof load in kg 75
Trailer without brakes 680
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (HP) rpm 177 (240)/ 5700-6300
Maximum torque in Nm at rpm 300/ 2200-5500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 9,8 ± 0,5
Fuel Premium 98 RON or Premium 95 RON
a)
a)With a slight power loss
