2008 Seat Exeo engine

SEAT S.A. is permanently concerned about continuous development of its types and models. For this reason we ask you to understand,
that at any given time, changes regarding shape, equipment and technique may take place on the car delivered. For this reason no
right at all may derive based on the data, draw ings and descriptions in this current handbook.
All texts, illustrations and standards in this handbook are based on the status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid as of the date of closing print.
Re-printing, copying or translating, whether total or partial i s not allowed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the "Copyright" Act.
All rights on changes are reserved.
This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.10.08
V V e
eh
h i
ic
c l
le
e
d
d a
at
ta
a
1
1 .
.
2
2 .
.
3
3 .
.
4
4 .
.
5
5 .
.
1
1.
.Vehicle identification number
2
2.
.Identification numbers
Type/Model/Engine
Gearbox/Finishes
3 3.
.Identification letters
Engine/Gearbox/Paintwork
Equipment
4 4.
.Identification codes of variable equipment
5
5.
.
Consumption (l/100 km) / CO2Emissions (g/km) urban
Consumption (l/100 km) / CO
2Emissions (g/km) motorway
Consumption (l/100 km) / CO
2Emissions (g/km) mixed
N
N o
ot
te
e
• We recommend that you visit an Authorised SEAT Service Centre
whenever you require any work done on your vehicle.
• SEAT regularly communicates to its Authorised Service Centres new
product developments. They have tools and highly specialized per-
sonnel who can guarantee the safety and performance of your vehicle.
• Scrupulously following the General Programme for Inspection
Services in Authorised SEAT Service Centres will ensure you maintain
greater value for your vehicle.
Portada interior Prog Manto.qxd 21/10/08 10:56 Página 3

Contents1
ContentsVehicle deliver y
. . . . . . . . . . . . . . . . . . . . .
Vehicle data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Owner data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data on the Authorised Service Centre and on
the delivery inspection
. . . . . . . . . . . . . . . . . . . .
On-board documentation and vehicle keys
.
Client Information
. . . . . . . . . . . . . . . . . . . . . . . .
Delivery certificate
. . . . . . . . . . . . . . . . . . . . . . . .
Change of vehicle ownership
. . . . . . . . . . . . . .
SEAT maintenance programme
. .
General information
. . . . . . . . . . . . . . . . . . . . . .
Concepts of the SEAT service
. . . . . . . . . . . . . .
Adverse conditions
. . . . . . . . . . . . . . . . . . . . . . .
Diesel fuel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LongLife SEAT Services
. . . . . . . . . . . .
What is the LongLife SEAT service?
. . . . . . . . .
Is my vehicle eligible for the LongLife
Service?
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil specification
. . . . . . . . . . . . . . . . . . .
SEAT Inspection Service
. . . . . . . . . . .
What is the SEAT Inspection Service?
. . . . . .
SEAT oil change service
. . . . . . . . . . . . . . . . . . .
SEAT inspection
. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection Service every 30,000 km (20,000
miles) or every 2 years
. . . . . . . . . . . . . . . . . . . .
Inspection Service every 60,000 km (40,000
miles) or every 4 years
. . . . . . . . . . . . . . . . . . . .
Additional tasks
. . . . . . . . . . . . . . . . . . . . . . . . . .
Every 5,000 miles
. . . . . . . . . . . . . . . . . . . . . . . . .
Every 30,000 km (20,000 miles) or 2 years
.
Every 40,000 miles
. . . . . . . . . . . . . . . . . . . . . . .
Every 60,000 km (40,000 miles) or 4 years
.
Every 90,000 km (60,000 miles) or 6 years
.
At 60,000 miles (the first time), then every
20,000 miles
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Every 180,000 km (115,000 miles)
. . . . . . . .
Every 180,000 km /115,000 miles (the first
time around), then, every 30,000 km / 20,000
miles
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
After 3 years the first time around, then every
2 years
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Every 4 years
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other services available
. . . . . . . . . .
Legal Inspection Service
. . . . . . . . . . . . . . . . . .
Approved spare parts
. . . . . . . . . . . . . . . . . . . . .
Approved SEAT exchange parts
. . . . . . . . . . . .
Approved accessories
. . . . . . . . . . . . . . . . . . . . .
Paintwork and body service
. . . . . . . . . . . . . . .
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fault-free operation warranty
. . . . . . . . . . . . . .
Paintwork and body warranty
. . . . . . . . . . . . . .
Approved SEAT exchange parts
. . . . . . . . . . . .
Approved accessories
. . . . . . . . . . . . . . . . . . . . .
Paintwork and body service
. . . . . . . . . . . . . . .
Service Record
. . . . . . . . . . . . . . . . . . . . . .
3
3
3
3
4
4
5
5
8
8
8
8
9
10
10
10
10 11
11
11
11
12
12
13
13
13
13
13
14
14
14
14
14
1415
15
15
15
16
16
17
17
17
17
18
18
19
PM exeo_EN Seite 1 Montag, 27. Oktober 2008 11:38 11
Other notes from the Service
Ce nt re
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38

LongLife SEAT Services
10LongLife SEAT ServicesWhat is the LongLife SEAT service?The service intervals are flexibleWhereas conventional service intervals are calculated according to the
number of kilometres travelled, the LongLife Service employs a technology
which considers your personal driving style and the conditions of use appli-
cable to your vehicle. For example, frequent short journeys involve different
conditions of use to long journe ys. The maintenance intervals are flexible.
Remember that, in spite of the above, the LongLife Service should be carried
out at most every 24 months, as engine oil ages irrespective of the vehicle
conditions of use.
Details of the service work and additional work required can be found on
page ⇒page 12. onwards.
Please observe inspection intervals and ensure your vehicle is serviced as
required. Please note that failure to observe the inspection intervals may
lead to damage to your vehicle.Is my vehicle eligible for the LongLife Service?All vehicles are filled with oil suitable for the LongLife Service at the factory.
Depending upon the country where the vehicle is to be used, the LongLife Service or the inspection service is selected. On delivery of the vehicle, the
corresponding service is marked on the delivery inspection sheet.
Renewal of the LongLife Service
On completion of the relevant Service, the authorised SEAT Service Centre
resets the next service and marks the corresponding box on the service
sheet.
Engine oil specificationOnly specially approved engine oils may be used in vehicles
using the LongLife Service concept.The LongLife Service (maximum length 2 years) is only valid if engine oils
approved for the LongLength Service are used. Therefore, when filling and
topping up the engine, only engine oils with the following VW specifications
may be used:
Petrol engines VW 503 00, VW 503 01, VW 504 00
Diesel engines VW 506 00, VW 506 01, VW 507 00
In diesel vehicles fitted with particulate filters, the engine oil, specification
VW 507 00, must be used.
The instruction manual indicates the oil which should be used for your
vehicle engine.
If the specified engine oil is not used, the maintenance intervals given for the
SEAT inspection service should be observed.
Oil change
Inspection
according to a flexible
service interval indicator
PM exeo_EN Seite 10 Montag, 27. Oktober 2008 11:38 11

SEAT Inspection Service11
SEAT Inspection ServiceWhat is the SEAT Inspection Service?With the SEAT Inspection Service the service intervals are
fixed.Unlike the LongLife Service, the SEAT inspection service is a conventional
service with fixed maintenance intervals.
A reminder label for the scheduled inspection services is located on the
inside of the driver door frame; you will also be reminded by the service
interval counter on the instrument panel, and the service records in this docu-
ment.
The SEAT inspection service is applied whenever the conditions for the use of
the LongLife Service are not met, or where this service is not desired.
Please observe inspection intervals and ensure your vehicle is serviced as
required. Please note that failure to observe the inspection intervals may
lead to damage to your vehicle.
Note
•
We recommend that you visit an Auth orised SEAT Service Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Service Centres new
product developments. They have t ools and highly specialized personnel
who can guarantee the safety and performance of your vehicle.
•
Scrupulously following the General Prog ramme for Inspection Services in
Authorised SEAT Service Centres will ensure you maintain greater value for
your vehicle.
SEAT oil change serviceThis includes the following:•
Engine oil changed, oil filter replaced.
•
Brake pad thickness checked.
•
Service interval display reset.
SEAT inspectionAn inspection is required ever y 30,000 km (20,000 miles) or 2 months,
whichever comes first.
Oil change
as indicated by the service interval display
every 12 months
or every 15,000 km (10,000 miles)
a)
a)In Diesel vehicles, if a poor quality fuel is used which fails to comply with the regula-
tions for Diesel fuel given in the Instruction Manual (e.g. due to a high sulphur con-
tent), the oil should be changed every 7,500 km (5,000 miles).
Inspection
as indicated by the service interval display every 24 months
or every 30,000 km (20,000 miles)
PM exeo_EN Seite 11 Montag, 27. Oktober 2008 11:38 11

SEAT Inspection Service
12Inspection Service every 30,000 km (20,000 miles) or every 2 yearsOperations to be performed on your vehicle:•
Battery: Check condition
•
Self-diagnosis: Check fault memory in all systems.
•
Service interval display: Reset to zero.
•
Sunroof: Check operation, clean guttering and lubricate guides.
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Tyres (including the spare wheel): Check surface, tread and tyre pressure.
•
Engine oil and oil filter: Replace.
•
Front and rear brake pads: Check.
•
Brake system: Check for leaks and damage
•
Engine and engine well components (from below): Check for leaks and
damage.
•
Steering ball joints: Check fastenings and absence of leaks and damage,
and verify play.
•
Engine and engine well components (from above): Visual check for leaks
and damage.
•
Brake fluid level, according to brake pad wear: Check.
•
Servo steering hydraulic system: Check for leaks and check fluid levels,
topping up with hydraulic oil where necessary.
•
Test run, brake system, parking brake, gear control, steering system, air
conditioning: Check operation.
•
“Next service” sticker: Write the date and mileage, and attach it onto the
door frame.
Inspection Service ever y 60,000 km (40,000 miles) or every 4 yearsOperations to be performed on your vehicle:•
Battery: Check condition.
•
Front/rear lights, luggage compartmen t lighting, indicators and hazard
lights: Check operation.
•
Interior and glove compartment lighting, lighter, warning lights and horn:
Check operation.
•
Self-diagnosis: Check fault memory in all systems.
•
Service interval indicator: Reset to zero.
•
Door and tailgate hinges: Lubricate.
•
Door arresters, lock cylinders and bonnet arrester hooks: Lubricate
•
Sunroof: Check operation, clean guttering and lubricate guides.
•
Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.
•
Tyres (including the spare wheel): Check surface, tread and tyre pressure.
•
Engine oil and oil filter: Replace.
•
Front and rear brake pads: Check.
•
Exhaust system : Check fastenings and absence of leaks and damage
•
Underside protection: Check visually for damage
PM exeo_EN Seite 12 Montag, 27. Oktober 2008 11:38 11

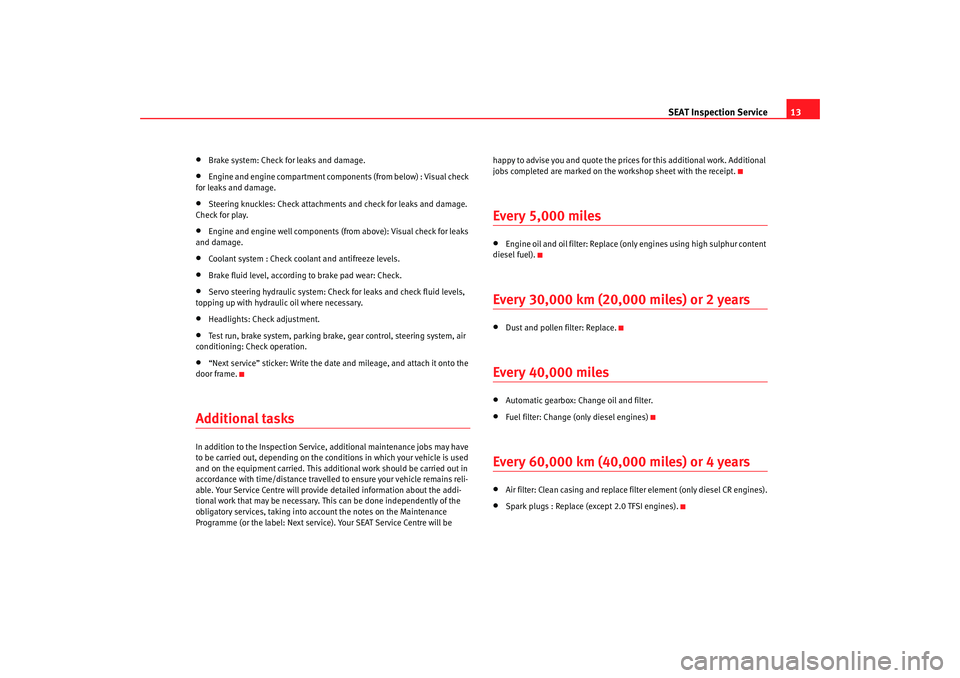

SEAT Inspection Service13
•
Brake system: Check for leaks and damage.
•
Engine and engine compartment comp onents (from below) : Visual check
for leaks and damage.
•
Steering knuckles: Check attachments and check for leaks and damage.
Check for play.
•
Engine and engine well components (from above): Visual check for leaks
and damage.
•
Coolant system : Check coolant and antifreeze levels.
•
Brake fluid level, according to brake pad wear: Check.
•
Servo steering hydraulic system: Check for leaks and check fluid levels,
topping up with hydraulic oil where necessary.
•
Headlights: Check adjustment.
•
Test run, brake system, parking brake, gear control, steering system, air
conditioning: Check operation.
•
“Next service” sticker: Write the date and mileage, and attach it onto the
door frame.
Additional tasksIn addition to the Inspection Service, additional maintenance jobs may have
to be carried out, depending on the conditions in which your vehicle is used
and on the equipment carried. This additional work should be carried out in
accordance with time/distance travelled to ensure your vehicle remains reli-
able. Your Service Centre will provide detailed information about the addi-
tional work that may be necessary. This can be done independently of the
obligatory services, taking into account the notes on the Maintenance
Programme (or the label: Next service). Your SEAT Service Centre will be happy to advise you and quote the prices for this additional work. Additional
jobs completed are marked on the workshop sheet with the receipt.
Every 5,000 miles•
Engine oil and oil filter: Replace (onl
y engines using high sulphur content
diesel fuel).
Every 30,000 km (20,000 miles) or 2 years•
Dust and pollen filter: Replace.
Every 40,000 miles•
Automatic gearbox: Change oil and filter.
•
Fuel filter: Change (only diesel engines)
Every 60,000 km (40,000 miles) or 4 years•
Air filter: Clean casing and replace filter element (only diesel CR engines).
•
Spark plugs : Replace (except 2.0 TFSI engines).
PM exeo_EN Seite 13 Montag, 27. Oktober 2008 11:38 11

SEAT Inspection Service
14Every 90,000 km (60,0 00 miles) or 6 years•
Spark plugs : Replace (only 2.0 TFSI engines).
•
Air filter: Clean casing and replace fi lter element (only petrol engines).
At 60,000 miles (the first time), then every 20,000 miles•
Timing belt: Check condition and replace as necessary (only petrol
engines up to 180,000 Km)
Every 180,000 km (115,000 miles)•
Timing belt: Replace (diesel CR engines and fuel engines).
Every 180,000 km /115,000 miles (the first
time around), then, ev ery 30,000 km / 20,000 miles•
Particulate filters Check (only diesel CR engines).
After 3 years the first time around, then every 2 years•
Brake fluid: Replace
Every 4 years•
Anti-puncture kit: Check the expiry date on the sealing compound and
replace if necessary.Note
•
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle.
•
SEAT regularly communicates to its Authorised Service Centres new
product developments. They have tools and highly specialized personnel
who can guarantee the safety and performance of your vehicle.
•
Scrupulously following the General Programme for Inspection Services in
Authorised SEAT Service Centres will ensure you maintain greater value for
your vehicle.
PM exeo_EN Seite 14 Montag, 27. Oktober 2008 11:38 11

Other services available15
Other services availableLegal Inspection ServiceThe legal inspections must be carried out at the intervals
prescribed.Many countries have legal requirements obliging owners to have their vehicle
tested at specified intervals for safety for the user and for other traffic, as well
as ensuring that vehicle exhaust emissions meet the countries' regulations.
These revisions must be overseen by officially certified centres.
Your Authorised Service Centre can advise of the inspections required by law,
and can check your vehicle in the course of an Inspection Service. This will
save you both time and money.
The Authorised Service Centre can also carry out the inspections required by
law at the client's request.
Even if you do not wish to take advantage of this service and decide to take
your car to an officially certified centre for this check, we recommend that you
speak to the person in charge of your Authorised Service Centre first.
This person will be able to inform you of any points that require attention so
that your car does not fail the test and have to be re-tested.Approved spare partsAll parts of your vehicle have been approved by SEAT, especially those parts
on which your safety depends. For this reason, the parts used in the
Programmed Inspection Services or in any vehicle repair must correspond
exactly to the manufacturer-defined r equirements. The approved SEAT spare parts have been designed especially for your vehicle. For this reason, we
recommend that Genuine approved SEAT spares are always used.
In the Authorised SEAT Service Centres you will find the most important
approved spare parts. If in an exceptional case, the necessary parts are not in
stock, they can, in general, be obtained swiftly.
The SEAT Service Centres in the EU provide a 24 month warranty
1) for
Approved Spare parts from the date they are fitted or sold. It is therefore
advisable to retain the original invoice from the Authorised Service Centre as
proof of the existing warranty.
More information about this may be obtained from your Authorised Service
Centre.
Approved SEAT exchange partsThe approved SEAT exchange parts, conforming to the manufacturer’s
requirements, constitute an additional service at your disposal, offering you
the possibility to replace entire assemblies, the most common being: the
lightened engine, gearboxes, cylinder heads, control units, electrical
elements, etc.
Of course these are Approved parts and, as they have the same class as the
manufacturer parts, they share the same SEAT approved spare parts warranty.
However, these parts are considerably cheaper as they are factory-recondi-
tioned used parts. Keep the invoice for the approved SEAT exchange parts as
proof of the start of the existing warranty.1)The warranty is not available for all export markets. For more information, please ask
your Authorised SEAT Service Centre.
PM exeo_EN Seite 15 Montag, 27. Oktober 2008 11:38 11
