2008 Seat Altea Freetrack fog light bulb

Cockpit73
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Item
Symbol Meaning of warning and control lamps Further information

Fuel level / reserve ⇒page 75

Coolant level / coolant temperature ⇒page 75

Rear fog light switched on ⇒page 76


Turn signals in operation ⇒page 76

Trailer turn signals in operation ⇒page 76

Main beam switched on ⇒page 76

Bulb defective ⇒page 77

Cruise control system switched on ⇒page 77

Washer fluid level ⇒page 77


Parking brake applied
or low brake fluid level or
fault in brake system ⇒
page 77

Engine oil pressure ⇒page 78

ABS system fault ⇒page 78


Pollen accumulation in the diesel engine particulate filter ⇒page 79

Alternator fault ⇒page 79
A1A2A3A4A5A6A7A8A9A10A11A12A13A14
altea_XL ingles.book Seite 73 Donnerstag, 13. September 2007 10:36 10

If and when
260Xenon headlights
23)/self-directing
Dipped and full beam - D1S
24)
Flashes and extra full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Fixed rear light
Stop/Position - P21W
25)
Turn signals - P21W
Rear tailgate light unit
Fog light (driver's side) - P21W
Reverse (passenger's side) - P21W
Position - W5W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the bulbs except for the fog lights and interior bulbs.
Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
23)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.24)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.25)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
Fig. 185 Main headlight
lamps
AAABACAD
altea_XL ingles.book Seite 260 Donnerstag, 13. September 2007 10:36 10

If and when263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 191 by pulling on this. – Extract the lamp holder
⇒fig. 192 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- Indicator, side and brake light
•
On the tailgate
- Left hand side: position and antifog.
- Right hand side: reverse and position.
Fig. 191 Side lightsFig. 192 Side lights
AD
A1
altea_XL ingles.book Seite 263 Donnerstag, 13. September 2007 10:36 10

If and when265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Position light, fog light and reverse light on the tailgateSide lights
– Open the tailgate. –Pull the cover off.
– Take the lampholder out pressing on the securing pins and
extract it outwards.
– Remove the blown bulb and replace it with another.
– To refit follow the steps in reverse order, taking special care when fitting the lamp holder.
Antifog and reverse light
–Open the tailgate.
–Pull the cover off.
– Turn the lampholder to the left.
– Remove the blown bulb and replace it with another.
– Installation is done in the reverse order.

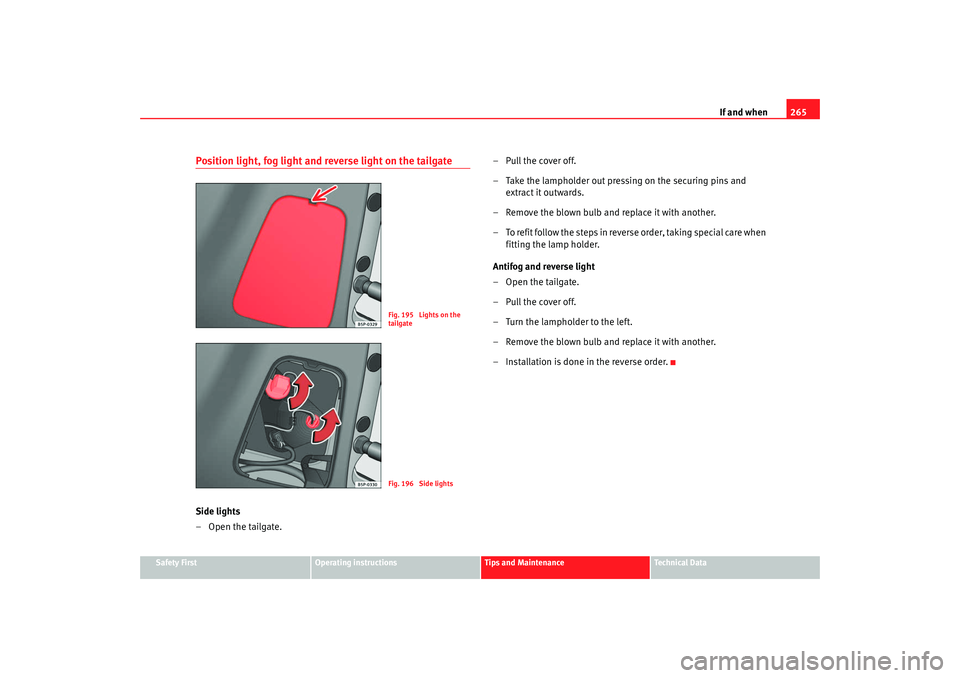

Fig. 195 Lights on the
tailgateFig. 196 Side lights
