2008 SATURN SKY relay

Floor Console Fuse Block
The oor console fuse block is located on the passenger
side of the vehicle under the carpet.
Remove the fuse block cover to access the fuses.
Use the fuse puller to remove fuses.
After re-installing the fuse block cover, be sure to tuck
the carpet under the heater oor outlets.
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
6 Amplier
7 Cluster
8 Ignition Switch, PassKey III+
9 Stoplamp
10Climate Control System,
PassKey III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Wiper
16Climate Control System, Automatic
Occupant Sensing Module, Crank
Relay, Instrument Panel Cluster
5-95
ProCarManuals.com

Fuses Usage
1 Empty (LE5); Cooling Fan (LNF)
2 Rear Window Defogger
3 Empty
4 Body Control Module 3
5 Crank
6 Body Control Module 2
7 Body Control Module
8 Cooling Fan 2 (LE5); Empty (LNF)
9 Empty
10 Trunk
11 Trunk
12 Empty
13 Fuel Pump
14 Rear Defogger Relay
15 Air Conditioning Clutch Relay
16 Empty
17 Empty
18 Trunk Release Relay
19 Fuel Pump Relay
20 Empty
21 MirrorsFuses Usage
22 Air Conditioning
23 Empty
24Cooling Fan 2 Relay (LE5);
Empty (LNF)
25 Fuse Puller
26 Powertrain Relay
27 Empty
28Back-up Lamps Relay
(Automatic Transmission);
Empty (Manual Transmission)
29 Data Link Connector
30 Outlet
31Back-up Lamps
(Automatic Transmission);
Empty (Manual Transmission)
32 Empty
33 Emissions
34 Crank Relay
35 Empty
36 Empty
37 Power Seat
38 Empty
5-97
ProCarManuals.com

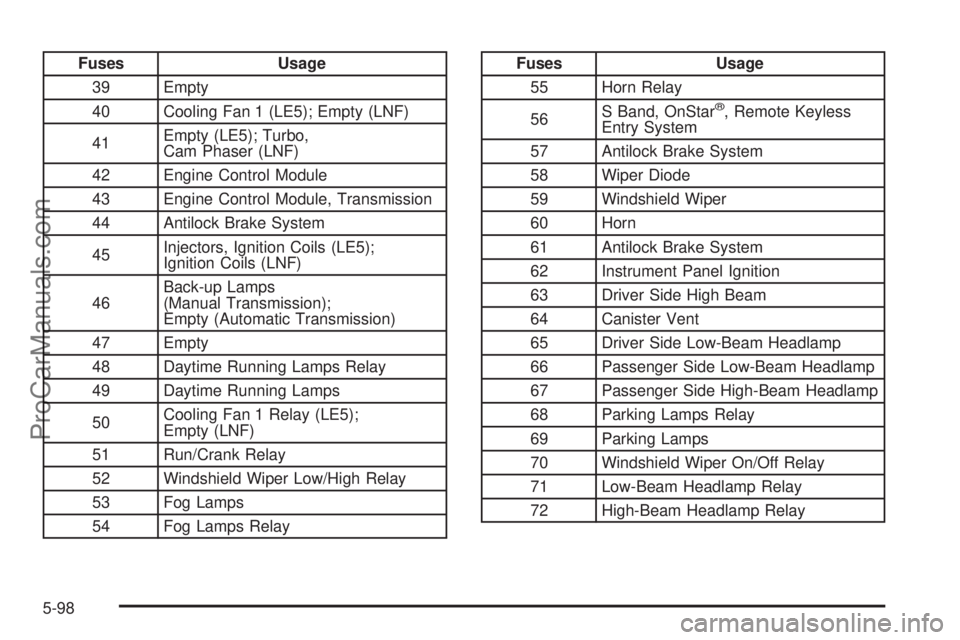

Fuses Usage
39 Empty
40 Cooling Fan 1 (LE5); Empty (LNF)
41Empty (LE5); Turbo,
Cam Phaser (LNF)
42 Engine Control Module
43 Engine Control Module, Transmission
44 Antilock Brake System
45Injectors, Ignition Coils (LE5);
Ignition Coils (LNF)
46Back-up Lamps
(Manual Transmission);
Empty (Automatic Transmission)
47 Empty
48 Daytime Running Lamps Relay
49 Daytime Running Lamps
50Cooling Fan 1 Relay (LE5);
Empty (LNF)
51 Run/Crank Relay
52 Windshield Wiper Low/High Relay
53 Fog Lamps
54 Fog Lamps RelayFuses Usage
55 Horn Relay
56S Band, OnStar
®, Remote Keyless
Entry System
57 Antilock Brake System
58 Wiper Diode
59 Windshield Wiper
60 Horn
61 Antilock Brake System
62 Instrument Panel Ignition
63 Driver Side High Beam
64 Canister Vent
65 Driver Side Low-Beam Headlamp
66 Passenger Side Low-Beam Headlamp
67 Passenger Side High-Beam Headlamp
68 Parking Lamps Relay
69 Parking Lamps
70 Windshield Wiper On/Off Relay
71 Low-Beam Headlamp Relay
72 High-Beam Headlamp Relay
5-98
