172 Starting and drivingEngine block heater3
33 3The following are just some of the benefits
to the car and the environment of using an
engine block heater:
Lower fuel consumption.
Exhaust emissions substantially reduced
over short runs.
Reduced wear on the engine.
Inside of car warms up faster.
The engine heater is effective at outside
temperatures up to 58–68°F (+15–20°C).
The warmer it is outside, the shorter the time
the engine heater needs to be connected.
Longer than 1.5 hours is unnecessary.
If the car is equipped with a removable,
electrical cabin heater that is not in use, this
should be stored in the luggage compart-
ment.
Driving in cold weatherBefore starting a journey in cold weather
you should check the following:
That the wiper blades have not become
frozen to the windshield/glass.
Brush any snow away from the air intake
for the heater system (opening between
hood and windshield).
It may be advisable to lubricate the
door-lock cylinder (use molybdenum
disulphide, MoS
2) to prevent its freezing.
If the lock has frozen, take care not to
break the key (or use the remote control)
– heat it first or spray it with de-icer.
Periodically during the winter, add gaso-
line anti-freeze to the fuel to dispel any
condensation in the fuel tank which could
freeze and cause problems in the system.
Keep the tank well filled to reduce the risk
of condensation forming.
If the car is parked outside in freezing
weather, fuel additives (gasoline
anti-freeze) will not do any good as it
cannot remove water that has already
frozen. Park the car in a warm place so
that any ice that may have built up melts,
then add gasoline anti-freeze when filling
up the tank. Condensation is caused by
changes in the outdoor temperature or by
the car being parked alternately in a
garage and outside. It is particularly important when the roads
are slippery that the brakes and tires be in
good condition.
Check the anti-freeze in the engine cool-
ant, see page 195.
The car´s trip computer will warn you when
there is a risk of slippery conditions. For fur-
ther information on this function, see
page 68.
The car is equipped with tires designed to
provide optimum grip on both wet and dry
roads, although this has been achieved at
the expense of somewhat reduced grip on
snow and ice. For regular driving on snow
and ice, we therefore recommend that
winter (snow) tires be fitted.
Winter (snow) tires, particularly studded
tires (where use is legally permitted), gener-
ally make driving safer on snow and ice.
Acquaint yourself with the legal provi-
sions governing the use of different
types of winter tires and snow chains.
Studded tires are not allowed in some
countries.
95_US_M08.book Page 172 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

228 Car care and technical informationTire Chains
Notice: If your vehicle does not have
225/45R17 alt. 235/45 R17 size tires, use
tire chains only where legal and only
when you must. Contact your Saab
dealer regarding suitable snow chains.
Install them on the front tires and tighten
them as tightly as possible with the ends
securely fastened. Drive slowly and
follow the chain manufacturer’s instruc-
tions. If you can hear the chains contact-
ing your vehicle, stop and retighten
them. If the contact continues, slow
down until it stops. Driving too fast or
spinning the wheels with chains on will
damage your vehicle.If a Tire Goes Flat
It’s unusual for a tire to “blow-out” while
you’re driving, especially if you maintain
your tires properly. If air goes out of a tire,
it’s much more likely to leak out slowly. But
if you should ever have a “blow-out”, here
are a few tips about what to expect and what
to do:
If a front tire fails, the flat tire will create a
drag that pulls the vehicle toward that side.
Take your foot off the accelerator pedal and
grip the steering wheel firmly. Steer to main-
tain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blow-out, particularly on a curve, acts
much like a skid and may require the same
correction you’d use in a skid. In any rear
blowout, remove your foot from the acceler-
ator pedal. Get the vehicle under control by
steering the way you want the vehicle to go.
It may be very bumpy and noisy, but you can
still steer. Gently brake to a stop – well off
the road if possible.
If a tire goes flat, the next part shows how to
use your jacking equipment to change a flat
tire safely.
WARNING
If your vehicle has 225/45 R17 alt. 235/45
R17 size tires, don’t use tire chains,
there’s not enough clearance.
Tire chains used on a vehicle without the
proper amount of clearance can cause
damage to the brakes, suspension or
other vehicle parts. The area damaged by
the tire chains could cause you to lose
control of your vehicle and you or others
may be injured in a crash.
Use another type of traction device only if
its manufacturer recommends it for use
on your vehicle and tire size combination
and road conditions. Follow that manu-
facturer’s instructions. To help avoid
damage to your vehicle, drive slowly,
readjust or remove the device if it’s con-
tacting your vehicle, and don’t spin your
wheels.
If you do find traction devices that will fit,
install them on the front tires.95_US_M08.book Page 228 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

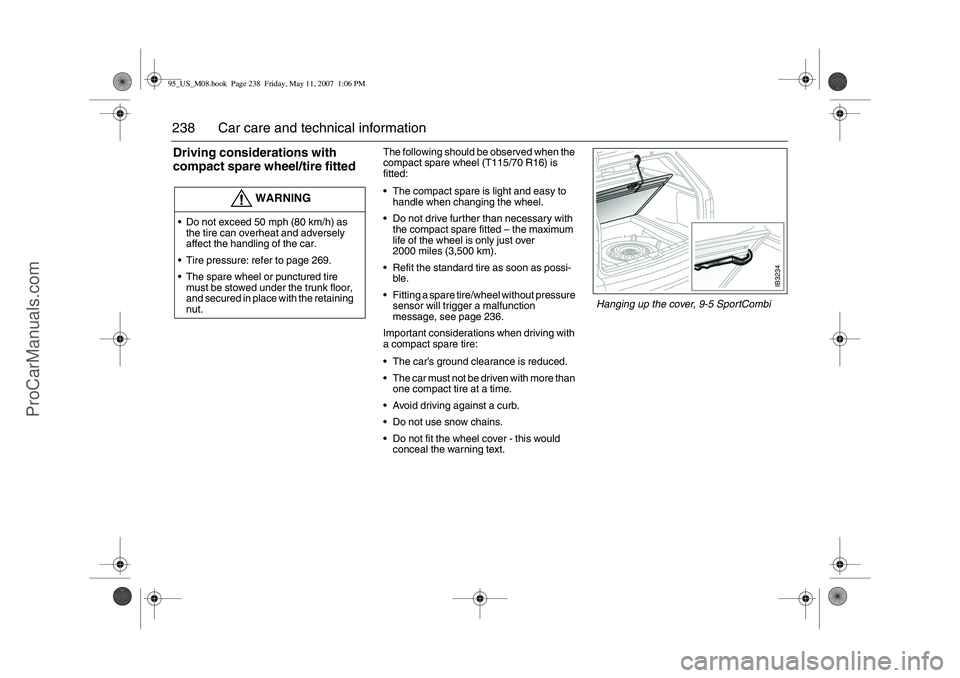

238 Car care and technical informationDriving considerations with
compact spare wheel/tire fitted
The following should be observed when the
compact spare wheel (T115/70 R16) is
fitted:
The compact spare is light and easy to
handle when changing the wheel.
Do not drive further than necessary with
the compact spare fitted – the maximum
life of the wheel is only just over
2000 miles (3,500 km).
Refit the standard tire as soon as possi-
ble.
Fitting a spare tire/wheel without pressure
sensor will trigger a malfunction
message, see page 236.
Important considerations when driving with
a compact spare tire:
The car’s ground clearance is reduced.
The car must not be driven with more than
one compact tire at a time.
Avoid driving against a curb.
Do not use snow chains.
Do not fit the wheel cover - this would
conceal the warning text.
WARNING
Do not exceed 50 mph (80 km/h) as
the tire can overheat and adversely
affect the handling of the car.
Tire pressure: refer to page 269.
The spare wheel or punctured tire
must be stowed under the trunk floor,
and secured in place with the retaining
nut.
IB3234
Hanging up the cover, 9-5 SportCombi
95_US_M08.book Page 238 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

239 Car care and technical information
Changing a wheel
WARNING
Lifting a vehicle and getting under it to do
maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
flat tire. If it is used for anything else, you
or others could be badly injured or killed if
the vehicle slips off the jack. Use the jack
provided with your vehicle only for chang-
ing a flat tire.
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire. To
help prevent the vehicle from moving:
1 Set the parking brake firmly.
2 If you have an automatic transmis-
sion, put the shift lever in PARK (P).
For a manual transmission, leave the
car in gear (1st or REVERSE (R)).
3 Turn off the engine and do not restart
while the vehicle is raised.
4 Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle won't
move, you should put blocks at the front
and rear of the tire farthest away from the
one being changed. That would be the
tire, on the other side, at the opposite end
of the vehicle.
The car jack is designed solely for use
in changing a wheel or fitting snow
chains. It must not be used to sup-
port the car during repair work or
servicing.
Never crawl under a car that is
supported only by a jack.
Raising your vehicle too high or with
the jack improperly positioned can
damage the vehicle and even make
the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to
fit the jack lift head into the proper
location before raising the vehicle, and
raise the vehicle only far enough off
the ground so there is enough room
for the spare tire to fit (no more than
25 mm or 1 inch clearance between
the ground and the bottom of the tire).
Switch on the hazard warning lights if
the car is on a road.
The jack should be stored correctly
under the carpeting in the trunk. If it
lies loose in the car, it could thrown for-
ward and cause personal injury in the
event of a crash or if the car rolls over.
Grit, salt and rust can clog the inner
threads of the wheel bolts if the car has
been driven for several years exclu-
sively with alloy wheels.
If steel wheels are being installed, the
bolt hole threads in the brake hubs
should be cleaned before the thinner
steel wheels are fitted. It may other-
wise not be possible to achieve the
correct clamping force, despite tight-
ening the wheel bolts to the correct
torque.
95_US_M08.book Page 239 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

268 SpecificationsWheels and tires(recommended dimensions)
2.3 Turbo
All season tires
215/55 R16 93 H X
235/45 R17 94 V X
Winter tires
215/55 R16 93 Q X
225/45 R17 94 Q XL/RF X
235/45 R17 94 Q X
Wheel sizes
6.5 x 16”X
7 x 17”X
7.5 x 17”X
Speed ratings and load indexes, see page 230.
Before changing to wheels/tyres of another size, we recommend that you
contact an authorized Saab workshop regarding acceptable options.Compact spare:
Wheel __________________________ 4 x 16”
Tire ____________________________ T115/70 R16
Pressure ________________________ 60 psi (420 kPa)
Maximum life ____________________ 2,200 miles
(3500 km)
Maximum speed _________________ 50 mph (80 km/h)
NOTESnow chains:
Snow chains must not be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires
6.5 x 16”_______ 215/55 R16
Snow chains must not be fitted to 17" wheels.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Contact an authorized Saab dealer for advice on snow chains.NOTEWheels larger than 17” must not be fitted.
Wheel offset must be 49 mm.
95_US_M08.book Page 268 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

276 IndexRain sensor
_____________________ 77
Random playback of MP3 files, CD
_103
Random playback, CD
____________ 99
Random playback, CD changer
____ 101
Rapid playing an MP3 file
_________ 103
RDS time
_____________________ 106
Rear fog light ___________________ 74
Rear seat, 9-5 Sedan, folding
______ 129
Rear seat, 9-5 SportCombi, folding
_132
Rear window heating
_____________ 82
Rear-seat head restraints __________ 21
Rear-view mirror, auto-dimming
____ 121
Rearview mirrors
________________ 116
Reclamation
___________________ 250
Recommendations for cars with
automatic transmission, towing a
camper or trailer
_______________ 175
Refuelling
_____________________ 146
Relay panel ____________________ 219
Remote control __________________ 44
Remote-control battery, changing
____ 49
Remove the key
________________ 140
Removing CDs
__________________ 99
Removing CDs, CD-changer
______ 100
Removing MP3 discs
____________ 102
Replacement, wheel
_____________ 227
Reporting safety defects
__________ 258
Reprogramming of systems _______ 274
Reservoir, power-steering fluid _____ 198
Rev counter
____________________ 64
Reversing lights _________________ 76
Rolling advertisements
____________ 94Roof load
______________________ 179
Running-in _____________________ 170
Saab Information Display (SID)
_____ 68
SSaab Parking Assistance
_________ 168
Safety belts
_____________________ 12
Safety belts, care of
_____________ 242
Safety-belt pretensioners
__________ 15
Safety-belt reminder
______________ 12
SDM
_________________________ 259
SID
___________________________ 68
Seats __________________________ 18
Securing a load
__________________ 47
Selecting and changing tracks, CD
___ 99
Selecting a radio station
___________ 93
Selecting/changing MP3 file _______ 103
Selector lever indication, automatic
transmission
___________________ 67
Sentronic, manual mode
__________ 156
Service costs
___________________ 257
Service information
______________ 258
Service intervals
________________ 256
Service record retention
__________ 257
Setting the clock
________________ 105
Setting the date _________________ 105
Settings, seats __________________ 18
Shadow effect
__________________ 110
Side airbags
____________________ 36
Signalling, horn _________________ 114Snow chains
___________________ 172
Sorting music ___________________ 103
Sound system __________________ 107
Sources of AM interference
________ 111
Sources of FM interference ________ 111
Spare wheel
___________________ 237
Spare wheel and tools
____________ 183
Spark plugs
____________________ 267
Speed dependent volume
compensation _________________ 106
Speedometer
_________________ 64
, 65
Starting in cold weather, ACC
_______ 84
Starting in hot weather, ACC ________ 84
Steering wheel adjustment
________ 114
Steering wheel controls
____________ 91
Steering, technical data ___________ 269
Steps for determining correct load
limit
_________________________ 233
Stone-chip damage, repairing
______ 245
Storage compartments
___________ 126
Storing radio stations
______________ 93
Sun visors
_____________________ 125
Suspension ____________________ 269
Suspension, technical data
________ 269
Switches
_______________________ 73
Symboler ________________________ 9
Systems, adjustment
_____________ 274
95_US_M08.book Page 276 Friday, May 11, 2007 1:06 PM
ProCarManuals.com
