2008 SAAB 9-5 headlight bulb

4Exterior
IB3831
Driving with a roof rack load______ 179
Fitting the roof carriers3________ 179
Maximum roof load ____________ 260
Rearview mirror _______________ 118
Hood _______________________ 190
Engine compartment: washing ___ 245
Central locking __________ 44
Trunk lid lock, 9-5 Sedan __ 47
Tailgate, 9-5 SportCombi __ 48
Child safety locks ________ 47
Car alarm3____________ 50Headlights _____________ 73
High/low beam __________ 73
Turn signal and lane change
indicators______________ 75
Headlight washers3_____ 77
Changing bulbs _________ 204
Fuel gauge___________________ 65
Refueling ____________________ 146
Economical motoring ___________ 170
Fuel ________________________ 262
b Tires pressure ________________ 269
Wheels and tires ______________ 268
Braking______________________ 160
Driving in cold weather__________ 172
Compact spare tire_____________ 237
Changing a wheel _____________ 239
Trunk _______________________ 129
Folding the rear seat, 9-5 Sedan __ 129
Folding the rear seat,
9-5 SportCombi ______________ 132
Trunk Release Handle __________ 138
Driving with a spare wheel fitted __ 183
Compact spare tire ____________ 237Towing a trailer3________ 174
Towing the car ___________ 183
Rear towing eye _________ 184Headlights ______________ 73
Rear light cluster, 9-5 Sedan 208
Rear lights clusters,
9-5 SportCombi _________ 210
Changing bulbs __________ 204Moonroof3_____________ 123
Washing the car _________ 244
Waxing and polishing _____ 245
Touching up the paint _____ 245
Anti-corrosion treatment ___ 24895_US_M08.book Page 4 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

189 Car care and technical information
IB3888
Hood ________________ 190
Engine compartment __ 191
Emission control
systems ____________ 192
Engine ______________ 194
Engine oil ____________ 194
Transmission fluid ____ 195
Coolant ______________ 195
Brake and clutch fluid__ 196
Power steering fluid ___ 198
Air filter _____________ 198
Battery ______________ 199
Drive belts ___________ 201
Wipers and washers ___ 202
Changing bulbs _______ 204
Fuses _______________ 216 Tires ________________ 222
Automatic tire pressure
monitoring system ___ 234
Compact spare tire ____ 237
Safety belts __________ 242
Upholstery and trim ___ 243
Textile carpeting ______ 243
Washing the car ______ 244
Waxing and polishing __ 245
Engine compartment __ 245
Touching up the paint _ 245
Air conditioning (ACC) _ 246
Anti-corrosion treatment 248
For long trips _________ 249
Recovery and/or
recycling of automotive
materials ___________ 250
Headlight aiming ______ 250
Car care and technical information
3 Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).95_US_M08.book Page 189 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

204 Car care and technical informationChanging bulbs
Check that the new bulb is working when
finished.
Use only "Long Life" bulbs.
Headlight aiming, see page 250.
Xenon headlight3
33 3Xenon headlights produce roughly twice as
much light as halogen bulbs and have a sig-
nificantly longer service life.
The lamp units consist of a gas discharge
lamp containing xenon. When the lights are
switched on a very high voltage activates
the xenon gas. The lamps soon reach full
intensity.
Cars with xenon headlights have automatic
levelling. The levelling system comprises
two sensors, one on the front axle, one on
the rear axle and a control unit under each
of the two headlight housings. Headlight
alignment is regulated automatically to pre-
vent dazzling oncoming traffic. Alignment is
also adjusted during braking.
WARNING
Before changing a bulb in the engine bay,
switch off the engine to avoid danger of
fingers and hands being injured by
moving parts.
The radiator fan can start up even when
the engine is switched off.
Xenon headlights3
33 3 are high voltage
and must therefore be changed at a
workshop. We recommend that you
contact an authorized Saab work-
shop. Work involving high-voltage
components is potentially lethal.NOTESince the headlight lenses are made
of plastic, rinse dried-on dirt with
water and allow it time to soften up
before cleaning the lenses. Avoid
rubbing the lenses when dry and
never use solvents.
Use de-icer spray instead of scraping
the ice off.
NOTEDo not fit bulbs with a higher rating
than 55 W, since the headlight reflec-
tor and the wiring of the car are not
designed for a higher wattage.
Switch off the ignition before chang-
ing a bulb, to avoid possible short-cir-
cuiting.
Do not touch the glass of the bulbs
with your fingers. The oil on your skin
can shorten the life of the bulb.
95_US_M08.book Page 204 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

205 Car care and technical informationHeadlight bulb for high beam (Halogen)On cars equipped with Xenon lamps the Halogen lamps are used
only for high beam flasher if the daytime running lights are deacti-
vated and the headlight switch is in the off position (otherwise Xenon
lamp is utilized):
1 Remove the cover from the back of the lamp unit. To improve
accessibility to the right-hand side, hold back the induction air
hose. To improve accessibility to the left-hand side, remove the
battery cover. Release the two clips along the long sides of the
cover.
2 Hold the connector and move the bulb up and down slightly while
pulling it out.
3 Detach the connector from the bulb.
4 Fit the new bulb in the connector without touching the lens with
fingers.
5 Align and fit the bulb in its guide in the reflector by moving it up
and down slightly while pushing it forward.
6Fit the cover.
IB3894
IB3895
The three covers of the headlight.
The left-hand cover is for the direction indicator. Replacement of
this bulb should be carried out by a workshop. We recommend
that you contact an authorized Saab workshop.
95_US_M08.book Page 205 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

206 Car care and technical information
Headlight bulb for low beam (Halogen)1 Take off the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8Fit the cover.
Low beam bulb3
33 3On certain variants the low beam bulb is fitted in the same way as
the high beam bulb, without spring clips, see previous page.
IB3896
IB3898
Contact an
authorized
Saab workshop
if a Xenon
headlight
requires
replacement
95_US_M08.book Page 206 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

215 Car care and technical information

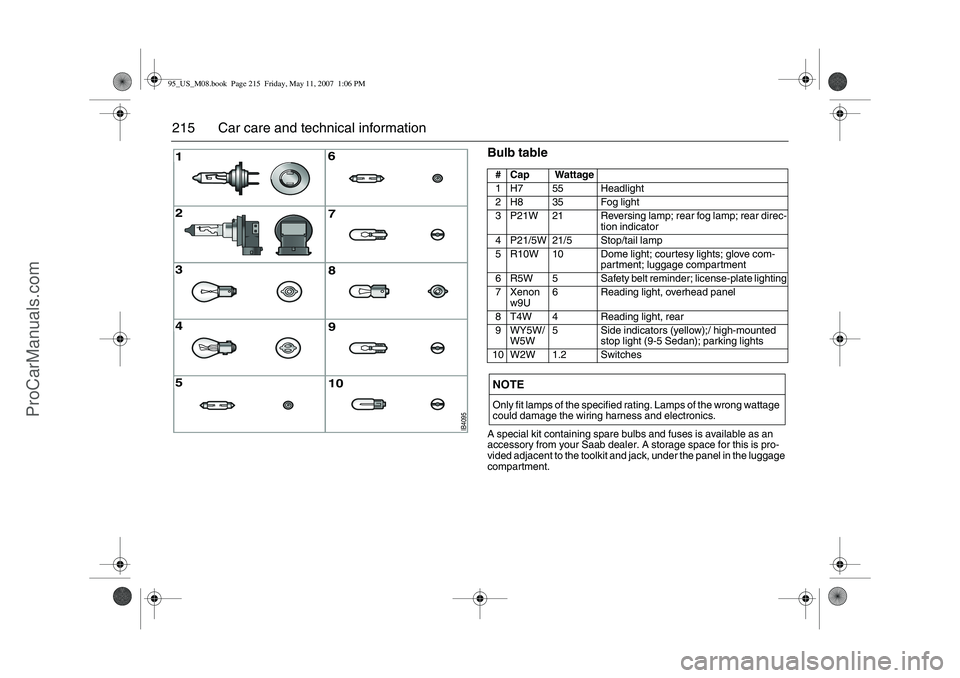

Bulb tableA special kit containing spare bulbs and fuses is available as an
accessory from your Saab dealer. A storage space for this is pro-
vided adjacent to the toolkit and jack, under the panel in the luggage
compartment.# Cap Wattage
1 H7 55 Headlight
2 H8 35 Fog light
3 P21W 21 Reversing lamp; rear fog lamp; rear direc-
tion indicator
4 P21/5W 21/5 Stop/tail lamp
5 R10W 10 Dome light; courtesy lights; glove com-
partment; luggage compartment
6 R5W 5 Safety belt reminder; license-plate lighting
7 Xenon
w9U6 Reading light, overhead panel
8 T4W 4 Reading light, rear
9WY5W/
W5W5 Side indicators (yellow);/ high-mounted
stop light (9-5 Sedan); parking lights
10 W2W 1.2 SwitchesNOTEOnly fit lamps of the specified rating. Lamps of the wrong wattage
could damage the wiring harness and electronics.
12345
678910
IB4095
95_US_M08.book Page 215 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

220 Car care and technical information
Fuse box under hoodFuses J–
KStarter relay
L1 Limp-home function
L2–
# Amp Function
1 40 Radiator fan, high speed
240
ABS/ESP
®
330
ABS/ESP
®
4 7.5 Load angle sensor (cars with xenon headlights)
515Heater
6 10 A/C; car alarm siren
715Bulb test
8––
9 20 Headlight washers
43
2
IB1797
2 1
14 1312 7 6
5 1
15 168
11
10 9
178 5
17 14 11 7 4
16 13 69
10 3
15 12
95_US_M08.book Page 220 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

221 Car care and technical information
Relays
10 15 High beam headlight, left
11 15 Low beam headlight left
12 15 High beam headlight, right
13 15 Low beam headlight, right
14 30 Radiator fan, high speed
15 15 Fog lights (front spoiler)
16 20 Wiper, rear
17 15 Horn
18––
# Function
1 Bulb test; head light; high beam flasher
2 Headlight washer
3 Front fog lights
4 Wiper, rear (9-5 SportCombi)
5–
6–
7 Rain sensor
8 Radiator fan, low speed
9 Radiator fan, high speed
10 A/C-compressor
11 Radiator fan, high speed, right fan
12 Horn
13 Extra lights (accessory)
14 High beam headlight
15 Low beam headlight
16–
17 Windshield wipers
95_US_M08.book Page 221 Friday, May 11, 2007 1:06 PM
