2008 SAAB 9-3 relay

6Engine bay, 4-cylColor code______________ 297
Engine number __________ 297
Gearbox number _________ 297
Warning labels __________ 8
Vehicle identification number 297Ignition system __________ 291
Alternator_______________ 219
Drive belt _______________ 219
Exhaust emission control __ 157
Simple troubleshooting (ACC) 274
Spark plugs _____________ 291
Turbo gauge ____________ 88Engine oil: checking level __ 210Automatic transmission _________ 165
Transmission: technical data _____ 292
Manual transmission ___________ 164
Battery ______________________ 216
Jump starting _________________ 200
Battery charge ________________ 216
Oil grade and viscosity__________ 290
Engine: description ____________ 205
Engine: technical data __________ 289
Important considerations for driving 156
Wash/wipe stalk switch____ 103
Washer fluid ____________ 221
Washer jets ____________ 222
Topping-up fluid _________ 221
Power steering ________________ 215
Fluid: checking/topping up _______ 215
Coolant: checking/topping-up ____ 212
Driving in hot climates __________ 189
Radiator _____________________ 289
Temperature gauge ____________ 88
Fuse table _____________ 242
Changing a fuse _________ 237
Fuses _________________ 237
Relays ________________ 242ABS brakes_____________ 172
Brake pads _____________ 214
Brake system ___________ 293
Brake fluid______________ 214
93_US_M08.book Page 6 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

7
Engine bay, 2.8 V6Power steering___________ 215
Fluid: checking/topping up__ 215Vehicle identification
number ________________ 297
Color code ______________ 297
Engine number __________ 297
Warning labels___________ 8
Gearbox number _________ 297Ignition system __________ 291
Exhaust emission control __ 157
Drive belt _______________ 219
Simple troubleshooting (ACC) 274
Alternator_______________ 219
Turbo gauge ____________ 88
Spark plugs _____________ 291Automatic transmission _________ 165
Manual gearbox_______________ 164
Gearbox: technical data_________ 292
Oil grade and viscosity__________ 290
Engine: description ____________ 205
Engine oil: topping up __________ 210
Engine: technical data __________ 289
Important considerations
for driving ___________________ 156Engine oil: checking level________ 210
Battery ______________________ 216
Jump starting _________________ 200
Battery charge ________________ 216
Wash/wipe stalk switch ____ 103
Topping-up fluid _________ 222
Washer jets_____________ 222
Washer fluid ____________ 222Fuse table ______________ 239
Changing a fuse _________ 239
Fuses _________________ 237
Relays ________________ 242ABS brakes_____________ 173
Brake pads _____________ 293
Brake system ___________ 172
Brake fluid______________ 214
Cooling system, coolant capacity__ 289
Coolant: checking/topping-up ____ 212
Driving in hot climates __________ 189
Temperature gauge ____________ 88
93_US_M08.book Page 7 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

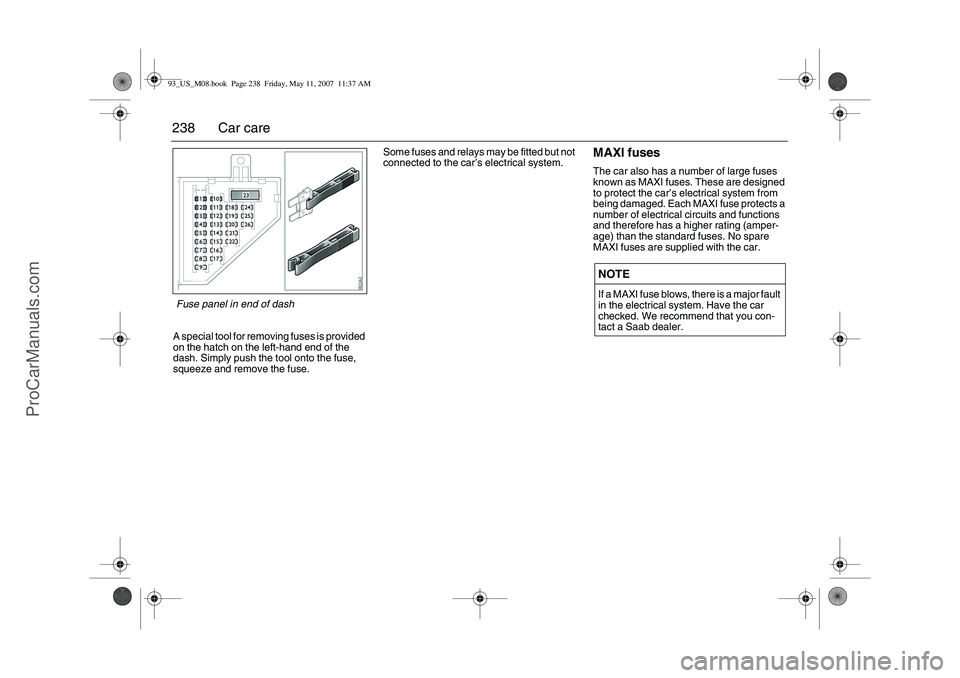

238 Car careA special tool for removing fuses is provided
on the hatch on the left-hand end of the
dash. Simply push the tool onto the fuse,
squeeze and remove the fuse.Some fuses and relays may be fitted but not
connected to the car’s electrical system.
MAXI fusesThe car also has a number of large fuses
known as MAXI fuses. These are designed
to protect the car’s electrical system from
being damaged. Each MAXI fuse protects a
number of electrical circuits and functions
and therefore has a higher rating (amper-
age) than the standard fuses. No spare
MAXI fuses are supplied with the car.NOTEIf a MAXI fuse blows, there is a major fault
in the electrical system. Have the car
checked. We recommend that you con-
tact a Saab dealer.
Fuse panel in end of dash93_US_M08.book Page 238 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

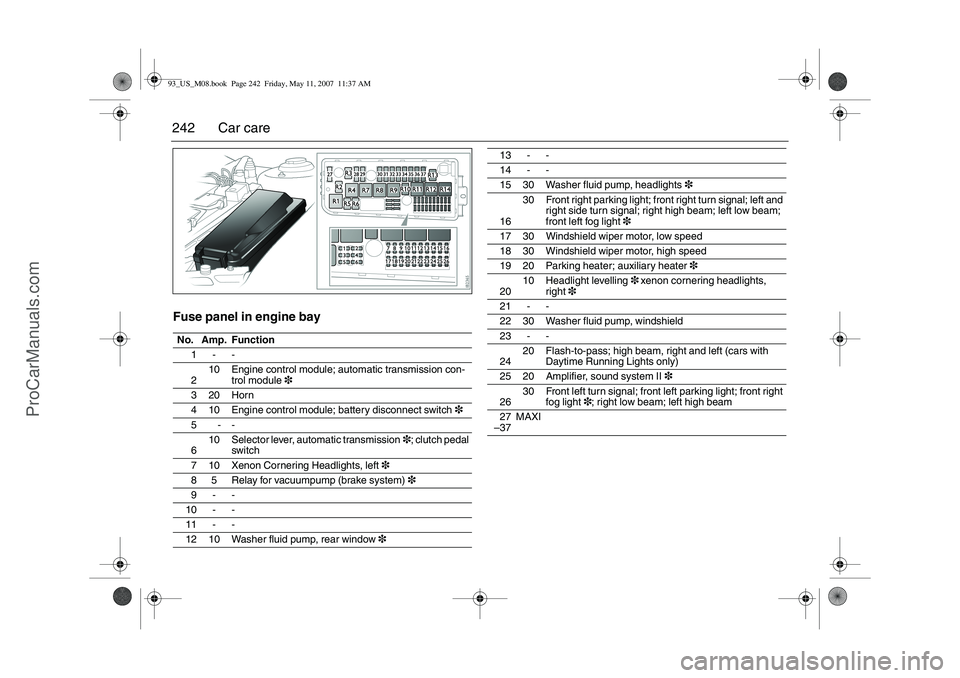

242 Car careFuse panel in engine bayNo. Amp. Function
1--
210 Engine control module; automatic transmission con-
trol module3
320Horn
4 10 Engine control module; battery disconnect switch3
5--
610 Selector lever, automatic transmission3; clutch pedal
switch
7 10 Xenon Cornering Headlights, left3
8 5 Relay for vacuumpump (brake system)3
9--
10 - -
11 - -
12 10 Washer fluid pump, rear window3
13 - -
14 - -
15 30 Washer fluid pump, headlights3
1630 Front right parking light; front right turn signal; left and
right side turn signal; right high beam; left low beam;
front left fog light3
17 30 Windshield wiper motor, low speed
18 30 Windshield wiper motor, high speed
19 20 Parking heater; auxiliary heater3
2010 Headlight levelling3 xenon cornering headlights,
right3
21 - -
22 30 Washer fluid pump, windshield
23 - -
2420 Flash-to-pass; high beam, right and left (cars with
Daytime Running Lights only)
25 20 Amplifier, sound system II3
2630 Front left turn signal; front left parking light; front right
fog light3; right low beam; left high beam
27
–37MAXI
93_US_M08.book Page 242 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

243 Car care
Fuse panel in front of battery3
33 3
Relays
R 1 Washer fluid pump, windshield
R2 -
R3 -
R4 -
R 5 Flash-to-pass
R6 Horn
R7 -
R8 Starter motor
R 9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window3
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 -
R14 Washer fluid pump, headlights3
R15 -
R16 -
No. Amp. Function
1 - Air pump, secondary air3
220 Fuel pump; preheated oxygen sensors (lambda
probe)
3 10 A/C compressor
4 30 Main relay
Relays
1-
2 A/C-compressor
3 Preheated oxygen sensors (lambda probe)
4 Main relay, engine (ECM/EVAP/injectors)
93_US_M08.book Page 243 Friday, May 11, 2007 11:37 AM
