2008 SAAB 9-3 fuse box

5
InteriorAirbag _________________ 32
Steering wheel adjustment _ 120
Steering _______________ 293
Interior rearview mirror _________ 125
Vanity mirror _________________ 134
Door mirrors__________________ 124
Safety belts ____________ 12
Airbag_________________ 32
Child safety locks ________ 52
Child seats _____________ 24
Safety belt care _________ 266Glove box ______________ 136
Storage compartments ____ 136Automatic transmission ___ 165
Changing gears _________ 164
Manual transmission _____ 164
Safety belts __________________ 12
Child seats __________________ 24
Folding down the rear seat ______ 138
Rear seat ____________________ 138
Seat adjustment ______________ 18
Seat heating _________________ 114
Upholstery care _______________ 266
Interior light switches ___________ 133
Moonroof ____________________ 130
Interior lighting: changing bulbs ___ 235
Ignition switch ________________ 152
Starting the engine ____________ 154
Power Outlet _________________ 136
Break-In Period _______________ 163
Driving in hot/cold climates ______ 187
Parking brake_________________ 179
Parking _____________________ 179
Fuses _________________ 237Electric windows _________ 12193_US_M08.book Page 5 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

6Engine bay, 4-cylColor code______________ 297
Engine number __________ 297
Gearbox number _________ 297
Warning labels __________ 8
Vehicle identification number 297Ignition system __________ 291
Alternator_______________ 219
Drive belt _______________ 219
Exhaust emission control __ 157
Simple troubleshooting (ACC) 274
Spark plugs _____________ 291
Turbo gauge ____________ 88Engine oil: checking level __ 210Automatic transmission _________ 165
Transmission: technical data _____ 292
Manual transmission ___________ 164
Battery ______________________ 216
Jump starting _________________ 200
Battery charge ________________ 216
Oil grade and viscosity__________ 290
Engine: description ____________ 205
Engine: technical data __________ 289
Important considerations for driving 156
Wash/wipe stalk switch____ 103
Washer fluid ____________ 221
Washer jets ____________ 222
Topping-up fluid _________ 221
Power steering ________________ 215
Fluid: checking/topping up _______ 215
Coolant: checking/topping-up ____ 212
Driving in hot climates __________ 189
Radiator _____________________ 289
Temperature gauge ____________ 88
Fuse table _____________ 242
Changing a fuse _________ 237
Fuses _________________ 237
Relays ________________ 242ABS brakes_____________ 172
Brake pads _____________ 214
Brake system ___________ 293
Brake fluid______________ 214
93_US_M08.book Page 6 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

7
Engine bay, 2.8 V6Power steering___________ 215
Fluid: checking/topping up__ 215Vehicle identification
number ________________ 297
Color code ______________ 297
Engine number __________ 297
Warning labels___________ 8
Gearbox number _________ 297Ignition system __________ 291
Exhaust emission control __ 157
Drive belt _______________ 219
Simple troubleshooting (ACC) 274
Alternator_______________ 219
Turbo gauge ____________ 88
Spark plugs _____________ 291Automatic transmission _________ 165
Manual gearbox_______________ 164
Gearbox: technical data_________ 292
Oil grade and viscosity__________ 290
Engine: description ____________ 205
Engine oil: topping up __________ 210
Engine: technical data __________ 289
Important considerations
for driving ___________________ 156Engine oil: checking level________ 210
Battery ______________________ 216
Jump starting _________________ 200
Battery charge ________________ 216
Wash/wipe stalk switch ____ 103
Topping-up fluid _________ 222
Washer jets_____________ 222
Washer fluid ____________ 222Fuse table ______________ 239
Changing a fuse _________ 239
Fuses _________________ 237
Relays ________________ 242ABS brakes_____________ 173
Brake pads _____________ 293
Brake system ___________ 172
Brake fluid______________ 214
Cooling system, coolant capacity__ 289
Coolant: checking/topping-up ____ 212
Driving in hot climates __________ 189
Temperature gauge ____________ 88
93_US_M08.book Page 7 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

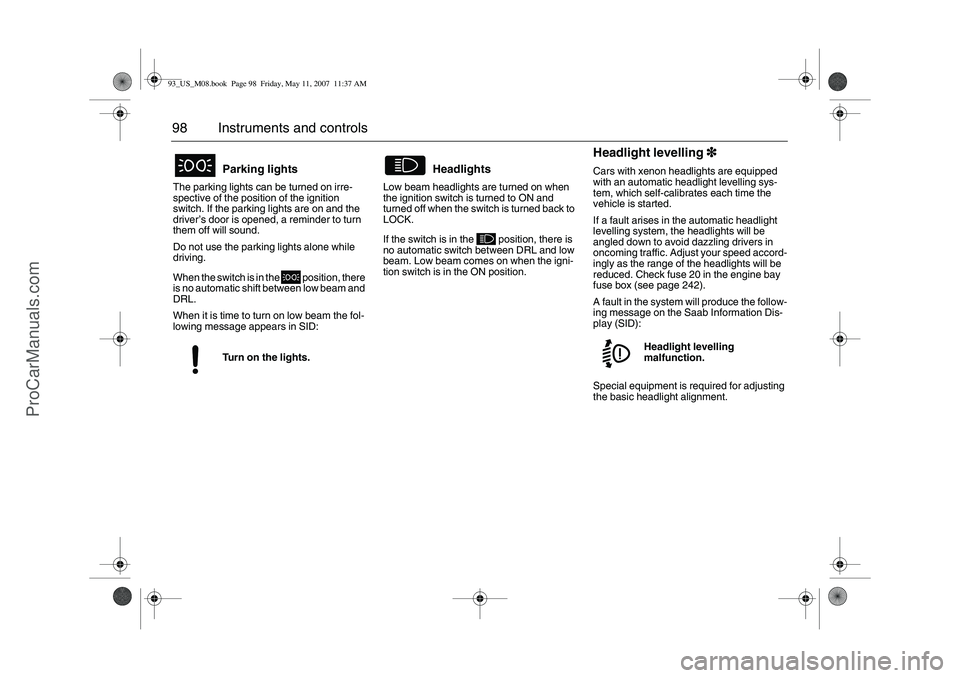

98 Instruments and controlsThe parking lights can be turned on irre-
spective of the position of the ignition
switch. If the parking lights are on and the
driver’s door is opened, a reminder to turn
them off will sound.
Do not use the parking lights alone while
driving.
When the switch is in the position, there
is no automatic shift between low beam and
DRL.
When it is time to turn on low beam the fol-
lowing message appears in SID:Low beam headlights are turned on when
the ignition switch is turned to ON and
turned off when the switch is turned back to
LOCK.
If the switch is in the position, there is
no automatic switch between DRL and low
beam. Low beam comes on when the igni-
tion switch is in the ON position.
Headlight levelling3
33 3Cars with xenon headlights are equipped
with an automatic headlight levelling sys-
tem, which self-calibrates each time the
vehicle is started.
If a fault arises in the automatic headlight
levelling system, the headlights will be
angled down to avoid dazzling drivers in
oncoming traffic. Adjust your speed accord-
ingly as the range of the headlights will be
reduced. Check fuse 20 in the engine bay
fuse box (see page 242).
A fault in the system will produce the follow-
ing message on the Saab Information Dis-
play (SID):
Special equipment is required for adjusting
the basic headlight alignment.
Parking lightsTurn on the lights.
Headlights
Headlight levelling
malfunction.
93_US_M08.book Page 98 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

168 Starting and drivingLimp-homeIf the transmission malfunctions, the control
module will activate limp-home mode. Driv-
ability will be affected to varying degrees.
Cars with 5-speed transmission3
33 3
In this mode, only 2nd and 5th gears are
available. Select 2nd gear when driving at
low speeds and 5th gear at higher speeds.
2nd gear must be selected manually. Select
5th gear manually or move the selector
lever to D, see page 170.
Cars with 6-speed transmission3
33 3
The car may be totally powerless. If this is
case, have the car transported to a work-
shop to have the problem rectified.
The car may feel weak but can be driven
carefully to a workshop to have the prob-
lem rectified.
Drivability may barely be affected.
Irrespective of the drivability of the car, the
car must be taken to a workshop to have the
problem checked and rectified.Temporary override of Park Brake Shift
Lock
1 Apply the parking brake.
2 Lift up the rubber mat in the storage
compartment ahead of the selector
lever.
3 Under the floor of the storage compart-
ment is a yellow plastic lever. Use a thin
tool, such as a screwdriver, to press and
hold the plastic lever while moving the
selector lever from P to N.
4 Remove the tool.
5 Release the parking brake if the car is to
be moved immediately, otherwise it
should remain on.
Check fuse 6 in the engine bay fuse box.
If the fuse is OK the battery may be dead.
Contact a workshop to have the problem
checked and rectified. We recommend that
you contact a Saab dealer.NOTEDo not tow a trailer if limp-home mode is
engaged.
NOTEDue to electrical problems it may not be
possible to move the selector lever out of
the park position, even if the ignition is
ON. If for some reason the selector lever
has to be moved out of the park position
(i.e. to tow the car a short distance) do as
described below.
Temporary override of Park Brake Shift
Lock
93_US_M08.book Page 168 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

202 Starting and drivingUsing a battery charger3
33 3/starter
unitTo avoid damaging the car’s electrical
system and electronics, the following rules
must be followed when charging the battery
or jump starting the car.
If the charger or starter unit can be set to
different voltages (6 V/12 V/18 V/24 V),
12V must be selected.
Follow the manufacturer’s instructions
supplied with the charger or starter unit.
No other apparatus that are grounded or
connected to the mains must be
connected to the car during charging or
jump starting.
The charger or starter unit must under no
conditions produce a voltage greater
than:
16 V continuous
18 V for 60 minutes.
If you are unsure about the charge rating of
the unit, disconnect the battery clamp from
the positive terminal before connecting the
unit to the battery.
For long tripsBefore starting off on a long journey, it is
advisable to have your car inspected by
your Saab dealer.
Obtain a few important items to take along
on your journey, such as spare bulbs, wiper
blades, fuses, a drive belt (poly-V-belt) and
the like.
You can check some points yourself before-
hand:
Check that no oil or fuel leaks out of the
engine or gearbox/transmission.
Check the coolant and power steering
fluid levels. Check also for leaks.
Inspect the drive belt (poly-V-belt) and
replace if it shows any signs of wear.
Check the battery charge.
Check the tires for tread pattern and air
pressure, including the compact spare
tire.
Take an extra remote control and keep it
separate.
Check the brakes.
Check all bulbs.
Check for the presence of the tool kit and
jack in the car.
93_US_M08.book Page 202 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

208 Car care
1 Oil filler cap
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Power-steering fluid reservoir
8 Engine-oil dipstick
Engine bay, 4-cyl engine93_US_M08.book Page 208 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

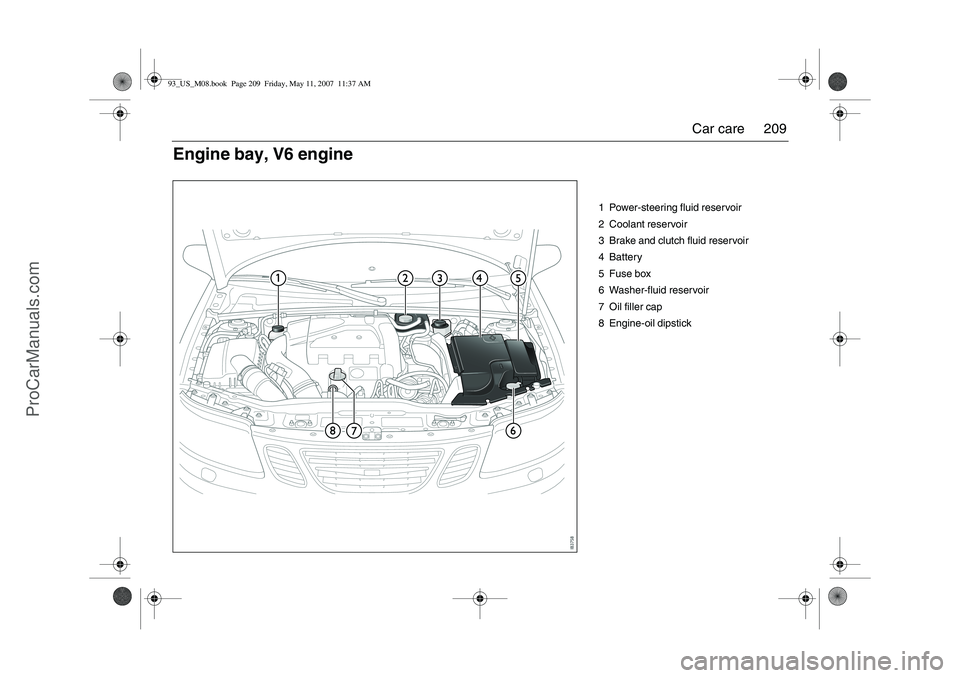

209 Car care
1 Power-steering fluid reservoir
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Oil filler cap
8 Engine-oil dipstick
Engine bay, V6 engine93_US_M08.book Page 209 Friday, May 11, 2007 11:37 AM
