PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-64
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-64V9 MR-372-J84-87B000$215.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
8.3 Vdiag 4F and 50:
This procedure will enable the UCH to be configured in relation to the vehicle to provide optimum running.
–Click on the Repair mode and in the Programming menu,
–confirm line SC008 UCH type,
–follow the procedure and enter the following data:
–CF097 Vehicle type (3-door/4-door/5-door/cabriolet/Estate) except for Scénic (extended MPV/MPV).
–confirm, follow the procedure and enter the following data:
CF010 Hands-free function (WITH or WITHOUT),
CF023 Tyre pressure monitoring system (WITH or WITHOUT),
CF057 Type of heating resistors (NONE, 1000 W, or 1800 W),
CF019 Type of air conditioning (HEATING, AUTOMATIC, MANUAL),
CF027 Type of windscreen (TINTED, HEAT INSULATING),
CF035 Rain/light sensor (WITH or WITHOUT),
CF014 Daytime running lights (WITH or WITHOUT),
CF189 Protection type (TYPE 1, TYPE 2 or WITHOUT): TYPE 1 = with factory
fitted perimeter protection, TYPE
2 = with Cobra type alarm and WITHOUT = without factory fitted perimeter protection and without Cobra alarm.
–confirm, follow the procedure and enter the following data:
CF173 One-touch window(s)/sunroof (1 OTW* phase 1/1 OTW* phase 2/2 or 4 OTW*/WITHOUT): Absent if
CF097 = Cabriolet.
1 OTW* phase 1 = 1 driver side one touch window with a phase 1 bodywork vehicle.
1 OTW* phase 2 = 1 driver side one touch window with a phase 2 bodywork vehicle.
2 or 4 OTW = 2 or 4 one touch windows.
WITHOUT = no one touch windows on the vehicle.
–confirm, follow the procedure and enter the following data:
CF188 Production number type (Jxxxxxx or OTHER): only if CF097 = 4-doors and CF173 = 1 OTW* Phase 1.
The production number is located on the oval plate on the vehicle's right-hand side B-pillar. The production number
consists of 7 characters: 1 letter indicating the production plant followed by 6 figures.
–If the production number starts with the letter J, select Jxxxxxx.
–If the production number does not start with the letter J, select Other.
–Confirm, follow the procedure and enter the following data:
CF036 Selective opening of opening elements (WITH or WITHOUT): Only if CF010 = WITHOUT CF016 PAX
System type tyre (WITH or WITHOUT): Only if CF097 = MPV or Extended MPV and if CF023 = WITH.
–confirm, follow the procedure and enter the following data:
CF085 Valet card function (WITH or WITHOUT): Only if CF036 = WITH and CF023 = WITHOUT.
–check that the options configured are those desired and finish.
OTW*: One-touch window(s)IMPORTANT
Only configure WITH valet card function when the vehicle is electrically pre-equipped with the valet option.
Incorrect configuration may cause certain pieces of equipment to malfunction.
Note:
After having finished the UCH configuration, run command AC037 "TRANSMITTING AERIALS FAULT FINDING"
and check that there are no faults.
Page 65 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-65
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-65V9 MR-372-J84-87B000$215.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
9) CONFIGURATION PROCEDURE FOR THE TYRE PRESSURE MONITOR FUNCTION (CF023)
10) INSTRUMENT PANEL CONFIGURATION PROCEDURE (CF145)CF023:
TYRE PRESSURE MONITOR FUNCTION
(in programming command SC008 "UCH type")
WRITING THE CONFIGURATION WITH
OR WITHOUT TYRE PRESSURE MONITOR:
●Select the Repair mode menu.
●Select the Programming menu.
●Select line SC008 then line CF023, then With or Without.
●Confirm the selection.
●Check that sure the configuration has been properly stored by checking the Read configuration menu at line
LC017 Tyre pressure monitor function.
IMPORTANT:
CONFIGURATION INCONSISTENCY BETWEEN THE INSTRUMENT PANEL AND UCH
1st case–The instrument panel detects that the tyre pressure monitor is programmed in the UCH but
not its proper configuration. The message ELECTRONIC FAULT appears, then the
4 wheels disappear on the instrument panel display, and the Service warning light comes
on.
2nd case–The instrument panel detects that the tyre pressure monitor is programmed in its own
configuration but the UCH fails to respond to any requests from the instrument panel (not
configured in UCH). The message TYRE SENSOR FAULT will appear, the four wheels
will disappear from the instrument panel display and the Service warning light will come
on.
CF145:
TYRE PRESSURE MONITOR
●After the multiplex network test, select Instrument panel.
●Select Repair mode.
●Select Write configuration.
●Select line CF145, then With or Without.
●Confirm the selection.
●Check that the configuration has been properly stored in the Read configuration menu at line LC056 Tyre
pressure monitor.
Page 67 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-67
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Configurations and programming
87B
87B-67V9 MR-372-J84-87B000$215.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
UCH configurations (continued):
T.O*: Sunroof.Configuration
readingConfigurationName of
configurationChoice of
configurationVdiag
LC017Tyre Pressure Monitor
FunctionSC008 UCH typeWITH/WITHOUT44, 48, 4C, 4D, 4F
and 50
LC018Hazard warning lights
switched on by ABS CF024WITH/WITHOUT44, 48, 4C, 4D, 4F
and 50
LC019Rear screen wiper park
position controlAutomatic
configurationWITH/WITHOUT 44, 48, 4C, 4D
LC020Factory fitted perimeter
protection SC008 UCH typeWITH/WITHOUT 4C, 4D, 4F and 50
LC021Type of windscreen
SC008 UCH typeTINTED/HEAT
INSULATING44, 48, 4C, 4D, 4F
and 50
LC023 Engine type CF028F ENGINE/K
ENGINE/M
ENGINE44, 48, 4C, 4D, 4F
and 50
LC025See-me-home lighting CF032WITH/WITHOUT 44, 48, 4C, 4D
LC029 Selective door opening SC008 UCH typeWITH/WITHOUT44, 48, 4C, 4D, 4F
and 50
LC030Heating resistor type SC008 UCH typeNONE/1000 W/
1800 W 44, 48, 4C, 4D, 4F
and 50
LC035Child safety lockSC016 Child safety
lockWITH/WITHOUT 4C, 4D, 4F and 50
Automatic
configurationWITH/WITHOUT 44 and 48
LC041New vehicle storage modeVP016 ACTIVE/
INACTIVE 4F and 50
LC044 Rain/light sensor SC008 UCH typeWITH/WITHOUT 4F and 50
LC064 Rear screen wiper CF166 WITH/WITHOUT 4F and 50
LC070One-touch window(s)/
sunroof SC008 UCH typeWITH/WITHOUT 4F and 50
LC122Rear access aerialsCF224WITH/WITHOUT 50
Page 78 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-78
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-78V9 MR-372-J84-87B000$301.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
DF006
DF007
DF008
DF009
PRESENTFRONT LEFT-HAND WHEEL VALVE SENSOR
FRONT RIGHT-HAND WHEEL VALVE SENSOR
REAR RIGHT-HAND WHEEL VALVE SENSOR
REAR LEFT-HAND WHEEL VALVE SENSOR
2.DEF: Sensor internal electronic fault
3.DEF: Sensor internal electronic fault
4.DEF: Sensor internal electronic fault
5.DEF: Sensor internal electronic fault
6.DEF: Sensor internal electronic fault
7.DEF: Sensor internal electronic fault
8.DEF: Sensor internal electronic fault
1.DEF: No sensor signal.
NOTESSpecial notes:
Any operation involving the replacement of a valve, or the removal of a tyre requires
perfect knowledge of the precautions (see MR 364 (Mégane II) or MR 370 (Scénic II),
Mechanical, 35A, Wheels and tyres).
Before any operation, ensure that all the wheels have tyre pressure monitoring valves,
and that the spare wheel has not been fitted.
For faults DF006 to DF009, if the fault is present during the first few kilometres, reprogram the 4 valves.
In the event of a programming failure, replace the valve concerned (see MR 364 (Mégane II) or MR 370
(Scénic II), Mechanical, 35B, Tyre pressure monitor system)
Check that there are no wheels with rubber valves. If there are, replace them with wheels with a valve fitted with
a sensor and carry out a road test.
If the fault is still present, program the 4 valves.
If the fault is still present, replace the valve (see MR 364 (Mégane II) or MR 370 (Scénic II), Mechanical, 35B,
Tyre pressure monitor system).
The correspondence between fault numbers and the valve concerned is described below:
–DF006 Front left-hand wheel valve sensor,
–DF007 Front right-hand wheel valve sensor,
–DF008 Rear right-hand wheel valve sensor,
–DF009 Rear left-hand wheel valve sensor.
Once the sensor has been replaced, program the four valve codes according to procedure SC002 Programming
the four valve codes (see Configurations and programming).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_DF006P/UCH_V44_DF007P/UCH_V44_DF008P/UCH_V44_DF009P/UCH_V48_DF006P/UCH_V48_DF007P/UCH_V48_DF008P/
UCH_V48_DF009P/UCH_V4C_DF006P/UCH_V4C_DF007P/UCH_V4C_DF008P/UCH_V4C_DF009P/UCH_V4D_DF006P/
UCH_V4D_DF007P/UCH_V4D_DF008P/UCH_V4D_DF009P/UCH_V4F_DF006P/UCH_V4F_DF007P/UCH_V4F_DF008P/
UCH_V4F_DF009P/UCH_V50_DF006P/UCH_V50_DF007P/UCH_V50_DF008P/UCH_V50_DF009P

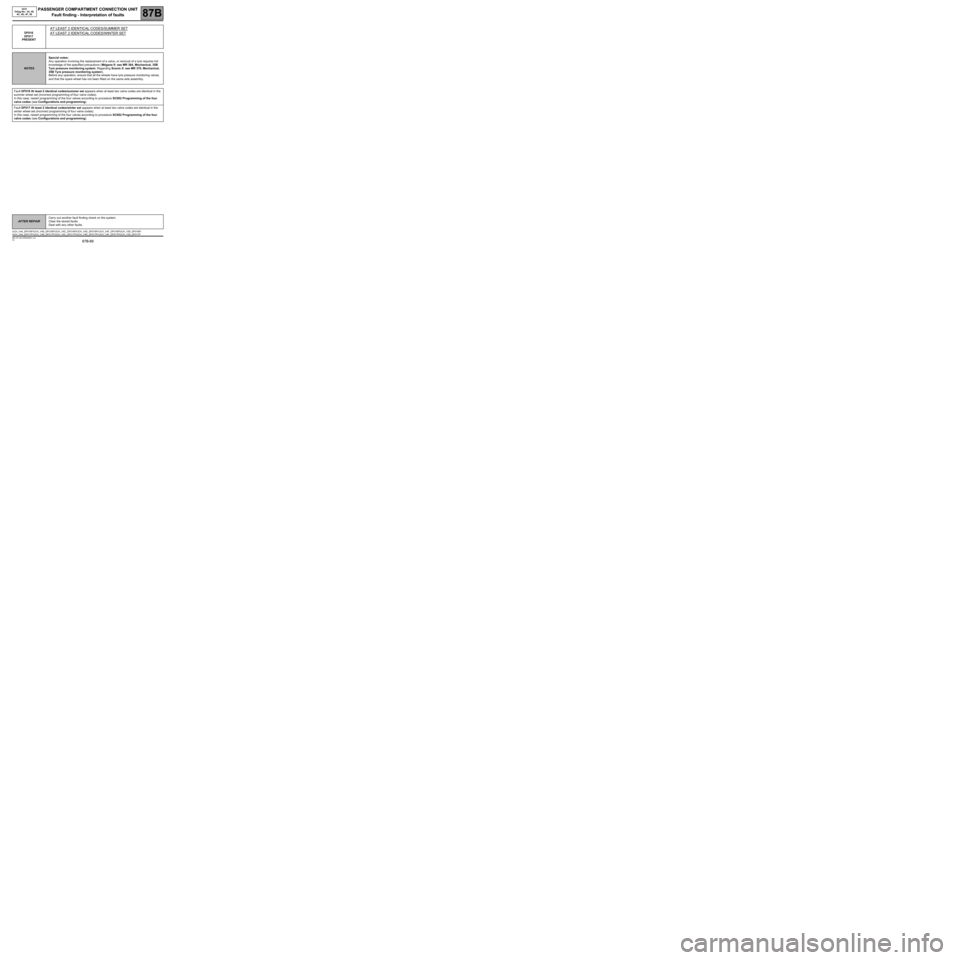

Page 89 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-89
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-89V9 MR-372-J84-87B000$301.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
DF016
DF017
PRESENT
AT LEAST 2 IDENTICAL CODES/SUMMER SET
AT LEAST 2 IDENTICAL CODES/WINTER SET
NOTESSpecial notes:
Any operation involving the replacement of a valve, or removal of a tyre requires full
knowledge of the specified precautions (Mégane II: see MR 364, Mechanical, 35B
Tyre pressure monitoring system; Regarding Scenic II: see MR 370, Mechanical,
35B Tyre pressure monitoring system).
Before any operation, ensure that all the wheels have tyre pressure monitoring valves,
and that the spare wheel has not been fitted on the same axle assembly.
Fault DF016 At least 2 identical codes/summer set appears when at least two valve codes are identical in the
summer wheel set (incorrect programming of four valve codes).
In this case, restart programming of the four valves according to procedure SC002 Programming of the four
valve codes (see Configurations and programming).
Fault DF017 At least 2 identical codes/winter set appears when at least two valve codes are identical in the
winter wheel set (incorrect programming of four valve codes).
In this case, restart programming of the four valves according to procedure SC002 Programming of the four
valve codes (see Configurations and programming).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_DF016P/UCH_V48_DF016P/UCH_V4C_DF016P/UCH_V4D_DF016P/ UCH_V4F_DF016P/UCH_V50_DF016P/
UCH_V44_DF017P/UCH_V48_DF017P/UCH_V4C_DF017P/UCH_V4D_DF017P/ UCH_V4F_DF017P/UCH_V50_DF017P
Page 90 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-90
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-90V9 MR-372-J84-87B000$301.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
DF018
DF019
PRESENT
PROGRAMMING OF 4 CODES IN SUMMER SET NOT
PERFORMED
PROGRAMMING OF 4 CODES IN WINTER SET NOT PERFORMED
NOTESSpecial notes:
Any operation involving the replacement of a valve, or removal of a tyre requires full
knowledge of the specified precautions (Mégane II: see MR 364, Mechanical, 35B
Tyre pressure monitoring system; Regarding Scenic II: see MR 370, Mechanical,
35B Tyre pressure monitoring system).
Before any operation, ensure that all the wheels have tyre pressure monitoring valves,
and that the spare wheel has not been fitted.
Fault DF018: 4 summer set codes not programmed is present if the UCH has not programmed a valve code for
the summer tyre set (after replacing the sensors or UCH).
Fault DF019: 4 winter set codes not programmed is present if the UCH has not programmed a valve code for
the winter tyre set and the winter tyre set is selected.
In the status menu, note the type of tyre set stored in the memory (summer or winter).
In the status menu, note the valve codes allocated for the type of tyre stored in the memory.
Program the four valve codes using the procedure SC002 Programming the four valve codes (see
Configurations and programming).
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_DF018P/UCH_V48_DF018P/UCH_V4C_DF018P/UCH_V4D_DF018P/ UCH_V4F_DF018P/UCH_V50_DF018P/
UCH_V44_DF019P/UCH_V48_DF019P/UCH_V4C_DF019P/UCH_V4D_DF019P/ UCH_V4F_DF019P/UCH_V50_DF019P
Page 116 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-116
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Interpretation of faults
87B
87B-116V9 MR-372-J84-87B000$344.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
DF319
DF320
DF321
DF322
PRESENTFRONT LEFT-HAND WHEEL TYRE PRESSUREFRONT RIGHT-HAND WHEEL TYRE PRESSURE
REAR RIGHT-HAND WHEEL TYRE PRESSURE
REAR LEFT-HAND WHEEL TYRE PRESSURE
1.DEF: Over-inflation
2.DEF: Under-inflation
3.DEF: Puncture
NOTESThe system is likely to generate false warnings of a puncture or under-inflation
Deflate the wheel by approximately 500 mbar, then reinflate this wheel to the nominal pressure.
If the fault is still present, contact Techline.
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults.
Deal with any other faults.
UCH_V44_DF319P/UCH_V48_DF319P/UCH_V4C_DF319P/UCH_V4D_DF319P/UCH_V4F_DF319P/UCH_V50_DF319P
UCH_V44_DF320P/UCH_V48_DF320P/UCH_V4C_DF320P/UCH_V4D_DF320P/UCH_V4F_DF320P/UCH_V50_DF320P
UCH_V44_DF321P/UCH_V48_DF321P/UCH_V4C_DF321P/UCH_V4D_DF321P/UCH_V4F_DF321P/UCH_V50_DF321P
UCH_V44_DF322P/UCH_V48_DF322P/UCH_V4C_DF322P/UCH_V4D_DF322P/UCH_V4F_DF322P/UCH_V50_DF322P
Page 130 of 391
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -130
PASSENGER COMPARTMENT CONNECTION UNIT
Fault finding - Conformity check
87B
87B -130V9 MR-372-J84-87B000$387.mif
UCH
Vdiag No.: 44, 48,
4C, 4D, 4F, 50
FUNCTION: TYRES
Sub-function: Tyre approval
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application condition: engine stopped, + after ignition feed present.
Sub-functionParameter or
Status
checked Action Display and Notes Fault finding
Tyre receiver ET040:Tyre pressure
monitoring systemNOT WORKING
ACTIVE If status ET040 is OUT OF
ORDER, consult the fault
finding procedure for status
ET040.
ET032:Front left-hand
wheel valve signalOK
ABSENT
OVER-INFLATED
PUNCTURE
UNDER-INFLATEDCheck that the tyre pressure is
at the recommended pressure
(see MR 364 (Mégane II) or
MR 370 (Scénic II),
Mechanical, 35A, Tyre
pressure: Identification).
If status ET032 is not OK,
consult the fault finding
procedure for status ET032.
PR003:Front left-hand
wheel pressure0 bar < X < 3.55 barIf X = 0 bar, consult the fault
finding procedure for parameter
PR003.
Check that the recommended
pressure (PR009 to PR012)
corresponds correctly to the
vehicle.
PR019:Front left-hand tyre
temperature- 40ºC
50˚C and the pressure is 0 bar.
Perform a road test so that the
sensor emits the actual
temperature and pressure.
ET0033:Front right-hand
wheel valve signalOK
ABSENT
OVER-INFLATED
FLAT
UNDER-INFLATEDCheck that the tyre pressure is
at the recommended pressure
(see MR 364 (Mégane II) or
MR 370 (Scénic II),
Mechanical, 35A, Tyre
pressure: Identification).
If status ET033 is not OK,
consult the fault finding
procedure for status ET033.
