Fuses Usage
16Climate Control System,
Automatic Occupant Sensing
Module, Crank Relay,
Instrument Panel Cluster
17 Empty
18 Empty
19 Steering Wheel Controls
20 Spare
21 Spare
22 Empty
23 Radio
24 Sensing and Diagnostic Module
25Engine Control Module,
Transmission Control Module
26 Door Locks
27 Interior Lamps
28 Steering Wheel Control BacklightingFuses Usage
29 Power Windows
30 Climate Control System
31 Empty
32 Retained Accessory Power
Underhood Fuse Block
The underhood fuse block is located in the engine
compartment on the passenger side of the vehicle.
Lift the cover for access to the fuse block.
Notice:Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
To remove fuses, use the fuse puller, or hold the end
of the fuse between your thumb and index nger
and pull straight out.
SeeEngine Compartment Overview on page 5-12for
more information on location.
5-97

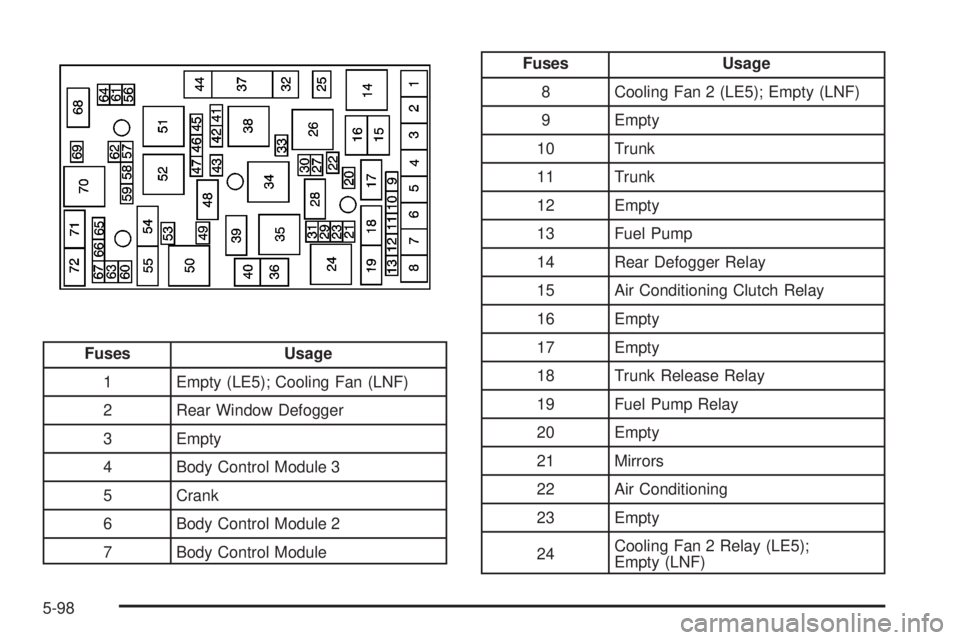

Fuses Usage
1 Empty (LE5); Cooling Fan (LNF)
2 Rear Window Defogger
3 Empty
4 Body Control Module 3
5 Crank
6 Body Control Module 2
7 Body Control Module
Fuses Usage
8 Cooling Fan 2 (LE5); Empty (LNF)
9 Empty
10 Trunk
11 Trunk
12 Empty
13 Fuel Pump
14 Rear Defogger Relay
15 Air Conditioning Clutch Relay
16 Empty
17 Empty
18 Trunk Release Relay
19 Fuel Pump Relay
20 Empty
21 Mirrors
22 Air Conditioning
23 Empty
24Cooling Fan 2 Relay (LE5);
Empty (LNF)
5-98

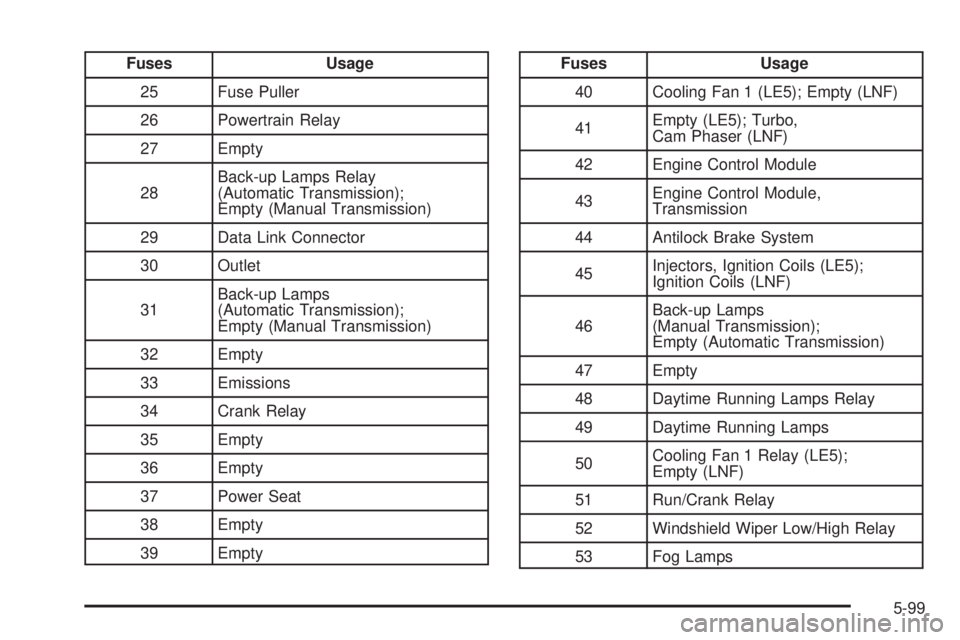

Fuses Usage
25 Fuse Puller
26 Powertrain Relay
27 Empty
28Back-up Lamps Relay
(Automatic Transmission);
Empty (Manual Transmission)
29 Data Link Connector
30 Outlet
31Back-up Lamps
(Automatic Transmission);
Empty (Manual Transmission)
32 Empty
33 Emissions
34 Crank Relay
35 Empty
36 Empty
37 Power Seat
38 Empty
39 EmptyFuses Usage
40 Cooling Fan 1 (LE5); Empty (LNF)
41Empty (LE5); Turbo,
Cam Phaser (LNF)
42 Engine Control Module
43Engine Control Module,
Transmission
44 Antilock Brake System
45Injectors, Ignition Coils (LE5);
Ignition Coils (LNF)
46Back-up Lamps
(Manual Transmission);
Empty (Automatic Transmission)
47 Empty
48 Daytime Running Lamps Relay
49 Daytime Running Lamps
50Cooling Fan 1 Relay (LE5);
Empty (LNF)
51 Run/Crank Relay
52 Windshield Wiper Low/High Relay
53 Fog Lamps
5-99

Fuses Usage
54 Fog Lamps Relay
55 Horn Relay
56S Band, OnStar
®, Remote Keyless
Entry System
57 Antilock Brake System
58 Wiper Diode
59 Windshield Wiper
60 Horn
61 Antilock Brake System
62 Instrument Panel Ignition
63 Driver Side High Beam
Fuses Usage
64 Canister Vent
65 Driver Side Low-Beam Headlamp
66Passenger Side Low-Beam
Headlamp
67Passenger Side High-Beam
Headlamp
68 Parking Lamps Relay
69 Parking Lamps
70 Windshield Wiper On/Off Relay
71 Low-Beam Headlamp Relay
72 High-Beam Headlamp Relay
5-100
