2008 PONTIAC GRAND PRIX CD changer

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn .............................................................3-6
Tilt Wheel.....................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-9
Flash-to-Pass.................................................3-9
Windshield Wiper Lever.................................3-10
Cruise Control..............................................3-12
Exterior Lamps.............................................3-16
Headlamps on Reminder................................3-17
Daytime Running Lamps (DRL).......................3-17
Fog Lamps ..................................................3-18
Exterior Lighting Battery Saver........................3-19
Interior Lamps..............................................3-19
Instrument Panel Brightness...........................3-19
Courtesy Lamps...........................................3-19
Dome Lamp .................................................3-20
Entry Lighting...............................................3-20
Delayed Entry Lighting...................................3-20
Delayed Exit Lighting.....................................3-21
Front Reading Lamps....................................3-21
Overhead Console Reading Lamps.................3-21
Rear Assist Handle Reading Lamps................3-21
Electric Power Management...........................3-22Battery Run-Down Protection..........................3-22
Head-Up Display (HUD).................................3-23
Accessory Power Outlet(s).............................3-26
Ashtray(s) and Cigarette Lighter......................3-27
Climate Controls............................................3-28
Climate Control System.................................3-28
Dual Automatic Climate Control System...........3-32
Outlet Adjustment.........................................3-36
Passenger Compartment Air Filter...................3-36
Warning Lights, Gages, and Indicators............3-38
Instrument Panel Cluster................................3-39
Speedometer and Odometer...........................3-40
Tachometer.................................................3-40
Safety Belt Reminders...................................3-41
Airbag Readiness Light..................................3-42
Passenger Airbag Status Indicator...................3-43
Up-Shift Light...............................................3-45
Brake System Warning Light..........................3-45
Anti-lock Brake System (ABS) Warning Light. . . .3-47
Traction Control System (TCS) Warning Light . . .3-47
Enhanced Traction System Warning Light.........3-48
Engine Coolant Temperature Warning Light......3-48
Engine Coolant Temperature Gage..................3-49
Tire Pressure Light.......................................3-49
Malfunction Indicator Lamp.............................3-50
Oil Pressure Light.........................................3-52
Section 3 Instrument Panel
3-1

Tilt Wheel
A tilt wheel enables the position of the steering wheel to
be adjusted. The lever that lets the steering wheel tilt
is located on the outboard side of the steering column.
To tilt the steering wheel, hold it and pull the lever.
Move the steering wheel to a comfortable driving
position and release the lever to lock it into place.
Tilt the steering wheel to the highest position to give
more room when exiting and entering the vehicle.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. SeeTurn and
Lane-Change Signals on page 3-8.
3Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on page 3-9.
-Fog Lamps. SeeFog Lamps on page 3-18.
Flash-to-Pass Feature. SeeFlash-to-Pass on
page 3-9.
ICruise Control. SeeCruise Control on
page 3-12.
PExterior Lamps Control. SeeExterior Lamps
on page 3-16.
3-7

Headlamp High/Low-Beam Changer
Push forward on the exterior lamps control lever to
change the headlamps from low to high-beam. Pull the
lever back and then release it to change from high
to low-beam.
This symbol appears on
the instrument panel
cluster when the
high-beam headlamps
are on.
When the high-beam headlamps are on, the fog lamps
will not be on. If the vehicle is equipped with the
Head-Up-Display (HUD) an arrow will appear in the
HUD area indicating that the high-beams are on.
SeeHead-Up Display (HUD) on page 3-23for more
information.
Flash-to-Pass
This feature allows the use of the high-beam headlamps
to signal the driver in front of you that you want to pass.
Pull and hold the exterior lamps control lever to use this
feature. When this is done, the following will occur:
The high-beam headlamps will turn on, while
the headlamps are off, in low-beam, or in Daytime
Running Lamps (DRL) mode. They will stay on
as long as the lever is held in this position. Release
the lever to turn them off.
The headlamps will switch to low beam if the
headlamps had been in the high-beam mode.
To return to high-beam, push the lever.
If the vehicle is equipped with the Head-Up Display
(HUD), an arrow will appear on the display to indicate
that the high beams are on.
3-9

Highbeam On Light
This light comes on when
the high-beam headlamps
are in use.
SeeHeadlamp High/Low-Beam Changer on page 3-9
for more information.
Fuel Gage
The fuel gage shows
about how much fuel is
left in the fuel tank
when the ignition is on.
When the indicator nears empty, there is still a little fuel
left, but you should get more soon.
Here are four things owners usually ask about the fuel
gage. All these situations are normal and do not
indicate a problem with the fuel gage:
At the gas station the pump shuts off before the
gage reads full.
It takes more or less fuel to ll up than the gage
indicates. For example, the gage reads half full,
but it took more or less than half the tank’s capacity
to ll it.
The gage pointer may move while cornering,
braking or speeding up.
The gage may not indicate full when the ignition is
turned off.
3-54

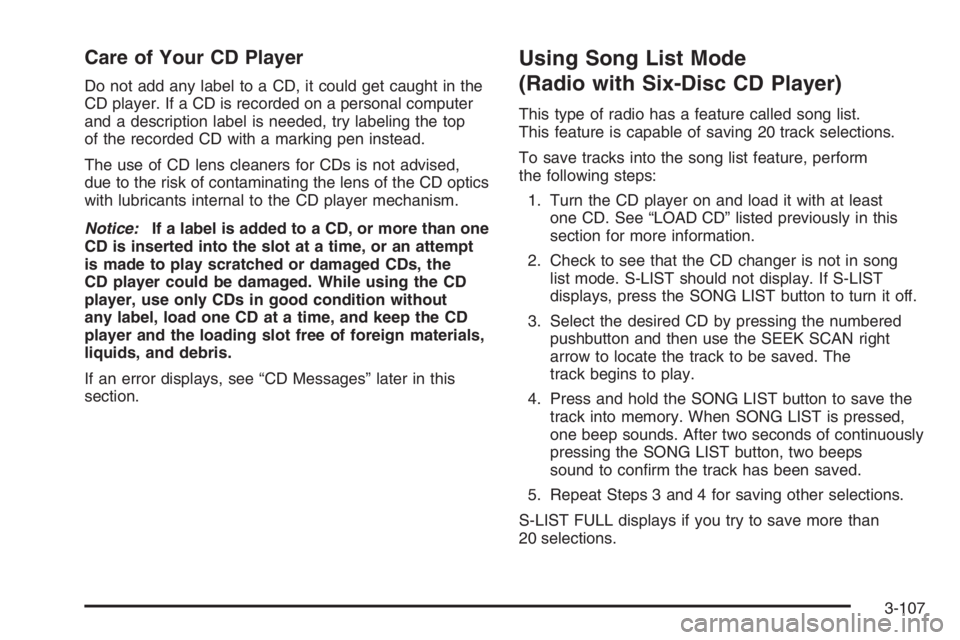

Care of Your CD Player
Do not add any label to a CD, it could get caught in the
CD player. If a CD is recorded on a personal computer
and a description label is needed, try labeling the top
of the recorded CD with a marking pen instead.
The use of CD lens cleaners for CDs is not advised,
due to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD player mechanism.
Notice:If a label is added to a CD, or more than one
CD is inserted into the slot at a time, or an attempt
is made to play scratched or damaged CDs, the
CD player could be damaged. While using the CD
player, use only CDs in good condition without
any label, load one CD at a time, and keep the CD
player and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later in this
section.
Using Song List Mode
(Radio with Six-Disc CD Player)
This type of radio has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature, perform
the following steps:
1. Turn the CD player on and load it with at least
one CD. See “LOAD CD” listed previously in this
section for more information.
2. Check to see that the CD changer is not in song
list mode. S-LIST should not display. If S-LIST
displays, press the SONG LIST button to turn it off.
3. Select the desired CD by pressing the numbered
pushbutton and then use the SEEK SCAN right
arrow to locate the track to be saved. The
track begins to play.
4. Press and hold the SONG LIST button to save the
track into memory. When SONG LIST is pressed,
one beep sounds. After two seconds of continuously
pressing the SONG LIST button, two beeps
sound to conrm the track has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
S-LIST FULL displays if you try to save more than
20 selections.
3-107

Headlamps (cont.)
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-17
Headlamps and Sidemarker Lamps...................5-54
Head-Up Display (HUD)...................................3-23
Heated Seats................................................... 1-4
Heater...........................................................3-28
Heater...........................................................3-32
Highbeam On Light.........................................3-54
Highway Hypnosis...........................................4-16
Hill and Mountain Roads..................................4-16
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-23
Infants and Young Children, Restraints...............1-32
Ination - Tire Pressure...................................5-69
Inator Kit, Tire...............................................5-86
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-19
Cluster.......................................................3-39
Interior Lamps................................................3-19
J
Jump Starting.................................................5-46
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labeling, Tire Sidewall.....................................5-63
Lamps
Courtesy....................................................3-19
Dome ........................................................3-20
Exterior Lighting Battery Saver......................3-19
Front Reading.............................................3-21
Overhead Console Reading..........................3-21
Rear Assist Handle Reading..........................3-21
Lap-Shoulder Belt...........................................1-22
LATCH System
Child Restraints...........................................1-39
License Plate Lamps.......................................5-60
Light
Airbag Readiness........................................3-42
Anti-lock Brake System (ABS) Warning...........3-47
Brake System Warning.................................3-45
Cruise Control.............................................3-53
7

Light (cont.)
Engine Coolant Temperature Warning.............3-48
Enhanced Traction System (ETS)
Warning Light..........................................3-48
Fog Lamp ..................................................3-53
Highbeam On.............................................3-54
Malfunction Indicator....................................3-50
Oil Pressure...............................................3-52
Passenger Airbag Status Indicator..................3-43
Safety Belt Reminders..................................3-41
TCS Warning Light......................................3-47
Tire Pressure..............................................3-49
Traction Control System (TCS) Warning..........3-47
Up-Shift.....................................................3-45
Lighting
Delayed Entry.............................................3-20
Delayed Exit...............................................3-21
Entry.........................................................3-20
Lights
Exterior Lamps............................................3-16
Flash-to-Pass............................................... 3-9
High/Low Beam Changer................................ 3-9
Interior Lamps.............................................3-19
On Reminder..............................................3-17
Loading Your Vehicle.......................................4-22
Lockout Protection..........................................2-13Locks
Delayed Locking..........................................2-11
Door ..........................................................2-10
Lockout Protection.......................................2-13
Power Door................................................2-11
Programmable Automatic Door Locks.............2-12
Rear Door Security Locks.............................2-12
Loss of Control...............................................4-12
Lumbar
Power Controls............................................. 1-4
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-8
At Least Once a Month.................................. 6-9
At Least Once a Year.................................... 6-9
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-15
Maintenance Replacement Parts....................6-13
Maintenance Requirements............................. 6-2
Owner Checks and Services........................... 6-8
Recommended Fluids and Lubricants.............6-12
8
