Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of
the FCC Rules. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.If there is a decrease in the RKE
operating range, try this:Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other
vehicles or objects may be
blocking the signal. Take a few
steps to the left or right, hold
the transmitter higher, and
try again.
Check the transmitter’s battery.
See “Battery Replacement”
later in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Keys, Doors and Windows 2-3
2008 - Pontiac G8 Owner Manual

L(Vehicle Locator/Panic
Alarm):Press and release one time
to locate your vehicle. The exterior
lamps will ash and the horn
will chirp.
Press and hold
Lfor at least
two seconds to sound the panic
alarm. The horn will sound and the
turn signals will ash until
Lis
pressed again or the key is placed
in the ignition and turned to
ON/RUN.
/(Remote Vehicle Start):If the
vehicle has this feature, press
/to start the engine from outside
the vehicle using the RKE
transmitter. SeeRemote Vehicle
Start on page 2-6for additional
information.
Personal Identity Keys
This system stores electronic
settings for two different keys. The
settings are stored when a
personal identity key is removed
from the ignition and recalled when
Qon the RKE transmitter is
pressed. For information on storing
climate control settings, radio
settings and trip computer settings,
see “Personal Identity Memories”
underRadio(s) on page 6-3,
“Ignition Keys” underClimate
Control System on page 7-1and
“Trip Computer” underDIC Vehicle
Customization on page 4-32.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a
transmitter is lost or stolen, a
replacement can be purchased
through your dealer/retailer. Bringany additional transmitters so they
can also be re-coded to match
the new transmitter. Once your
dealer/retailer has coded the new
transmitter, the lost transmitter
will not unlock your vehicle.
Battery Replacement
The RKE transmitter has a lithium
battery which should last about
three years.
Have the battery replaced if the
Replace Battery in Remote
Key message displays in the DIC or
if the transmitter will not work at
the normal range in any location.
See “Replace Battery in Remote
Key” underDIC Warnings and
Messages on page 4-27.
The battery is not rechargeable.
See your dealer/retailer to replace
the battery.
Keys, Doors and Windows 2-5
2008 - Pontiac G8 Owner Manual

Driving while this light is on could
drain your battery.
If you must drive a short distance
with the light on, be sure to turn off
all accessories, such as the radio
and air conditioner.
The Alternator message will remain
until
3(Trip/Fuel) or8(Enter)
are pressed, but the light will remain
until the problem is xed. See
DIC Warnings and Messages on
page 4-27for more information.
Brake System Warning
Light
Your vehicle’s hydraulic brake
system is divided into two parts. If
one part is not working, the
other part can still work and stop
you. For good braking, though, you
need both parts working well.
If the warning light comes on, there
is a brake problem. Have your
brake system inspected right away.If your vehicle has anti-lock brakes,
this light should come on when
you turn the key to START. If it does
not come on, have it xed so it
will be ready to warn you if there is
a problem.
When the ignition is on, the brake
system warning light will also
come on when you set your parking
brake. The light will stay on if
your parking brake does not release
fully. If it stays on after your
parking brake is fully released, it
means you have a brake problem.
If the light comes on and Brake
message comes on the Driver
Information Center (DIC), while you
are driving, pull off the road and
stop carefully. You may notice that
the pedal is harder to push or
the pedal may go closer to the oor.It may take longer to stop. If the
light is still on, have the vehicle
towed for service. SeeAntilock
Brake System (ABS) Warning Light
on page 4-17andTowing Your
Vehicle on page 9-84.
{CAUTION
Your brake system may not be
working properly if the brake
system warning light is on.
Driving with the brake system
warning light on can lead to an
accident. If the light is still on
after you have pulled off the
road and stopped carefully,
have the vehicle towed for
service.
The Brake message will remain until
3(Trip/Fuel) or8(Enter) are
pressed, but the brake light will
remain until the problem is xed. See
DIC Warnings and Messages on
page 4-27for more information. United States
Canada
4-16 Instruments and Controls
2008 - Pontiac G8 Owner Manual

yOverSpeed
This message is displayed when the
vehicle’s speed is greater than
the set OverSpeed value. See
“OverSpeed” underDIC Operation
and Displays on page 4-23.
You can press
8or move the
thumbwheel up
Qor downRto
acknowledge that you received
the message, but OverSpeed will
continue to appear in the bottom of
the DIC display as long as the
vehicle’s speed exceeds the preset
value.
$Park Brake
This message is displayed if the
parking brake is applied when you
are driving. Release the parking
brake. SeeParking Brake on
page 8-9.
Replace Battery in
Remote Key
This message is displayed when the
battery in the remote keyless
entry transmitter needs to be
replaced. See your dealer/retailer to
replace the battery.
You can press
3or8to
acknowledge that you received the
message, but
QKey Batt will
continue to appear in the bottom of
the DIC display until the battery
has been replaced.
wRest Reminder
This feature reminds the driver that
they may have been driving for too
long without a break. When the
ignition is turned on, a timer starts
counting. After two hours of
continuous driving, the rest reminder
ashes to alert the driver. The Rest
Reminder message is displayed until
3or8are pressed. The rest
reminder reappears after 20 minutesaccompanied by a chime, unless the
ignition has been turned off. For
information on how to turn the rest
reminder on and off, seeDIC Vehicle
Customization on page 4-32.
{Safety Mode Active and
Power Reduced
These messages display alternately
when there is a problem with the
engine control system, see
your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
{Safety will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
4-30 Instruments and Controls
2008 - Pontiac G8 Owner Manual

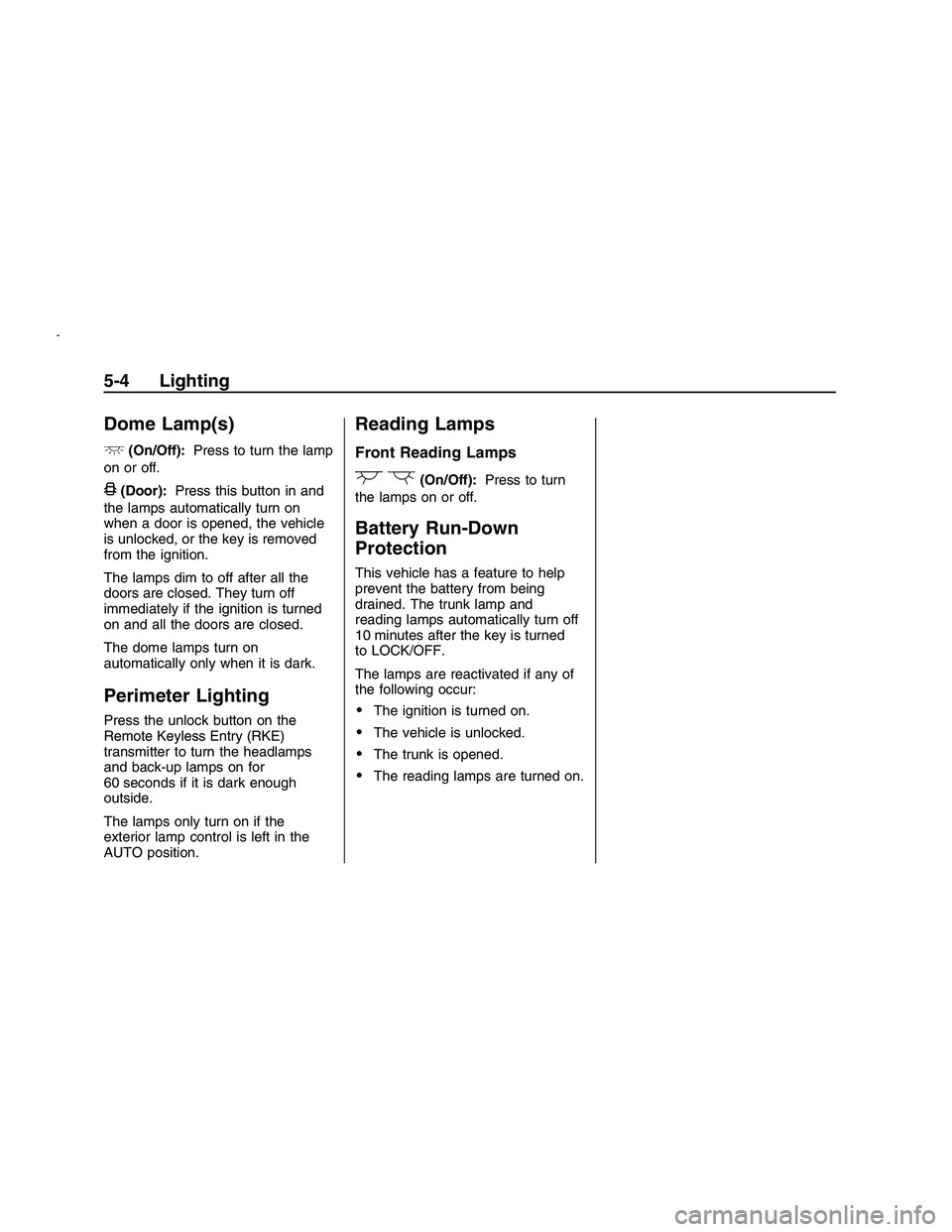

Dome Lamp(s)
+
(On/Off):Press to turn the lamp
on or off.
&(Door):Press this button in and
the lamps automatically turn on
when a door is opened, the vehicle
is unlocked, or the key is removed
from the ignition.
The lamps dim to off after all the
doors are closed. They turn off
immediately if the ignition is turned
on and all the doors are closed.
The dome lamps turn on
automatically only when it is dark.
Perimeter Lighting
Press the unlock button on the
Remote Keyless Entry (RKE)
transmitter to turn the headlamps
and back-up lamps on for
60 seconds if it is dark enough
outside.
The lamps only turn on if the
exterior lamp control is left in the
AUTO position.
Reading Lamps
Front Reading Lamps
()(On/Off):Press to turn
the lamps on or off.
Battery Run-Down
Protection
This vehicle has a feature to help
prevent the battery from being
drained. The trunk lamp and
reading lamps automatically turn off
10 minutes after the key is turned
to LOCK/OFF.
The lamps are reactivated if any of
the following occur:
The ignition is turned on.
The vehicle is unlocked.
The trunk is opened.
The reading lamps are turned on.
5-4 Lighting
2008 - Pontiac G8 Owner Manual

A (LOCK/OFF):This is the only
position from which you can remove
the key. This locks the steering
wheel, ignition and automatic
transmission.
On vehicles with an automatic
transmission, the shift lever must be
in P (Park) to turn the ignition
switch to the LOCK/OFF position.
The ignition switch can bind in
the LOCK/OFF position with your
wheels turned off center. If this
happens, move the steering wheel
from right to left while turning the
key to ACC/ACCESSORY. If this
doesn’t work, then the vehicle needs
service.
B (ACC/ACCESSORY):This
position provides power to some
of the electrical accessories.
It unlocks the steering wheel and
ignition. The transmission is
also unlocked in this position
on automatic transmission
vehicles. To move the key from
ACC/ACCESSORY to LOCK/OFF,
push in the key and then turn it
to LOCK/OFF.C (ON/RUN):The ignition switch
stays in this position when the
engine is running. This position can
be used to operate the electrical
accessories, including the ventilation
fan and 12 volt power outlet, as
well as to display some warning and
indicator lights.
The battery could be drained
if you leave the key in the
ACC/ACCESSORY or ON/RUN
position with the engine off.
You may not be able to start the
vehicle if the battery is allowed
to drain for an extended period
of time.
D (START):This position starts the
engine. When the engine starts,
release the key. The ignition switch
will return to ON/RUN for normal
driving.
A warning tone will sound when the
driver door is opened when the
ignition is still in ACC/ACCESSORY
and the key is in the ignition.Retained Accessory
Power (RAP)
These vehicle accessories may be
used for up to 10 minutes after
the engine is turned off.
Audio System
Power Windows
The power windows will continue to
work for up to 10 minutes or until
any door is opened. The radio
will work when the key is in ON/RUN
or ACC/ACCESSORY. Once the
key is turned from ON/RUN to
LOCK/OFF, the radio will continue
to work for 10 minutes or until
the driver’s door is opened.
Driving and Operating 8-3
2008 - Pontiac G8 Owner Manual

Starting the Engine
Move the shift lever to P (Park) or
N (Neutral). The engine will not start
in any other position. To restart
when you are already moving, use
N (Neutral) only.
Notice:Do not try to shift to
P (Park) if your vehicle is moving.
If you do, you could damage the
transmission. Shift to P (Park)
only when your vehicle is stopped.
1. With your foot off the accelerator
pedal, turn the ignition key to
START. When the engine starts,
let go of the key. The idle
speed will go down as your
engine gets warm. Do not race
the engine immediately after
starting it. Operate the engine
and transmission gently to allow
the oil to warm up and lubricate
all moving parts.The vehicle has a
Computer-Controlled Cranking
System. This feature assists
in starting the engine and
protects components. If the
ignition key is turned to
the START position, and then
released when the engine
begins cranking, the engine will
continue cranking for a few
seconds or until the vehicle
starts. If the engine does not start
and the key is held in START
for many seconds, cranking
will be stopped after 15 seconds
to prevent cranking motor
damage. To prevent gear
damage, this system also
prevents cranking if the engine
is already running. Engine
cranking can be stopped by
turning the ignition switch
to ACC/ACCESSORY or
LOCK/OFF.Notice:Cranking the engine for
long periods of time, by returning
the key to the START position
immediately after cranking has
ended, can overheat and damage
the cranking motor, and drain the
battery. Wait at least 15 seconds
between each try, to let the
cranking motor cool down.
2. If the engine does not start
after 5-10 seconds, especially in
very cold weather (below 0°F
or−18°C), it could be ooded
with too much gasoline.
Try pushing the accelerator
pedal all the way to the oor
and holding it there as you hold
the key in START for up to a
maximum of 15 seconds.
Wait at least 15 seconds
between each try, to allow the
cranking motor to cool down.
8-4 Driving and Operating
2008 - Pontiac G8 Owner Manual

Towing
Towing Your Vehicle
Consult your dealer/retailer or a
professional towing service if
you need to have your disabled
vehicle towed. SeeRoadside
Assistance Program on page 12-6.
Shift Lock Manual
Release
The transmission has an electric
park lock called a shift lock manual
release. The key must be in the
ON/RUN position, and the brake
pedal pressed so the transmission
gear selector can be moved from the
P (Park) position. If the battery
has lost power, the selector cannot
be moved to neutral for towing
unless the shift lock manual release
is disengaged manually.To access the shift lock manual
release:
1. Apply the park brake.
2. Remove the console trim
panel (A) from the console.
2.1. Gently lift the back corners
of the trim panel directly in
front of the cupholders (C)
until the two clips are
released from the console.
2.2. Gently lift the console trim
panel from the rear until the
four clips around the shift
lever are released.
3. Raise the panel (A) no more
than 2–3 inches (50–75 mm)
to avoid disconnecting the wiring
from the switches (B).
4. With the console trim panel
raised, remove the retainer (E)
and the shift lock manual release
cover plate (D).
5. Push and hold the manual
release lever (F) toward the
passenger side of the vehicle.
9-84 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
