If the TPMS is not functioning it
cannot detect or signal a low
tire condition. See the dealer/retailer
for service if the TPMS malfunction
light and DIC message comes
on and stays on.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identication code. Any time one or
more of the TPMS sensors are
replaced or the vehicle’s tires are
rotated, the identication codes
need to be matched to the
new tire/wheel location. The sensors
are matched, to the tire/wheel
locations, in the following order:
driver side front tire, passenger side
front tire, passenger side rear
tire, and driver side rear tire using a
TPMS diagnostic tool. See your
dealer/retailer for service.The TPMS sensors can also be
matched to each tire/wheel position
by increasing or decreasing the
tire’s air pressure. When increasing
the tire’s pressure, do not exceed
the maximum ination pressure
indicated on the tire’s sidewall. To
decrease the tire’s air-pressure
use the pointed end of the valve
cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match
each tire and wheel position.
If it takes longer than two minutes to
match any tire and wheel position,
the matching process stops and you
need to start over.The TPMS matching process is
outlined below:
1. Set the parking brake.
2. Turn the ignition switch to
ON/RUN with the engine off.
3. Press and hold the Remote
Keyless Entry (RKE) transmitter’s
lock and unlock buttons, at the
same time, for about ve seconds
to start the TPMS learn mode.
The horn chirps two times
indicating the TPMS receiver is
ready and in learn mode.
4. Start with the driver side front
tire. The driver side front
indicator lamp also comes on to
indicate that corner’s sensor
is ready to be learned.
5. Remove the valve cap from the
tire’s valve stem. Activate the
TPMS sensor by increasing
or decreasing the tire’s air
pressure for about eight seconds.
The horn chirps one time to
conrm the sensor identication
code has been matched to
the tire/wheel position.
Vehicle Service and Care 9-53
2008 - Pontiac G8 Owner Manual

Any time you notice unusual
wear, rotate the tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels.
SeeWhen It Is Time for New
Tires on page 9-56andWheel
Replacement on page 9-61.
When rotating the vehicle’s tires,
always use the correct rotation
pattern shown here.The compact spare tire, if the
vehicle has one, is not included
in the tire rotation.
After the tires have been rotated,
adjust the front and rear ination
pressures as shown on the Tire
and Loading Information label.
SeeInflation - Tire Pressure on
page 9-46andLoading the
Vehicle on page 8-28.
Reset the Tire Pressure Monitor
System. SeeTire Pressure
Monitor Operation on page 9-51.
Make certain that all wheel
nuts are properly tightened.
See “Wheel Nut Torque” under
Capacities and Specifications
on page 10-2.{CAUTION
Rust or dirt on a wheel, or
on the parts to which it is
fastened, can make wheel
nuts become loose after
time. The wheel could come
off and cause an accident.
When you change a wheel,
remove any rust or dirt from
places where the wheel
attaches to the vehicle. In an
emergency, you can use a
cloth or a paper towel to do
this; but be sure to use a
scraper or wire brush later,
if needed, to get all the rust
or dirt off. SeeChanging a
Flat Tire (V6 Engine) on
page 9-71.
Vehicle Service and Care 9-55
2008 - Pontiac G8 Owner Manual

the alignment might need to be
checked. If you notice your vehicle
vibrating when driving on a
smooth road, the tires and wheels
might need to be rebalanced.
See your dealer/retailer for proper
diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked or badly rusted or corroded.
If wheel nuts keep coming loose,
the wheel, wheel bolts and
wheel nuts should be replaced. If
the wheel leaks air, replace it
(except some aluminum wheels,
which can sometimes be repaired).
See your dealer/retailer if any of
these conditions exist.
Your dealer/retailer will know the
kind of wheel you need.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset and be
mounted the same way as the one
it replaces.If you need to replace any of the
wheels, wheel bolts or wheel
nuts, replace them only with new
GM original equipment parts.
This way, you will be sure to have
the right wheel, wheel bolts and
wheel nuts for the vehicle.
{CAUTION
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts on your vehicle can be
dangerous. It could affect the
braking and handling of your
vehicle, make your tires lose air
and make you lose control. You
could have a collision in which
you or others could be injured.
Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.Notice:The wrong wheel can
also cause problems with bearing
life, brake cooling, speedometer
or odometer calibration,
headlamp aim, bumper height,
vehicle ground clearance, and tire
or tire chain clearance to the
body and chassis.
SeeChanging a Flat Tire (V6
Engine) on page 9-71for more
information.
Used Replacement Wheels
{CAUTION
Putting a used wheel on the
vehicle is dangerous. You
cannot know how it has been
used or how far it has been
driven. It could fail suddenly
and cause a crash. If you have
to replace a wheel, use a new
GM original equipment wheel.
Vehicle Service and Care 9-61
2008 - Pontiac G8 Owner Manual

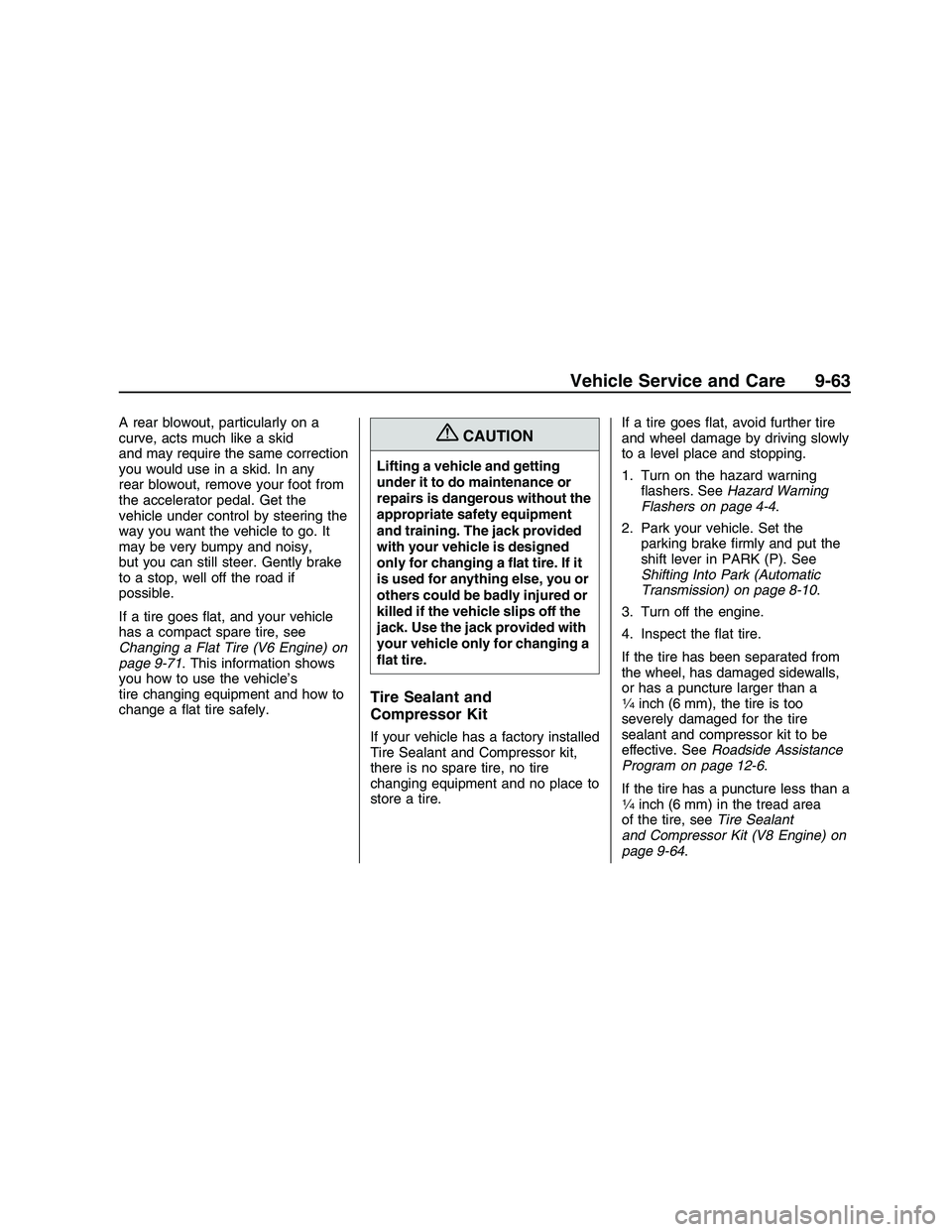

A rear blowout, particularly on a
curve, acts much like a skid
and may require the same correction
you would use in a skid. In any
rear blowout, remove your foot from
the accelerator pedal. Get the
vehicle under control by steering the
way you want the vehicle to go. It
may be very bumpy and noisy,
but you can still steer. Gently brake
to a stop, well off the road if
possible.
If a tire goes at, and your vehicle
has a compact spare tire, see
Changing a Flat Tire (V6 Engine) on
page 9-71. This information shows
you how to use the vehicle’s
tire changing equipment and how to
change a at tire safely.{CAUTION
Lifting a vehicle and getting
under it to do maintenance or
repairs is dangerous without the
appropriate safety equipment
and training. The jack provided
with your vehicle is designed
only for changing a at tire. If it
is used for anything else, you or
others could be badly injured or
killed if the vehicle slips off the
jack. Use the jack provided with
your vehicle only for changing a
at tire.
Tire Sealant and
Compressor Kit
If your vehicle has a factory installed
Tire Sealant and Compressor kit,
there is no spare tire, no tire
changing equipment and no place to
store a tire.If a tire goes at, avoid further tire
and wheel damage by driving slowly
to a level place and stopping.
1. Turn on the hazard warning
ashers. SeeHazard Warning
Flashers on page 4-4.
2. Park your vehicle. Set the
parking brake rmly and put the
shift lever in PARK (P). See
Shifting Into Park (Automatic
Transmission) on page 8-10.
3. Turn off the engine.
4. Inspect the at tire.
If the tire has been separated from
the wheel, has damaged sidewalls,
or has a puncture larger than a
14inch (6 mm), the tire is too
severely damaged for the tire
sealant and compressor kit to be
effective. SeeRoadside Assistance
Program on page 12-6.
If the tire has a puncture less than a
14inch (6 mm) in the tread area
of the tire, seeTire Sealant
and Compressor Kit (V8 Engine) on
page 9-64.
Vehicle Service and Care 9-63
2008 - Pontiac G8 Owner Manual

Tire Sealant and
Compressor Kit
(V8 Engine)
This vehicle has a tire sealant and
compressor kit in place of a jack or
spare tire. It is located in a foam
container in the trunk. The tire
sealant and compressor kit can be
used to repair a at tire by sealing
small punctures in the tread of the
tire. It can also be used to inate an
underinated tire. The vehicle must
be driven for ve miles (8 kilometers)
after the tire is sealed and inated to
the recommended pressure to
ensure the sealant is distributed
evenly. For detailed instructions see
“Using the Tire Sealant and
Compressor Kit to Temporarily
Repair a Punctured Tire” later in this
section.The kit includes:
A. On/Off Switch
B. Air Compressor Accessory Plug
C. Air Compressor
D. Sealant Canister
E. Sealant/Air Hose
F. Air-only Hose
G. Pressure Gage
Tire Sealant
The sealant can temporarily seal a
small puncture up to 6 mm in
the tread area of the tire. The
sealant cannot seal sidewall
damage, large punctures, or a wheel
that has unseated from the wheel.
Read and follow the safe handling
instructions on the label adhered to
the sealant canister.
Check the tire sealant expiration
date on the sealant canister.
The sealant canister should be
replaced before its expiration date.
There is only enough sealant to
seal one tire. After usage, the
sealant canister and sealant/air hose
assembly must be replaced.
Replacement sealant canisters are
available from a dealer/retailer.
See “Removal and Installation of
Sealant Canister” later in this
section.
9-64 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

Using the Tire Sealant and
Compressor Kit to
Temporarily Seal and Inate a
Punctured Tire
Follow these directions closely for
correct sealant usage.
A. On/Off Switch
B. Air Compressor Accessory Plug
C. Air Compressor
D. Sealant Canister
E. Sealant/Air Hose
F. Air-only Hose
G. Pressure GageDo a safety check before
proceeding. SeeIf a Tire Goes Flat
on page 9-62.
Inspect the damaged tire.
The sealant cannot seal sidewall
damage, large punctures, or a
tire that has unseated from
the wheel. SeeRoadside Assistance
Program on page 12-6.
Do not remove any objects that
have penetrated the tire.
1. Place the tire sealant and
compressor kit on the ground and
unwrap the sealant/air hose (E)
from the side of the compressor.
2. Remove the air compressor
accessory plug (B) from the unit.
Do not plug the plug in yet.
3. Turn the tire valve stem cap
counterclockwise to remove.
4. Attach the sealant/air hose (E)
onto the tire valve stem. Turn
it clockwise until tight.5. Make sure the sealant and
compressor kit on/off switch (A) is
in the O (off) position.
Plug the air compressor
accessory plug (B) into an
accessory power outlet in the
vehicle. SeeAccessory Power
Outlet(s) on page 4-9for
more information.
Do not slam door or close
window on the compressor
accessory plug cord.
{CAUTION
Idling the engine in a closed-in
place or with the climate
control system off can cause
deadly carbon monoxide (CO).
SeeEngine Exhaust on
page 8-12.
6. Start the vehicle. The vehicle
must be running while using
the air compressor.
Vehicle Service and Care 9-65
2008 - Pontiac G8 Owner Manual

{CAUTION
Idling the engine in a closed-in
place or with the climate
control system off can cause
deadly carbon monoxide (CO).
SeeEngine Exhaust on
page 8-12.
5. Start the vehicle. The vehicle
must be running while using
the air compressor.
{CAUTION
Overination could cause the
tire to rupture, and you or
others could be injured. Be
sure to read the inator
instructions, and inate the tire
to its recommended pressure.
Do not exceed 36 psi (248 kPa).6. Push the On/Off switch (G) to the
I (on) position.
Check the pressure gage (F). If
there is not a pressure reading
while the compressor is running,
check for leaks at the connection
between the hose and the tire
valve stem.
7. Inate the tire up to the
recommended ination pressure
using the air pressure gage (F)
on the top of the unit. See
Inflation - Tire Pressure on
page 9-46.
The pressure gage (F) reads
slightly high while the compressor
is on. Turn the compressor off to
get an accurate reading. The
compressor may be turned on
and off until the correct pressure
is reached.
8. Push the On/Off switch (G) to the
O (off) position.
Be careful while handling the tire
sealant and compressor kit as
they could be hot after usage.9. Unplug the air compressor
accessory plug (A) from the
accessory power outlet in the
vehicle and stow it in its original
location.
10. Disconnect the air-only hose (E)
from the tire valve stem and
stow it back in its original
location.
11. Replace the tire valve stem cap.
{CAUTION
Storing the tire sealant and
compressor kit or other
equipment in the passenger
compartment of the vehicle
could cause injury. In a sudden
stop or collision, loose
equipment could strike
someone. Store the tire sealant
and compressor kit in its
original location.
12. Place the equipment in the
original location in the trunk
of your vehicle.
Vehicle Service and Care 9-69
2008 - Pontiac G8 Owner Manual

Changing a Flat Tire
(V6 Engine)
If a tire goes at, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the
hazard warning ashers.
{CAUTION
Changing a tire can be
dangerous. The vehicle can slip
off the jack and roll over or fall
on you or other people. You
and they could be badly injured
or even killed. Find a level
place to change your tire. To
help prevent the vehicle from
moving:
1. Set the parking brake
rmly.
2. Put the shift lever in
PARK (P).
(Continued)
CAUTION (Continued)
3. Turn off the engine and do
not restart while the
vehicle is raised.
4. Do not allow passengers to
remain in the vehicle.
To be certain the vehicle will
not move, put blocks at the
front and rear of the tire
farthest away from the one
being changed. That would be
the tire on the other side, at the
opposite end of the vehicle.When you have a at tire, use the
following example as a guide to
assist you in the placement of wheel
blocks.
Vehicle Service and Care 9-71
2008 - Pontiac G8 Owner Manual
