1. Steering wheel height and depth
adjustment.
2. Cruise control/
speed limiter switches.
3. Lights and direction indicators
controls.
4. Speakers (tweeters).
5. Adjustable and closing central
vents.
6. Air diffuser vent grille.
7. Windscreen de-icing and demisting
vent.
8. Sunshine sensor.
9. Adjustable and closing side vent.
10. Bonnet release.
11. Passenger air bag.
12. Glove box/Video sockets.
Fascia fuse box.
13. Passenger footwell air outlet.
14. Passenger heated seat control.
15. Passenger seat electric controls.
* According to country.
53 Manual
When stationary, unlock the steering
wheel by pushing the control forwards.
Adjust the height and depth of the steer-
ing wheel then lock by pulling the control
fully.
Electric
When stationary, adjust the height or
depth of the steering wheel by moving
the control:
forwards or rearwards to adjust the
depth.
upwards or downwards to adjust the
height.
50
1. Driver's seat handle.
2. Passenger seat courtesy handle.

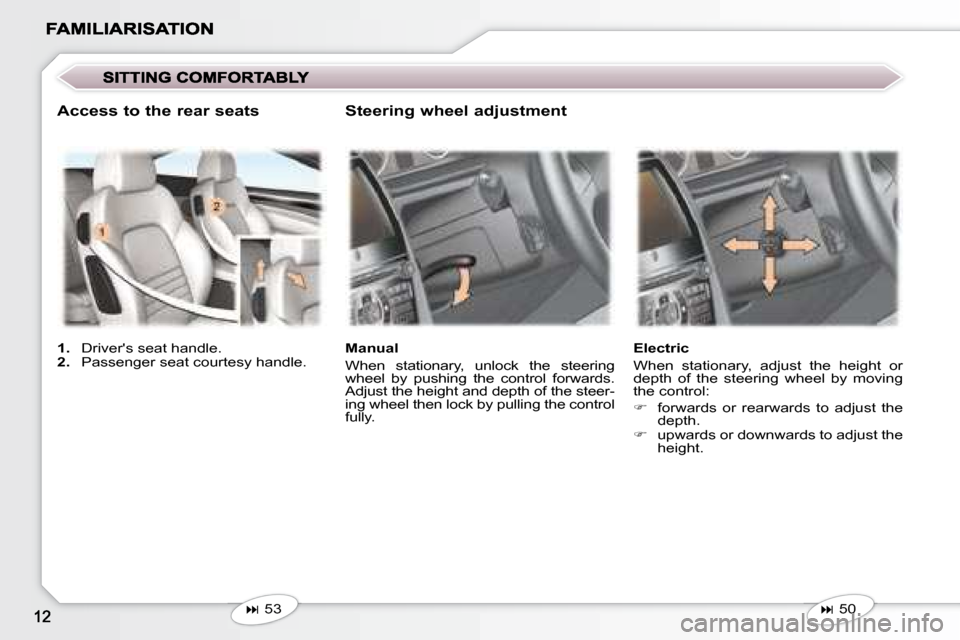

Steering wheel adjustment Access to the rear seats
Switch on the ignition and press switch 1 :
- indicator light 2 on (switch pressed):
automatic operation.
- indicator light 2 off: automatic sys-
tem off. The mirror remains at its
clearest status.
A. Exterior mirrors selection,
adjustment and folding control.
1. Selection of the driver's mirror.
2. Selection of the passenger mirror.
3. Folding of the mirrors.
Interior mirror adjustment
49
48
Exterior mirrors adjustment Memorising driving positions
The memorisation takes into account the
electric adjustment of the driver's seat,
steering wheel and exterior mirrors.
You can memorise two driving positions
using buttons M/1 and M/2 .
55
3
50

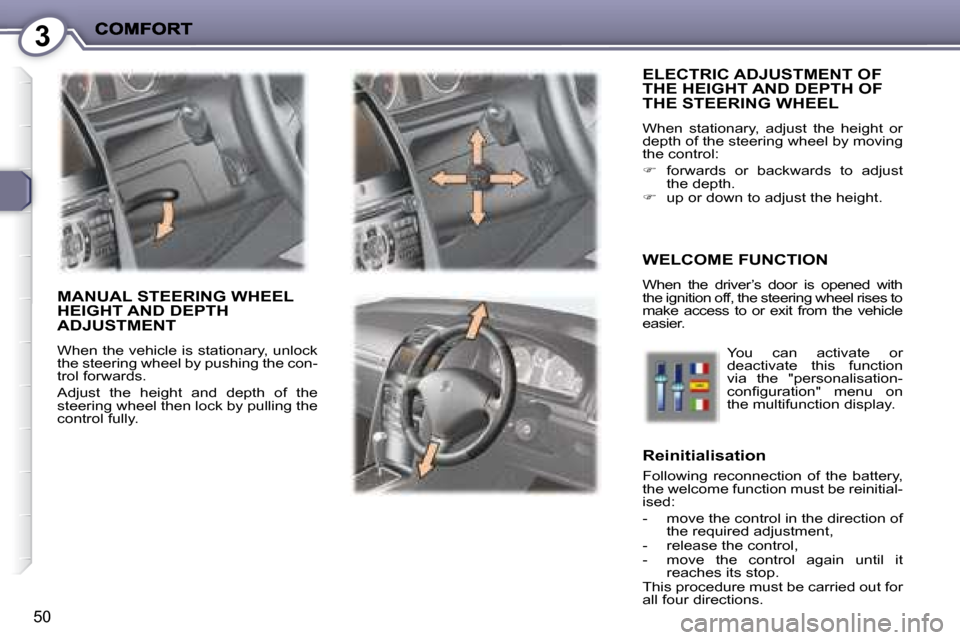

ELECTRIC ADJUSTMENT OF THE HEIGHT AND DEPTH OF THE STEERING WHEEL
W h e n s t a t i o n a r y , a d j u s t t h e h e i g h t o r
d e p t h o f t h e s t e e r i n g w h e e l b y m o v i n g
the control:
forwards or backwards to adjust
t h e d e p t h .
u p o r d o w n t o a d j u s t t h e h e i g h t .
You can activate or
deactivate this function
v i a t h e " p e r s o n a l i s a t i o n -
c o n fi g u r a t i o n " m e n u o n
t h e m u l t i f u n c t i o n d i s p l a y .
WELCOME FUNCTION
W h e n t h e d r i v e r ’ s d o o r i s o p e n e d w i t h
the ignition off, the steering wheel rises to
make access to or exit from the vehicle
easier. MANUAL STEERING WHEEL HEIGHT AND DEPTH ADJUSTMENT
W h e n t h e v e h i c l e i s s t a t i o n a r y , u n l o c k
t h e s t e e r i n g w h e e l b y p u s h i n g t h e c o n -
trol forwards.
A d j u s t t h e h e i g h t a n d d e p t h o f t h e
s t e e r i n g w h e e l t h e n l o c k b y p u l l i n g t h e
c o n t r o l f u l l y .
Reinitialisation
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
t h e w e l c o m e f u n c t i o n m u s t b e r e i n i t i a l -
ised:
- m o v e t h e c o n t r o l i n t h e d i r e c t i o n o f the required adjustment,
- r e l e a s e t h e c o n t r o l ,
- m o v e t h e c o n t r o l a g a i n u n t i l i t r e a c h e s i t s s t o p .
T h i s p r o c e d u r e m u s t b e c a r r i e d o u t f o r
all four directions.
1010
115
Fuse N° Rating
Functions
F1 - Not used.
F2 30 A Locking and deadlocking.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Automatic gearbox switch, diagnostic socket, electrochromatic mirror .
F5 30 A Driver and passenger electric windows.
F6 30 A Sunroof.
F7 5 A Glove box light, map reading lights, courtesy lights, court esy mirrors.
F8 20 A Multifunction display, audio equipment, top-of-column, trai
ler fuse box (accessory),
alarm, alarm siren.
F9 30 A Front lighter, 12 V rear socket, glove box light, map reading
lights, courtesy lights, courtesy
mirrors.
F10 15 A T y r e u n d e r - i n fl a t i o n d e t e c t i o n , C D c h a n g e r .
F11 15A Diagnostic socket, ignition switch.
F12 15 A Trailer fuse box (accessory), parking assistance control unit supply, p
assenger seat memory
unit, rain and brightness sensor.
F13 5 A Windscreen wipers relay control, engine fuse box.
F14 15 A Driver's seat memory unit, instrument panel, air bags and pre-tensi
oners control unit, air
conditioning control panel, steering wheel adjustment switch , hands-free kit.
F15 30 A Locking and deadlocking.
F16 - PARC shunt.
