7
87
Wherever you are seated in
the vehicle, always fasten
your seat belt, even for short
journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking that
it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r -
mance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regularly
by a PEUGEOT dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and rolled up correctly. Recommendations
for children
Use a suitable child seat if the passen-
ger is less than 12 years old or shorter
t h a n o n e m e t r e fi f t y .
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 98 of 211
7
88
AIR BAGS
The air bags have been designed to
maximise the safety of the occupants
in the event of violent collisions. They
supplement the action of the force-
limiting seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detec-
tion zones:
- in the event of a serious impact, the air bags are deployed instanta-
neously and protect the occupants
of the vehicle; immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder the vis-
ibility of the occupants or their pos-
sible exit from the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the air bags will not be
deployed; the seat belt alone is
s u f fi c i e n t t o p r o v i d e m a x i m u m p r o -
tection in these situations.
Front air bags
The front air bags protect the driver
and front passenger in the event of a
serious front impact in order to limit the
risks of injury to the head and chest.
They are folded in the centre of the
steering wheel for the driver and in the
fascia for the front passenger.
The air bags do not operate
when the ignition is off.
This equipment only operates
once. If a second impact oc-
curs (during the same or a subsequent
accident), the air bag will not operate. Impact detection zones
A. Front impact zone.
B. Side impact zone.
The deployment of one or
more air bags is accompanied
by a slight discharge of harm-
less smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience some
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time. Activation
They are deployed simultaneously, ex-
cept in cases where the passenger's
front air bag is disarmed, in the event
of a serious front impact applied to all
or part of the front impact zone
A , in
the longitudinal centreline of the vehi-
cle on a horizontal plane directed from
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
fascia to cushion his forward movement.
Page 99 of 211
7
89
In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning light.
Disarming the front passenger’s front air bag *
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-fac-
ing child seat on the front passen-
ger seat. Otherwise, the child would
risk being seriously injured or killed
i f t h e a i r b a g w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
air bag disarming switch, turn it to
the "OFF" position, then remove
the key keeping the slot in this po-
sition. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
* According to country. When the ignition is on, this
warning light remains lit on
the instrument panel for the
duration of disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact. The steering column air bag protects
the driver’s knees in the event of a se-
rious front impact.
It is incorporated in the fascia below
the steering column.
Steering column air bag
Activation
It is deployed at the same time as the
front air bags.
Page 100 of 211
7
90
Front side air bags
The side air bags protect the driver
and passengers in the event of a se-
rious side impact in order to limit the
risks of injury to the chest.
Each side air bag is incorporated into
the front seat back.
Activation
The side air bags are deployed inde-
pendently of each other in the event
of a serious side impact applied to
all or part of the side impact zone B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad.
In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning
light.
* According to country.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The curtain air bags protect the driver
and passengers in the event of a se-
rious side impact in order to limit the
risks of injury to the head.
Each curtain air bag is incorporated
into the door pillars and the upper part
of the passenger compartment. Activation
It is deployed at the same time as the
corresponding side air bags in the
event of a serious side impact applied
to all or part of the side impact zone
B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane directed from the outside to the
inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact
or bump on the side of the
vehicle or if the vehicle rolls
over, the air bag may not be
deployed.
In the event of a front or rear collision,
the air bag is not deployed.

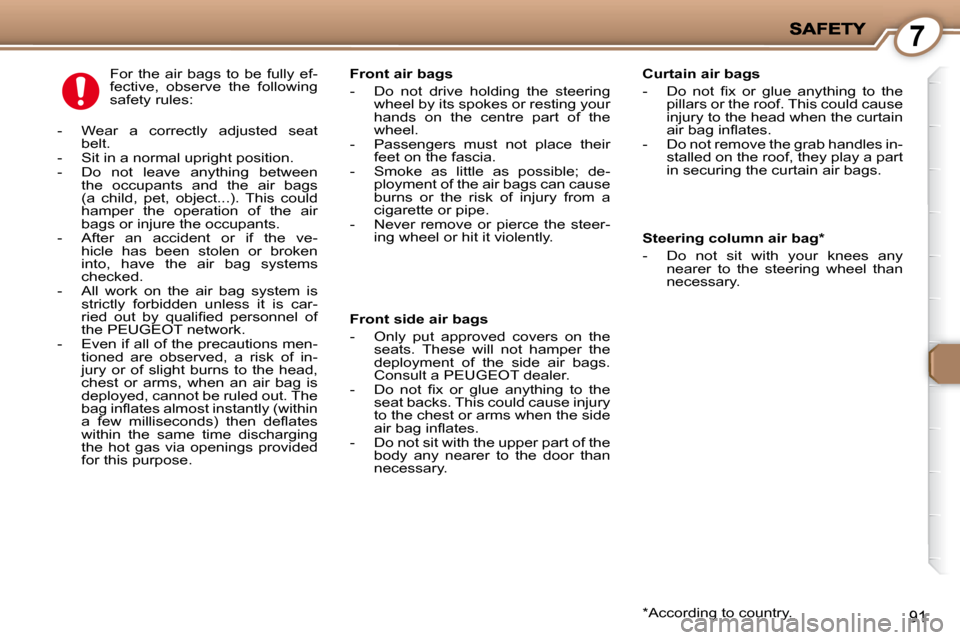

Page 101 of 211
7
91
Steering column air bag *
- Do not sit with your knees any nearer to the steering wheel than
necessary.
Front air bags
- Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
- Passengers must not place their feet on the fascia.
- Smoke as little as possible; de- ployment of the air bags can cause
burns or the risk of injury from a
cigarette or pipe.
- Never remove or pierce the steer- ing wheel or hit it violently.
* According to country.
Front side air bags
- Only put approved covers on the
seats. These will not hamper the
deployment of the side air bags.
Consult a PEUGEOT dealer.
- D o n o t fi x o r g l u e a n y t h i n g t o t h e seat backs. This could cause injury
to the chest or arms when the side
a i r b a g i n fl a t e s .
- Do not sit with the upper part of the body any nearer to the door than
necessary. Curtain air bags
- D o n o t fi x o r g l u e a n y t h i n g t o t h e
pillars or the roof. This could cause
injury to the head when the curtain
a i r b a g i n fl a t e s .
- Do not remove the grab handles in- stalled on the roof, they play a part
in securing the curtain air bags.
For the air bags to be fully ef-
fective, observe the following
safety rules:
- Wear a correctly adjusted seat belt.
- Sit in a normal upright position.
- Do not leave anything between the occupants and the air bags
(a child, pet, object...). This could
hamper the operation of the air
bags or injure the occupants.
- After an accident or if the ve- hicle has been stolen or broken
into, have the air bag systems
checked.
- All work on the air bag system is strictly forbidden unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f
the PEUGEOT network.
- Even if all of the precautions men- tioned are observed, a risk of in-
jury or of slight burns to the head,
chest or arms, when an air bag is
deployed, cannot be ruled out. The
b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s
within the same time discharging
the hot gas via openings provided
for this purpose.
Page 102 of 211
7
89
In the event of a malfunction
If this warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display,
contact a PEUGEOT dealer to have
the system checked. The air bags may
no longer be deployed in the event of
a serious impact. Instrument panel warning light.
Disarming the front passenger’s front air bag *
To ensure the safety of your child, it
is essential to disarm the passenger
air bag when you install a rear-fac-
ing child seat on the front passen-
ger seat. Otherwise, the child would
risk being seriously injured or killed
i f t h e a i r b a g w e r e t o i n fl a t e .
With the ignition switched off ,
insert the key into the passenger
air bag disarming switch, turn it to
the "OFF" position, then remove
the key keeping the slot in this po-
sition. Reactivation
As soon as the child seat is removed,
turn the air bag slot to the
"ON" posi-
tion to re-activate the air bag and thus
ensure its safety function.
* According to country. When the ignition is on, this
warning light remains lit on
the instrument panel for the
duration of disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact. The steering column air bag protects
the driver’s knees in the event of a se-
rious front impact.
It is incorporated in the fascia below
the steering column.
Steering column air bag
Activation
It is deployed at the same time as the
front air bags.
Page 113 of 211
8
102
TYRE UNDER-INFLATION DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction.
Pressure Check
With the ignition on and the ve-
hicle having been stationary
for approximately 15 minutes,
and after the engine oil level,
this indicator light comes on
on the instrument panel screen to indi-
cate that the system is measuring the
tyre pressures.
Pressure OK
This indicator light comes
on on the instrument panel
screen if all of the tyre pres-
sure values measured are
correct.
If this indicator light does not appear,
contact a PEUGEOT dealer to have
the system checked. Puncture
This warning light, accom-
panied by the audible sig-
nal and the message on the
multi-function display locat-
ing the wheel concerned, is
followed by illumination of the STOP
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d h a v e
the tyre pressure checked as soon as
possible.
Note: this message is also
displayed when one of the
wheels is away from the ve-
hicle (being repaired) or when
one or more wheels without a
s e n s o r a r e fi t t e d . All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by
a PEUGEOT dealer.
If, when changing a tyre, you install a
wheel which is not detected by your
vehicle, you must have the system
reinitialised by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem is an aid to driving which does not
replace the need for the driver to be
vigilant or to drive responsibly.
This system does not eliminate the
need to have the tyre pressure checked
regularly (see manufacturer's label) to
ensure that the optimum dynamic per-
formance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driving
conditions (heavy load, high speed).
The tyre pressures must be checked
cold, at least once a month. Remember to
check the pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n s y s -
tem may experience temporary inter-
ference due to radioelectric emissions
on a frequency close to that used by
the system.
Flat tyre This warning light is accom-
panied by the audible signal
and the message on the mul-
ti-function display locating
the wheel concerned.
If this warning light comes on, have
the tyre pressure checked as soon as
possible. Sensor(s) not detected or faulty
This warning light is accom-
panied by the audible sig-
nal and the message on the
multi-function display which
i n d i c a t e s t h a t u n d e r - i n fl a t i o n
detection is absent from one (or sev-
eral) wheel(s) or that there is a fault in
the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Page 118 of 211
9
108
Used oil
Do not dispose of used oil,
b r a k e fl u i d o r c o o l a n t i n t o
drains or onto the ground.
Windscreen and headlamp wash level
For best quality cleaning and for your
safety, to see and be seen, we would
advise that you use products of the
PEUGEOT Universal range. At the start of winter, have
your battery checked by a
PEUGEOT dealer.
Battery
CHECKS
H a v e t h e fi l t e r e l e m e n t s r e -
placed regularly. If you drive
in dusty conditions, change
them twice as often.
Air filter and passenger compartment filter
Brake pad wear depends on
the style of driving, in par-
ticular for vehicles which are
used in town, over short dis-
tances.
Brake pads
It may be necessary to check
the thickness of the pads,
even between services. Where the handbrake travel
is too great or there is a re-
duction in the performance
of the system, the handbrake
should be adjusted.
Have the system checked by a
PEUGEOT dealer.
Handbrake
To ensure the best perform-
ance from components as im-
portant as the power steering
and the braking system, the
manufacturer selects and offers spe-
c i fi c p r o d u c t s , o n l y u s e p r o d u c t s r e c -
ommended by PEUGEOT .
To prevent damage to the electrical
units, high pressure washing of the en-
gine compartment is strictly prohibited .
U s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Open the reservoir, with the engine
at ambient temperature, the level
should always be above the MIN
mark, close to the MAX mark.
Particle emission filter - Additive reservoir (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r a n d t h e fi l l -
ing of the additive reservoir are carried
out by a PEUGEOT dealer in accord-
ance with the manufacturer’s servicing
schedule.
Disc wear status
For any information relating to check-
ing disc wear, contact a PEUGEOT
dealer.
Power steering fluid level
